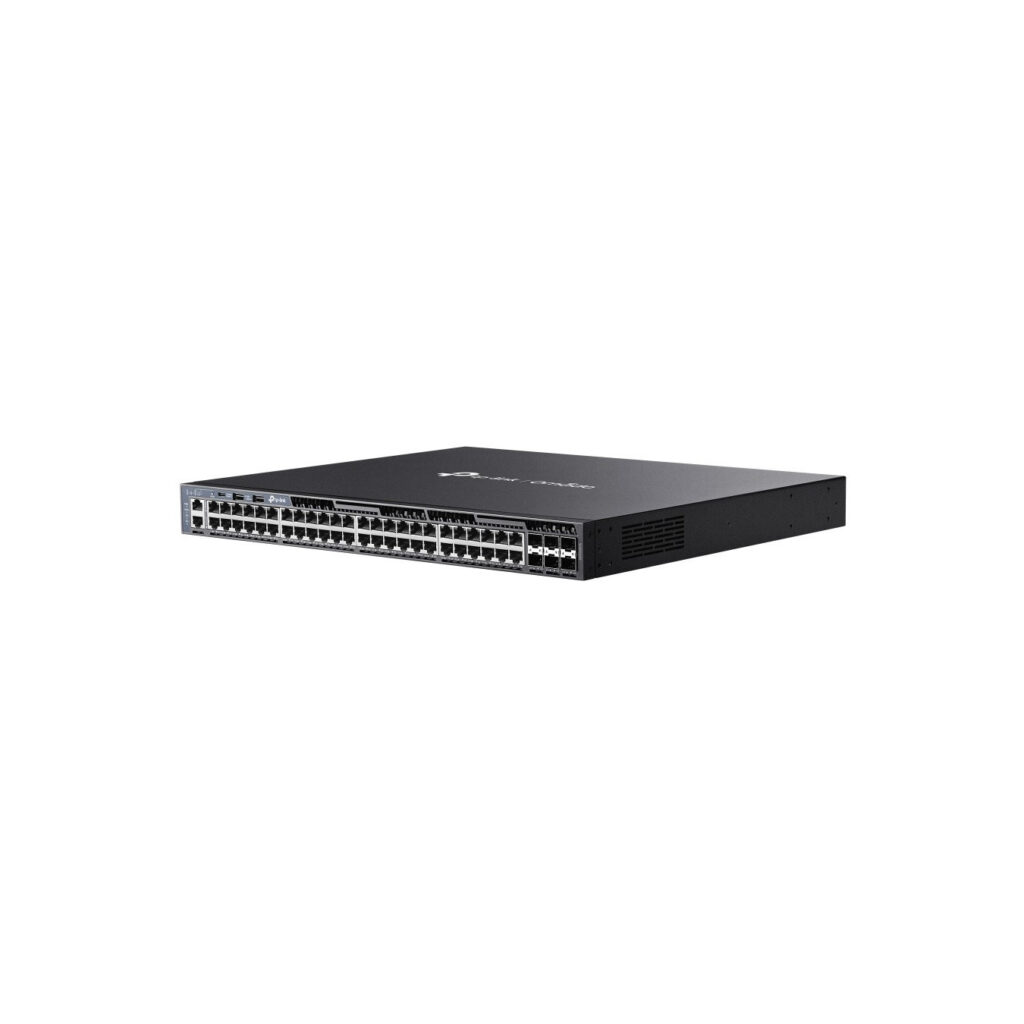

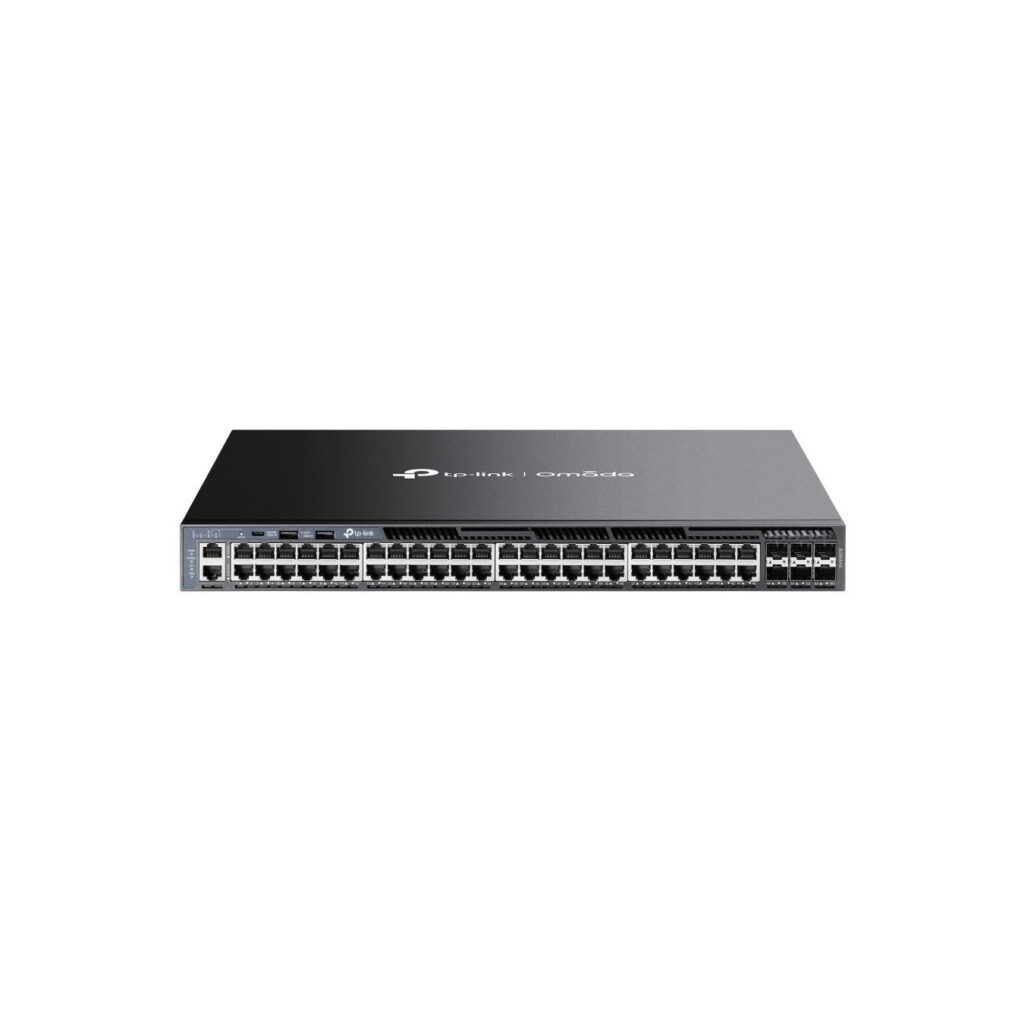

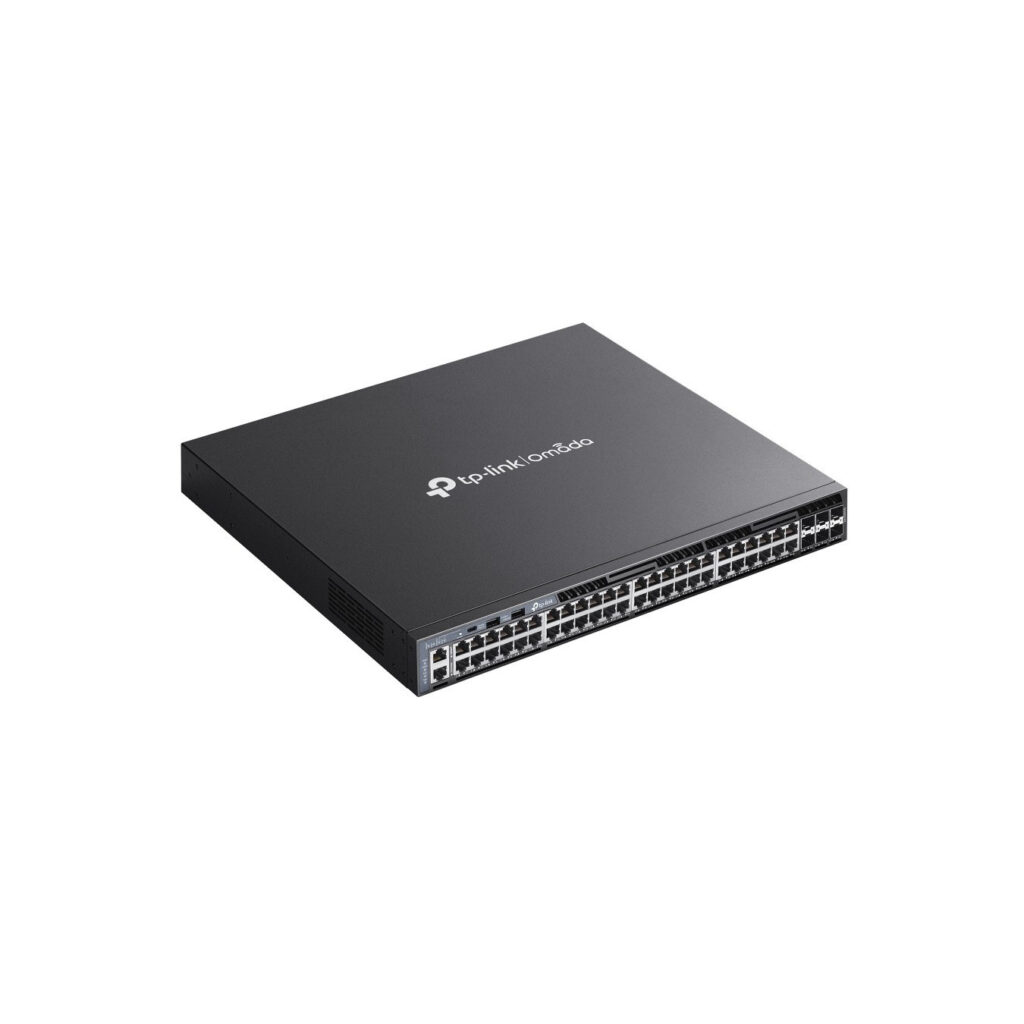

TP-Link Omada Switch 48x GE SG6654X Layer 3 - SG6654X - Black, 1U Rackmount, 48x Gigabit RJ-45, 6x SFP+
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
Managed Layer-3 Omada switch with 48 Gigabit RJ-45 ports and 6x 10G SFP+ slots; rack-mountable 1U, 4 fans, 39.8W max, black.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
TP-Link Omada 48-Port Gigabit Stackable L3 Managed Switch with 6 10G Slots. Switch type: Managed. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 48. USB 2.0 ports quantity: 2. Console port: RJ-45/USB Type-C. MAC address table: 32000 entries. Switching capacity: 216 Gbit/s. Networking standards: IEEE 802.1Q. IEEE 802.1p. IEEE 802.3x. Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L3 |
| Feature | Manual |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 6 |
| Console port | RJ-45/USB Type-C |
| USB 2.0 ports quantity | 2 |
| Networking standards | IEEE 802.1Q. IEEE 802.1p. IEEE 802.3x |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Virtual LAN features | MAC address-based VLAN. Multicast VLAN. Private VLAN. Voice VLAN |
| Number of VLANs | 4000 |
| Switching capacity | 216 Gbit/s |
| Forwarding rate | 160.7 Mpps |
| MAC address table | 32000 entries |
| Jumbo frames | 9000 |
| Packet buffer memory | 3 MB |
| DHCP features | DHCP relay. DHCP snooping. DHCPv6 snooping |
| IGMP entries | 2048 |
| Authentication | Auto VLAN. MAC-based authentication. Port-based authentication |
| Authentication type | RADIUS |
| Form factor | 1U |
| Product colour | Black |

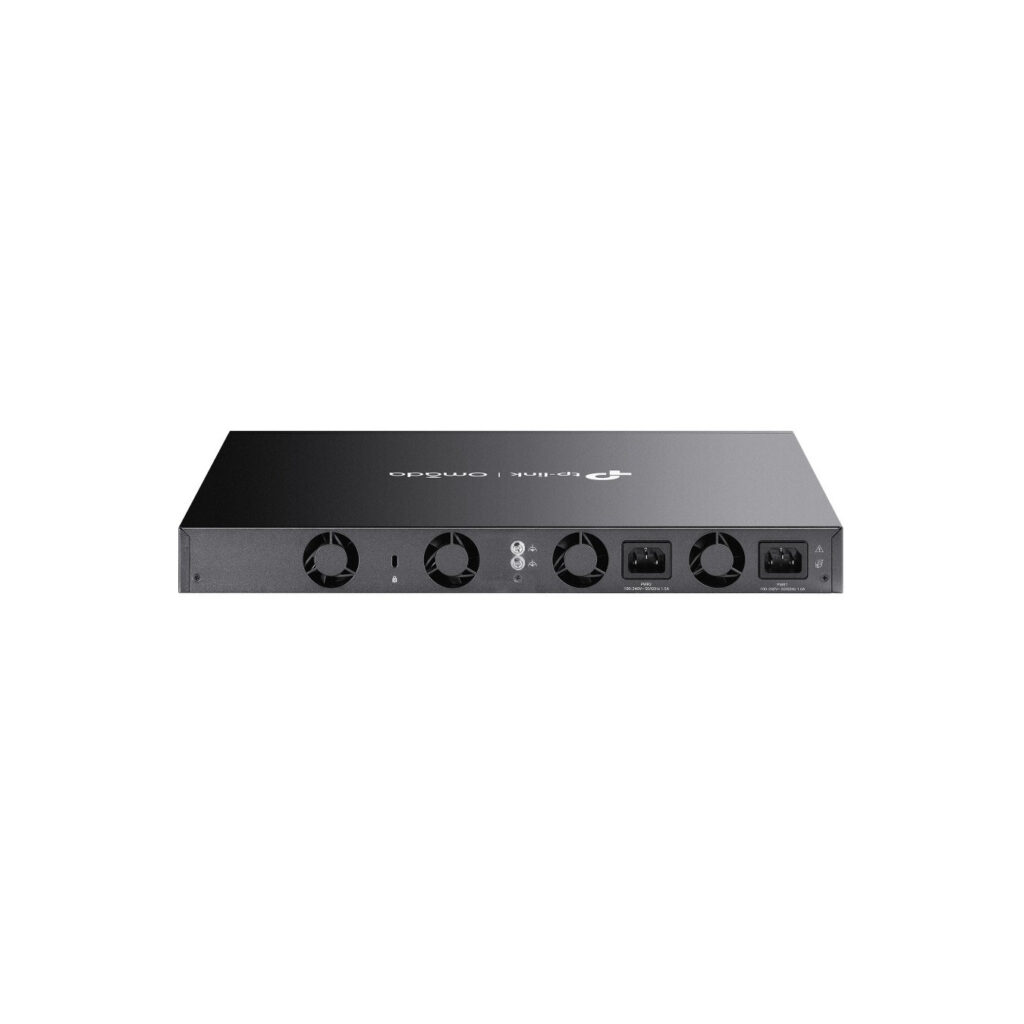

| Number of fans | 4 fan(s) |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 39.8 W |
| Operating temperature (T-T) | -5 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 135.81 BTU/h |
| Width | 440 mm |
| Depth | 380 mm |
| Height | 44 mm |
| Cables included | AC. LAN (RJ-45) |
