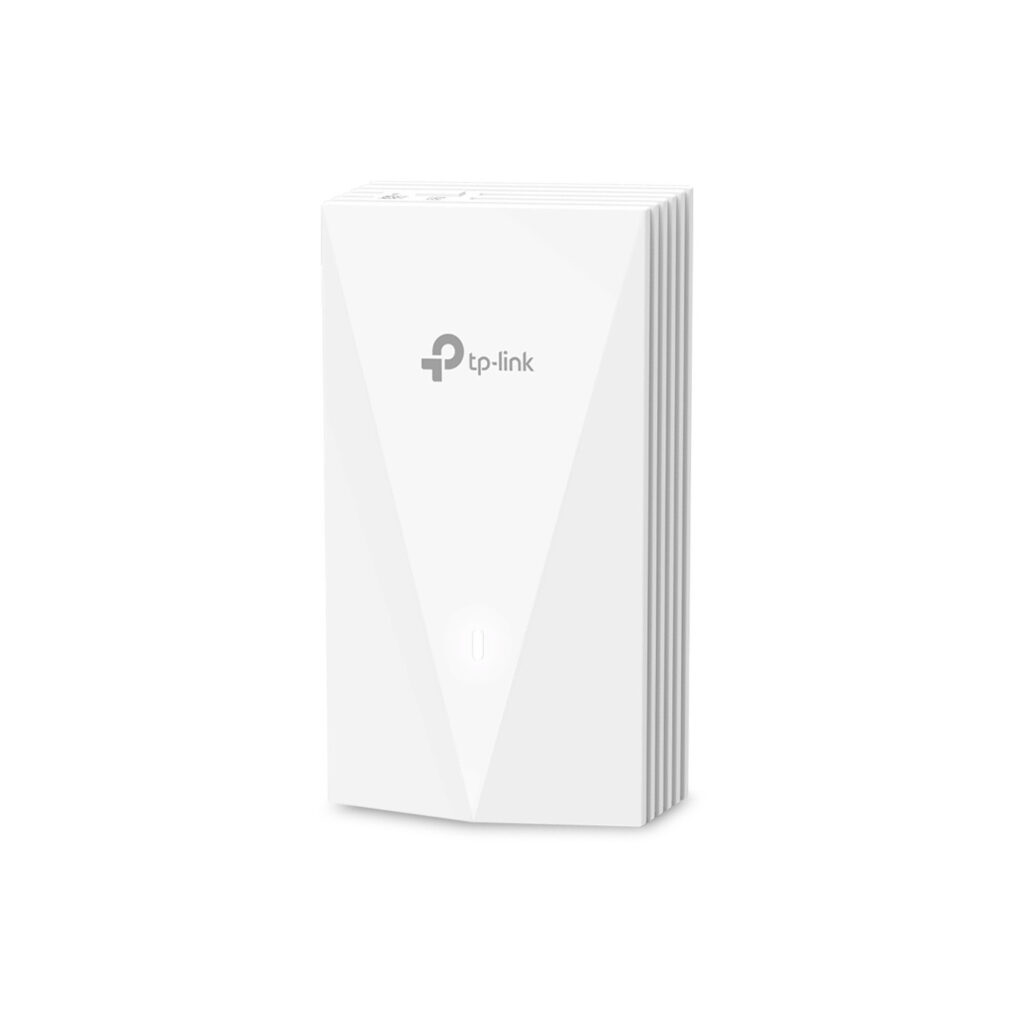

TP-Link Omada EAP655-Wall - AX3000 Wi-Fi 6 Wall-Plate AP, White, Dual-Band, 4x Gigabit LAN
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
AX3000 Wi‑Fi 6 wall-plate AP, dual-band 2.4/5 GHz up to 2402 Mbps, 4× Gigabit RJ45, PoE, internal antennas, WPA3-Enterprise, 16 SSIDs, up to 100 users.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
TP-Link Omada AX3000 Wall Plate WiFi 6 Access Point. 2.4 GHz. 5 GHz. Maximum data transfer rate: 2402 Mbit/s. Security algorithms: HTTPS. SNMP. SNMPv2. SNMPv3. SSH. WPA-Enterprise. WPA2-Enterprise. WPA3-Enterprise. Ethernet LAN data rates: 10.100.1000 Mbit/s. Power over Ethernet (PoE). Product colour: White
| Feature | Mounting kit |
| Maximum data transfer rate | 2402 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Frequency band | 2.4. 5 GHz |
| Networking standards | IEEE 802.11a. IEEE 802.11ac. IEEE 802.11ax. IEEE 802.11b. IEEE 802.11g. IEEE 802.11n. IEEE 802.1x. IEEE 802.3af. IEEE 802.3at |
| Cabling technology | 10/100/1000Base-T(X) |
| Number of users | 100 user(s) |
| Transmitting power (CE) | 20 - 23 - 26 dBm |
| Transmitting power (FCC) | 21 - 21 dBm |
| Security algorithms | HTTPS. SNMP. SNMPv2. SNMPv3. SSH. WPA-Enterprise. WPA2-Enterprise. WPA3-Enterprise |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 16 |
| Ethernet LAN (RJ-45) ports | 4 |
| WAN connection | Ethernet (RJ-45) |
| Power consumption (typical) | 12 W |
| Placement | Wall |
| Product colour | White |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Antenna gain level (max) | 5 dBi |
| Compatible operating systems | Microsoft Windows XP. Vista. Windows 7. Windows 8. Windows10. Windows 11. Linux |
| Compliance certificates | RoHS |
| Certification | FCC. RoHS |
| Width | 143 mm |
| Depth | 86 mm |
| Height | 42.6 mm |
| Package width | 117 mm |
| Package depth | 184 mm |
| Package height | 56 mm |
| Package weight | 400 g |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
