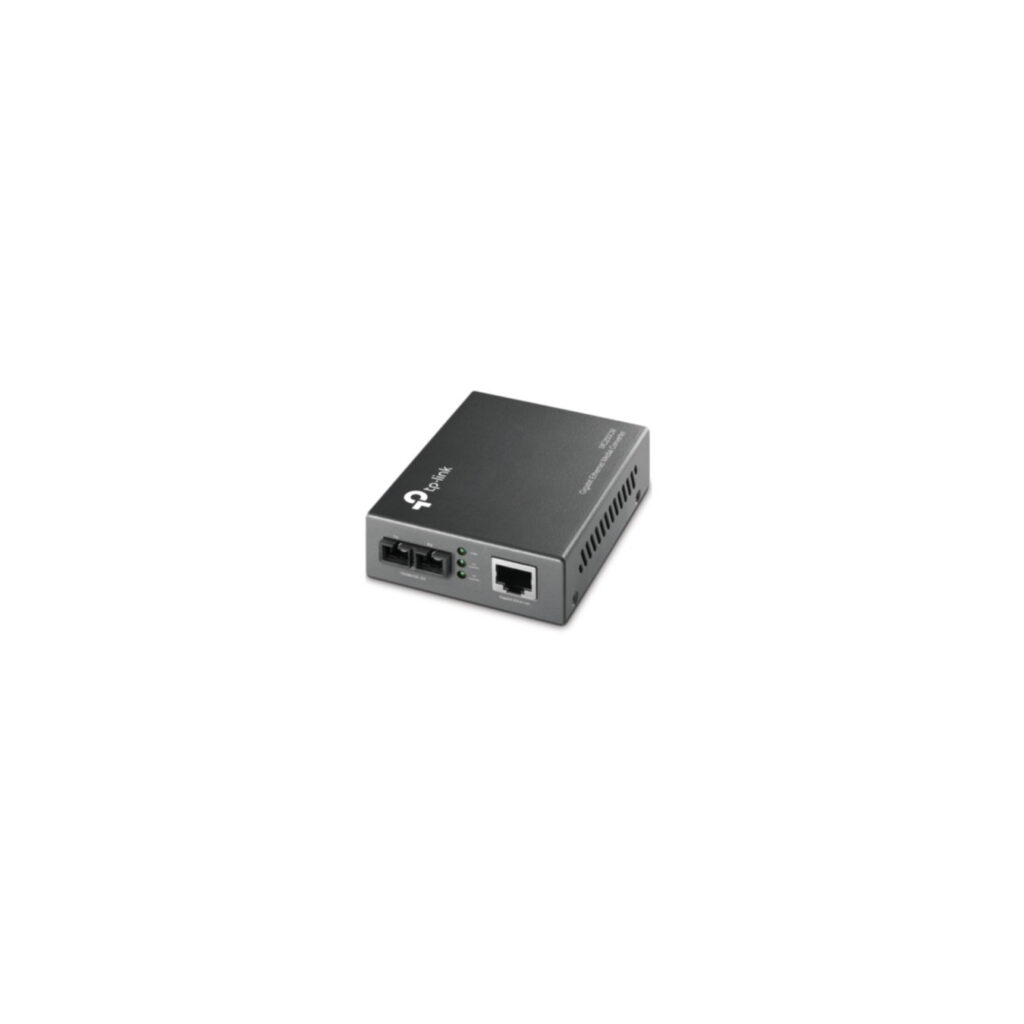

TP-Link Media Converter - MC200CM V5 - Gigabit Ethernet to SC Multi-Mode Fiber (850nm, 550m) - Black
Login
Compact gigabit media converter with 1x RJ45 and 1x SC multi-mode fiber (850 nm) up to 550 m, auto MDI/MDIX, LED indicators, low power (1.66 W), black.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
TP-Link Gigabit Multi-Mode Media Converter. Maximum data transfer rate: 1000 Mbit/s. Networking standards: IEEE 802.3ab. IEEE 802.3x. IEEE 802.3z. Ethernet interface type: Gigabit Ethernet. Maximum transfer distance: 550 m. Wavelength: 850 nm. Fiber mode structure: Multi-mode. LED indicators: Activity. Link. Product colour: Black. Fiber optic connector: SC. Connectivity technology: Wired. Power consumption (typical): 5.5 W
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3ab. IEEE 802.3x. IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 1000 Mbit/s |
| Fiber ethernet cabling technology | 1000BASE-FX. 1000BASE‑SX |
| Feature | Internal |
| Cable types supported | Cat6 |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber mode structure | Multi-mode |
| LED indicators | Activity. Link |
| Product colour | Black |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Power consumption (typical) | 5.5 W |
| Width | 94.5 mm |
| Depth | 73 mm |
| Height | 27 mm |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Package width | 165 mm |
| Package depth | 204 mm |
| Package height | 65 mm |
| Package weight | 440 g |
| Compliance certificates | RoHS |
| Certification | FCC. CE |
