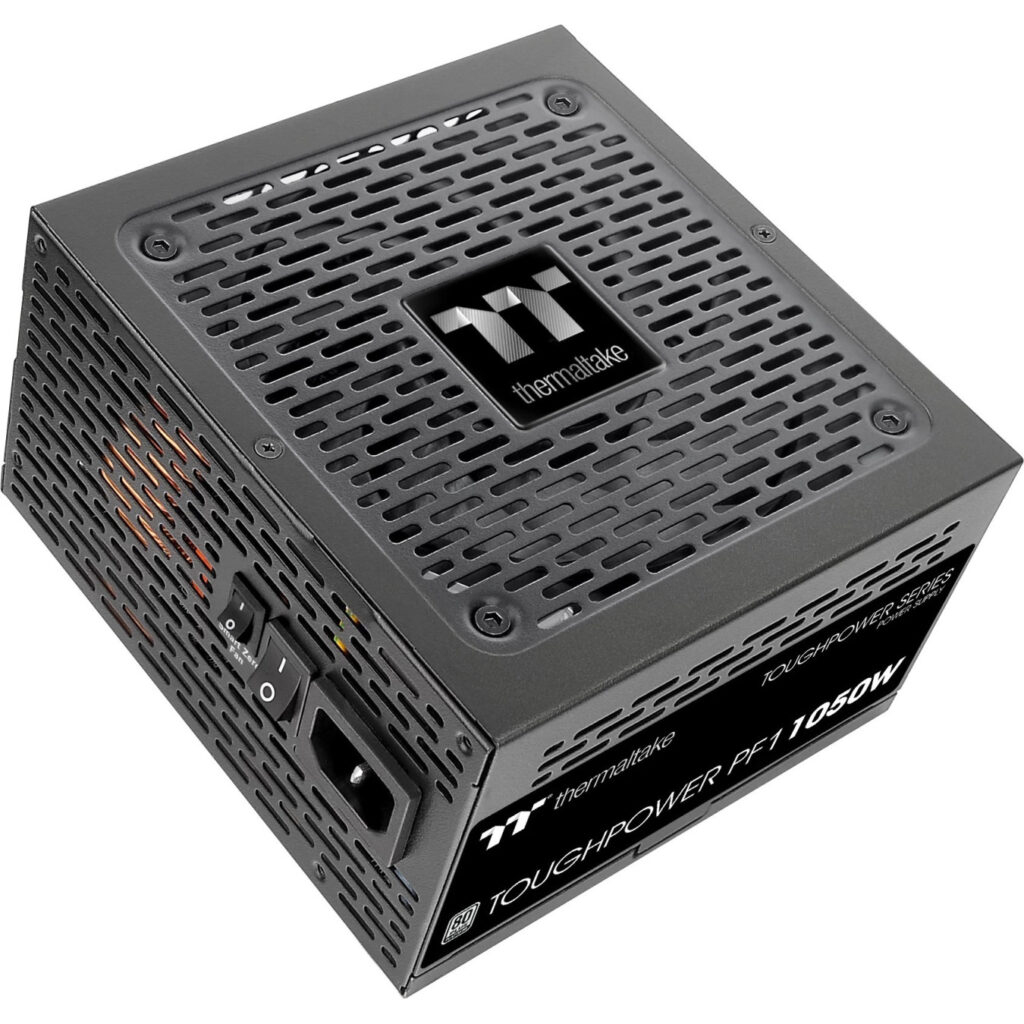

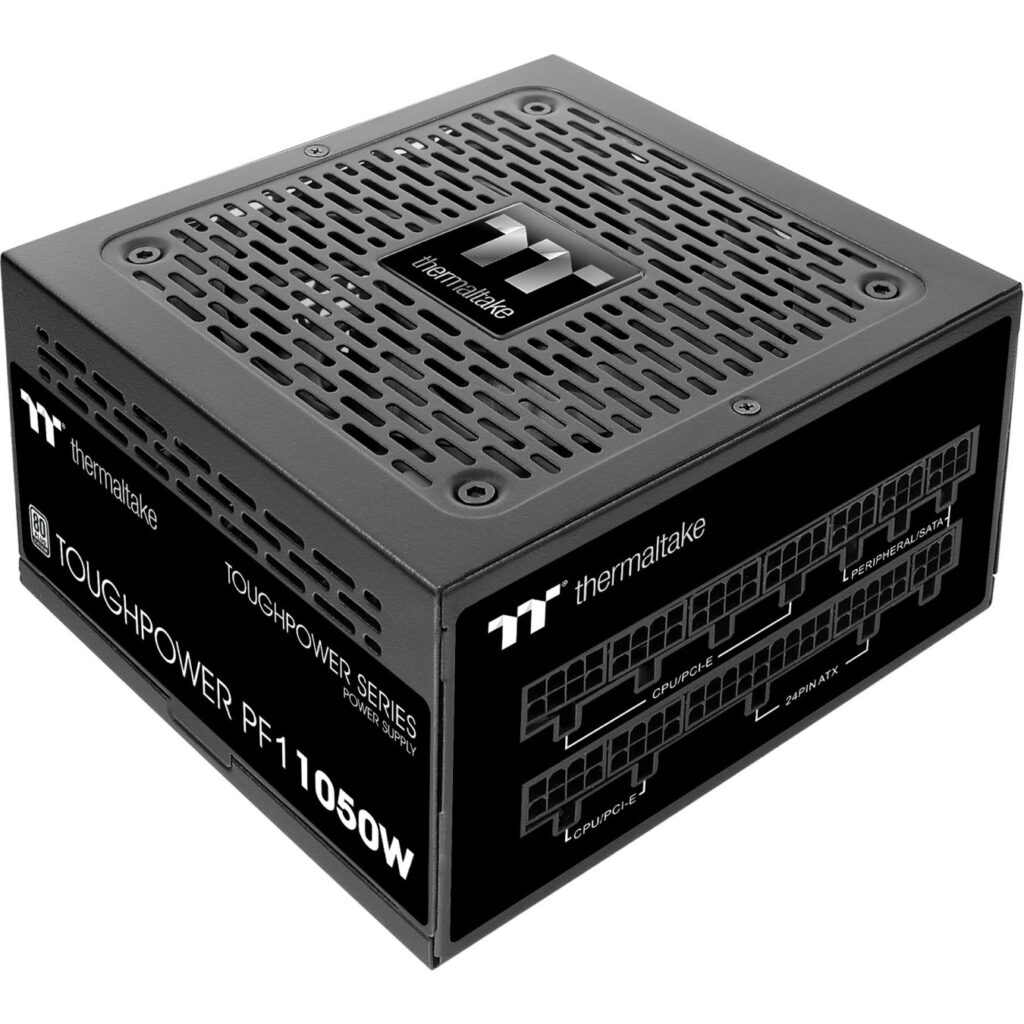

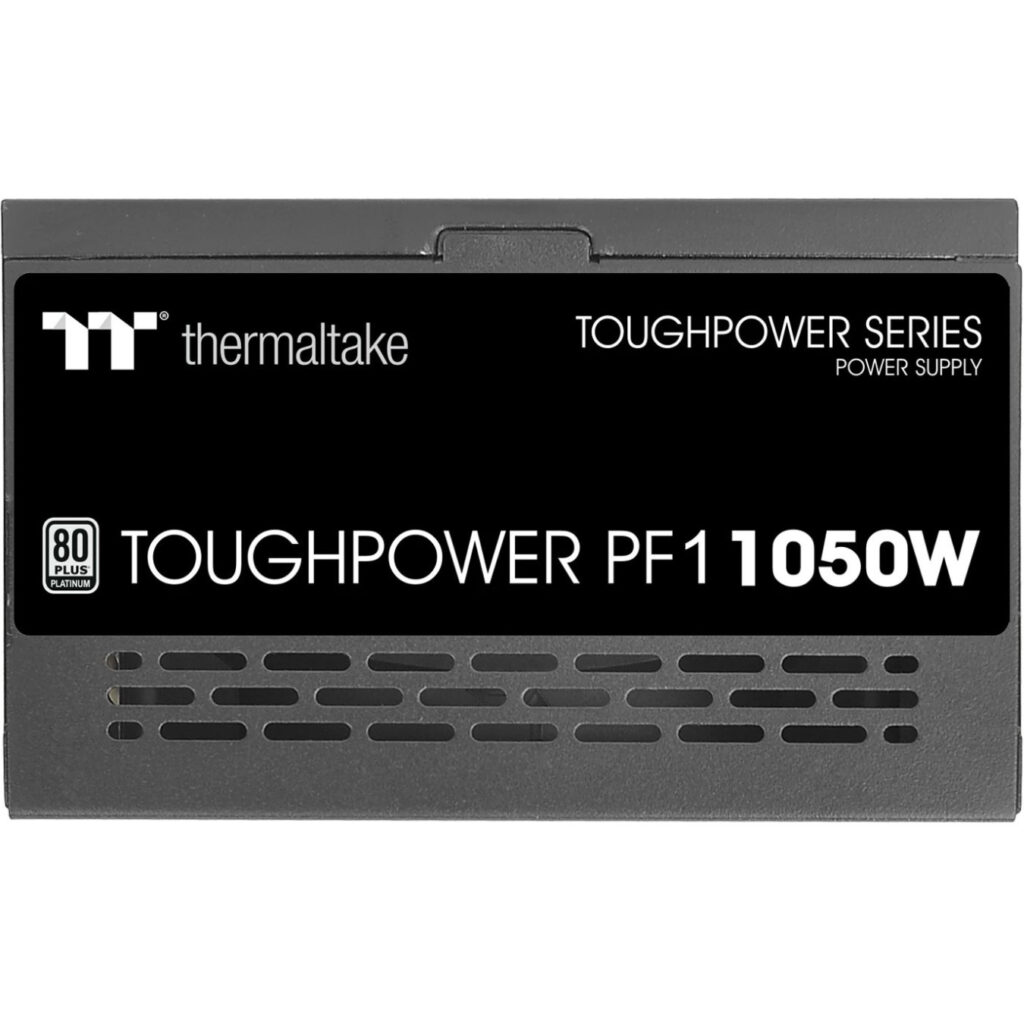

Thermaltake Toughpower PF1 1050W PSU - PF1 - Black, 80+ Platinum, Fully Modular
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
1050W PF1 PSU with 80+ Platinum efficiency, fully modular cables, black color, 24-pin ATX, 120mm fan, MTBF 120,000 h.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Thermaltake Toughpower PF1. Total power: 1050 W. AC input voltage: 100 – 240 V. Peak power: 1260 W. Motherboard power connector: 24-pin ATX. Motherboard power cable length: 60 cm. SATA power cable length: 500.650.800.950 mm. Purpose: PC. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS Platinum. Product colour: Black. Fan diameter: 12 cm. Number of fans: 1 fan(s). Certification: CE/UL/TÜV/FCC/CB
| Total power | 1050 W |
| Peak power | 1260 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 8 - 16 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 1050 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 87.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Hold time | 16 ms |
| Power protection features | Over current. Over power. Over voltage. Overheating. Short circuit. Under voltage |
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 12 |
| SATA power cable length | 500.650.800.950 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 500.650.800.950 mm |
| Feature | Cable tie(s) included |
| PCI Express power connectors (6+2 pin) | 8 |
| PCI Express power cable length | 65 cm |
| Floppy drive power connector | 1 |
| Floppy disk drive cable length | 15 cm |

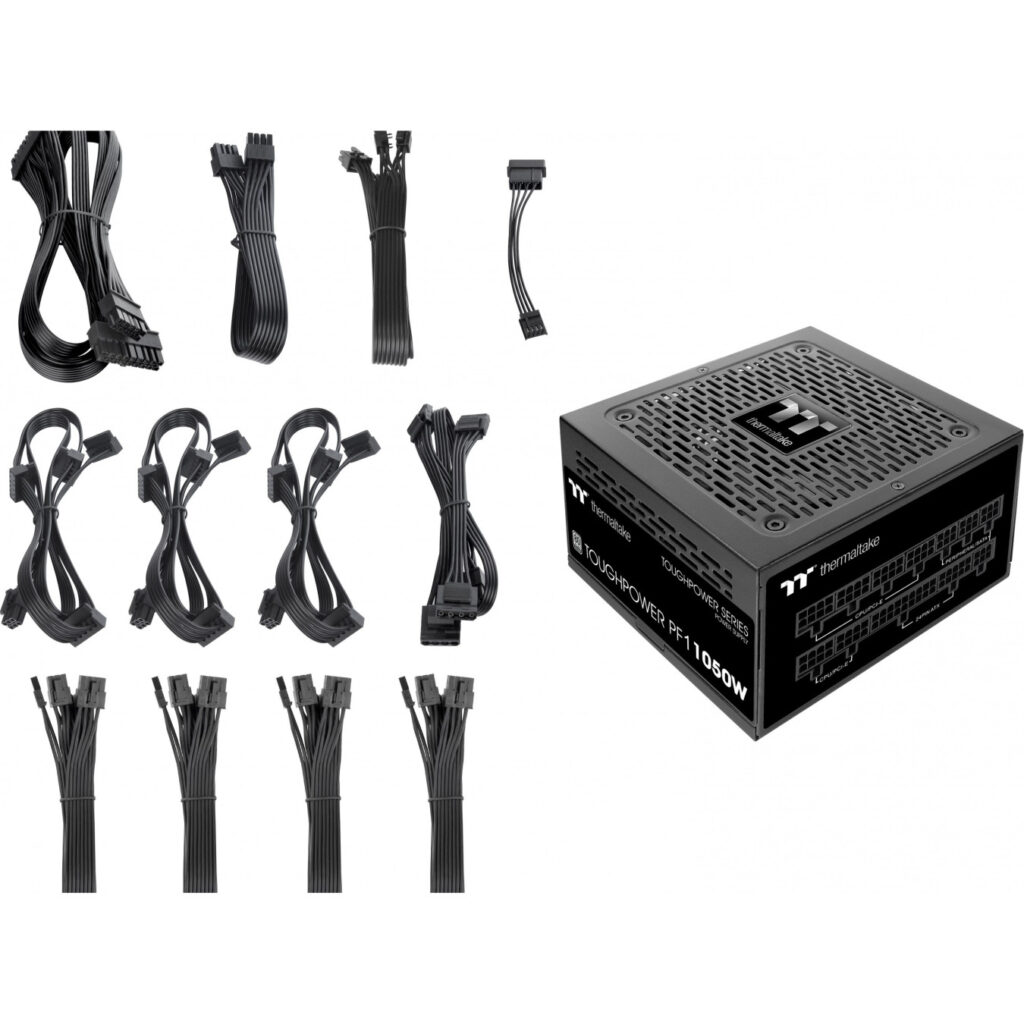

| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Platinum |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Bearing technology | HDB |
| Mean time between failures (MTBF) | 120000 h |
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -40 - 55 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 10 - 95% |
| Certification | CE/UL/TÜV/FCC/CB |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
