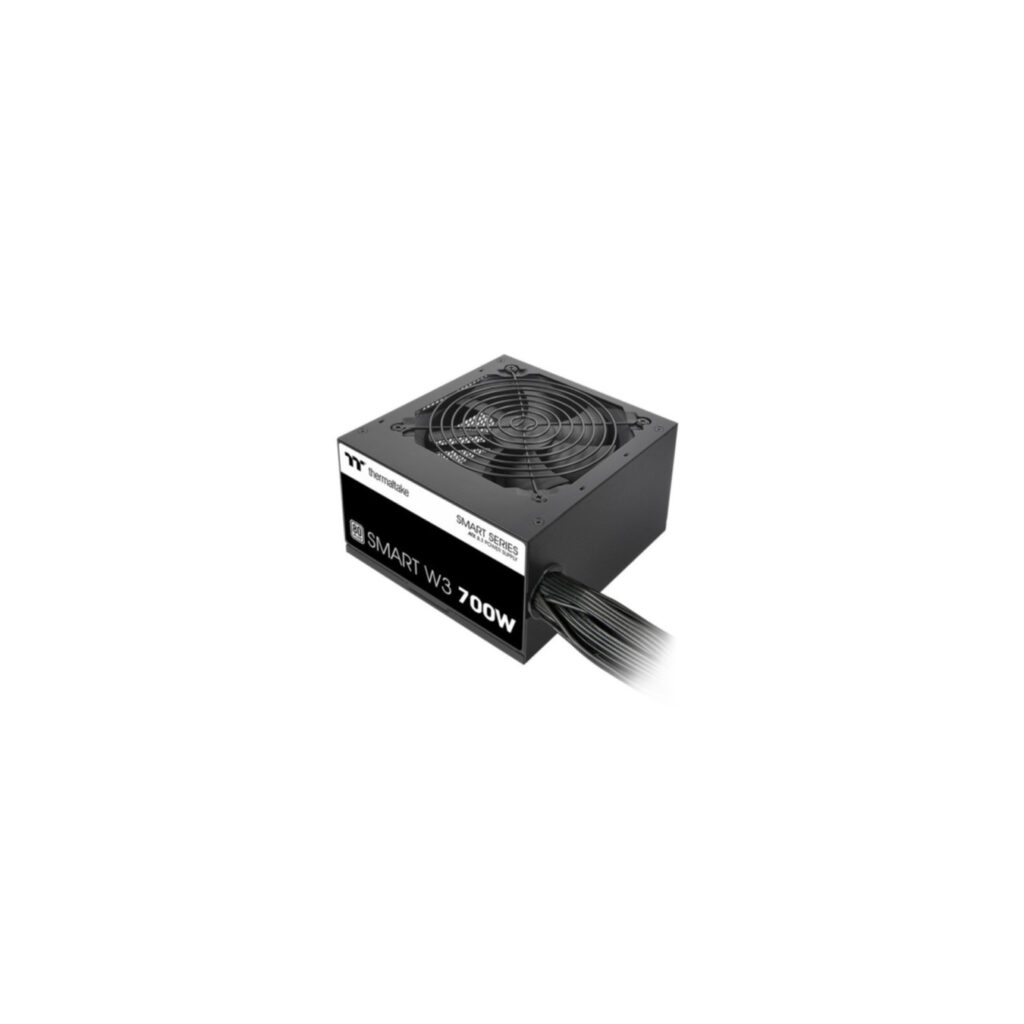

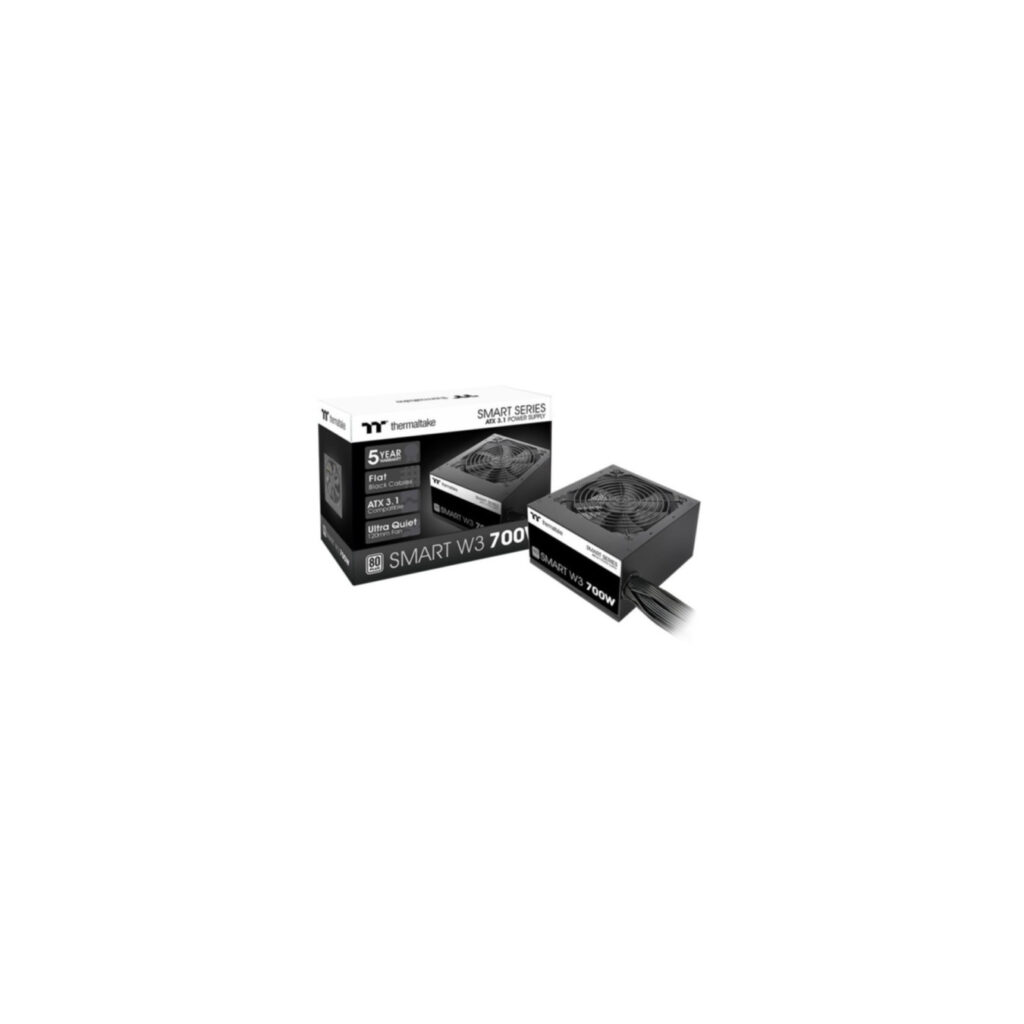

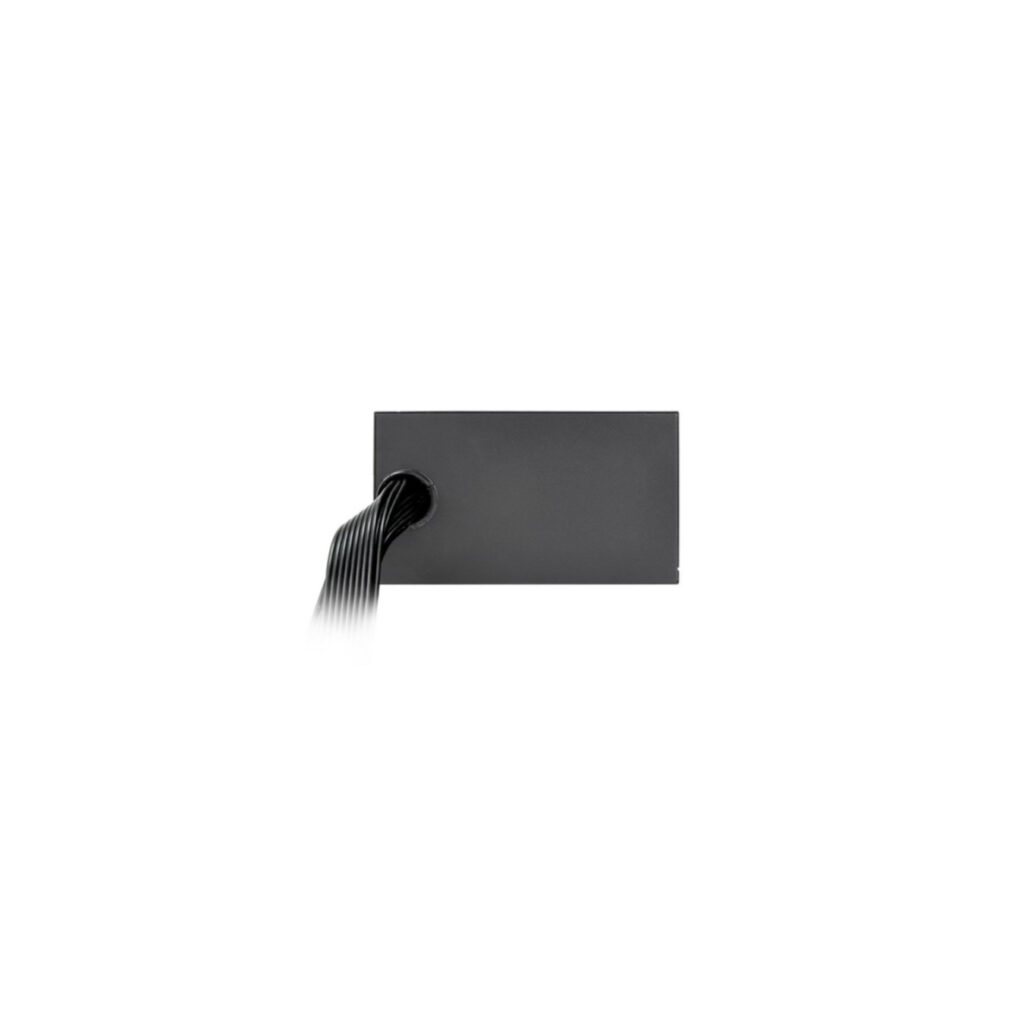

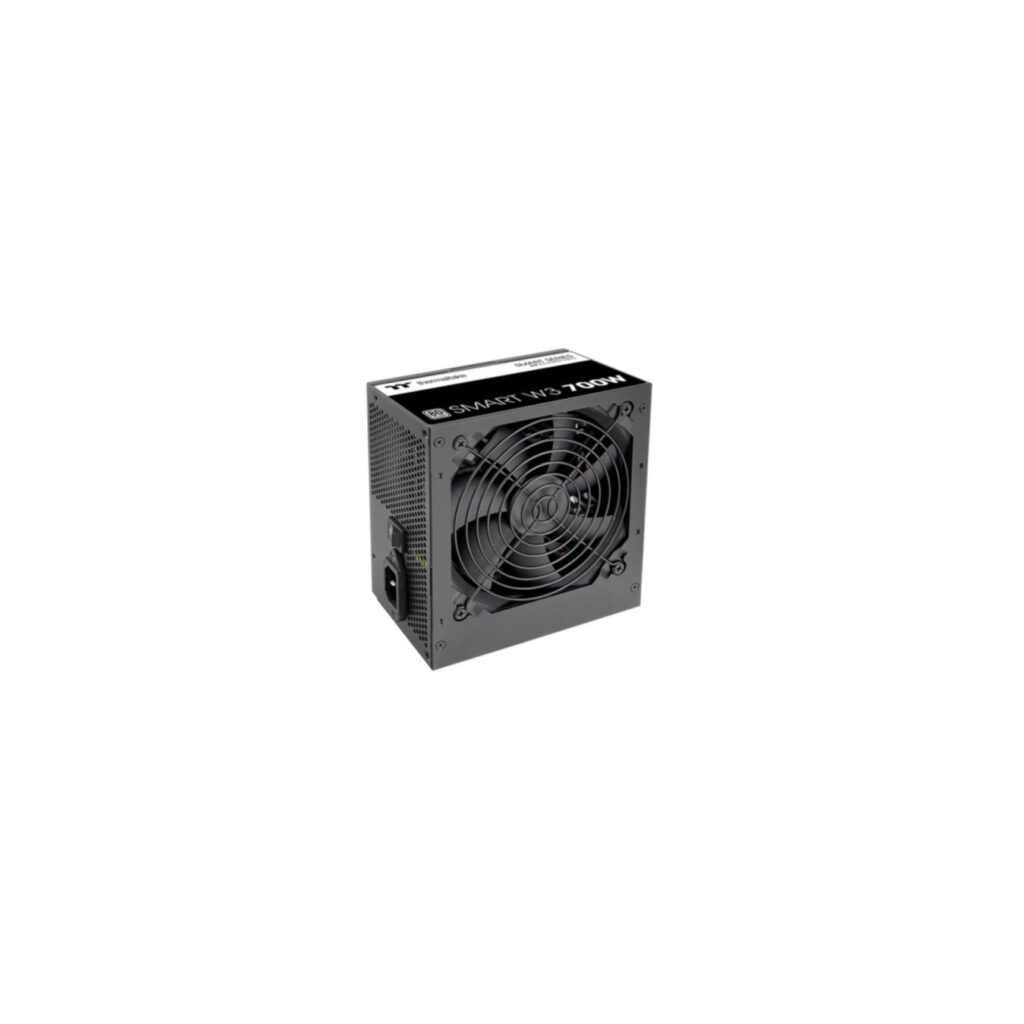

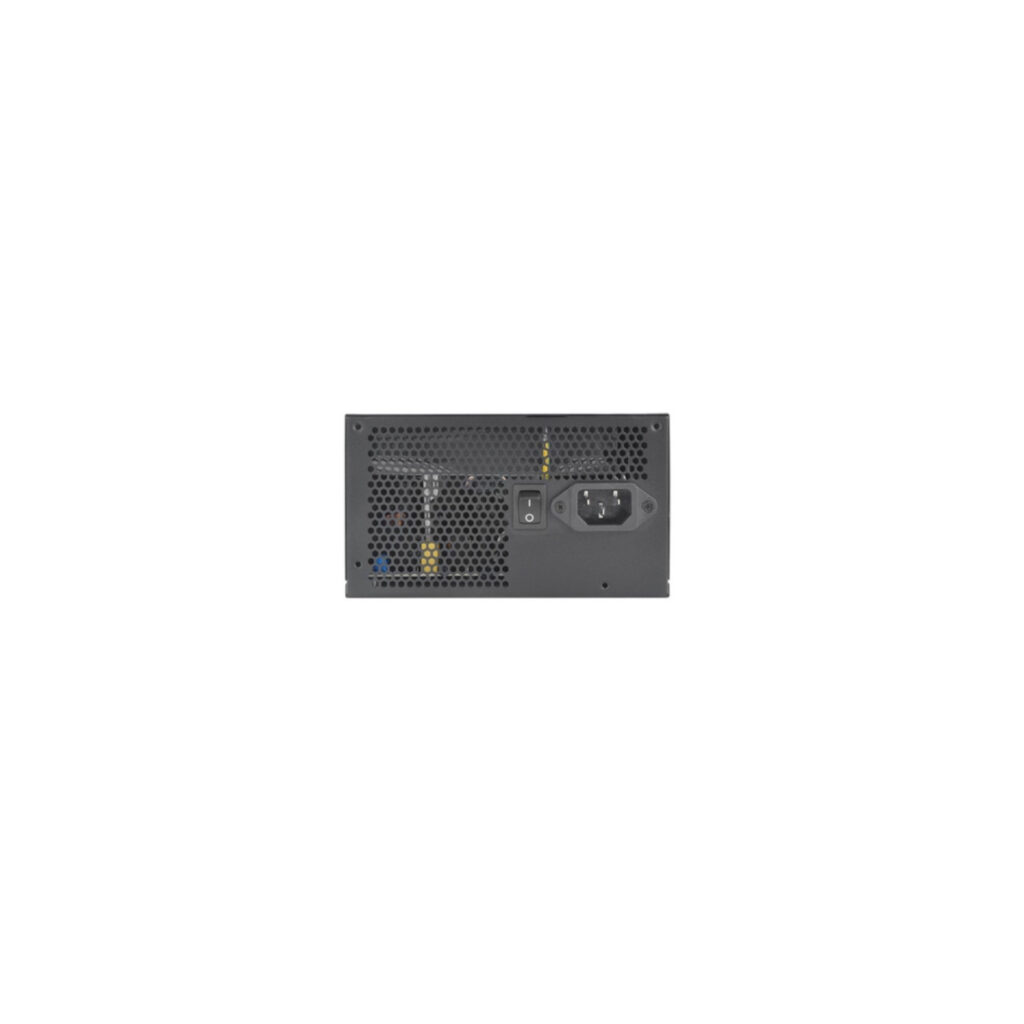

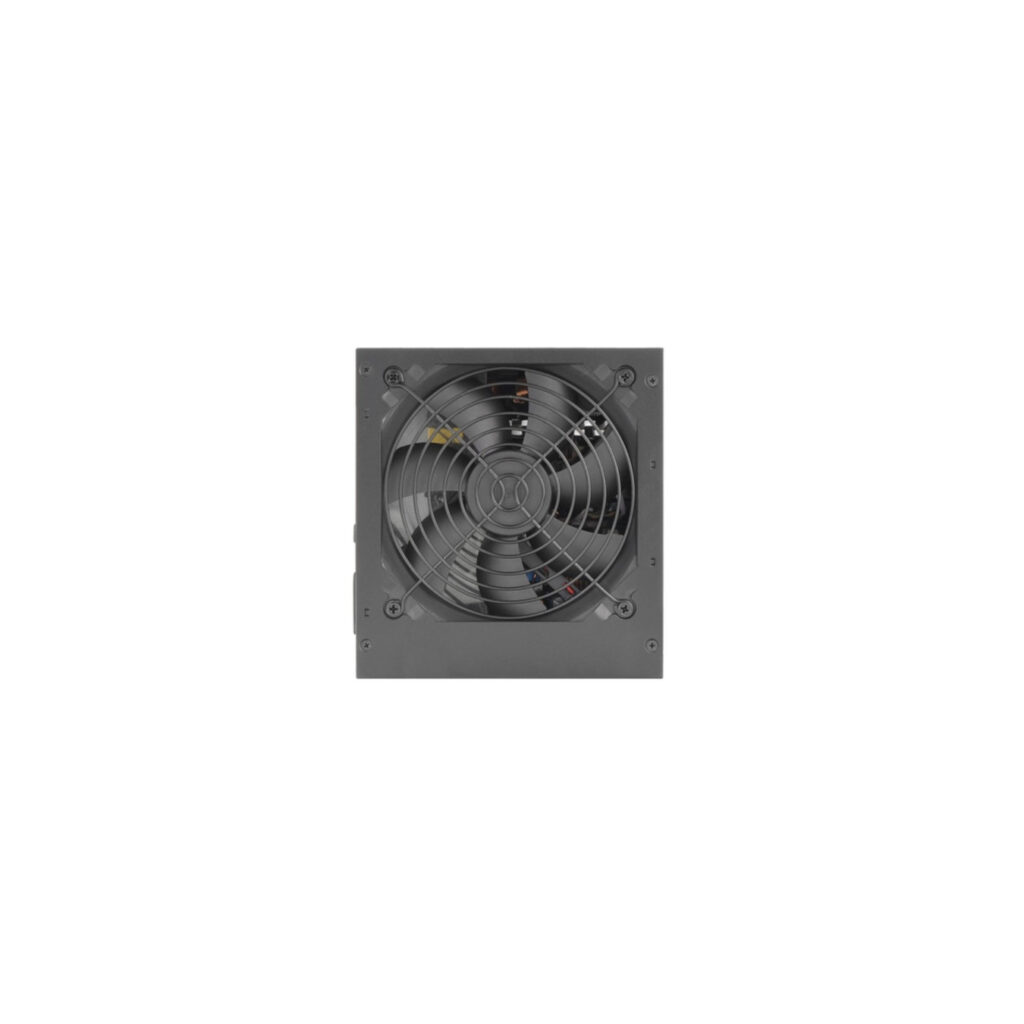

Thermaltake Smart W3 700W ATX 3.1 PSU Non-Modular Black 120mm FDB 80 PLUS
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
700W Thermaltake Smart W3 non-modular ATX 3.1 PSU. 80 PLUS certified, 120mm FDB fan, 1x 24-pin ATX, 1x EPS 4+4, 2x PCIe 6+2, 4x SATA, 4x Molex. Active PFC, full protections, 5-year warranty. Ideal budget PC builds.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The Thermaltake Smart W3 700W is a reliable non-modular power supply designed for modern PC builds, fully compliant with ATX 3.1 standards for compatibility with the latest GPUs and components. Featuring a quiet 120mm Fluid Dynamic Bearing (FDB) fan, Active Power Factor Correction (PFC), and 80 PLUS certification for energy efficiency, it delivers stable power with a single +12V rail rated at 58.33A (700W total).
Key connectors include 1x 24-pin ATX (60cm), 1x EPS/ATX12V 4+4 pin, 2x PCIe 6+2 pin (65cm), 4x SATA, and 4x 4-pin Molex peripherals. Multiple protections guard against over-current, over-power, over-voltage, overheating, short-circuit, and under-voltage issues. Compact dimensions (150x86x140mm) fit most ATX cases, with a 5-year warranty for peace of mind. Perfect for mid-range gaming rigs or everyday systems.
- ATX 3.1 Compliant: Supports native 12VHPWR/12V-2×6 via adapters if needed (2x 6+2 provided).
- Efficiency & Cooling: 80 PLUS rated, 120mm FDB fan for low noise.
- Protections: OCP/OPP/OVP/SCP/OTP/UVP.
- Warranty: 5 years.
| Total power | 700 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 12 - 6 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 700 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 58.33 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 17 ms |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 500, 650, 800, 950 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 500, 650, 800, 950 mm |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 65 cm |
| ATX Power connector (24-pin) | Yes |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -40 - 55 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 10 - 95% |
| Certification | CB/FCC/cTUVus/ICES |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Package type | Box |
| Warranty | 5 years |
