Thermaltake Smart BX3 Pro SE 750W 80+ Bronze ATX3.1 - PS-SPD-0750NNSABx-7
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
750W non-modular PSU with 80 PLUS Bronze certification, ATX 3.1 compliant. Features native PCIe 5.1 12V-2×6 connector, 2x 6+2pin PCIe, 2x EPS, 120mm fan. Stable single +12V rail with full protections. Ideal for modern gaming PCs.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

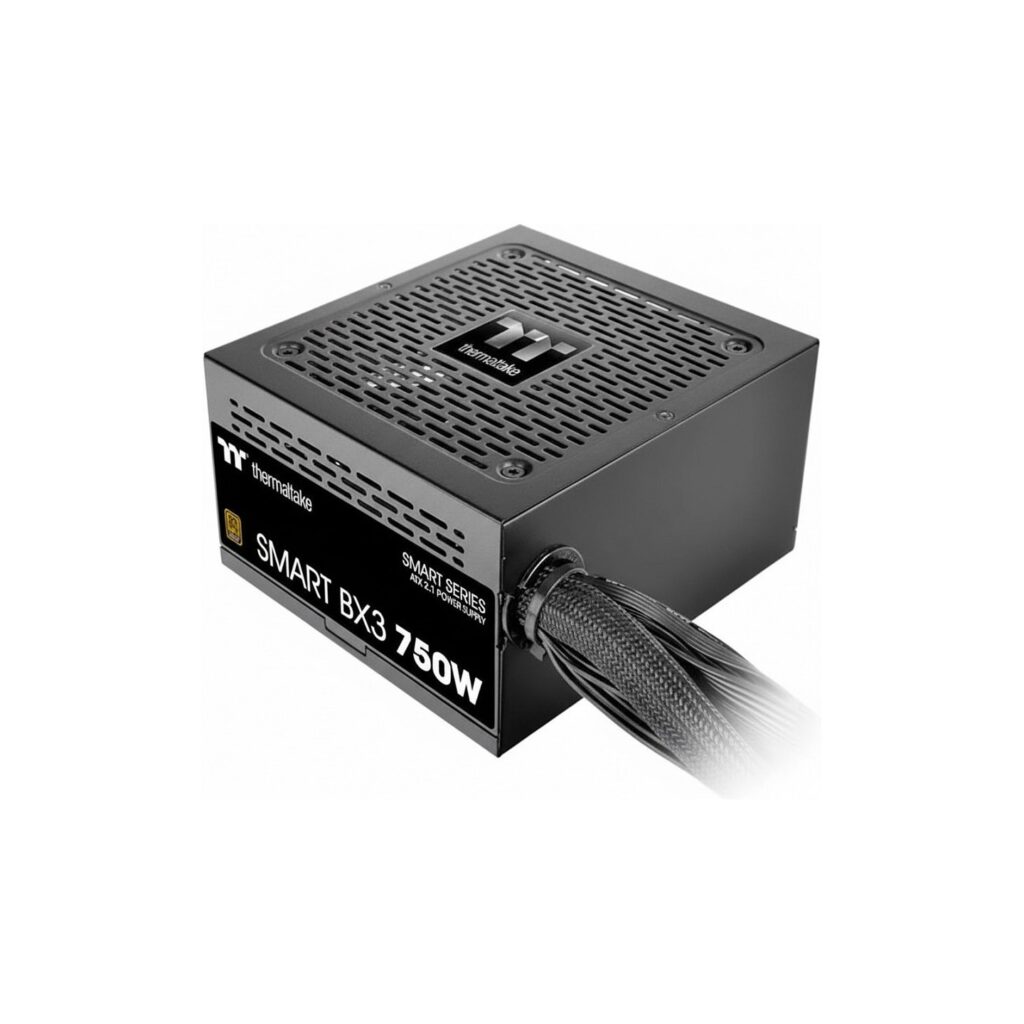

The Thermaltake Smart BX3 Pro SE 750W is a reliable non-modular power supply certified 80 PLUS Bronze for up to 88% efficiency. Compliant with Intel ATX 3.1 standard, it includes a native PCIe Gen 5.1 12V-2×6 connector for next-gen GPUs, plus 2x 6+2pin PCIe connectors. Features a powerful single +12V rail (62.5A) with DC-to-DC design and 105°C main capacitor for stable power delivery even at 40°C.
Equipped with 120mm Fluid Dynamic Bearing fan for quiet cooling, low-profile flat black cables for easy management, and comprehensive protections: OCP, OVP, OPP, OTP, UVP, SCP. Compact dimensions (150x86x140mm) fit most ATX cases. Backed by safety approvals (CE/UKCA/CB/CCC/TUV) and 100,000 hours MTBF.
- ✅ 80 PLUS Bronze certified efficiency
- ✅ ATX 3.1 & PCIe 5.1 ready with 12V-2×6 connector
- ✅ 2x EPS 4+4pin, 4x SATA, 4x Molex connectors
- ✅ Non-modular design with flat cables
- ✅ Full protection suite & 5-year warranty
| Model | PS-SPD-0750NNSABx-7 |
| Power Output | 750W |
| Efficiency Certification | 80 PLUS Bronze |
| ATX Standard | ATX 3.1 |
| PCIe Connectors | 1x 12V-2x6 (PCIe 5.1), 2x 6+2pin |
| EPS Connectors | 2x 4+4pin |
| SATA Connectors | 4x |
| Molex Connectors | 4x 4pin |
| Fan Size | 120mm FDB |
| Modularity | Non-modular |
| Dimensions (WxHxD) | 150 x 86 x 140 mm |
| PFC | Active PFC |
| Protections | OCP/OVP/OPP/OTP/UVP/SCP |
| Main Capacitor | 105°C Japanese |
| MTBF | 100,000 hours |
| +12V Rail | 62.5A (750W) |
