Sonoff - SPM-4Relay - 20A Wifi Smart Switch
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
4-channel 20A WiFi smart switch with DIN rail mounting and energy monitoring. Main unit required with at least one 4-relay in the stackable power meter; total 4800W.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

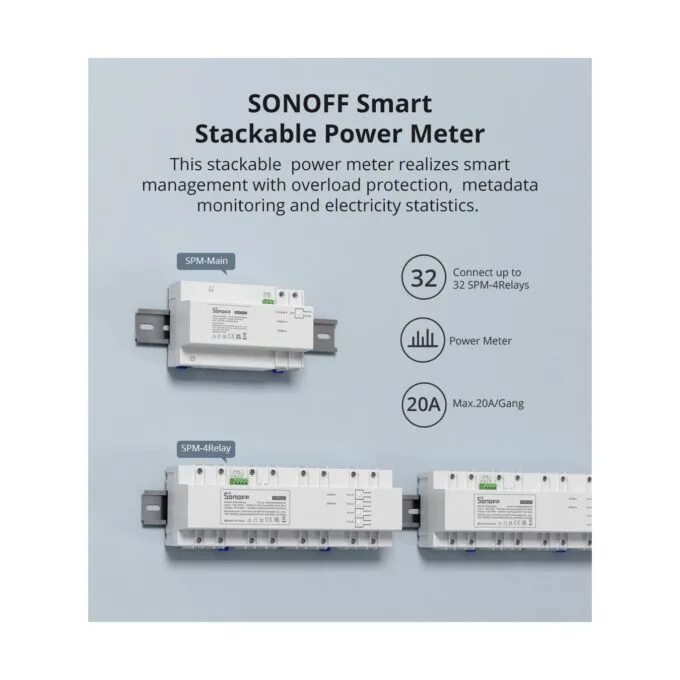

Note : The Main Unit and 4-Relay of the Stackable Power Meter need to be used together. The Main Unit is connected to at least one 4-Relay in order to function

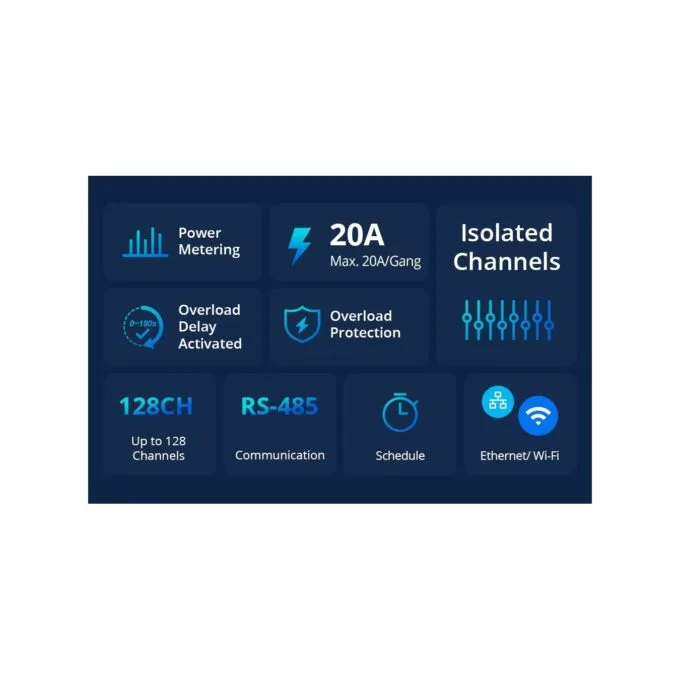

Max. 20A/Gang.Each channel can support maximum current of 20A, no fear of high power load

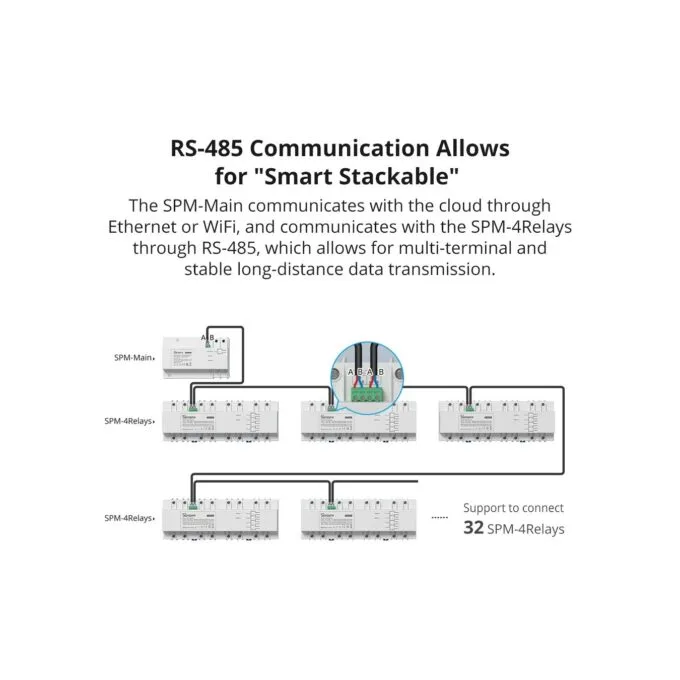

Communicated by RS-485.The SPM-Main communicates with the SPM-4Relays through RS-485, which allows for multi-terminal and stable long-distance data transmission

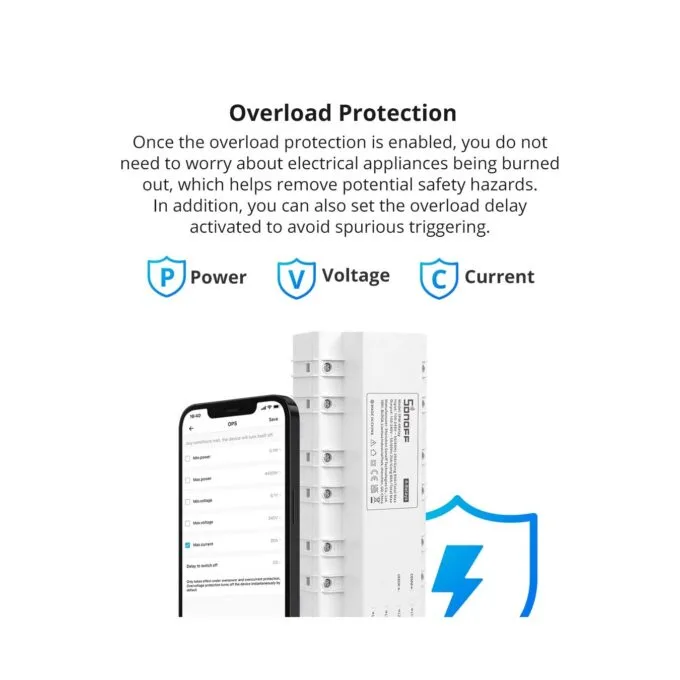

Overload Protection.Once the overload protection is enabled, it can protect your devices from burning out.
- Model : SPM-4Realy
- Input : 100-240V AC 50/60Hz 20A /Gang 80A/Total Max
- Output : 100-240V AC 50/60Hz 20A /Gang 80A/Total Max
- Color : White
- Material : PC V0
- Dimension : 250X90X66.5mm
| Current | 20A |
| Type | Actuator |
| Din Rail Mount | Yes |
| Output | 4 X Line Out |
| Energy Monitor | Yes |
| Wattage | 4800W |
