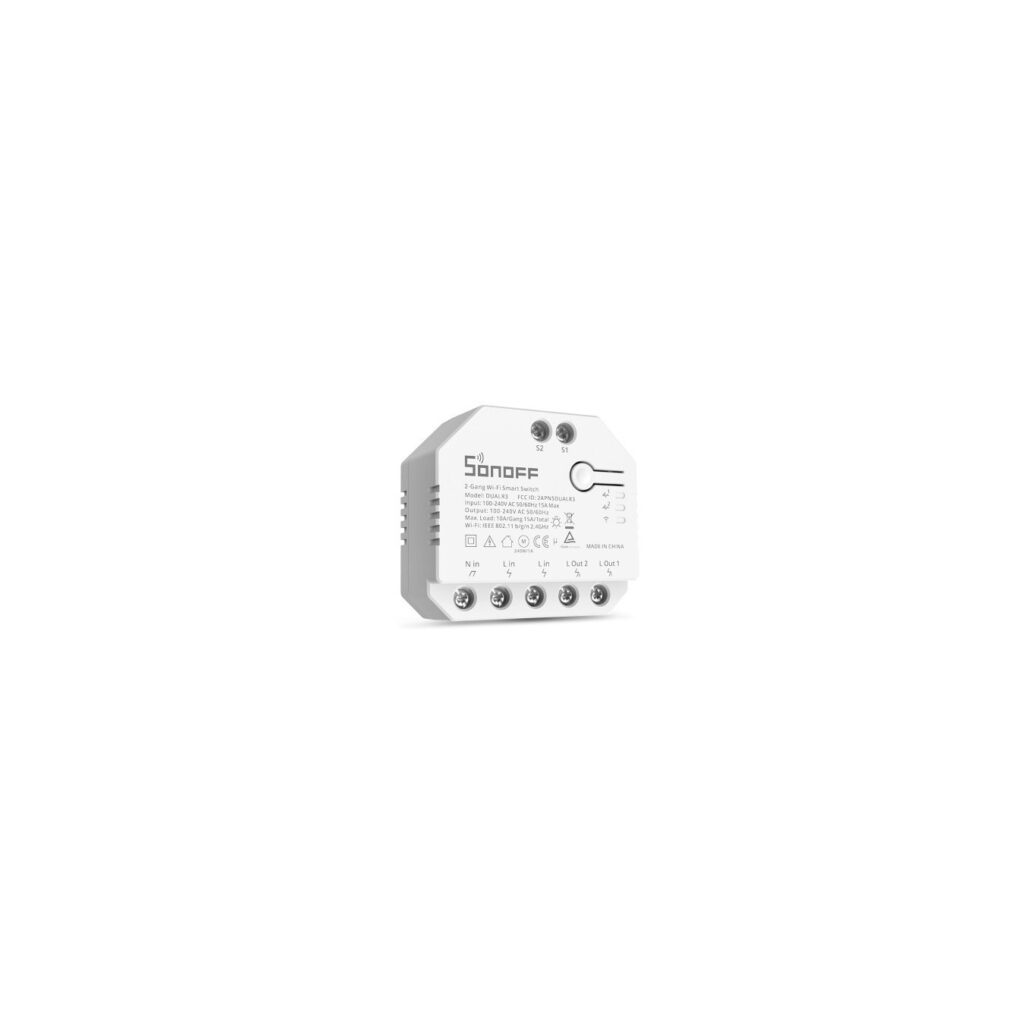

Sonoff Dual - R3 - Dual Relay-Power Metering Wifi Smart Switch
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
Turn curtains and blinds smart with Sonoff Dual R3; a 2-channel, Wi-Fi smart switch with power metering.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

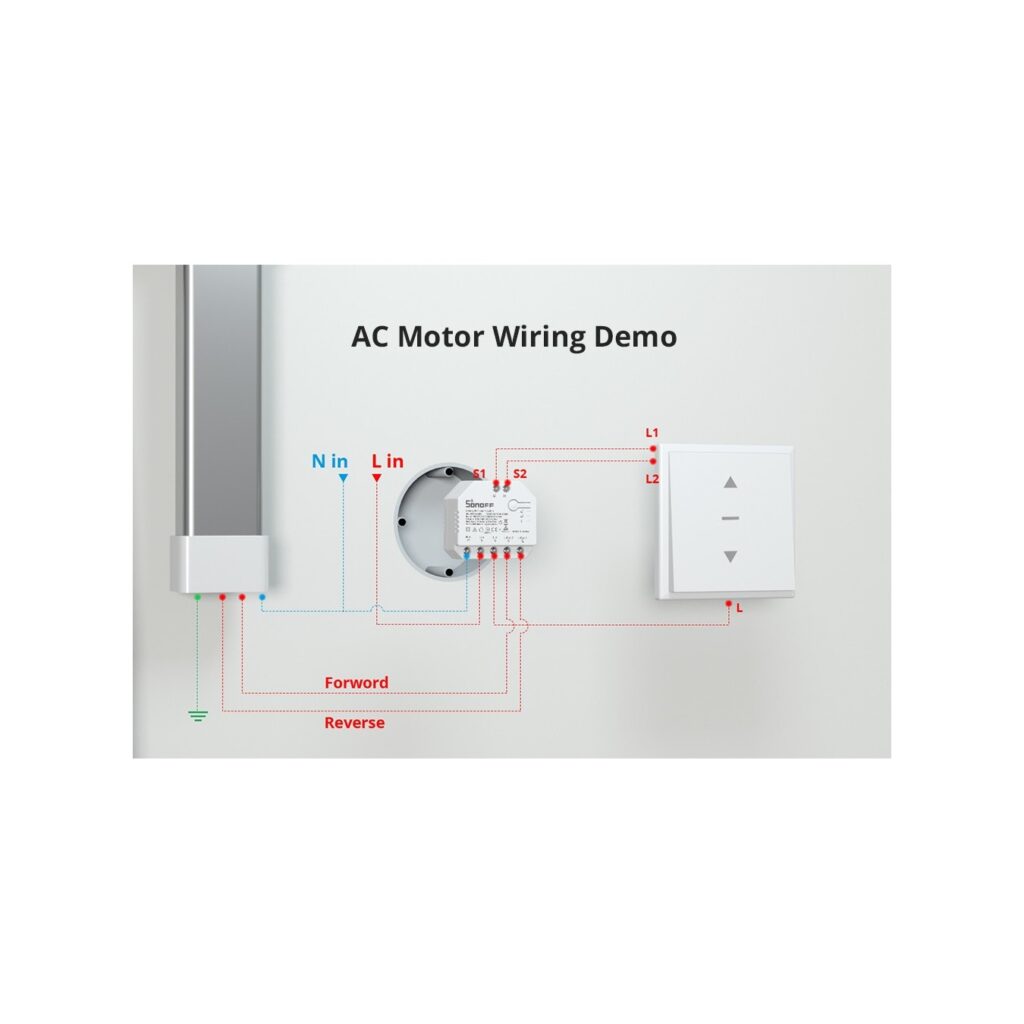

- Let your electric curtains, roller blinds, etc become smart immediately.

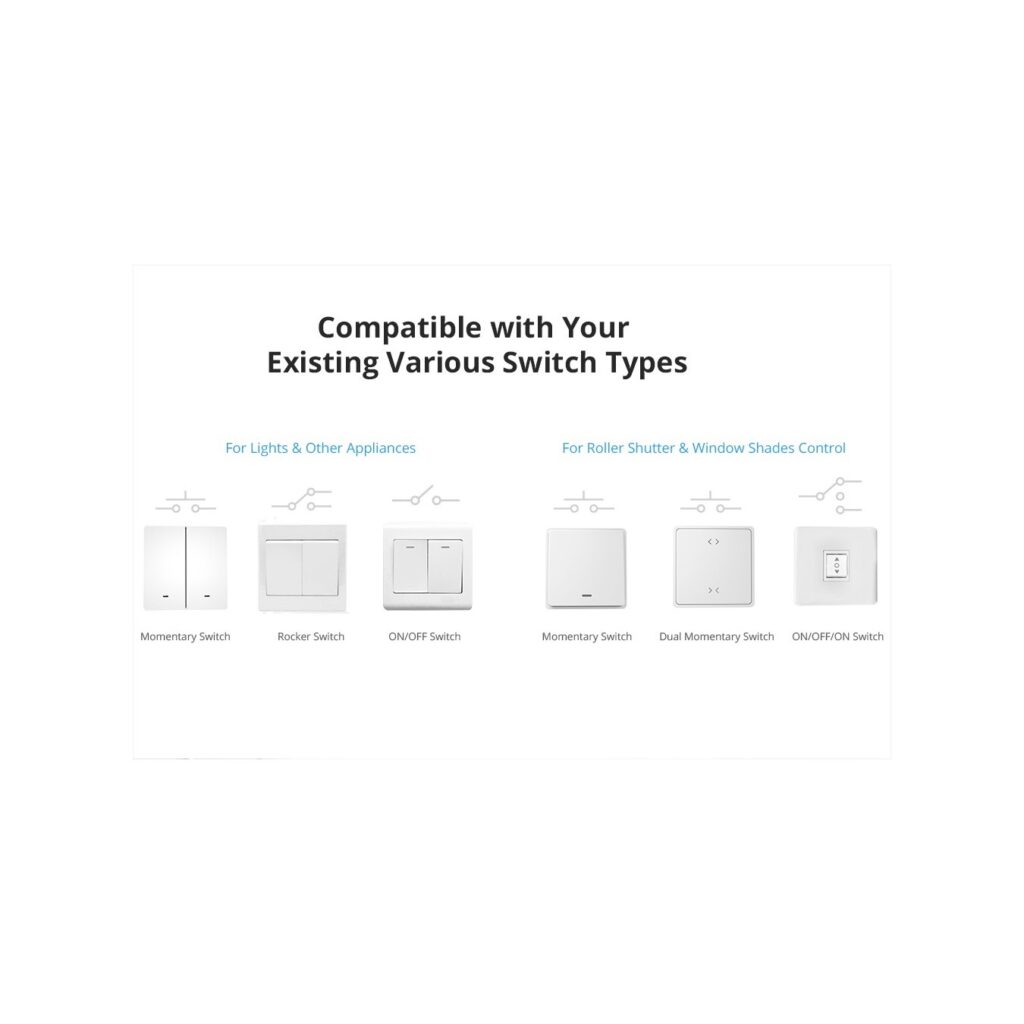

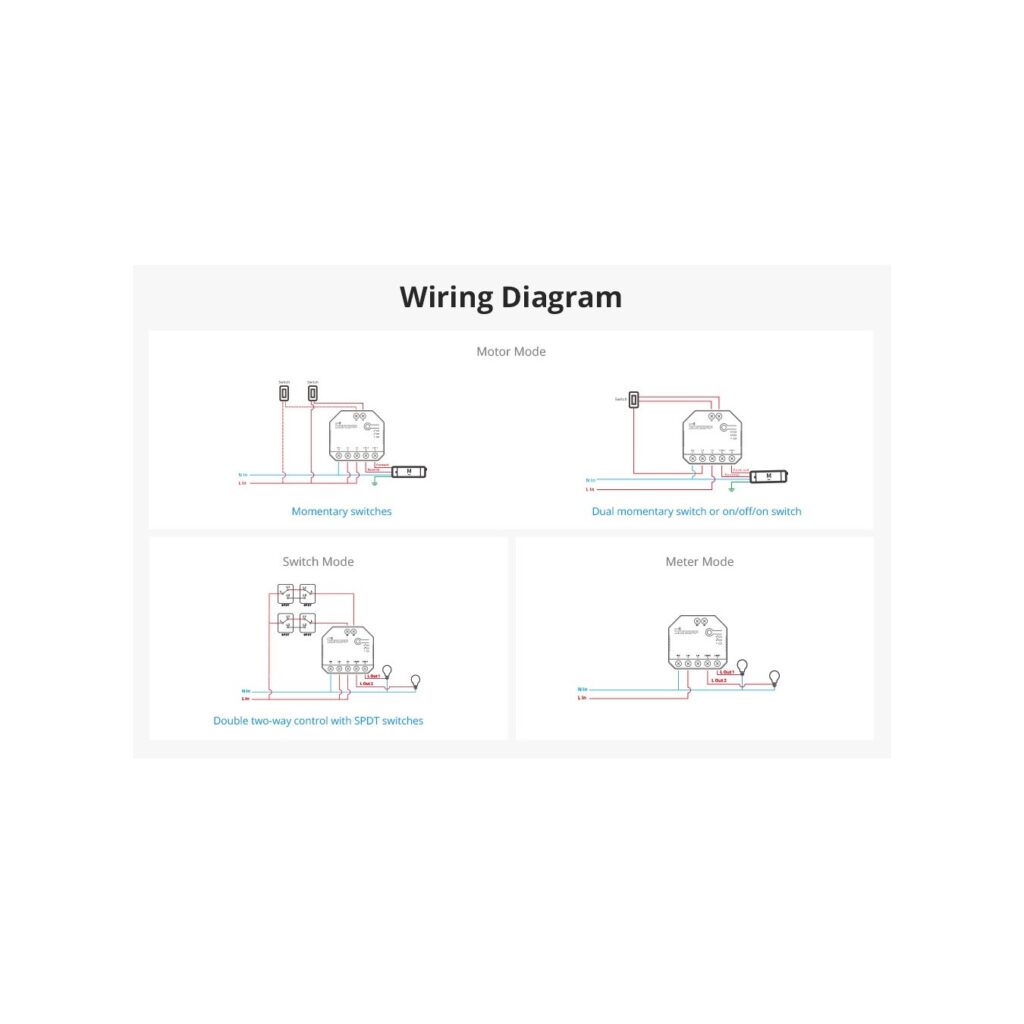

- DUALR3 has 6 types of external switch detection mechanisms, making it suitable for most physical switch control
- The 2-Gang detects voltage, current, and power values and counts the power consumption for you independently to allow for reasonable energy consumption control
- DUALR3 has three working modes that meet the needs of different application scenarios. Remote, timing, voice control, smart scenes, and other functions are all available
- TUV, CE, FCC, and RoHS certifications ensure a safer and more reliable product

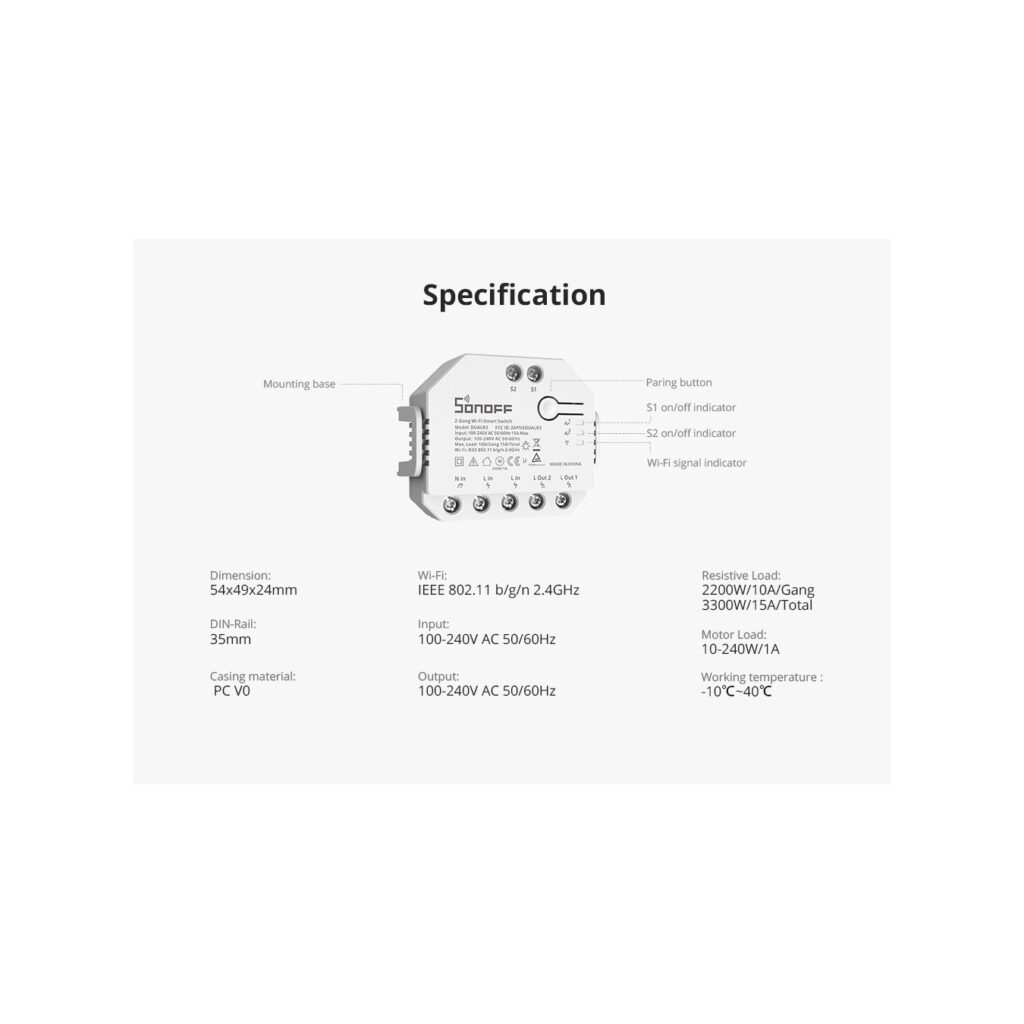

- Input Voltage: 100-240V AC 50/60Hz 15A Max
- Output: 100-240V AC 50/60Hz
- Resistive: Load 2200W/10A Per Relay or 3300W/15A/Total
- Motor Load: 10-240W/1A
- Wi-Fi: IEEE 802.11 b/g/n 2.4GHz
- Operating systems: Android & iOS
- Number of Relays: 2 Relays
- Working temperature: -10℃~40℃
- Material: PC V0
- Dimension: 54x49x24mm
| Current | 15A |
| Type | Smart Switch |
| Din Rail Mount | Optional (With DIN Rail Tray) |
| Wifi | Yes |
| Energy Monitor | Yes |
| Mode | Interlock/self-locking/inching |
| Wattage | 3500W |
