SATA Adapter Cable 7-pin + 5.25''-4-pin to SATA 22-pin
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.

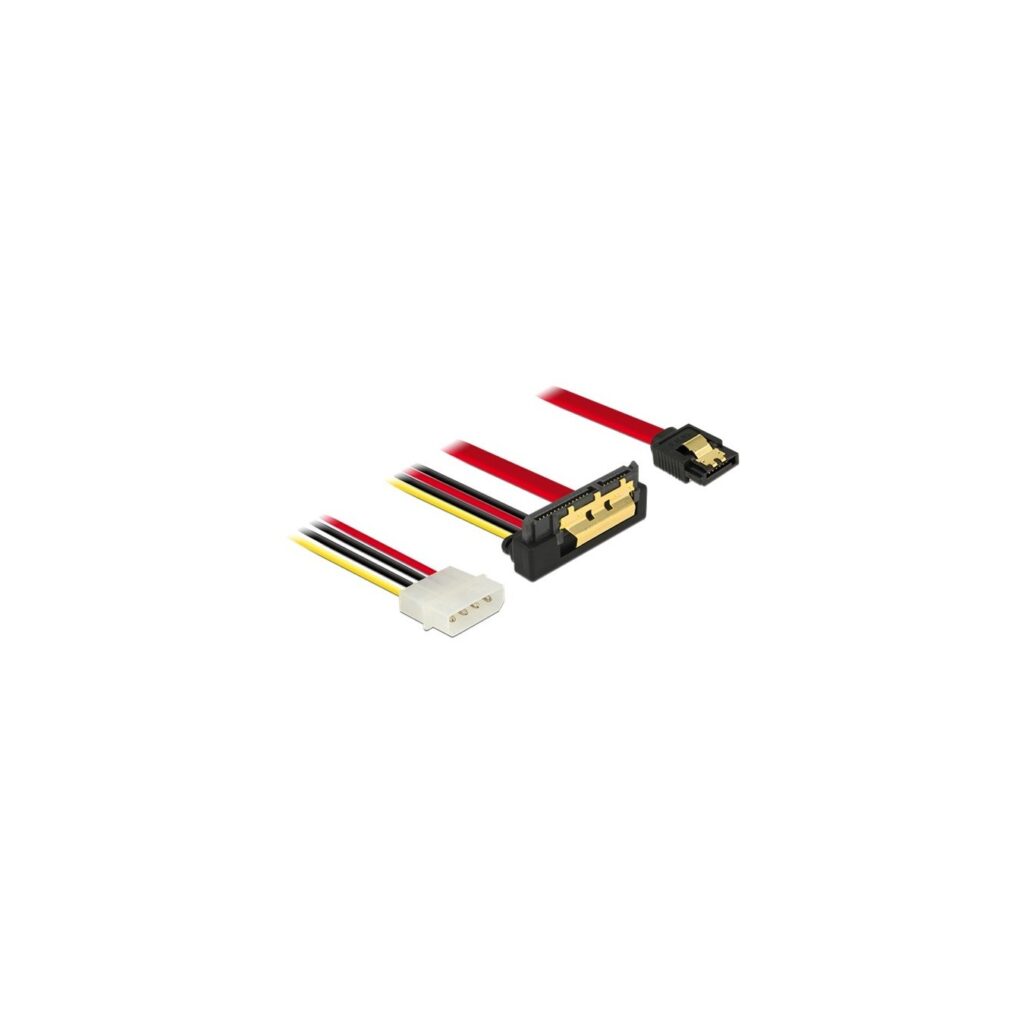

Delock 85231 SATA adapter cable connects a 22-pin SATA device to a spare 7-pin SATA port and a spare 4-pin 5.25″ power connector.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

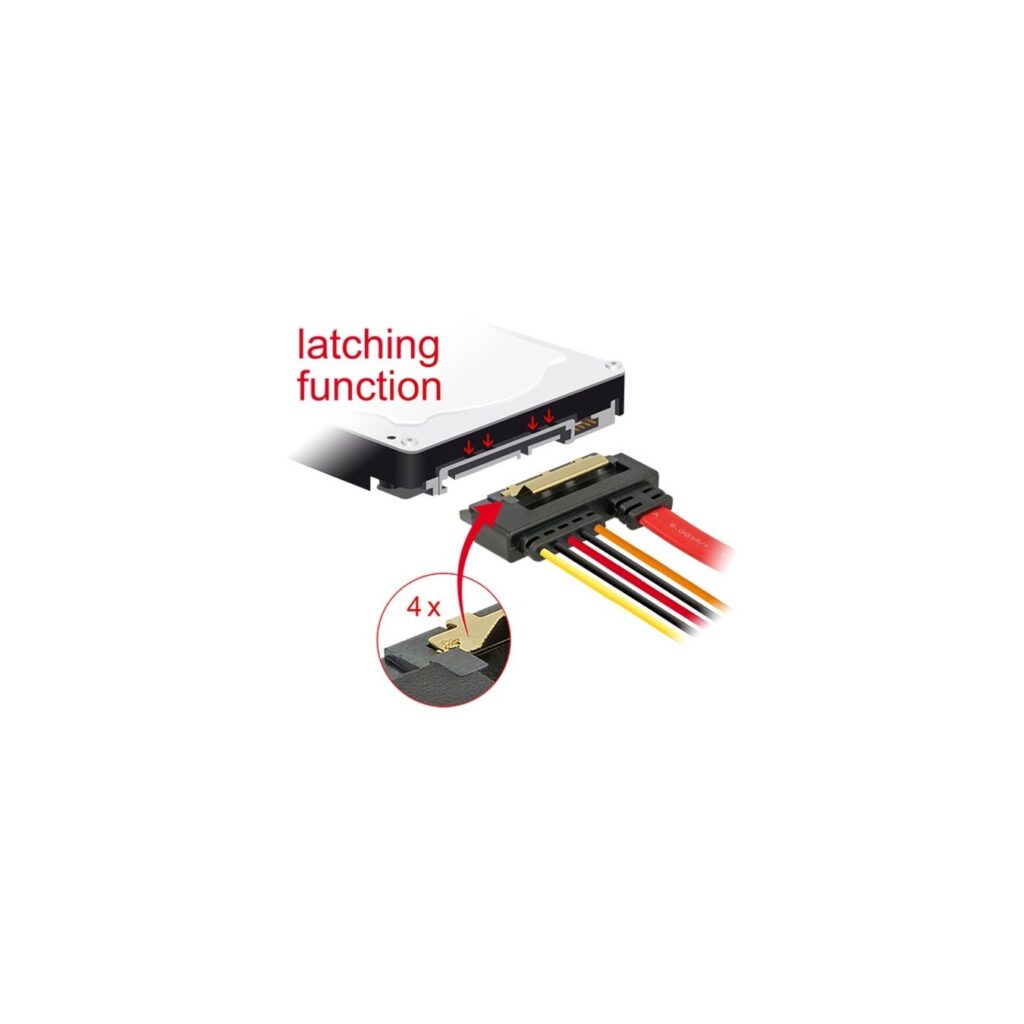

The Delock cable 85231 is used to connect a device with a 22-pin SATA interface via a free SATA 7-pin port as well as a free 4-pin 5.25″ power connector on the power supply. The metal clips on the SATA connectors ensure that the cables click into place reliably.
| Typ | Adapter |
| Color | black/red |
| EAN | 4043619852314 |
| Manufacturer no. | 85231 |
| Application example | For connecting SATA drives with a 22-pin socket to the mainboard |
| Area | Power supply |
| Connection - from | 1x 4-pin 5.25 inch (male), 1x 7-pin SATA (male) |
| Protocol | says Ealaal heart I (6,0GG/SS) |
| Cable cross section | 18 AWG |
| taps | 3 |
| Characteristics | intern |
| Feature | SATA connector with snap-in function |
| More information | Backwards compatible with SATA 1.5Gb/s and 3Gb/s, voltage: 5V + 12V, wire cross section: 26 AWG data line, 18 AWG power line |
| Cable length | 30 cm |
