RJ-45 Crimp+Cut Plug - Cat.6 STP
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.

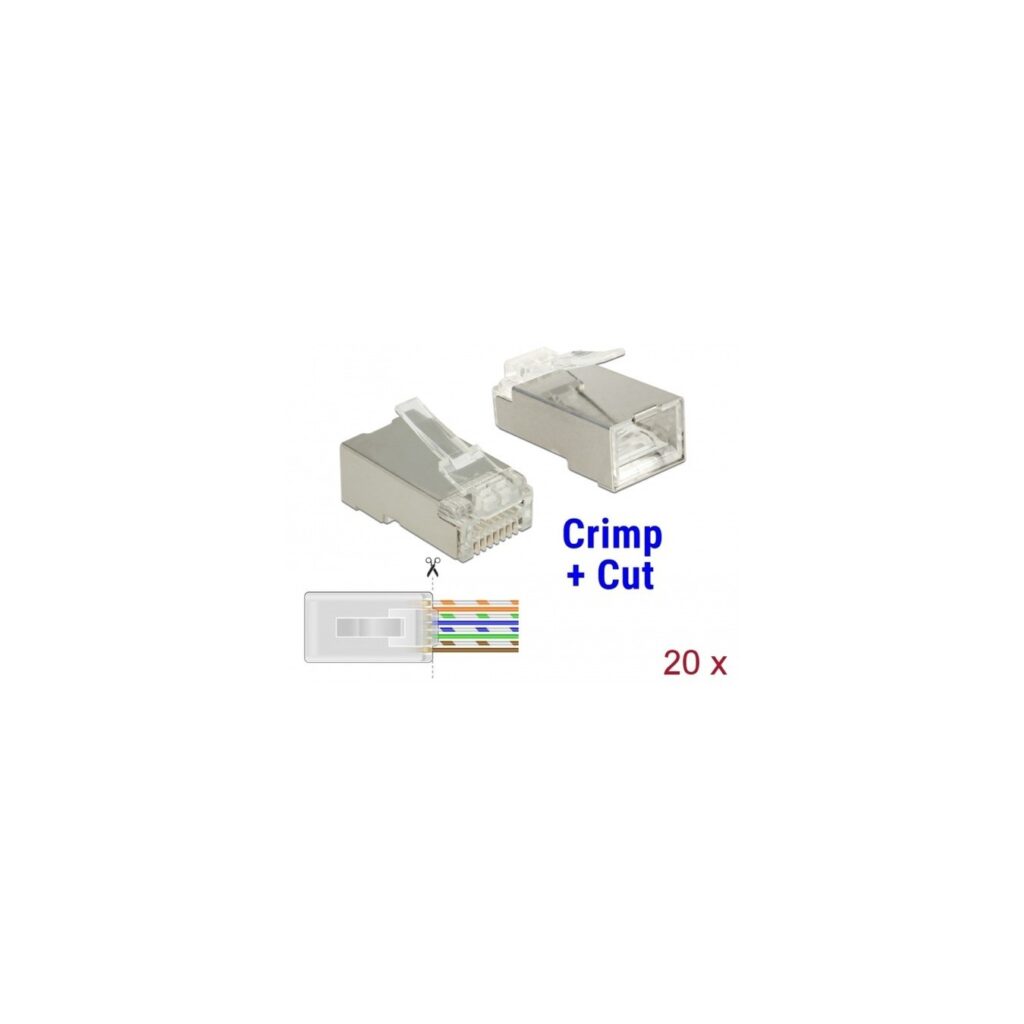

Shielded Cat6 RJ-45 plug with gold-plated contacts; 20 pieces; supports solid or stranded conductors up to 0.511 mm; 3-point contacting; polycarbonate housing; made in Taiwan.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

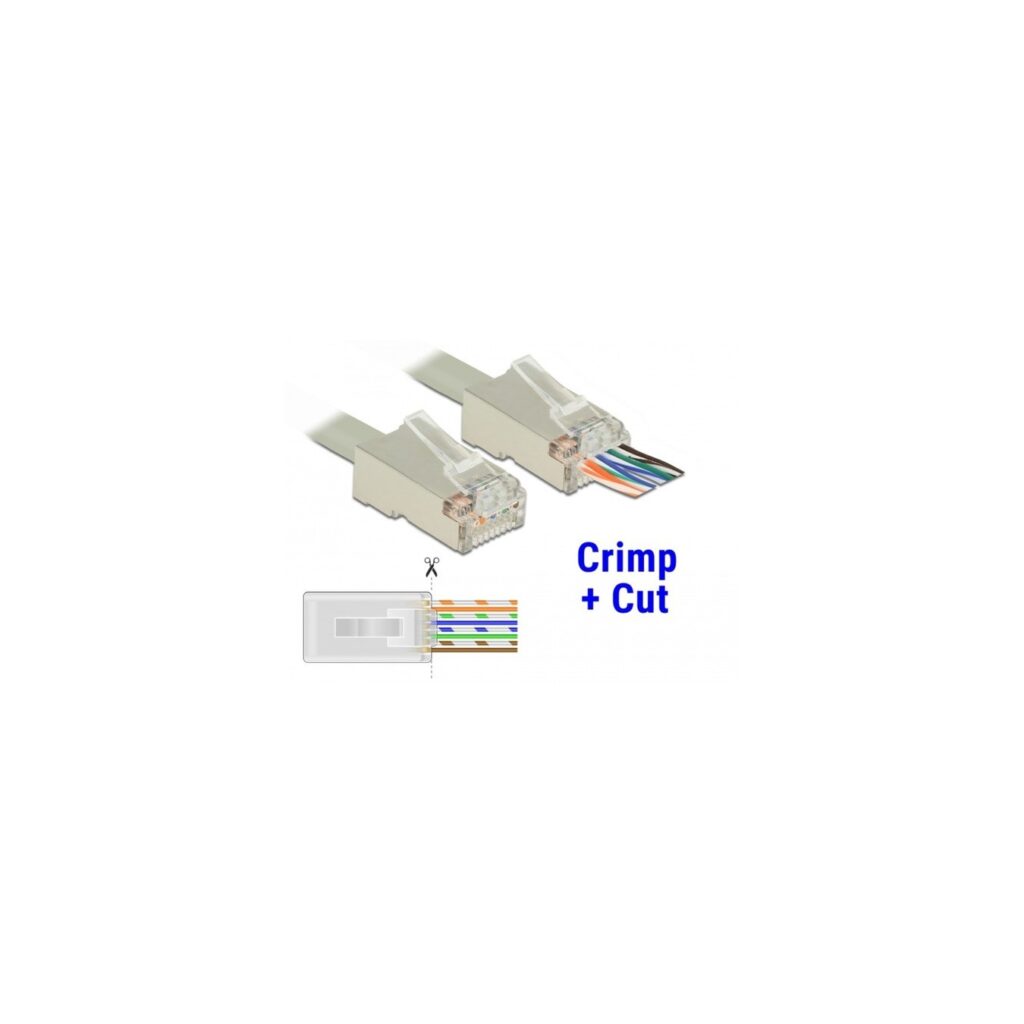

With the RJ-45 connector 86454 from Delock and the matching Crimp+Cut tool, a network cable can be quickly and easily connected to an RJ-45 connector. The RJ-45 Crimp+Cut connector allows the wires to be led out to the front; This speeds up installation and allows occupancy to be controlled. At the same time, performance is improved because the pair of wires remains twisted close to the contact. When crimping, all wires are contacted at the same time and the protruding cable ends are cut off.
| Typ | Plug |
| Color | transparent |
| EAN | 4043619864546 |
| Manufacturer no. | 86454 |
| Manufactured in | Taiwan |
| Connection | RJ-45 (plug), Cat.6 |
| use | For patch cables Ø 5.0 - 6.5mm |
| Number | 20 pieces |
| Area | network |
| shielding | STP |
| Characteristics | extern |
| Feature | Gold-plated contacts: 1.27 um / 50 u", housing material: polycarbonate |
| More information | Assignment according to TIA-568A/B, 3-point contacting, for solid and stranded conductors up to 0.511mm (24 - 26 AWG) |
| Accessories - required | 86450 RJ45 Crimp+Cut Employee Set |
| Dimensions | Width: 14mm x Height: 12mm x Depth/Length: 22mm |
