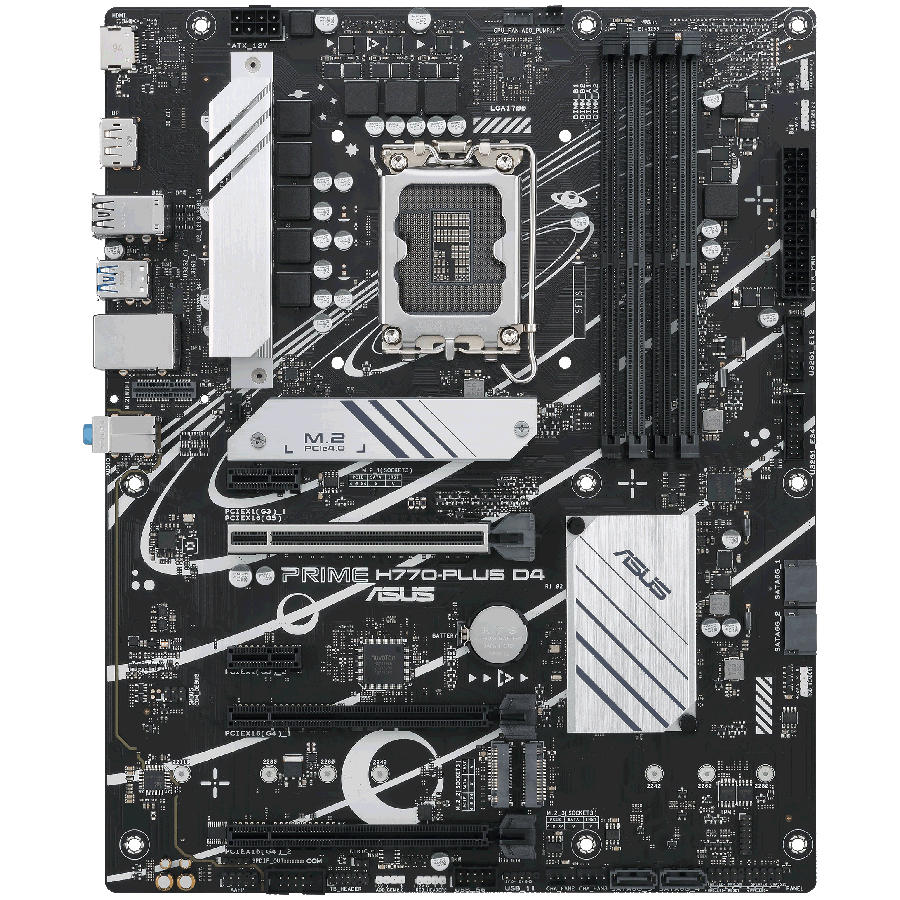

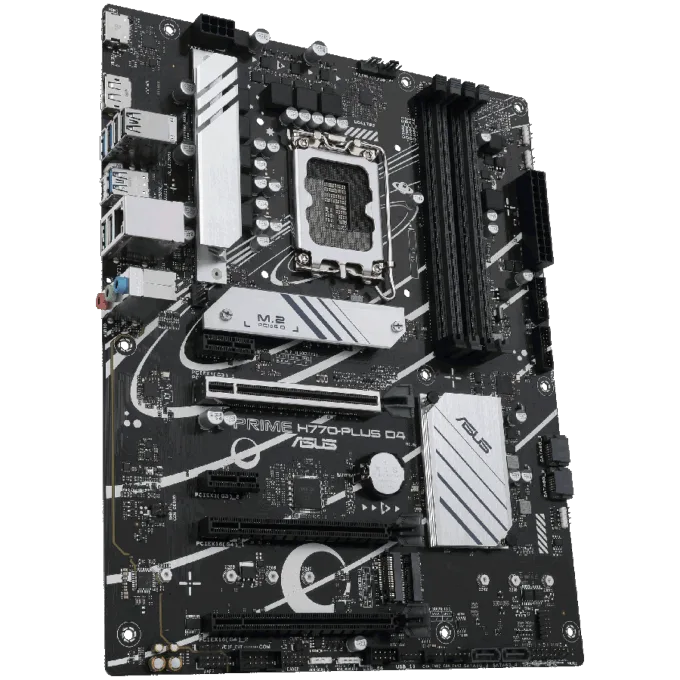

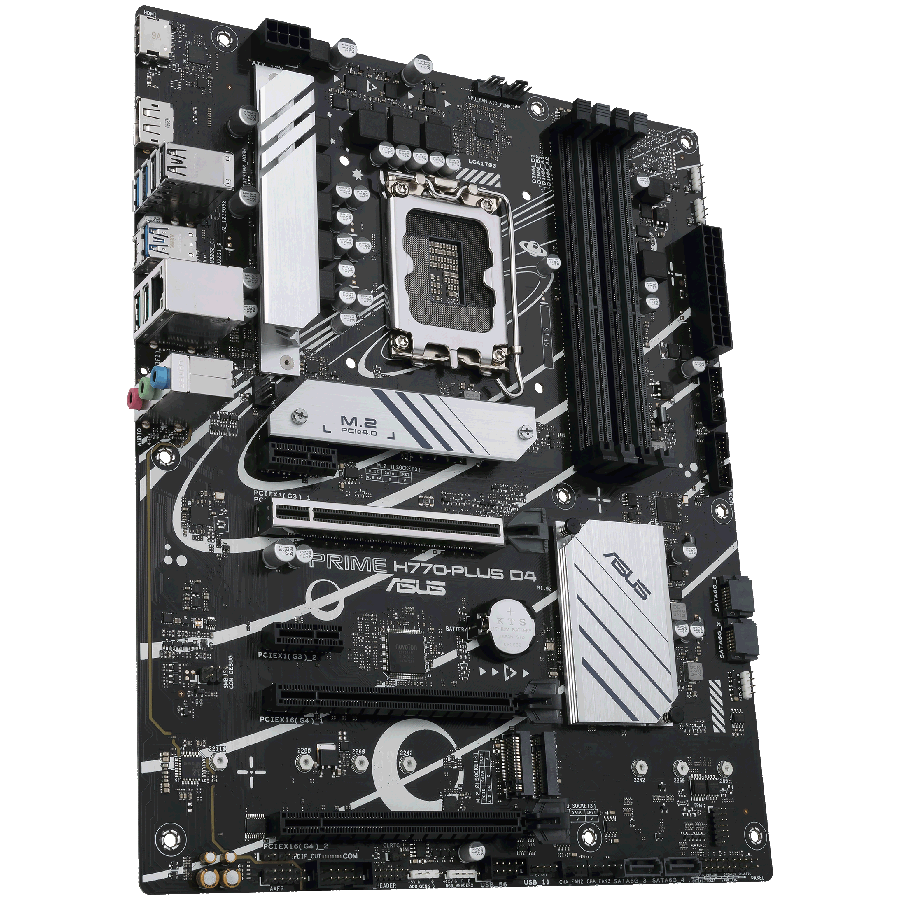

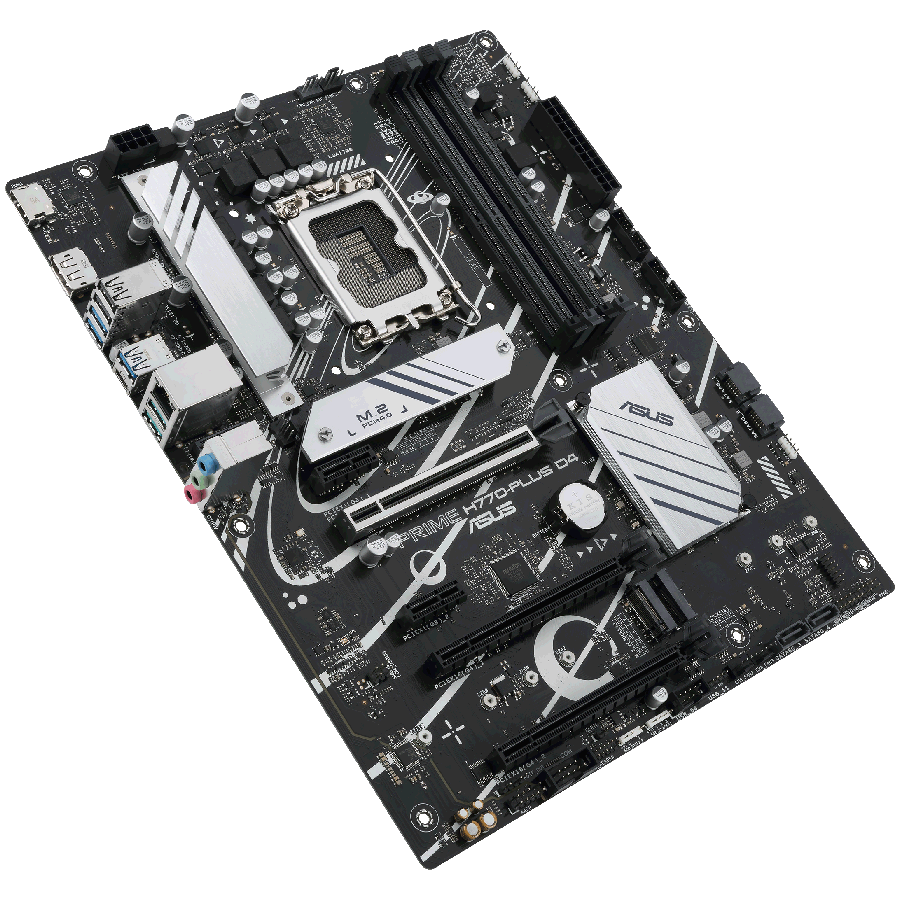

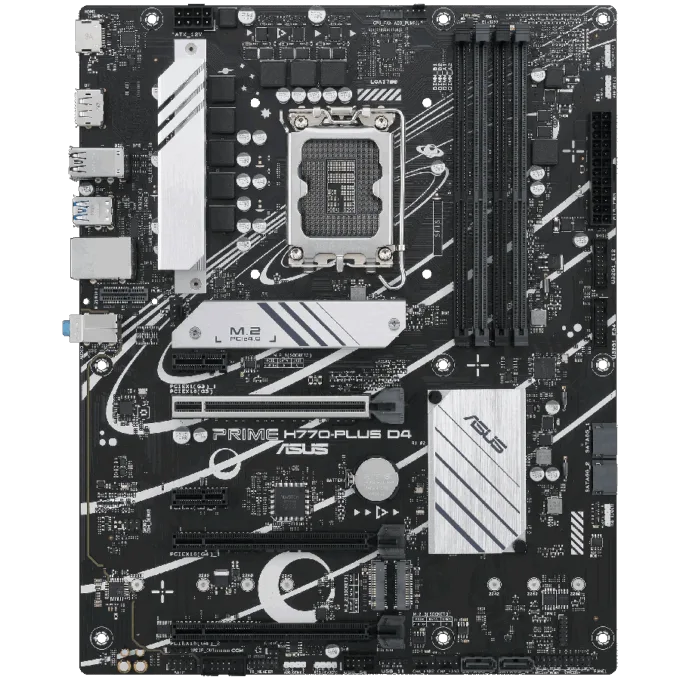

PRIME H770-PLUS D4//LGA1700,H770,USB 3.2 GEN 2,AURA,MB
Specifications
| Chipset | Intel H770 |
|---|---|
| Supports Central Processor Unit | Intel 12th Gen Processors Intel 13th Gen Processors Intel 14th Gen Processors |
| CPU Socket Standard | Socket 1700 |
| Architecture Features | Intel Turbo Boost Technology 2.0 Intel Turbo Boost Max Technology 3.0 |
| CPU Maximum Quantity Supports | 1 |
| Memory Type | DDR4 SDRAM |
| Memory Form Factor | DIMM 288-pin |
| Memory Speed | 2133MHz(PC4-17000) 2400MHz(PC4-19200) 2666MHz(PC4-21300) 2800MHz(PC4-22400) 2933MHz(PC4-23400) 3000MHz(PC4-24000) 3200MHz(PC4-25600) |
| Maximum Installable System Memory Storage Capacity | 128 GB |
| Memory Slot Total Quantity | 4 |
| Provides Error Checking Method | Non-ECC |
| Memory Features | Unbuffered XMP OptiMem |
| Integrated | Storage Controller: Supports: Level 0, Level 1, Level 10, Level 5 SATA III-600 (4) Storage Controller: PCI Express 4.0 x4 (2 x M.2) Storage Controller: PCIe 4.0 x4/SATA (1 x M.2) |
| Support | Wi-Fi Controller: 1 x M.2 |
| Audio Integrated | yes |
| Device Location | Integrated |
| Audio Data Width | 24-bit |
| Audio Output Mode | 7.1 Channel Surround |
| Compliant Audio Standards | High Definition Audio |
| LAN Integrated | yes |
| Data Link Protocol Supports | 2.5 Gbps |
| PCI Express 5.0 x16 | 1 |
| PCI Express 4.0 x16 | 2 |
| PCI Express 3.0 x1 | 2 |
| USB 3.2 Gen 2 | 2 (USB 3.2 (type A)); 1 (USB 3.2 (type C)) |
| USB 3.2 Gen 1 | 3 (USB 3.2 (type A)) |
| USB 2.0 | 2 (USB 2.0 (type A)) |
| DisplayPort | 1 |
| HDMI | 1 (HDMI (Type A)) |
| LAN | 1 (RJ-45) |
| Audio Interface | 3 (3.5-mm minijack) |
| BIOS Type | AMI |
| BIOS Features | ASUS CrashFree BIOS 3 UEFI PXE boot ASUS EZ Flash 3 192 (128+64) Mb Flash ROM |
| Mainboard Features | RGB LED |
| Supported Operating System | Microsoft Windows 11 Microsoft Windows 10 64-bit |
| Cable Included | 2 x SATA 6Gb/s Cables |
| Included Accessories | I/O Shield Quick Start Guide Screws |
| Form Factor | ATX |
| Height (mm) | 244 mm |
| Width (mm) | 305 mm |
| Warranty Products Returnable | Yes |
| Warranty Term (month) | 36 month(s) |
| Warranty Validation Criteria | Serial Number |
