Power Supply Asus TUF Gaming 850W Gold 80+ ATX Fully Modular - 90YE00S2-B0NA00
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
850W ATX PSU, 80+ Gold certified, fully modular with 1x PCIe 16-pin (600W), 3x 8-pin, 2x CPU 4+4-pin. Military-grade components, 92% efficiency, 10-year warranty, 135mm fan with 0dB mode.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The ASUS TUF Gaming 850W Gold (90YE00S2-B0NA00) is a resilient ATX power supply engineered for long-term reliability, featuring military-grade 105°C capacitors rated for 170,000 hours and full PCB protection.

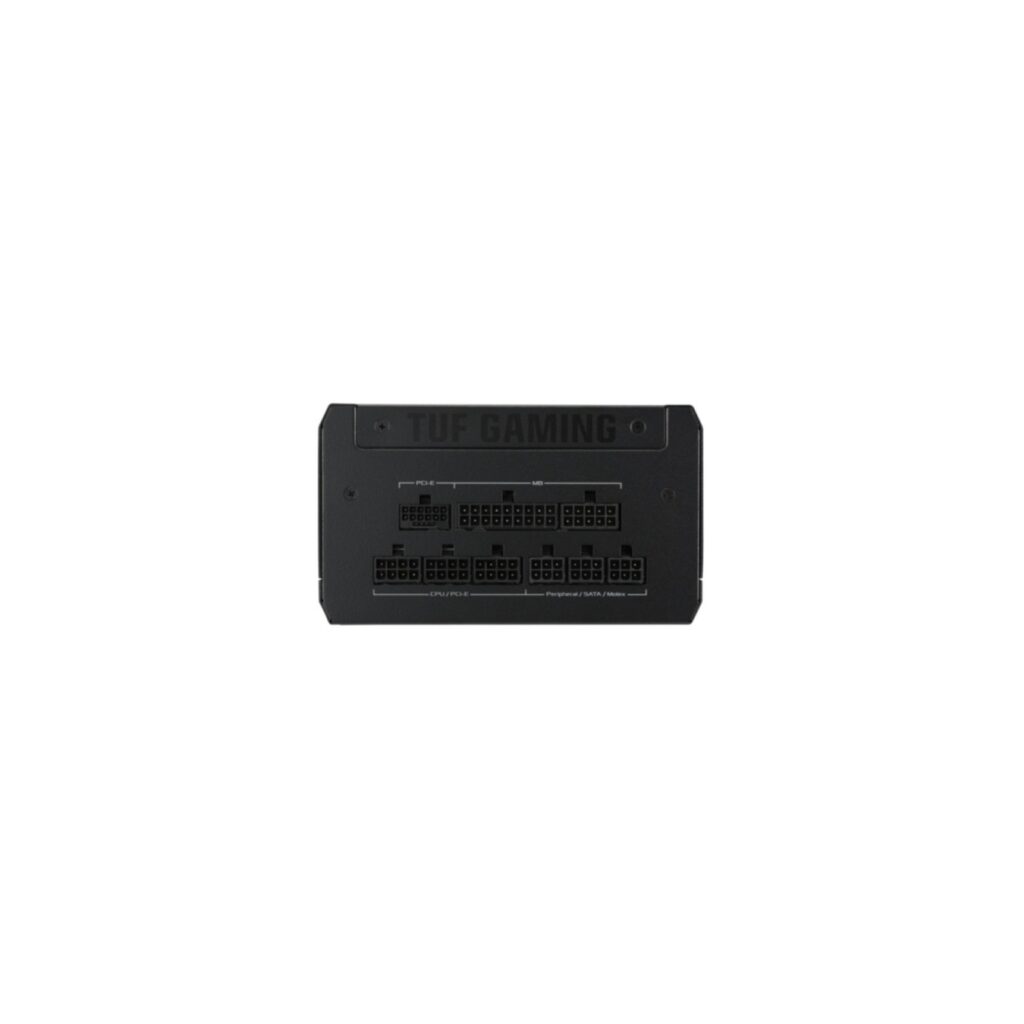

80 PLUS Gold certified with up to 92% efficiency using low-ESR Japanese capacitors, it supports ATX 3.0 and PCIe 5.0 with a native 16-pin (12VHPWR) connector for up to 600W GPU power, plus 3x 8-pin PCIe, 2x 4+4-pin CPU, 5x SATA, and 4x Peripheral connectors. All cables are fully modular with premium etched sleeving for easy management.

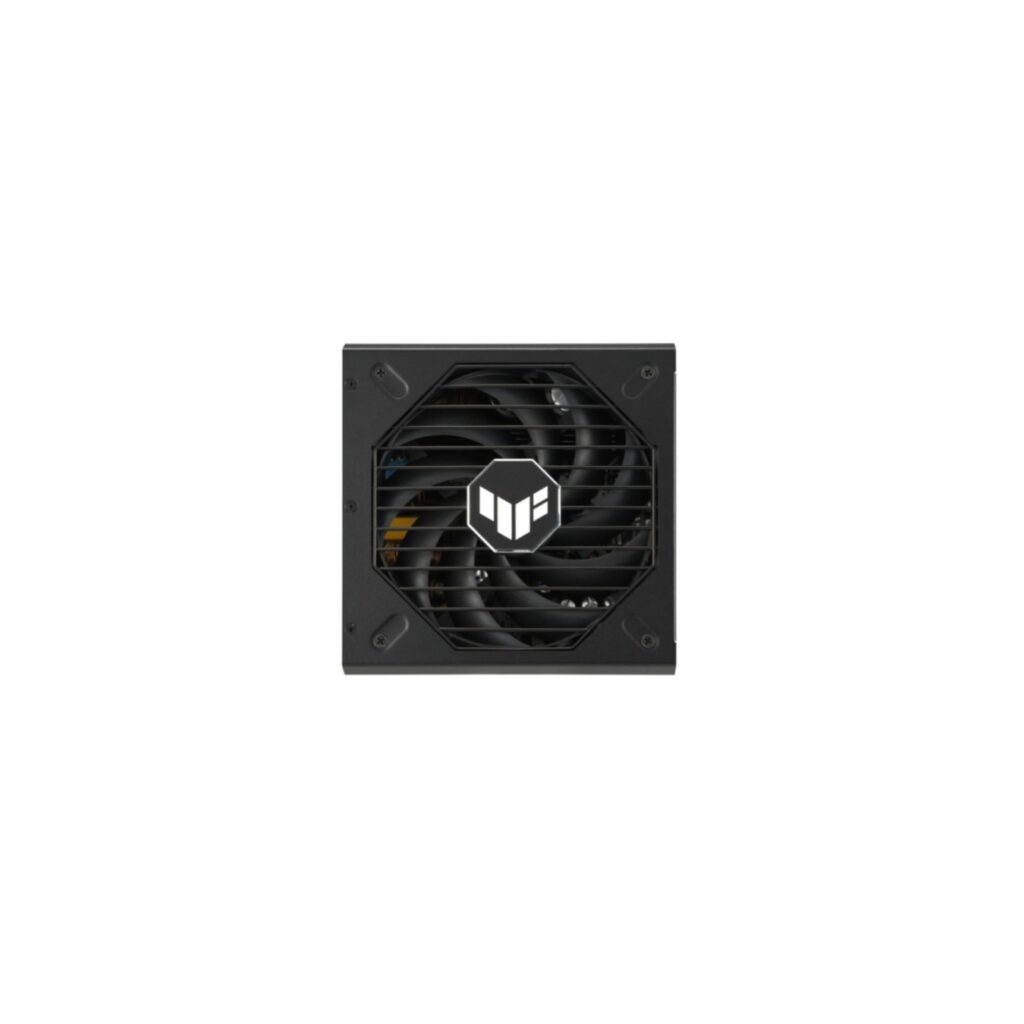

- Fan: 135mm Axial-tech with dual-ball bearing and 0dB technology (fan stops at low loads)
- Protections: OPP/OVP/UVP/SCP/OCP/OTP
- Warranty: 10 years worldwide
- Dimensions: 150 x 150 x 86 mm; Weight: 2.38 kg
- MTBF: >120,000 hours at 40°C
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input range | 100-240Vac |
| Combined power (+3.3V) | 130 W |
| Combined power (+5V) | 130 W |
| Combined power (+12V) | 850 W |
| Combined power (-12V) | 9.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+5V) | 25 A |
| Max output current (+12V) | 70.8 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 92% |
| 80 PLUS certification | 80 PLUS Gold |
| Power protection features | OPP/OVP/UVP/SCP/OCP/OTP |
| ATX version | 3.0 |
| MTBF | >120,000 hrs @ 40°C |
| Motherboard power connector | 24/20-pin x 1 |
| CPU power connector | 4+4-pin x 2 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power connectors (8-pin) | 3 |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors | 4 |
| Cabling type | Fully-Modular |
| Fan diameter | 13.5 cm |
| 0dB Technology | Supported |
| Product colour | Black |
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.38 kg |
-
-
