The Delock PCI Express card expands the PC with two external serial RS-422/485 ports. Devices such as: E.g. scanners, protocol converters, POS systems, infrared, IoT devices etc. a…
For any questions about this item, availability, or delivery times, please contact us at 22 270068

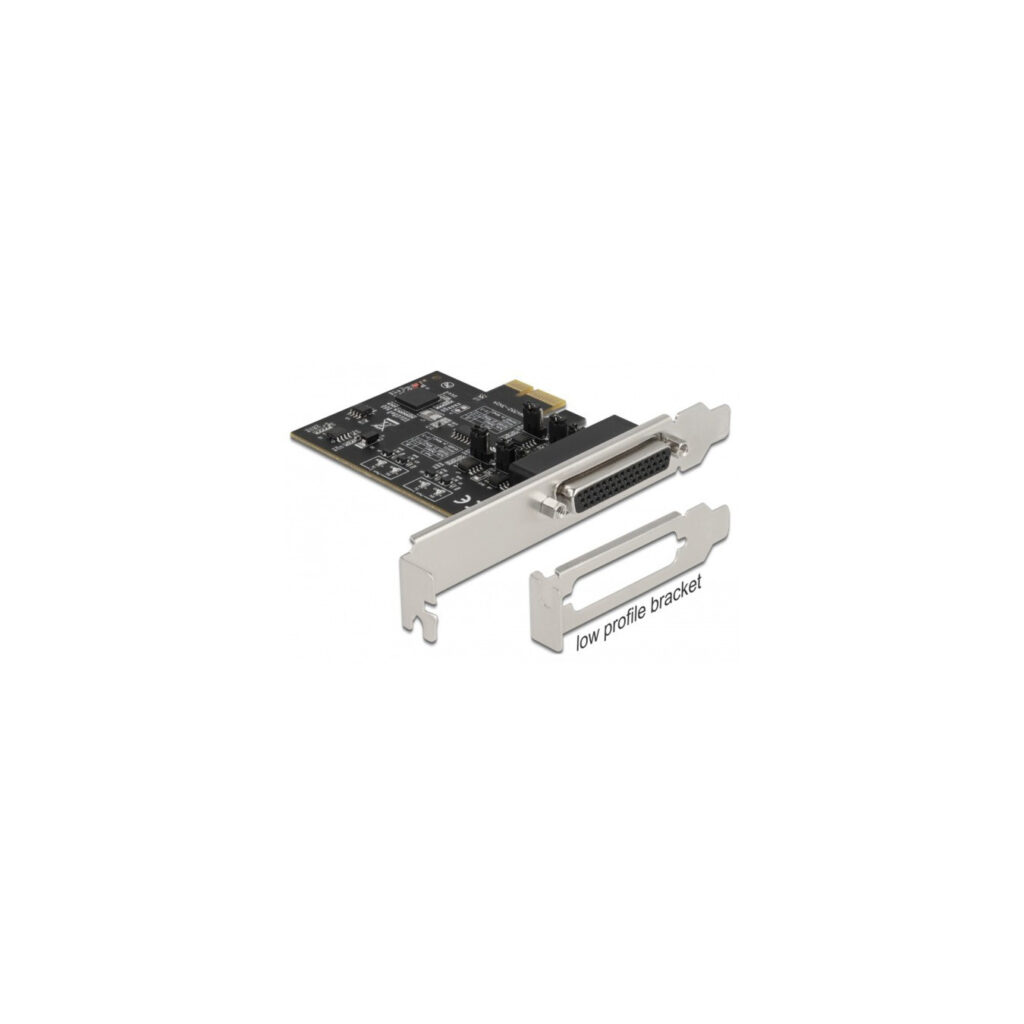

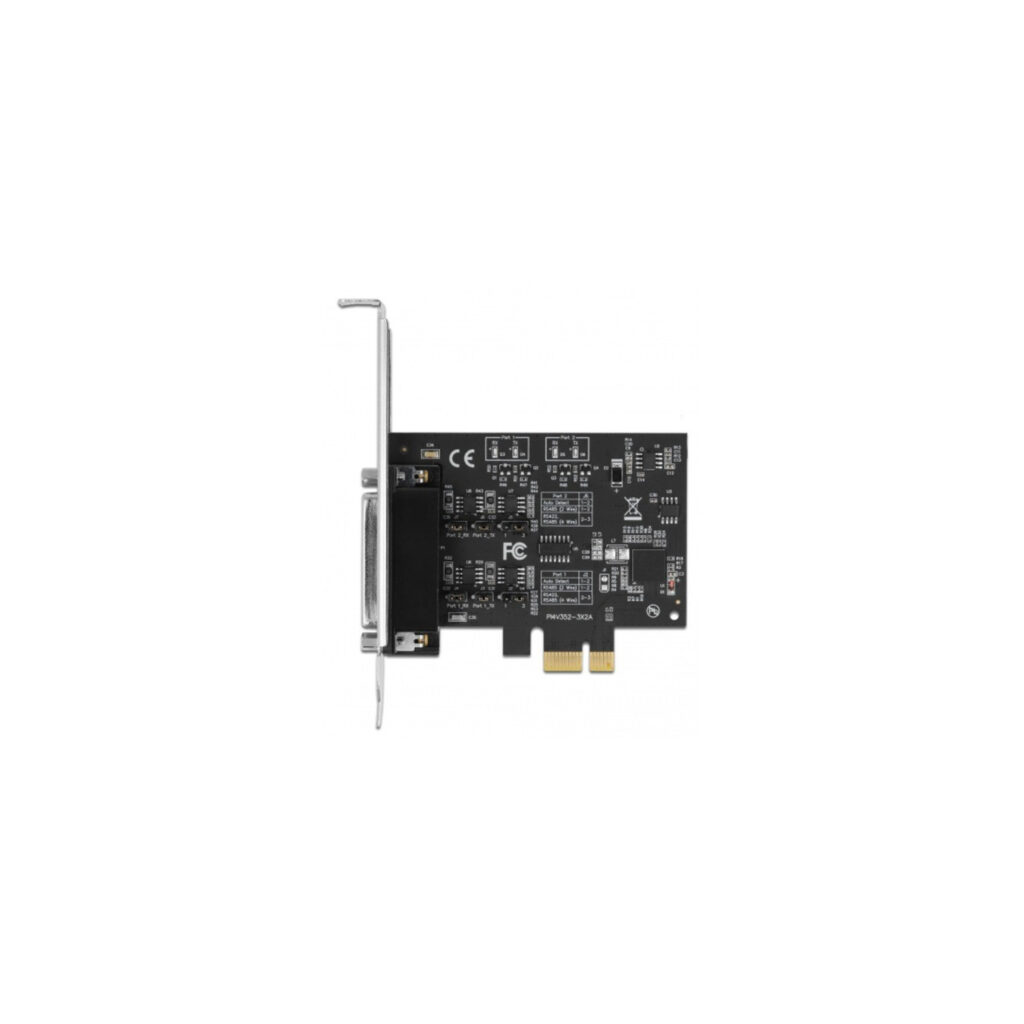

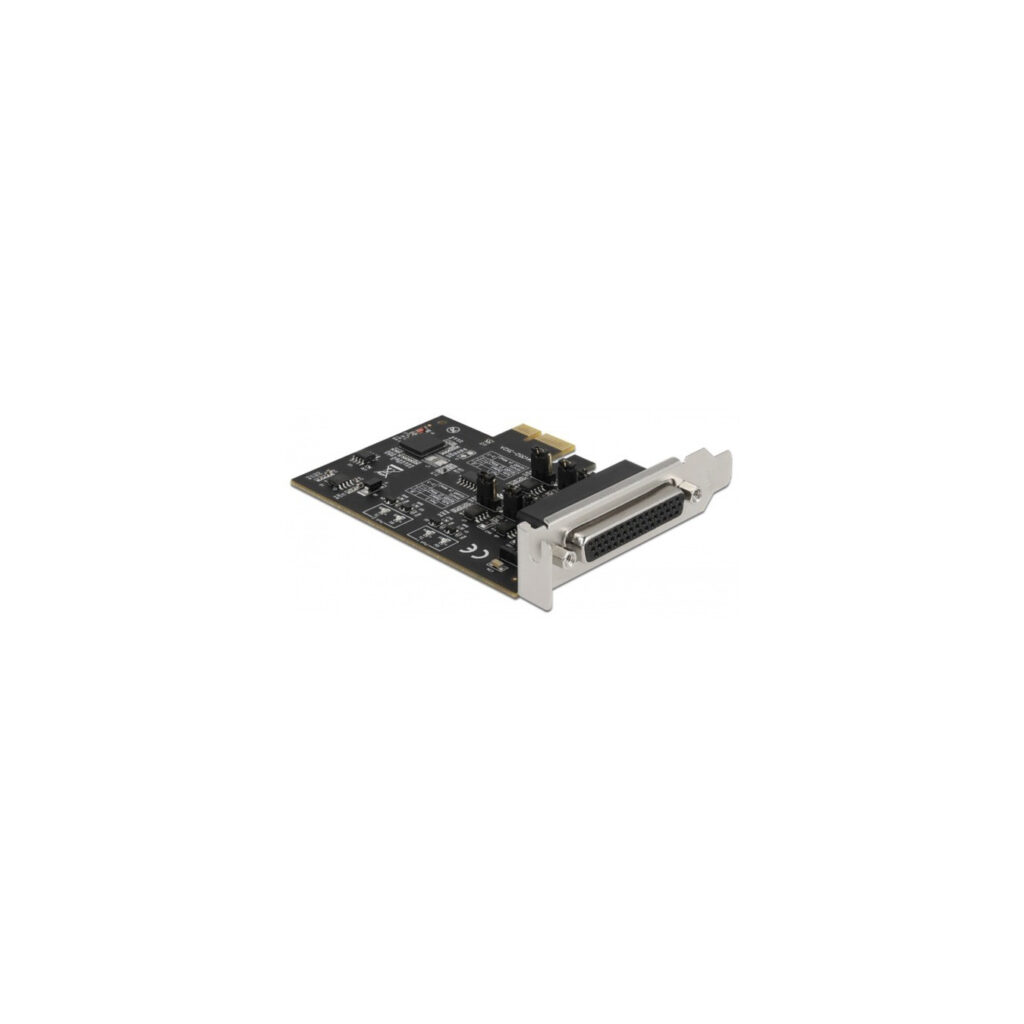

The Delock PCI Express card expands the PC with two external serial RS-422/485 ports. Devices such as: E.g. scanners, protocol converters, POS systems, infrared, IoT devices etc. and different modes can be used. The PCIe card supports 2- and 4-wire operation on both ports for both RS-422 and RS-485 devices. In addition, the integrated ones can be optionally added
| EAN | 4043619900480 |
| Manufacturer no. | 90048 |
| slot | PCIe x2 |
| Chip | MaxLinear XR17V352, SP3078E |
| Feature | external: 1 x DB44 socket | FIFO: 256 bytes |
| More information | The settings are made using the jumpers on the PCIe card and offer Auto Detect, RS-422 and RS-485 4-wire full duplex and RS-485 2-wire half-duplex modes. |

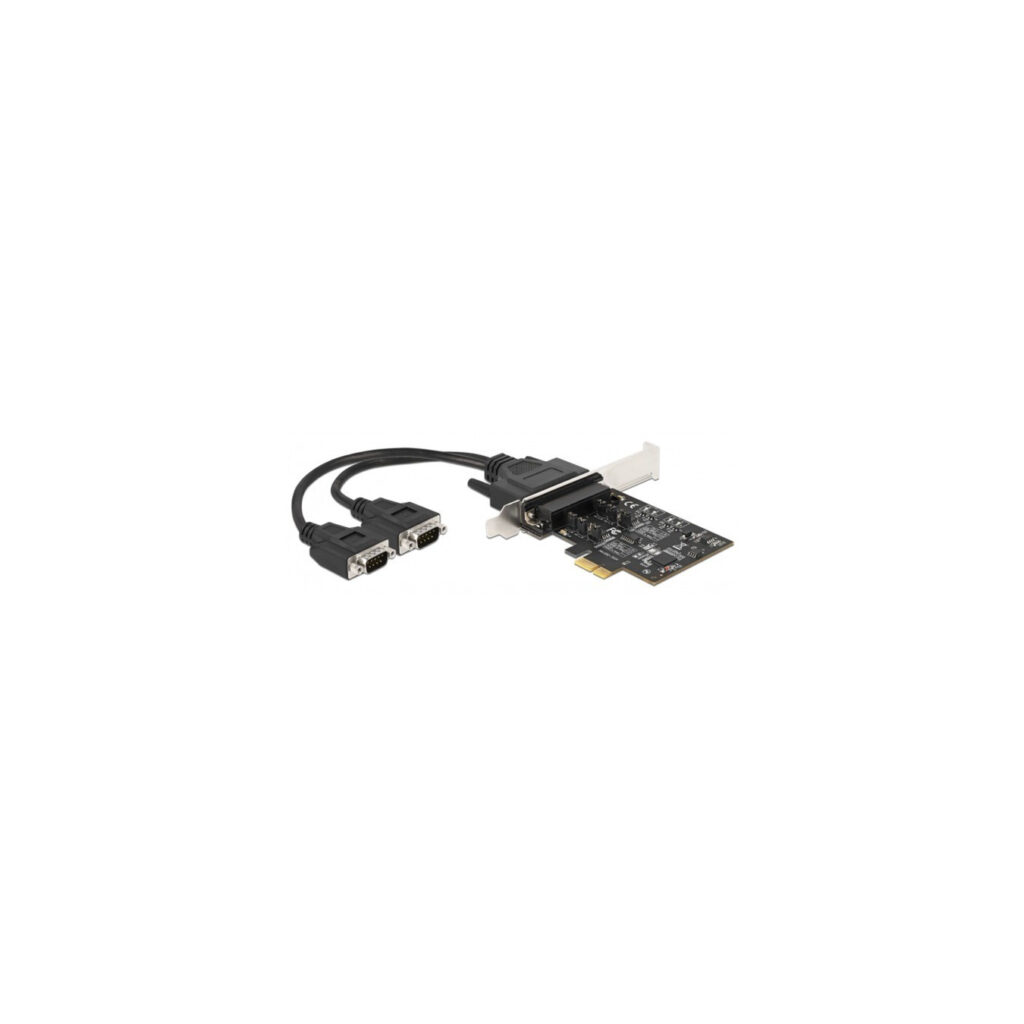

| Accessories - available | 1 serial connection cable, low profile cover, 4 x jumpers, driver CD, operating instructions |
