MINI-ITX PSU - 120W REV. 2, Adapter
Login
Compact Mini-ITX 120W adapter PSU with 1x 20-Pin ATX, 1x 4-Pin-12V, 1x 4-Pin-5.25″, 1x 15-Pin-SATA; includes a cable with a socket and union nut; 35x47x18 mm; 50 g.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

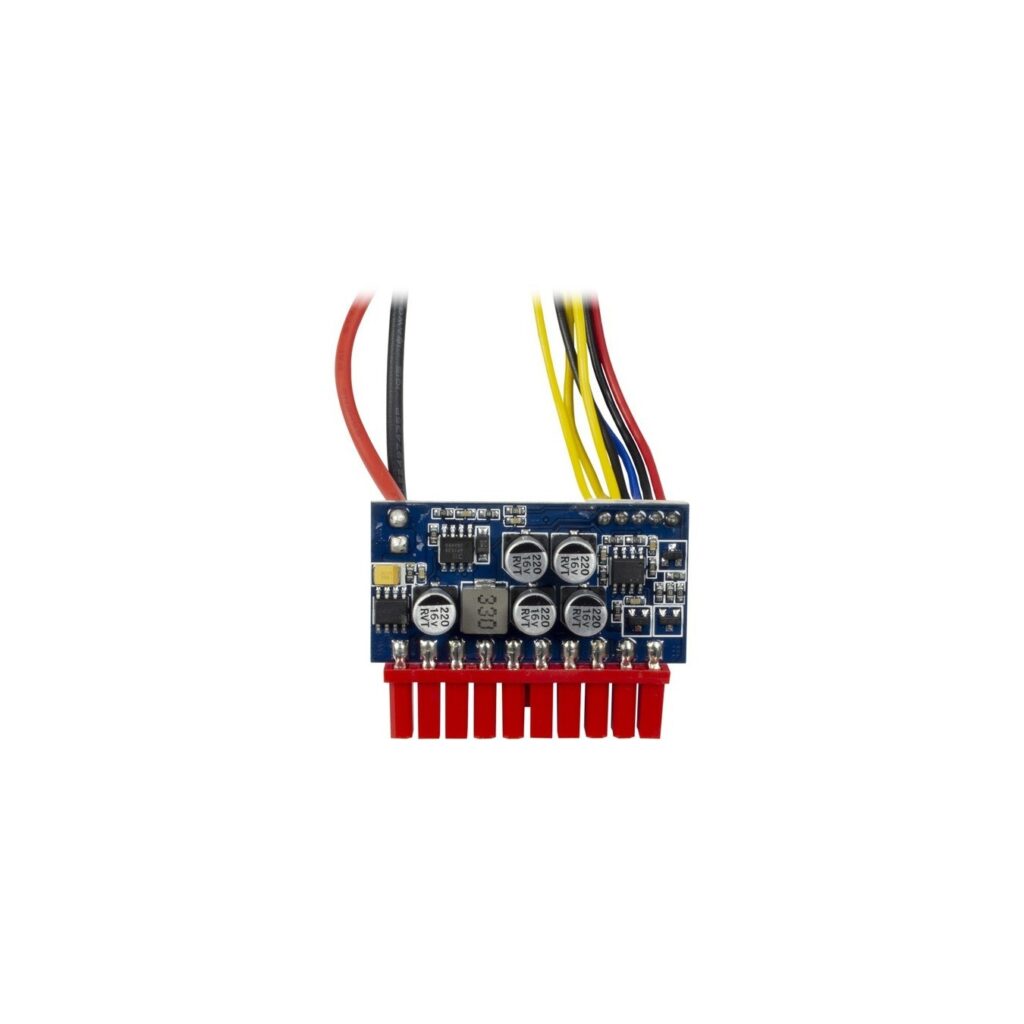

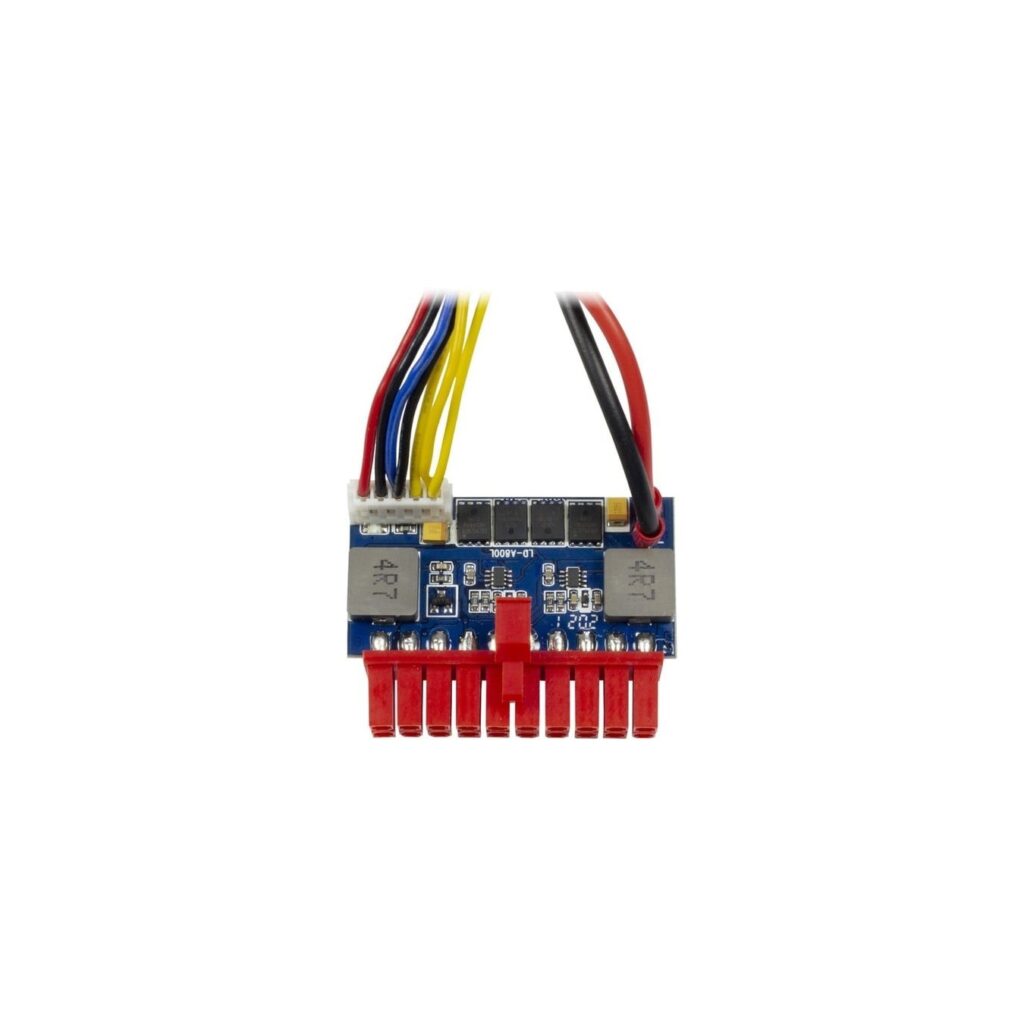

The compact design of this Mini-ITX PSU allows components to be supplied with power even in narrow housings. A cable with a socket and union nut is attached to a suitable hole on the housing wall and is used to connect an external 12V

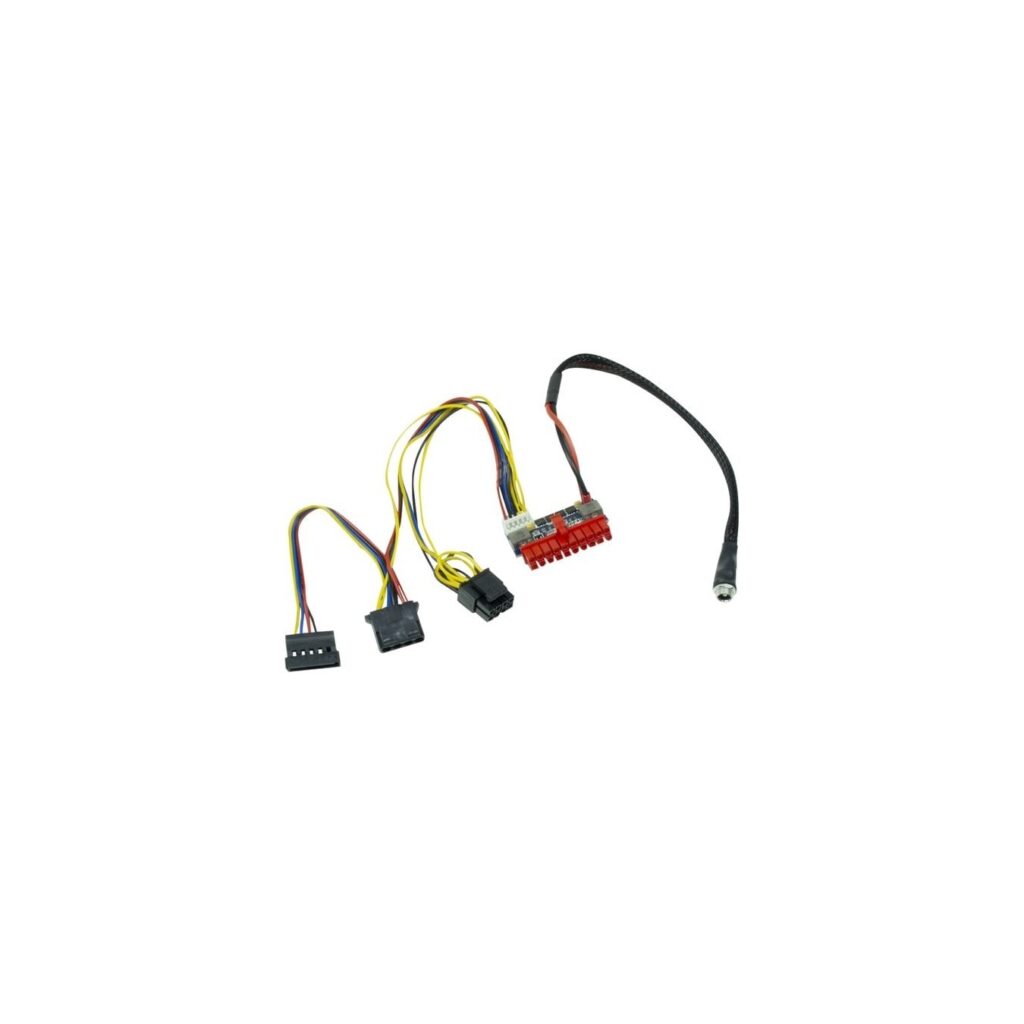

Power supply (not included), which can have a power of up to 120W. The board is equipped with the 20-pin main power cable as well as two strands with 1x 4-pin 5.25″, 1x S-ATA connector and one strand with 1x 4+4 pin connector.
| Typ | Adapter |
| EAN | 4260455645515 |
| Manufacturer no. | 88882193 |
| Design | Mini ITX |
| Connections | 1x 20-Pin-ATX, 1x 4-Pin-12V, 1x 4-Pin-5,25", 1x 15-Pin-SATA |
| Protective functions | Overvoltage protection (OVP), undervoltage protection (UVP), overload protection (OLP/OPP) |
| Notice | Maximum values output voltage output current: +3.3V 5A, +5VSB 2A, +5V 5A,12V 5A, -12V 0.1A |
| Accessories - required | External 12 volt power supply up to 120 watts |
| Dimensions | Width: 35mm x Height: 47mm x Depth/Length: 18mm |
| Weight | 50 Gramm |
