Mainboard - B650M-E
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.

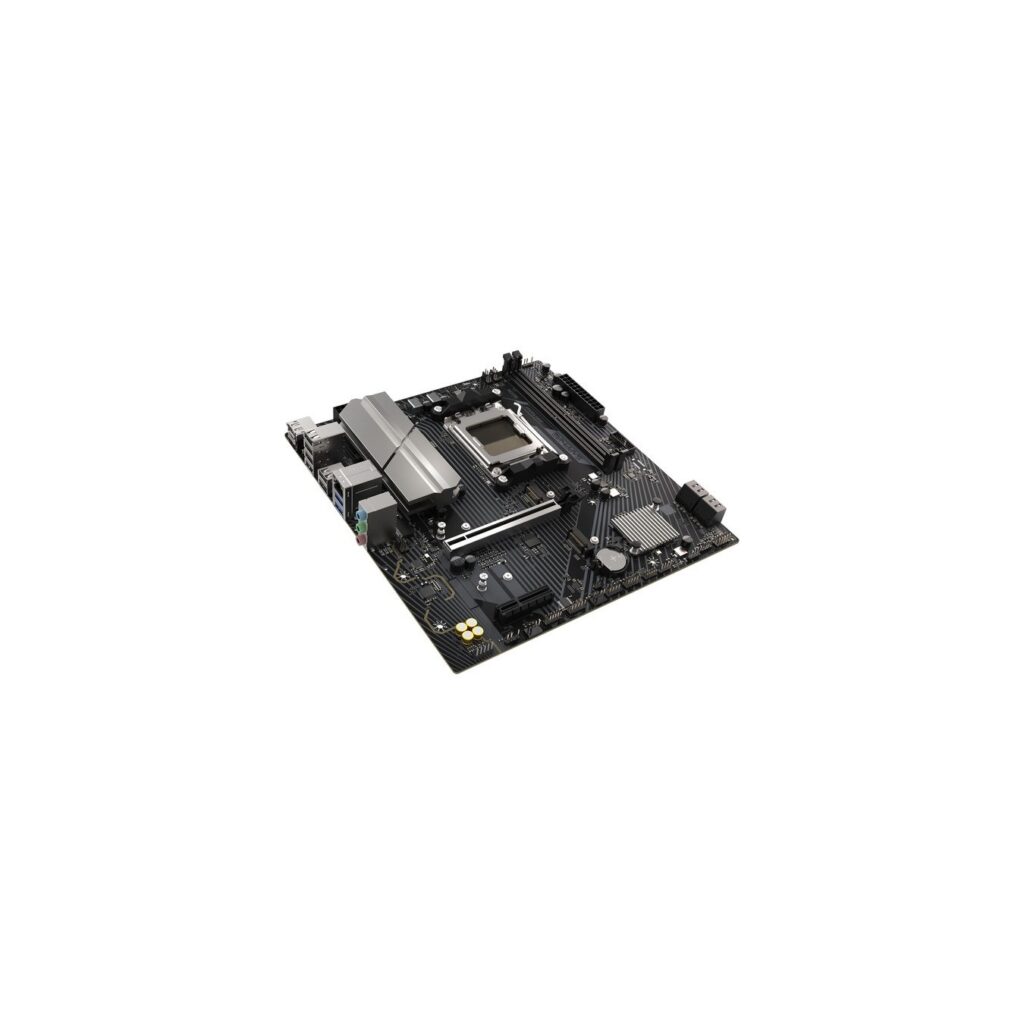

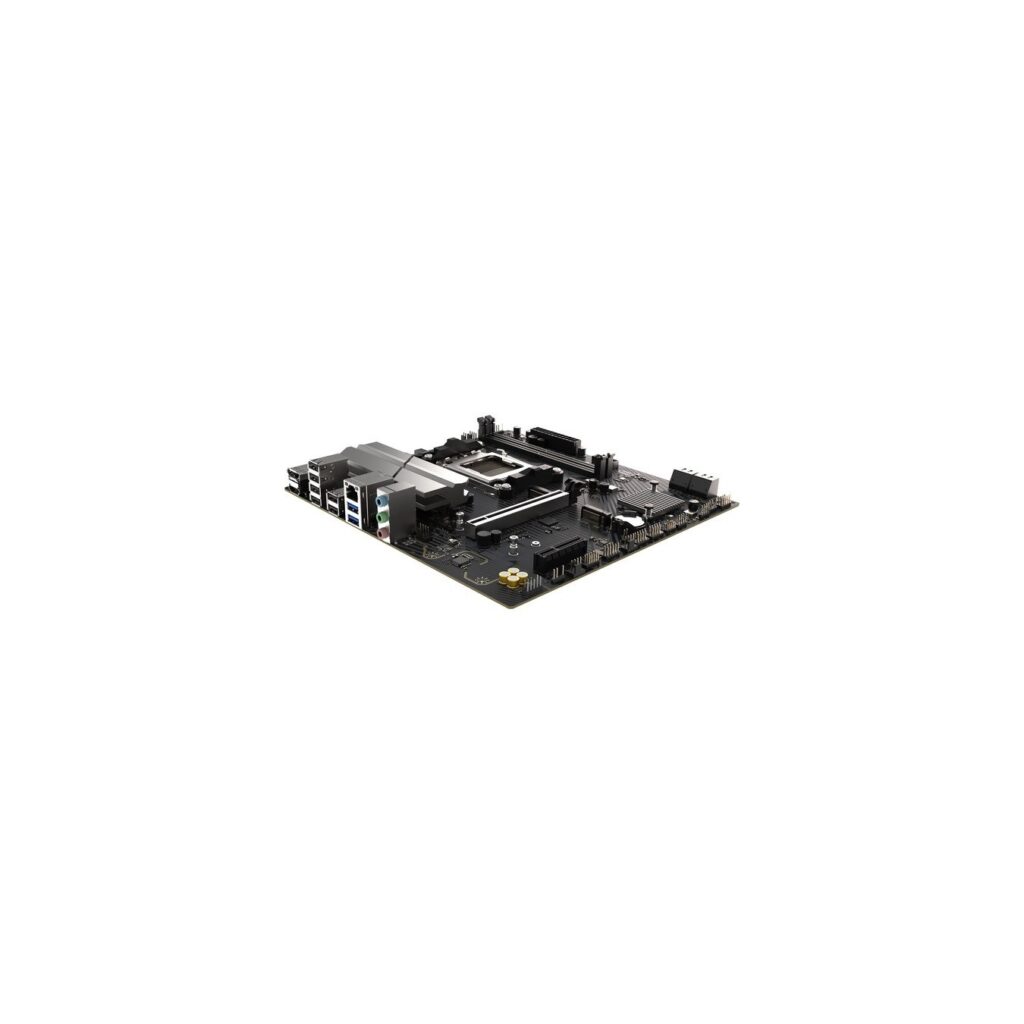

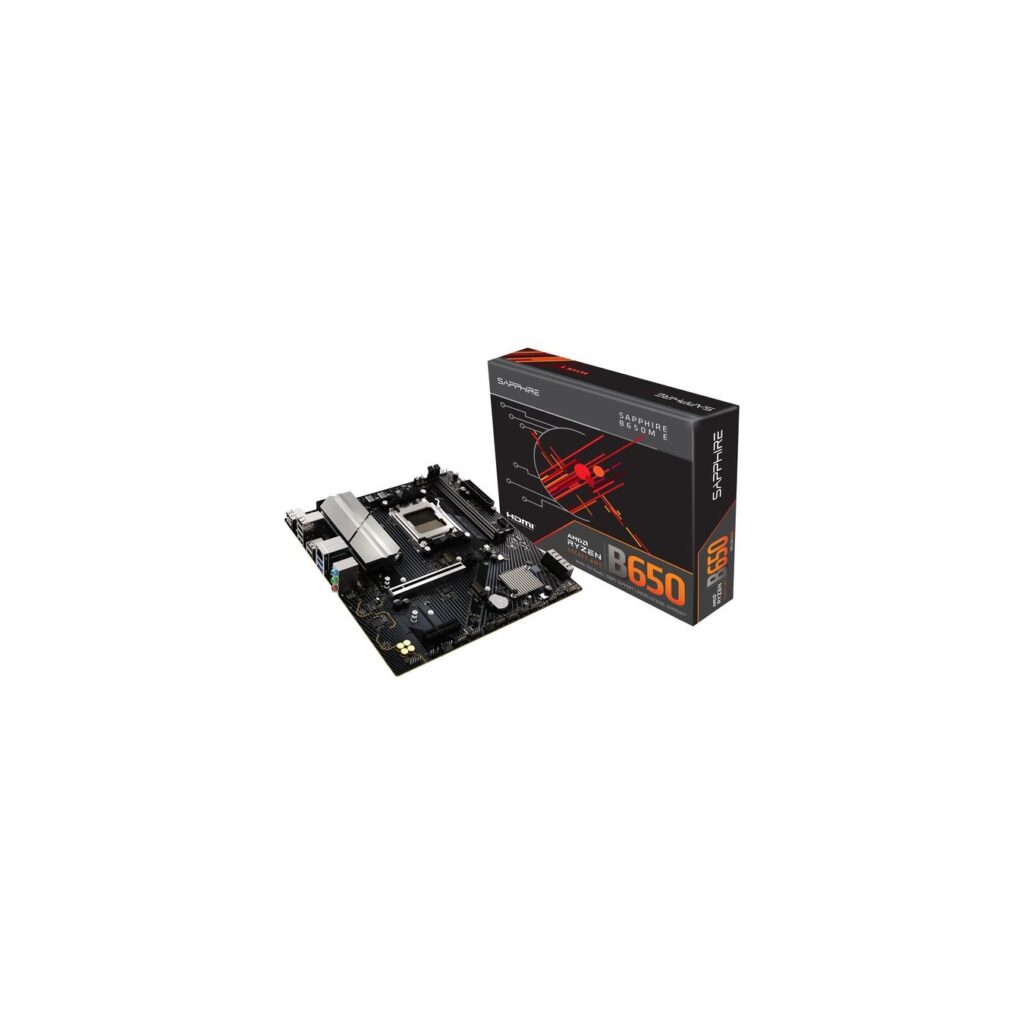

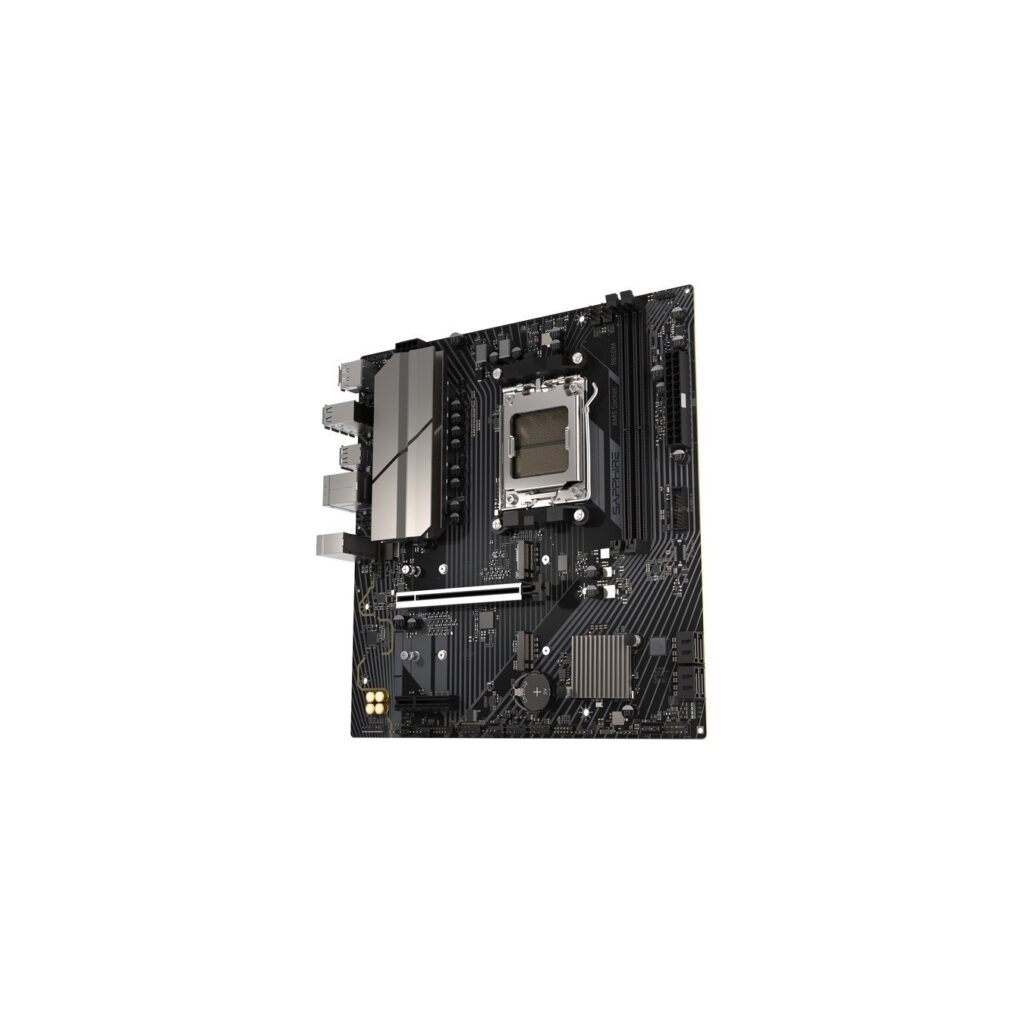

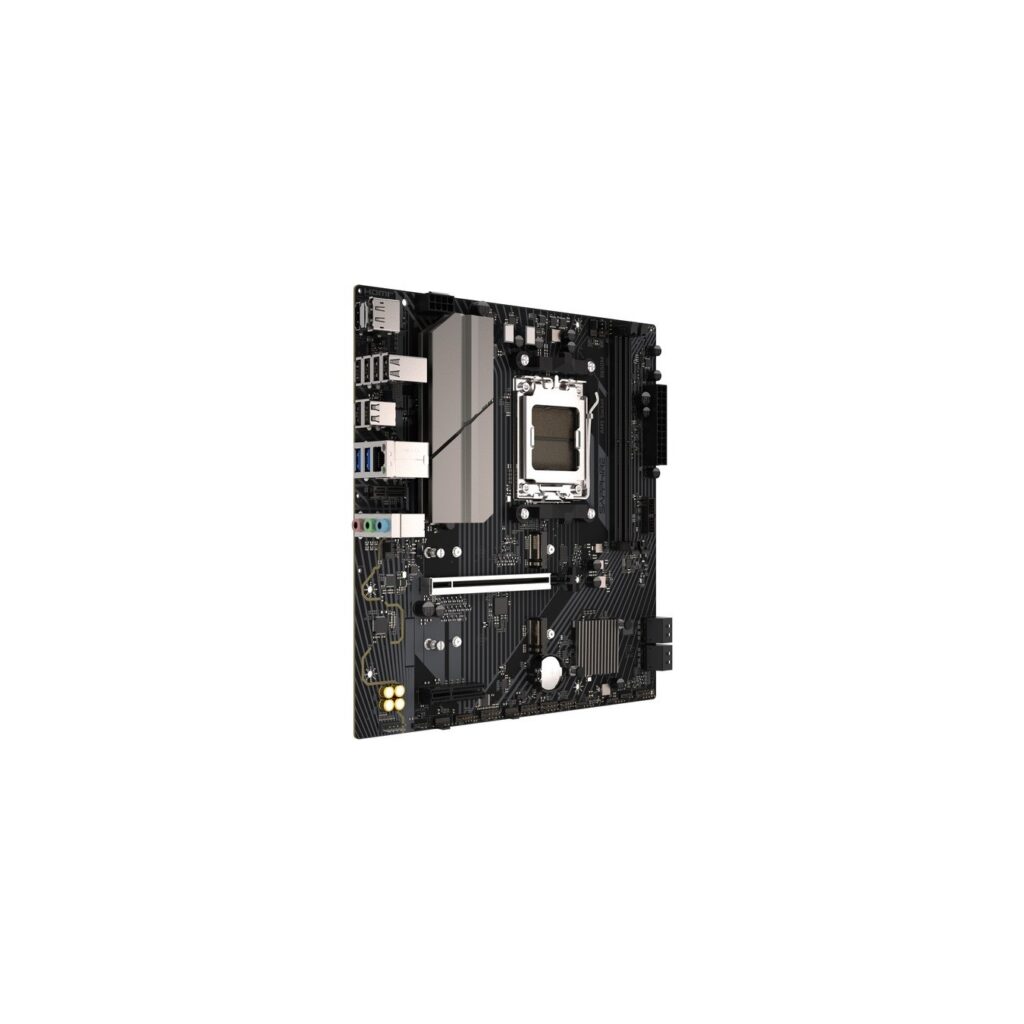

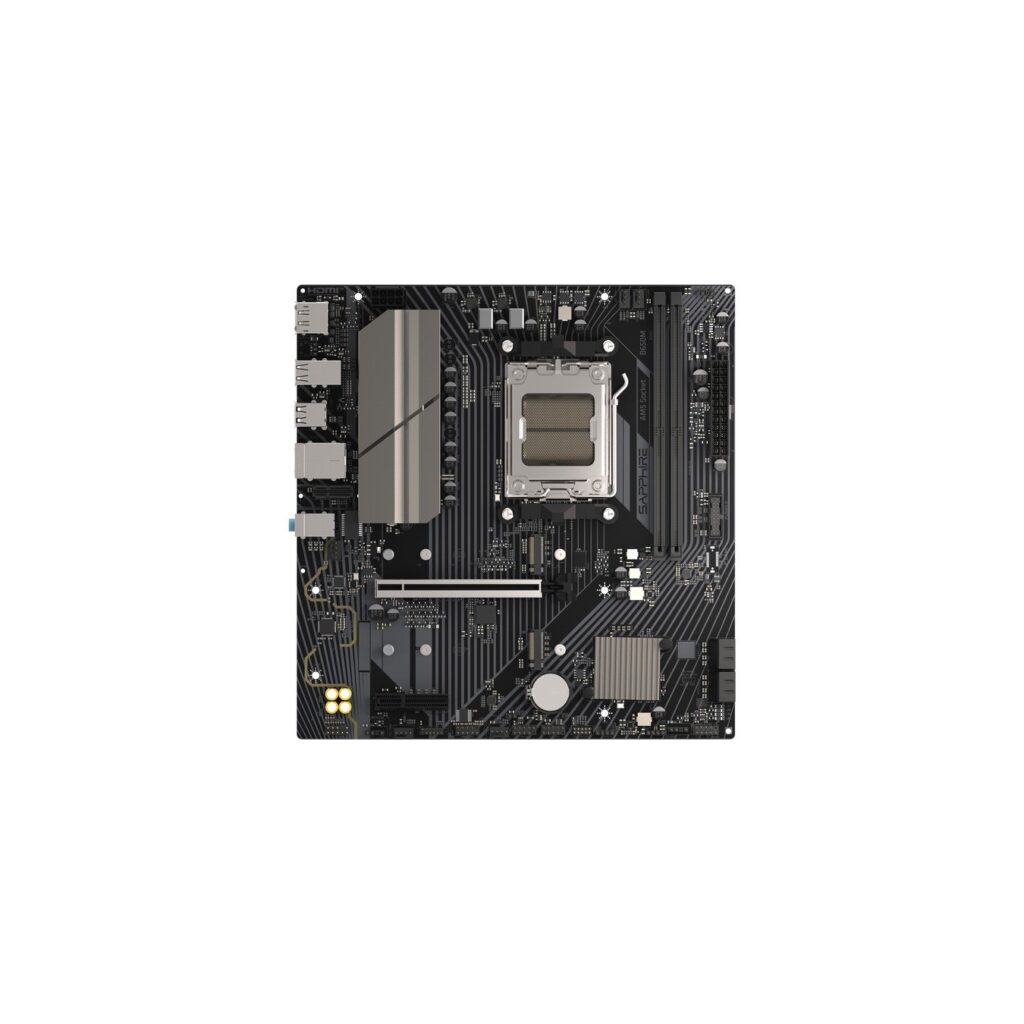

SAPPHIRE B650M-E motherboard with AMD B650 chipset and AM5 socket; supports two DDR5 DIMM slots up to 96 GB in dual-channel.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The SAPPHIRE B650M-E motherboard is based on the AMD B650 chipset and supports AMD processors for socket AM5. It has two DDR5 DIMM slots in dual-channel operation for up to 96 GB of RAM. The SAPPHIRE B650M-E also features a PCIe 4.0 x16 slot and a PCIe 4.0 x4 slot. The SAPPHIRE B650M-E also features HD multi-channel sound, a 2.5 Gigabit LAN interface, four SATA3 ports, two M.2 ports (1x with PCIe 5.0 support) and a range of USB interfaces.
| Typ | Mainboard |
| Color | schwarz |
| EAN | 4895106296848 |
| Manufacturer no. | 52112-04-40G |
| base | AM5 |
| Max. supported CPUs | 1 |
| Operating system support | Windows 11 ready |
| Processor - Supported Models | Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 7xxxX3D (Raphael), Ryzen 5 8xxxF (Phoenix), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxx (Granite Ridge), Ryzen 5 9xxxX (Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 7 8xxxF (Phoenix), Ryzen 7 9xxxX (Granite Ridge), Ryzen 7 9xxxX3D (Granite Ridge), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael), Ryzen 9 9xxxX (Granite Ridge), Ryzen 9 9xxxX3D (Granite Ridge) |
| Chipset | AMD B650 |
| Slots - PCIe x16 | 1x (of which: 1x PCIe x16) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form factor | µATX |
| use | PC |
| Power supply | ATX12V (24-Pin + 8-Pin + 4-Pin) |
| Memory - maximum | 96 GB |
| Ports (external) - USB-A 3.2 Gen 1 (5 Gbit/s) | 2 |
| Connectors (internal) - SATA | 4 |
| Ports (optional) - USB 3.2 Gen 1 (5Gbps) | 2 |
| RGB Standard | AURA Sync |
| SATA Controller | AMD B650 |
| USB-Controller | AMD B650 |
| Onboard Graphics | The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. |
| Sound | Realtek ALC897 |
| LAN | Realtek RTL8125BG 2,5-Gbit-Ethernet |
| Dimensions | Width: 235mm x Height: 244mm |
