Logitech Video Conferencing Kit Tap IP Rally Bar Mini - Rally Bar Mini -
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.

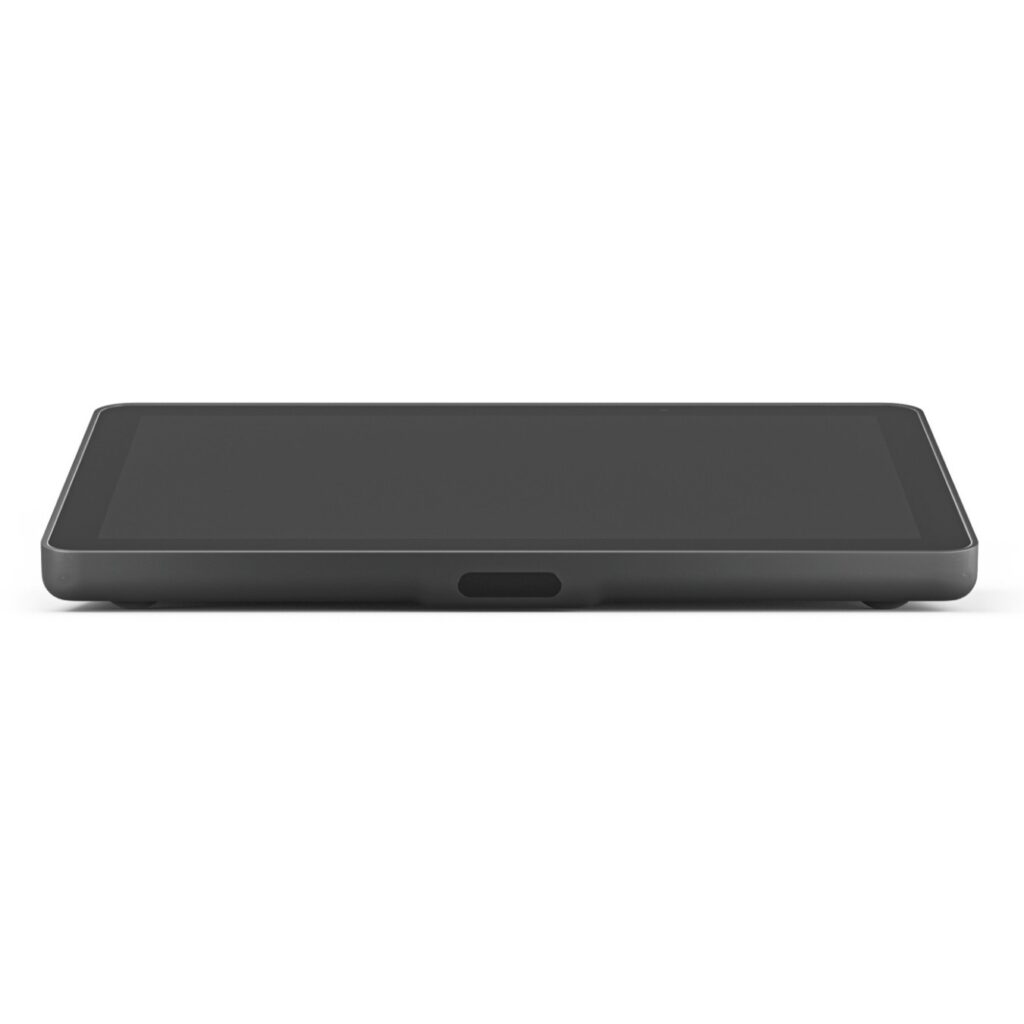

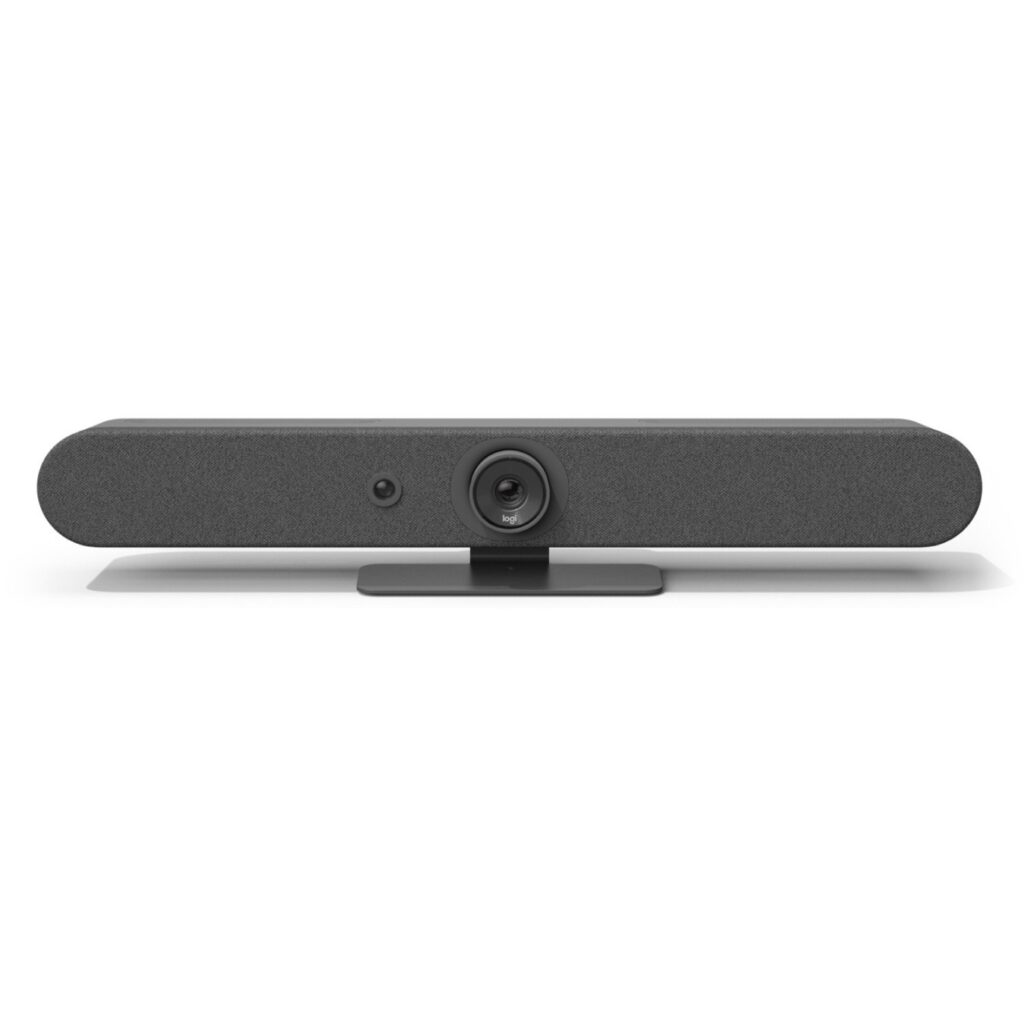

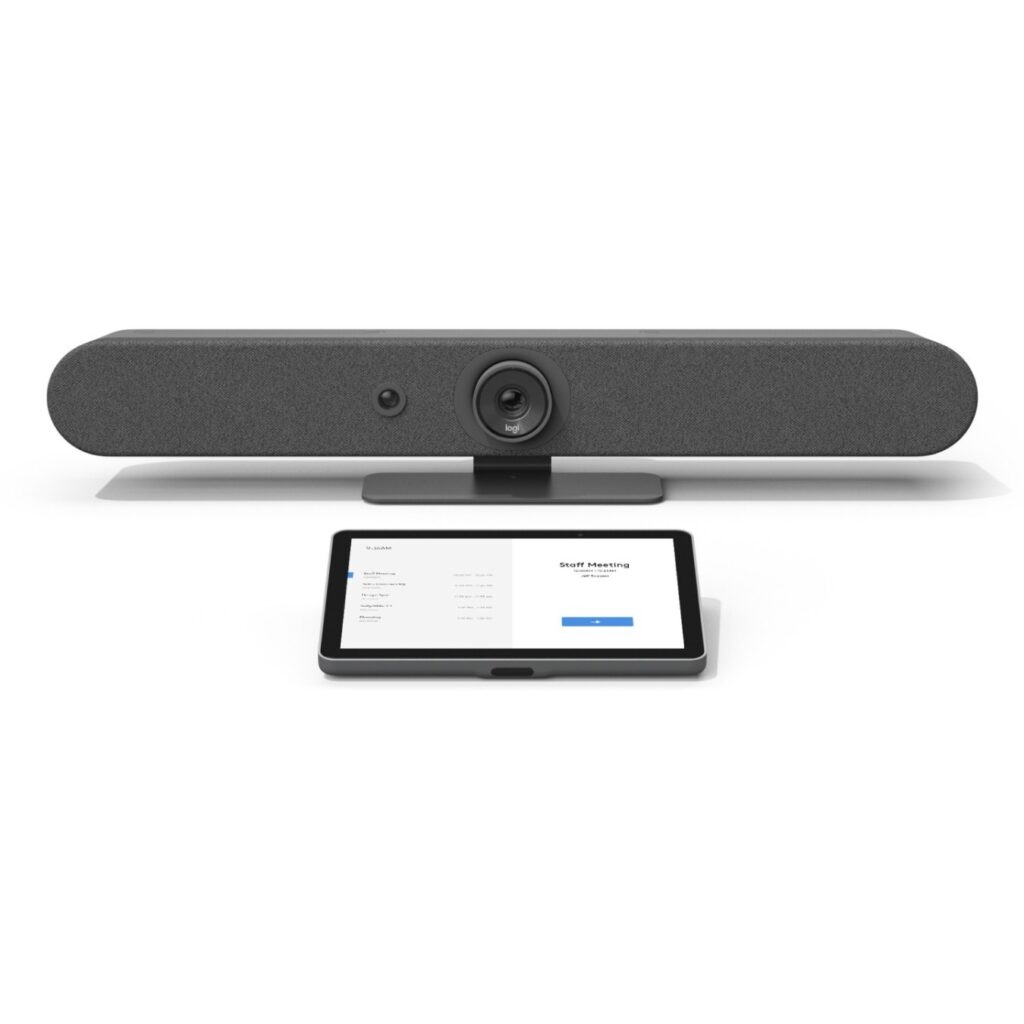

Rally Bar Mini video conferencing kit with Tap IP controller; 4K Ultra HD, 30 fps, Graphite, Zoom and RingCentral certified.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Logitech Rally Bar Mini. HD type: 4K Ultra HD. Supported video modes: 576p. 720p. 900p. 1440p. 2160p. Maximum frame rate: 30 fps. Digital zoom: 4x. Ethernet LAN. Wi-Fi. Display: IPS. Display diagonal: 25.6 cm (10.1″). Display resolution: 1280 x 800 pixels. Product colour: Graphite
| Product colour | Graphite |
| Pan range | -25 - 25° |
| Tilt angle range | -15 - 15° |
| Feature | Quick start guide |
| HD type | 4K Ultra HD |
| Maximum video resolution | 3840 x 2160 pixels |
| Supported video modes | 576p. 720p. 900p. 1440p. 2160p |
| Maximum frame rate | 30 fps |
| Output level | 92/99 dB |
| Line-out impedance | 4 Ω |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| RMS rated power | 8 W |
| Microphone pick-up range | 4.5 m |
| Sample rates | 0 - 48 kHz |
| Driver diameter | 7 cm |
| HDMI ports quantity | 3 |
| HDMI output ports quantity | 2 |
| HDMI input ports quantity | 1 |
| USB connector type | USB Type-A. USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Wi-Fi standards | 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac) |
| Supported network protocols | IPv4. IPv6 |
| Security algorithms | 128-bit AES |
| Digital zoom | 4x |
| Horizontal field of view | 113° |
| Vertical field of view | 80.7° |
| Diagonal field of view | 120° |
| Remote control interface | Bluetooth |
| Display | IPS |
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1280 x 800 pixels |
| Contrast ratio (typical) | 1000:1 |
| Touchscreen type | Capacitive |
| Viewing angle. horizontal | 85° |
| Viewing angle. vertical | 85° |
| Display brightness | 400 cd/m² |
| Microphone sensitivity | -36 dB |
| Microphone frequency | 90 - 16000 Hz |
| Microphone direction type | Omnidirectional |
| Sound pressure level (max) | 90 dB |
| Number of microphones | 6 |
| Cable lock slot type | Kensington |
| Master (outer) case gross weight | 8.87 kg |
| Master (outer) case length | 808 mm |
| Master (outer) case width | 258 mm |
| Master (outer) case height | 302 mm |
| Battery capacity | 220 mAh |
| Mac operating systems supported | MacOS |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Heat dissipation | 64 BTU/h |
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| Current | 4.74 A |
| DC input voltage | 19 V |
| Battery technology | Lithium |
| Number of batteries supported | 1 |
| Power plug type | Type C |
| Interface module dimensions (W x D x H) | 246.2 x 171.3 x 56.1 mm |
| Interface module weight | 1 kg |
| Width | 719 mm |
| Depth | 101 mm |
| Height | 91.4 mm |
| Weight | 4.03 kg |
| Package width | 252 mm |
| Package depth | 802 mm |
| Package height | 289 mm |
| Package weight | 8.87 kg |
| Cables included | AC. DC. HDMI. USB Type-A to USB Type-C |
| Power cable length | 1.5 m |
| HDMI cable length | 2 m |
| Packaging content | {loc-value} |
