Expansion Cards

LogiLink PC0033 PCIe x1 2x Serial RS232 + 1x Parallel

SKU:
Brand: LogiLink
Barcode:

B2B prices require verification

This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.

PCIe x1 expansion card with 2x RS232 serial (DB9) and 1x IEEE 1284 parallel (DB25) ports. Plug & Play, 16C550 UART with 16-byte FIFO, up to 1.5MB/s parallel. Supports legacy devices on modern PCs.

For any questions about this item, availability, or delivery times, please contact us at 22 270068

Questions? Call 22 270068

  • 4–8 business daysdelivered to you
  • 2–5 business daysat our store in Nicosia
  • Pay your waycards, Apple Pay, Google Pay or in store

Key specs

At a glance

All specifications
  • IO Port ExpansionProduct Type
  • PCIe x1Host Interface
  • Low Profile Half-HeightForm Factor
  • Serial and ParallelExternal Connectivity

Product information

Details

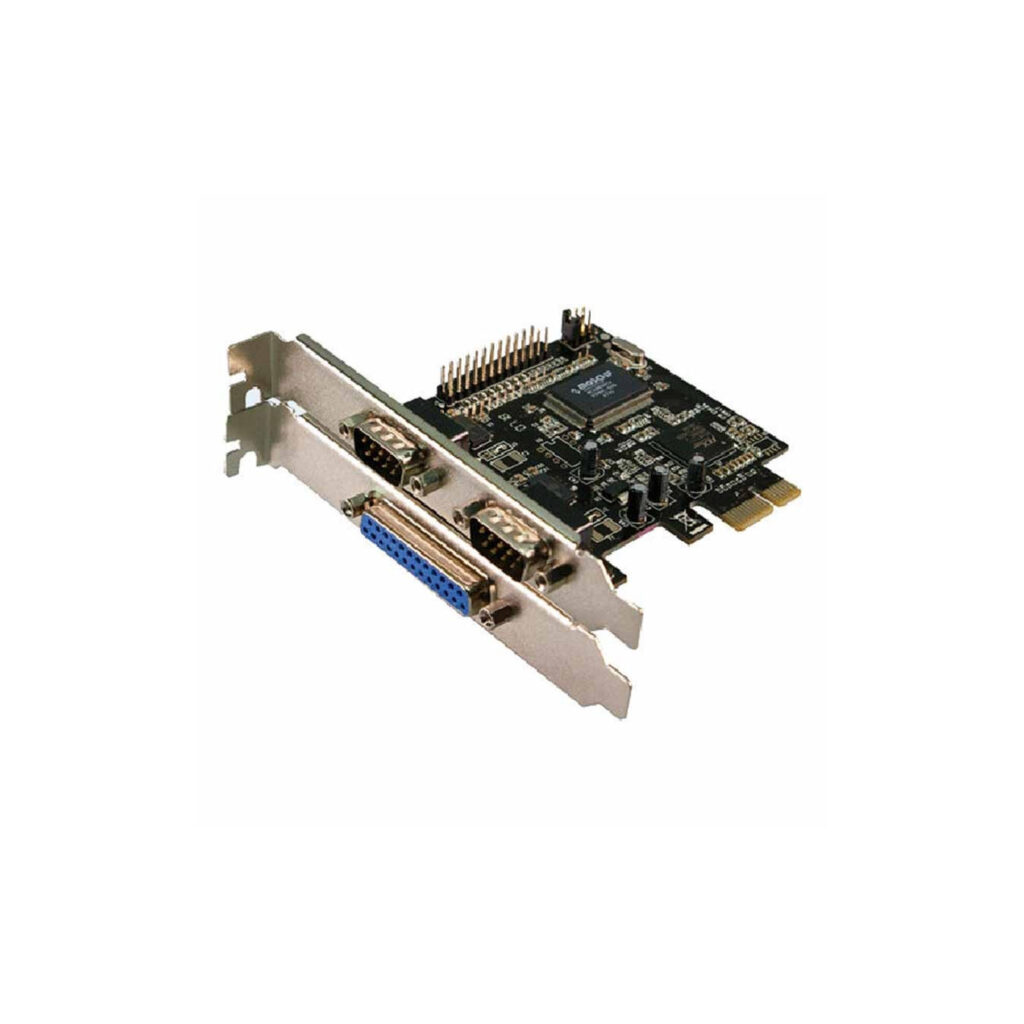

The LogiLink PC0033 is a PCI Express expansion card designed to add legacy connectivity to modern computers. It provides 2x RS232 serial ports (9-pin DB9 connectors) and 1x parallel port (25-pin D-SUB), enabling connection of older printers, scanners, industrial equipment, and serial devices.

Featuring a single-lane PCIe x1 interface compliant with PCI Express 1.0a, it delivers 2.5Gb/s full duplex transfer rates. The serial ports use 16C550 UART with 16-byte FIFO buffers for reliable data transfer up to 1MB/s, including hardware flow control. The parallel port supports SPP, PS/2, EPP, ECP modes per IEEE 1284 standard with 16-byte FIFO and speeds up to 1.5MB/s. Fully Plug & Play with automatic IRQ/address assignment.

  • PCIe x1 low-profile card for easy installation
  • 2x External RS232 DB9 serial ports
  • 1x External DB25 parallel port (IEEE 1284)
  • 16C450/16C550 UART compatibility
  • Supports Windows 2000/XP/7/8/10 and Linux
  • NetMOS chipset for stability
