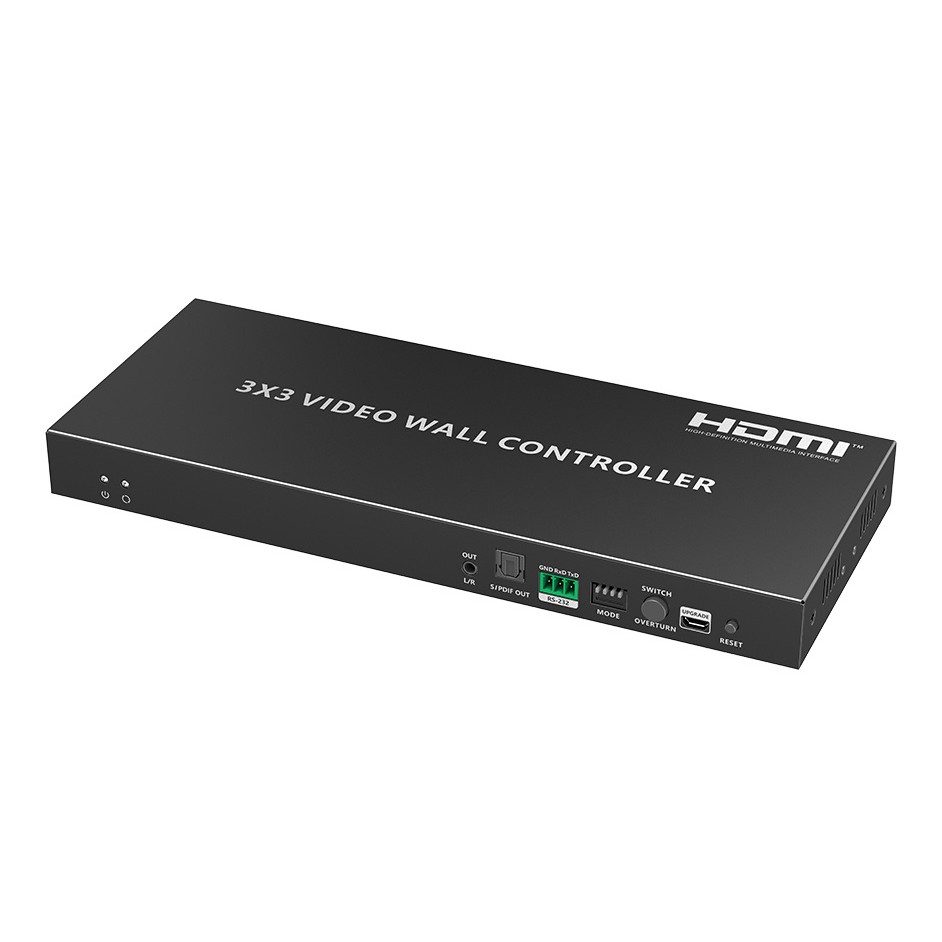

The Lenkeng LKV109VW-V2.0 is a professional 1-in-9-out HDMI video wall controller designed to split a single 4K video source across up to nine displays in a 3×3 grid or other configurations.
- High Resolution Support: Accepts input resolutions up to 4K @ 60Hz (4096×2160) and delivers 1080p @ 60Hz output to each connected display.

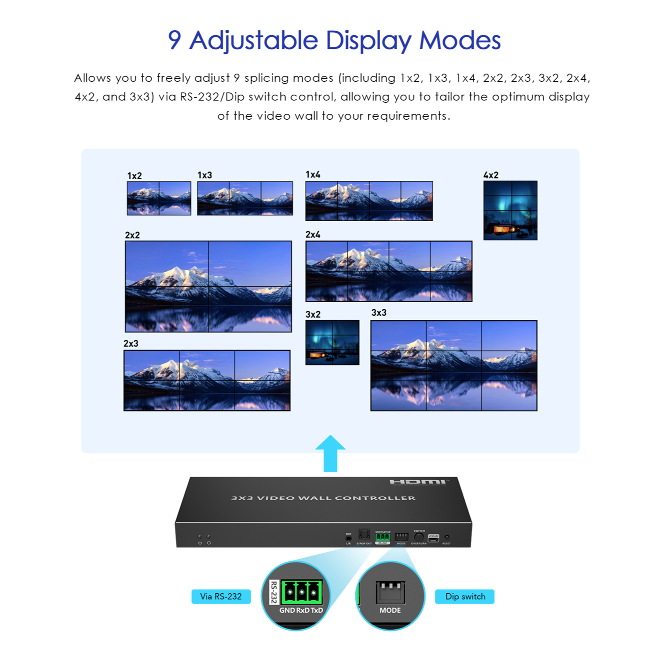

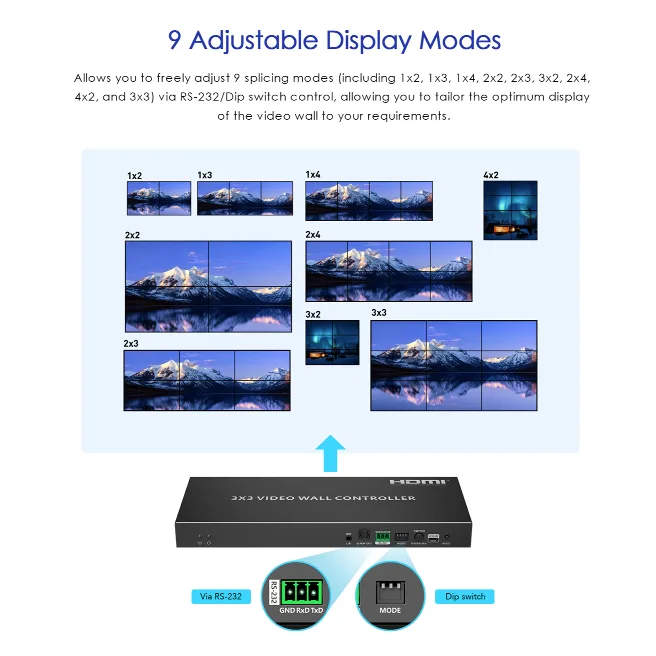

- Versatile Splicing Modes: Supports 13 different display layouts, including 1×1, 1×2, 2×1, 1×3, 3×1, 1×4, 4×1, 2×2, 2×3, 3×2, 2×4, 4×2, and 3×3.

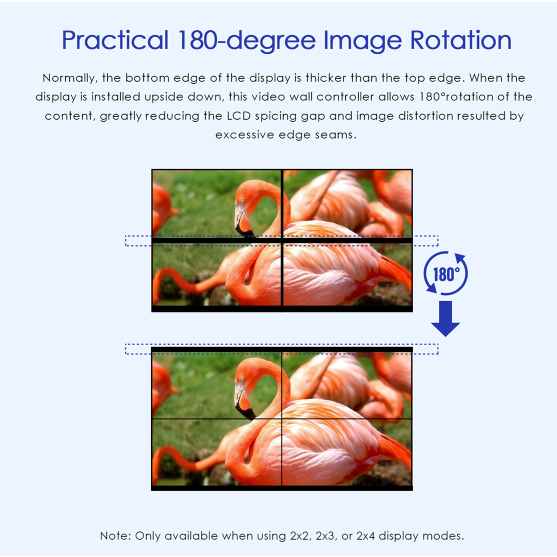

- 180° Image Rotation: Allows you to rotate images 180 degrees specifically in 2×2, 2×3, and 2×4 modes, which is helpful when mounting upper screens upside down to minimize bezel gaps.

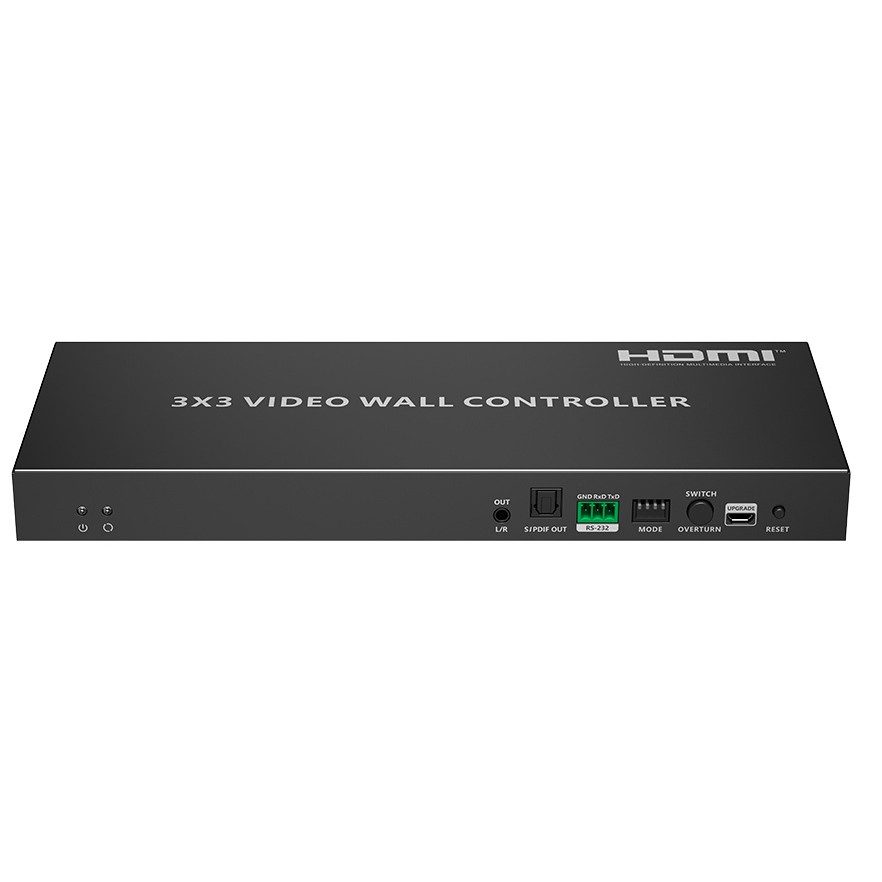

- Audio Extraction: Features both 3.5mm stereo and S/PDIF digital audio outputs to connect external sound systems.
- Multiple Control Options: Settings can be managed via a DIP switch on the unit or remotely through RS-232 commands
