Keychron V6 Max V6M-D1 QMK/VIA Wireless Mechanical Keyboard Red Switch 100% US
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
Keychron V6 Max full-size mechanical keyboard with QMK/VIA customization, 2.4GHz wireless, Bluetooth 5.1, hot-swappable switches, gasket mount design, and 1000Hz polling rate for gaming and productivity.
Item out of stock
This item is currently out of stock. We can suggest alternatives or try to source it for you. Call us at 22 270068 or email [email protected].
Keychron V6 Max is a fully customizable QMK/VIA mechanical keyboard featuring tri-mode connectivity: wired USB-C, Bluetooth 5.1, and 2.4GHz wireless with 1000Hz polling rate. The full-size 100% layout includes a gasket mount design with polycarbonate plate, sound-absorbing foam layers, and double-shot PBT keycaps with OSA profile. Hot-swappable sockets support both 3-pin and 5-pin MX mechanical switches, including Gateron, Cherry MX, and Kailh brands. The keyboard features an ARM Cortex-M4 32-bit STM32F402 MCU with 256K Flash for advanced customization and macro programming.

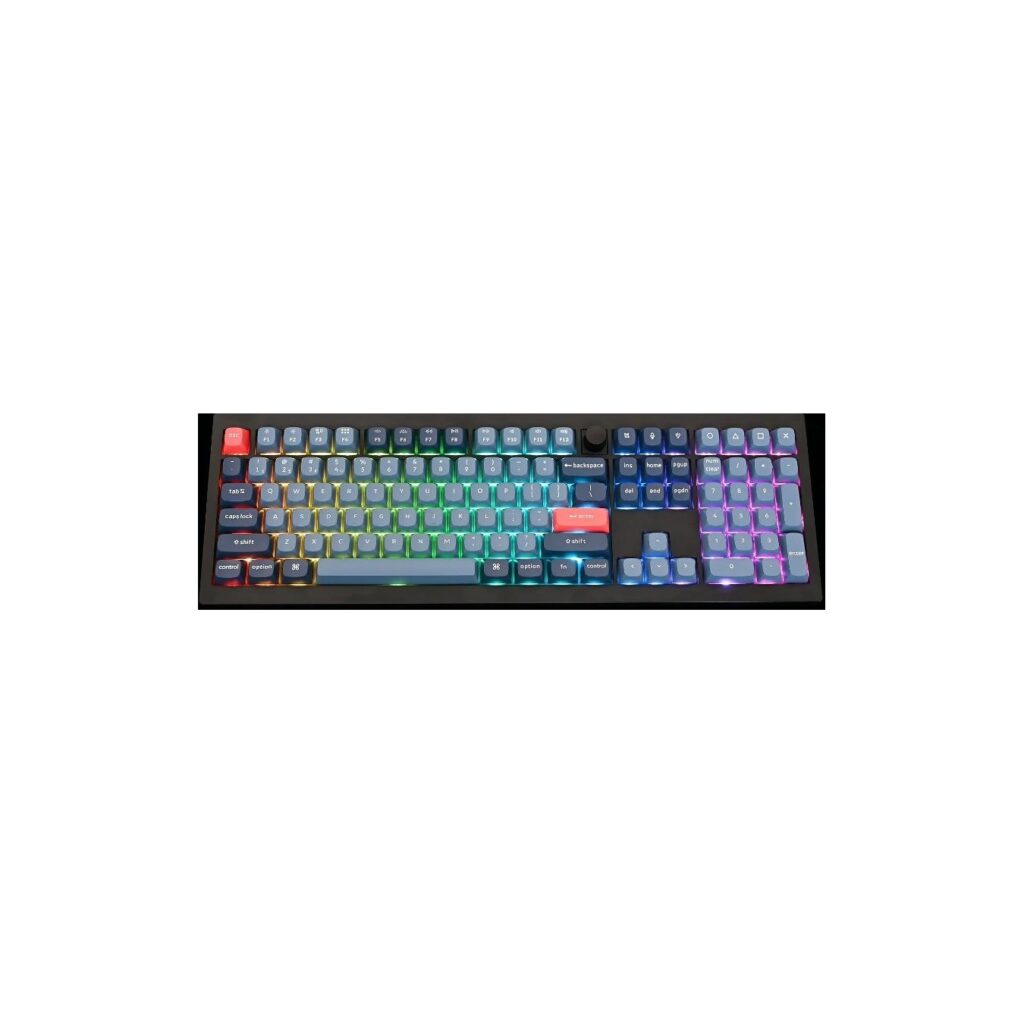

The V6 Max delivers premium typing experience with screw-in PCB stabilizers for smooth keystrokes on large keys, south-facing RGB LEDs for enhanced backlighting through PBT keycaps, and dual wireless receivers (Type-C and Type-A) with magnetic storage slots. The 4000mAh rechargeable battery provides up to 190 hours of wireless operation (backlit off) or 100 hours with RGB at lowest brightness, with approximately 5-hour charging time. Compatible with Windows, macOS, and Linux, the keyboard supports N-Key Rollover in both wireless and wired modes for competitive gaming and professional use.
- Tri-mode connectivity: USB-C wired, Bluetooth 5.1, 2.4GHz wireless (1000Hz polling)
- Full-size 100% layout with numeric keypad and 108 keys (104 programmable + 12 function)

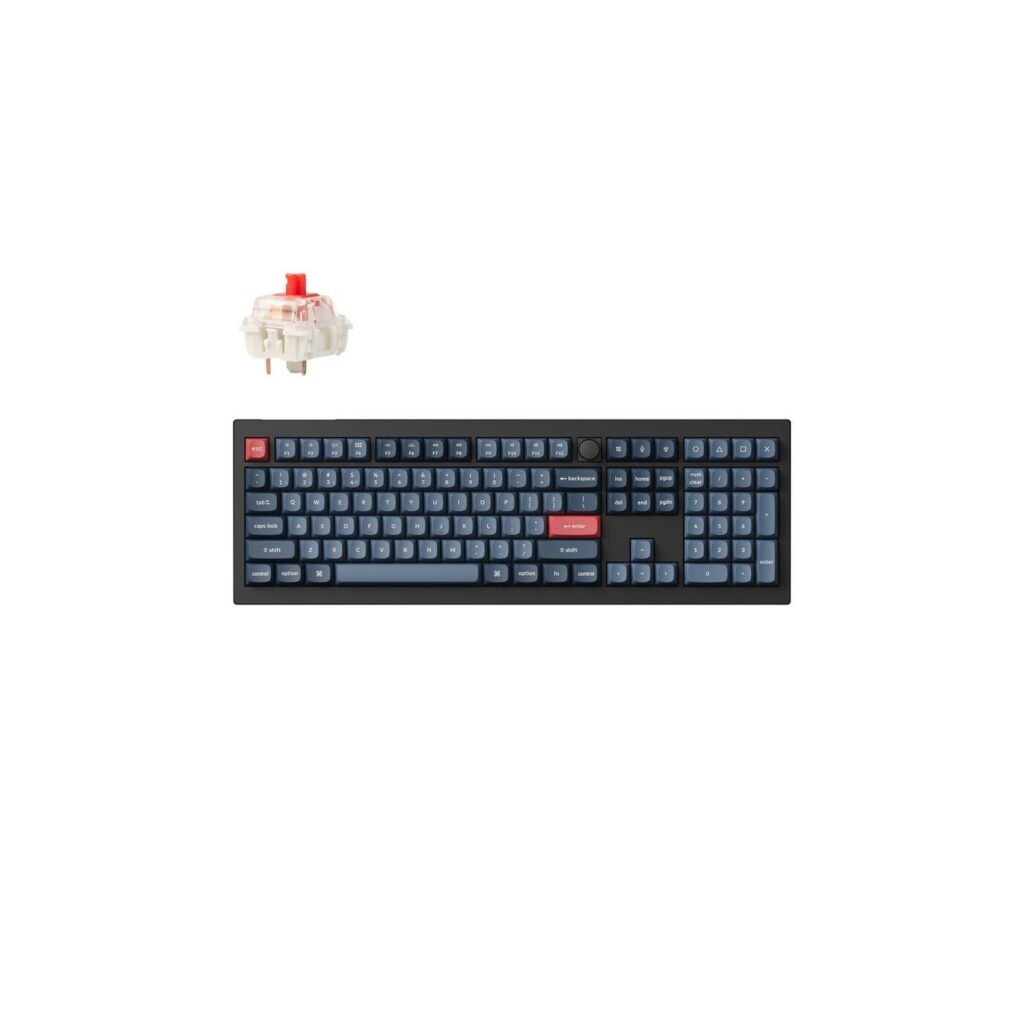

- Hot-swappable MX switches (3-pin and 5-pin compatible)
- QMK/VIA open-source firmware for unlimited customization
- Gasket mount design with PC plate and premium acoustic foam
- Double-shot PBT keycaps with OSA profile
- South-facing RGB LEDs with per-key customization
- 4000mAh battery with 190-hour wireless runtime
- Dual receivers with magnetic storage
- Includes USB-C cable, adapters, keycap/switch puller, and tools
| Layout | Full-Size 100% (108 keys) |
| Key Count | 108 keys total (104 programmable + 12 function keys) |
| Switch Type | Mechanical MX (3-pin and 5-pin compatible) |
| Switch Compatibility | Gateron, Cherry MX, Kailh, and most MX-compatible switches |
| Hot-Swappable | Yes |
| Keycaps | Double-shot PBT, OSA profile |
| Mount Design | Gasket mount with polycarbonate (PC) plate |
| Stabilizers | Screw-in PCB stabilizers (8 sets included) |
| Connectivity | Tri-mode: USB-C wired, Bluetooth 5.1, 2.4GHz wireless |
| Wireless Protocol | 2.4GHz RF with dual receivers (Type-C and Type-A) |
| Bluetooth Version | 5.1 |
| Polling Rate | 1000 Hz (wired and 2.4GHz modes) |
| N-Key Rollover | Yes (NKRO in both wireless and wired modes) |
| Programmable | Yes, QMK/VIA support |
| Microcontroller | ARM Cortex-M4 32-bit STM32F402 MCU with 256K Flash |
| Backlighting | Per-key RGB, south-facing LEDs |
| Battery Capacity | 4000 mAh rechargeable li-polymer |
| Battery Life (Wireless, Backlit Off) | Up to 190 hours |
| Battery Life (Wireless, RGB On) | Up to 100 hours (lowest brightness) |
| Charging Time | Approximately 5 hours |
| Compatible Operating Systems | Windows, macOS, Linux |
| Anti-Ghosting | Yes |
| Dust Resistant | Yes |
| Adjustable Height | Yes |
| Acoustic Foam | Premium sound-absorbing foam (IXPE, PET, latex layers) |
| Included Accessories | USB-C to USB-C cable, USB-A to USB-C adapter, extension adapter for receiver, Type-A 2.4GHz receiver, Type-C 2.4GHz receiver, keycap & switch puller, screwdriver, hex key |
| Manufacturer Part Number | V6M-D1 |
| UPC | 4895248868934 |
