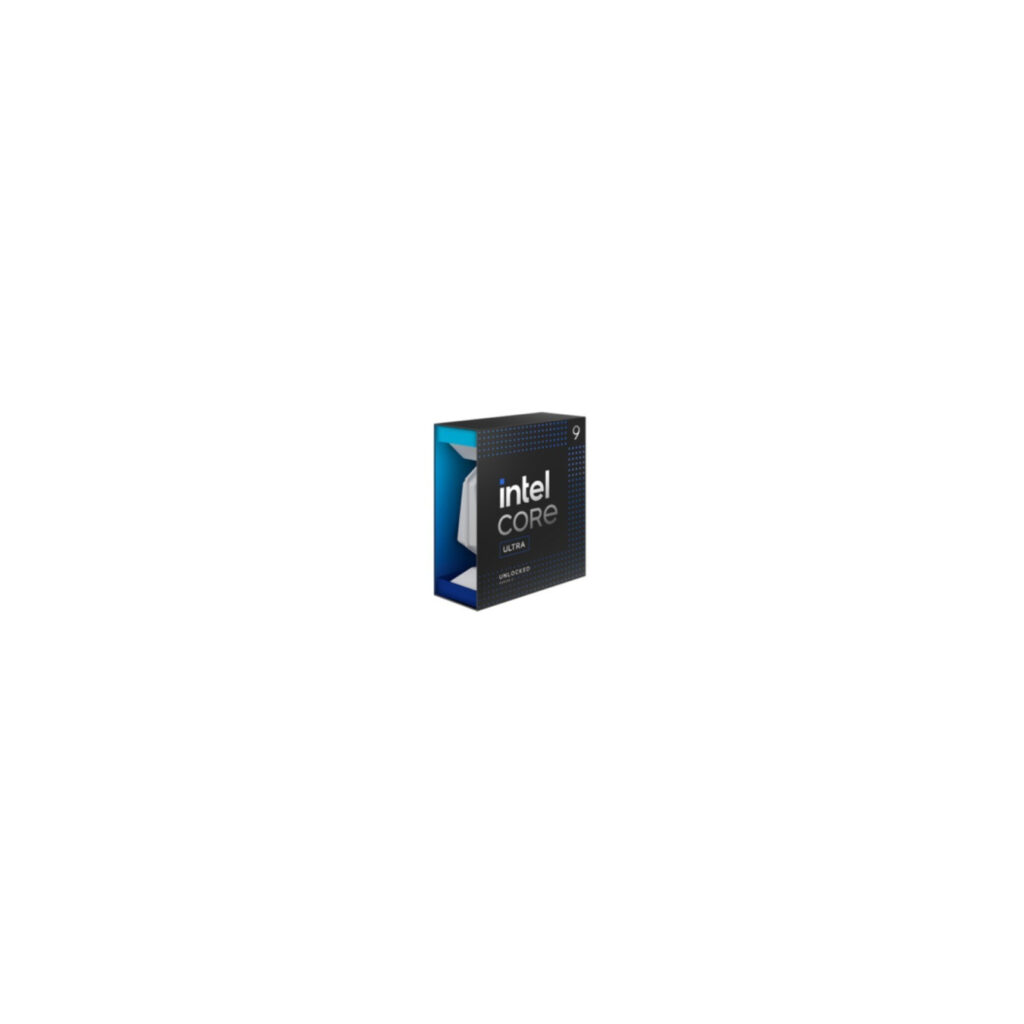

Intel Core Ultra 9 285K - 24-core (8P+16E), 3.7GHz P-base, up to 5.7GHz Turbo, 36MB Smart Cache, Boxed
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
Intel Core Ultra 9 285K (Boxed) — 24 cores (8P+16E), 24 threads, P-core 3.7 GHz base / up to 5.7 GHz Turbo, 36 MB Smart Cache, DDR5-6400, LGA1851, 125W base TDP.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Intel Core Ultra 9 285K. Processor family: Intel Core Ultra 9. Processor socket: LGA 1851 (Socket V1). Package type: Box. Neural processor unit (NPU): Intel AI Boost. AI software frameworks supported by NPU: DirectML. OpenVINO. Windows ML. ONNX RT. WebNN. Total processor performance up to: 36 TOPs. Memory channels: Dual-channel. Maximum internal memory supported by processor: 192 GB. Memory types supported by processor: DDR5-SDRAM. On-board graphics card model: Intel Graphics. On-board graphics card outputs supported: HDMI 2.1. Embedded DisplayPort (eDP) 1.4b. DisplayPort 2.1. On-board graphics card base frequency: 300 MHz. Market segment: Desktop. Use conditions: Workstation. PC/Client/Tablet. PCI Express slots version: 4.0. 5.0
| Processor manufacturer | Intel |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 285K |
| Processor family | Intel Core Ultra 9 |
| Processor cores | 24 |
| Processor socket | LGA 1851 (Socket V1) |
| Processor threads | 24 |
| Processor operating modes | 64-bit |
| Performance cores | 8 |
| Efficient cores | 16 |
| Processor boost frequency | 5.7 GHz |
| Performance-core boost frequency | 5.5 GHz |
| Performance-core base frequency | 3.7 GHz |
| Efficient-core boost frequency | 4.6 GHz |
| Efficient-core base frequency | 3.2 GHz |
| Processor cache | 36 MB |
| Processor cache type | Smart Cache |
| Package type | Box |
| Processor base power | 125 W |
| Maximum turbo power | 250 W |
| AI software frameworks supported by CPU | DirectML. OpenVINO. Windows ML. ONNX RT. WebNN |
| Stepping | B0 |
| Maximum number of DMI lanes | 8 |
| Processor codename | Arrow Lake |
| Processor ARK ID | 241060 |
| Neural processor unit (NPU) | Intel AI Boost |
| Feature | Intel® Total Memory Encryption - Multi Key |
| AI software frameworks supported by NPU | DirectML. OpenVINO. Windows ML. ONNX RT. WebNN |
| Total processor performance up to | 36 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 8 TOPs |
| Maximum internal memory supported by processor | 192 GB |
| Memory types supported by processor | DDR5-SDRAM |
| Memory clock speeds supported by processor | 6400 MHz |
| Memory channels | Dual-channel |
| On-board graphics card model | Intel Graphics |
| On-board graphics card outputs supported | HDMI 2.1. Embedded DisplayPort (eDP) 1.4b. DisplayPort 2.1 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 2000 MHz |
| Number of displays supported (on-board graphics) | 4 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card refresh rate at maximum resolution (DisplayPort) | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (HDMI) | 60 Hz |
| On-board graphics card ID | 0x7D67 |
| Discrete graphics card model | Not available |
| Xe-cores | 4 |
| Market segment | Desktop |
| Use conditions | Workstation. PC/Client/Tablet |
| Maximum number of PCI Express lanes | 24 |
| PCI Express slots version | 4.0. 5.0 |
| Supported instruction sets | AVX 2.0. SSE4.1. SSE4.2 |
| Scalability | 1S |
| Thermal solution specification | PCG 2020A |
| Direct Media Interface (DMI) Revision | 4.0 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | 740.17B1 |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Turbo Boost Max Technology 3.0 frequency | 5.6 GHz |
| Intel® Thermal Velocity Boost Frequency | 5.7 GHz |
| Maximum operating temperature | 105 °C |
| OpenCL version | 3.0 |
| Launch date | Q4'24 |
| Status | Launched |
| Memory speed (max) | 6400 MHz |
| Harmonized System (HS) code | 8542310050 |
| L2 cache | 40960 KB |
| Maximum internal memory | 192 GB |
| Graphics output | DP2.1 UHBR20. HDM2.1 FRL 12GHz. eDP1.4b |
