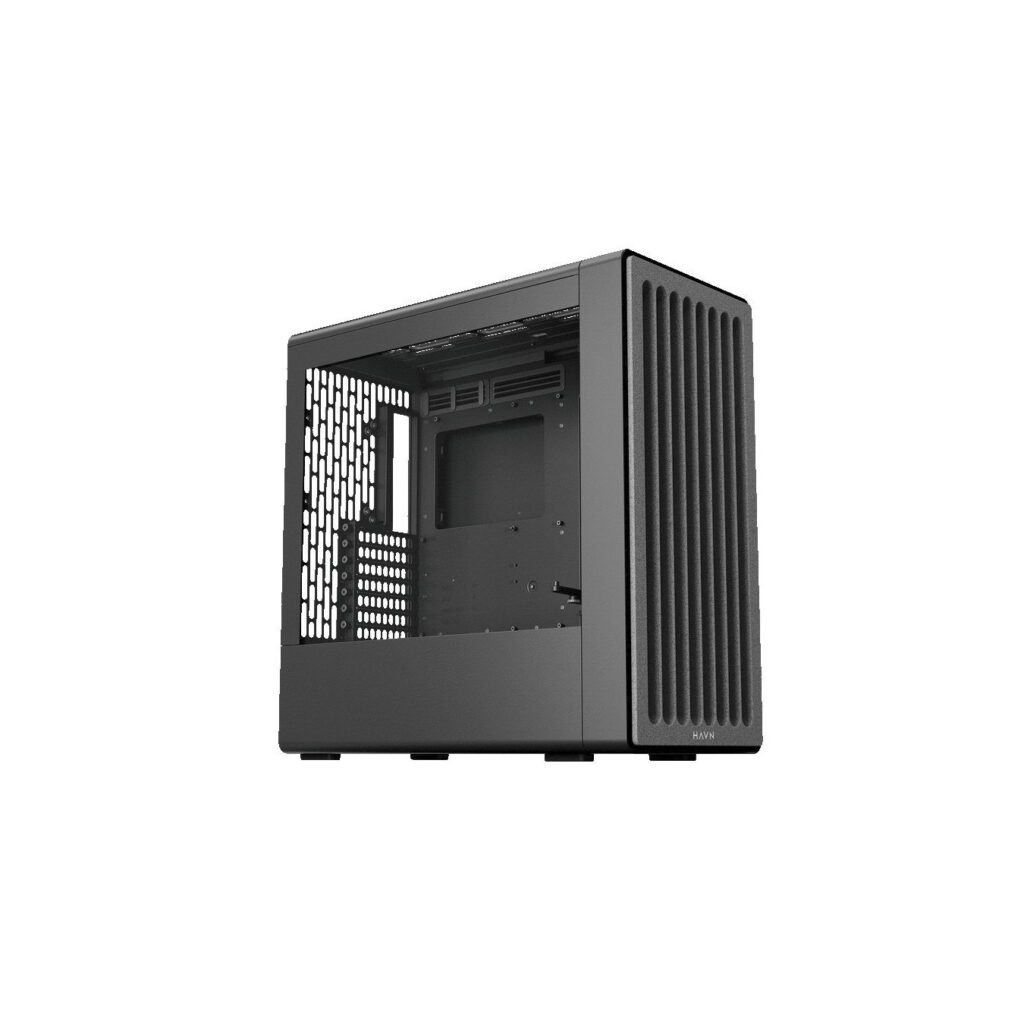

HAVN BF 360 Black without fans - premium ATX mid-tower
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
High-airflow ATX mid-tower designed for superior cooling with support for up to four 180mm fans and 360/420mm radiators. Features GPU-focused air guide, semi-open frame, and premium build for quiet, efficient PC builds.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
DESIGNED FOR HIGH AIRFLOW
Supports up to four 180mm fans and 360mm/420mm radiator installation for superior thermal performance. Engineered to maximize cooling and minimize noise with aerodynamic design directing air to GPU hot zones.
PREMIUM SEMI-OPEN FRAME

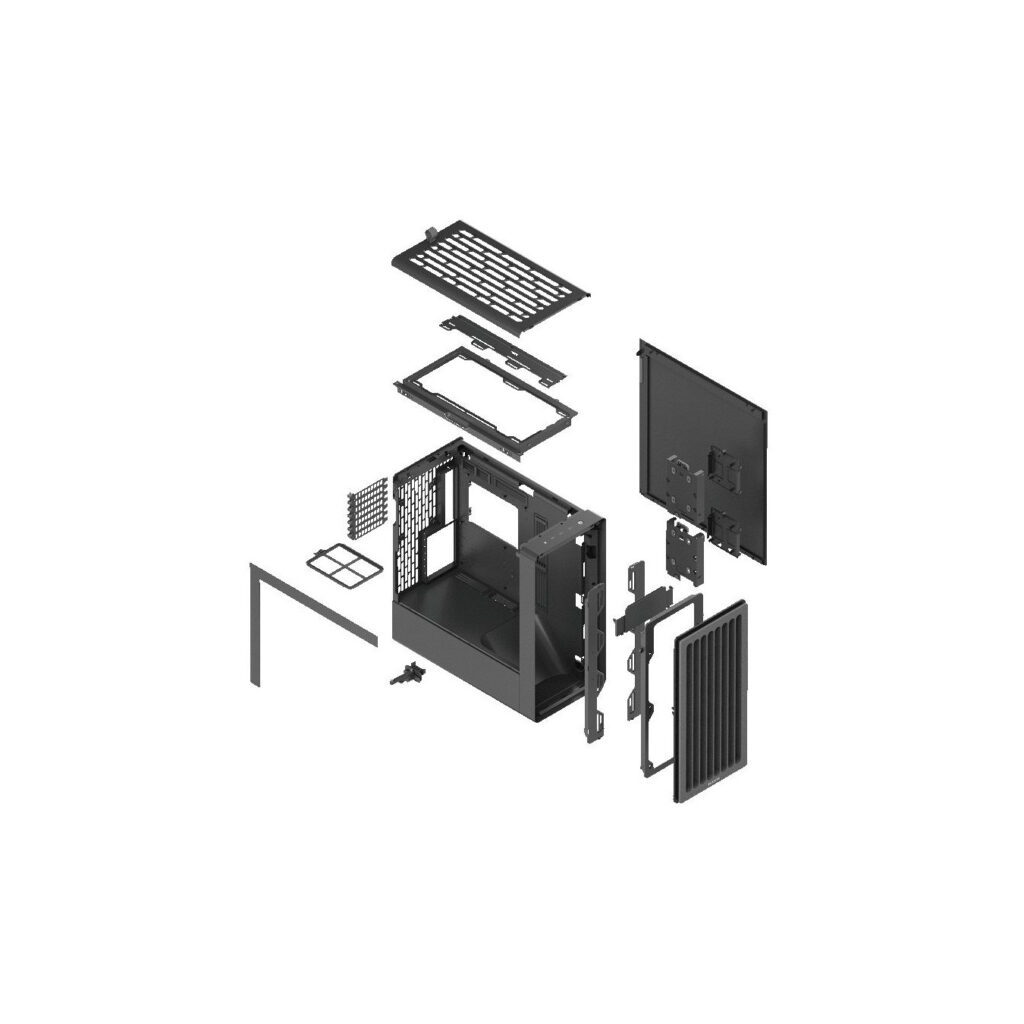

Built from durable SGCC steel with removable U-shaped fan bracket for rigidity and easy assembly. Enhanced structure improves durability while allowing smooth cooling hardware installation. Includes 33mm cable management space with Velcro straps.
- ✅ Motherboard: E-ATX (max 277mm) / ATX / M-ATX / Mini-ITX
- ✅ GPU Clearance: Up to 410mm length, 195mm width (1-4.5 slots)
- ✅ CPU Cooler: Up to 195mm height
- ✅ Fans: Front 2×180/3×140/3x120mm, Top 2×180/2×140/3x120mm, Rear 1×140/120mm
- ✅ Radiators: Front 240/280/360/420mm, Top 240/280/360mm

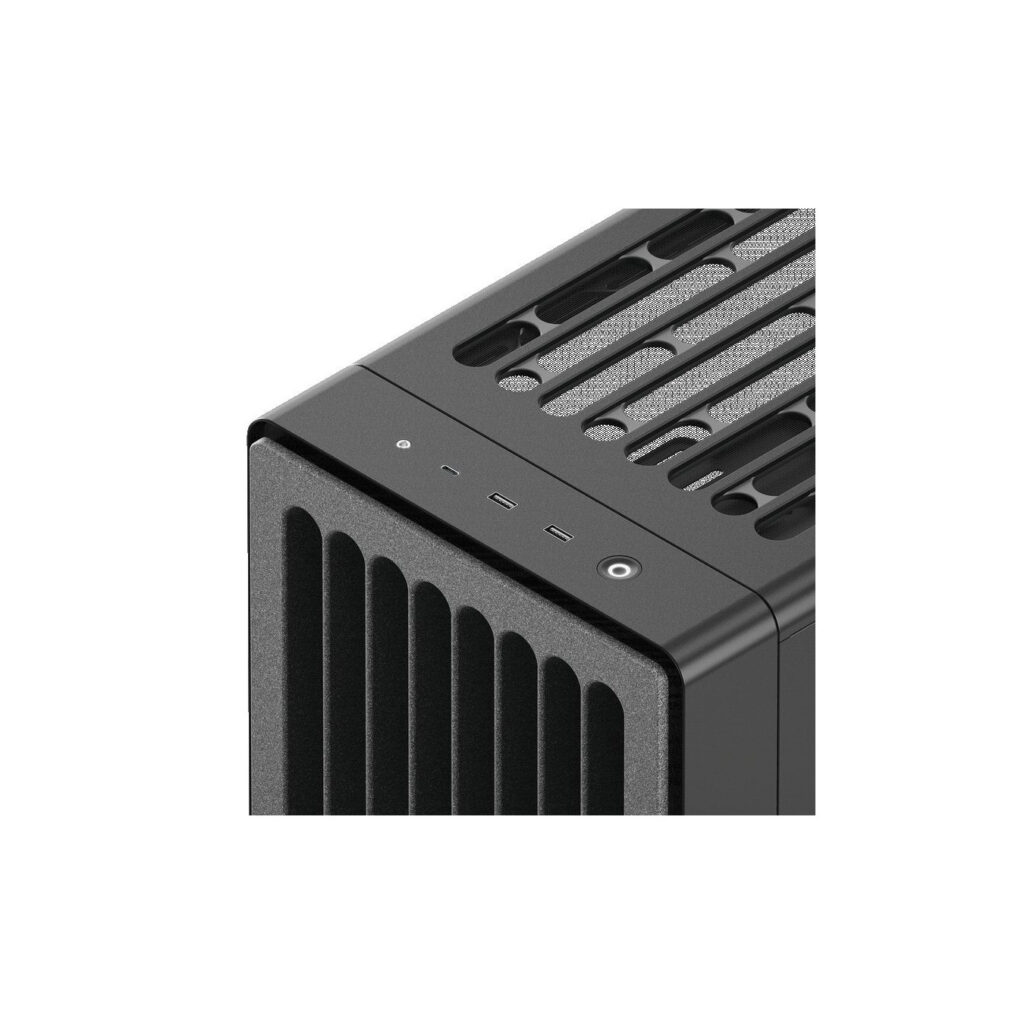

- ✅ Front I/O: USB-C 3.2 Gen2 x1, USB-A 3.2 Gen1 x2, Audio x1
- ✅ PWM Fan Repeater: 6 ports (12V, 2.6A max, SATA power)
| Model | BF 360 / BF 360 Flow |
| Form Factor | Mid Tower |
| Material | SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets |
| Dimensions (L x W x H) | 515 x 254 x 522.6 mm |
| Net Weight | 13.63 kg |
| Motherboard Support | E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX |
| Expansion Slots | 7 |
| CPU Tower Cooler Clearance | Up to 195 mm (Height) |
| Graphics Card Clearance (Length) | Up to 410 mm |
| Graphics Card Clearance (Width) | Up to 195 mm |
| GPU Support | 1 - 4.5 Slots |
| Power Supply Support | ATX |
| Power Supply Length | Up to 200 mm (Clearance - 260 mm) |
| Fan Support (Max 7 Total) - Top | 2 x 180 mm / 2 x 140 mm / 3 x 120 mm |
| Fan Support (Max 7 Total) - Front | 2 x 180 mm / 3 x 140 mm / 3 x 120 mm |
| Fan Support (Max 7 Total) - Rear | 1 x 140 mm / 1 x 120 mm |
| Liquid Cooling Support - Top | 240 / 280 / 360 mm |
| Liquid Cooling Support - Front | 240 / 280 / 360 / 420 mm |
| Front I/O Ports | USB 3.2 Gen 2 Type-C x1, USB 3.2 Gen 1 Type-A x2, Audio Jack x1, Power & Reset Button x1 |
| Fan PWM Repeater | 1 repeater with 6 ports total (4-pin PWM), Rated Voltage: 12V, Safety Current: Up to 2.6A, Power Connector: 1 x SATA Power |
| Warranty | 1 year (US shipping only) |
