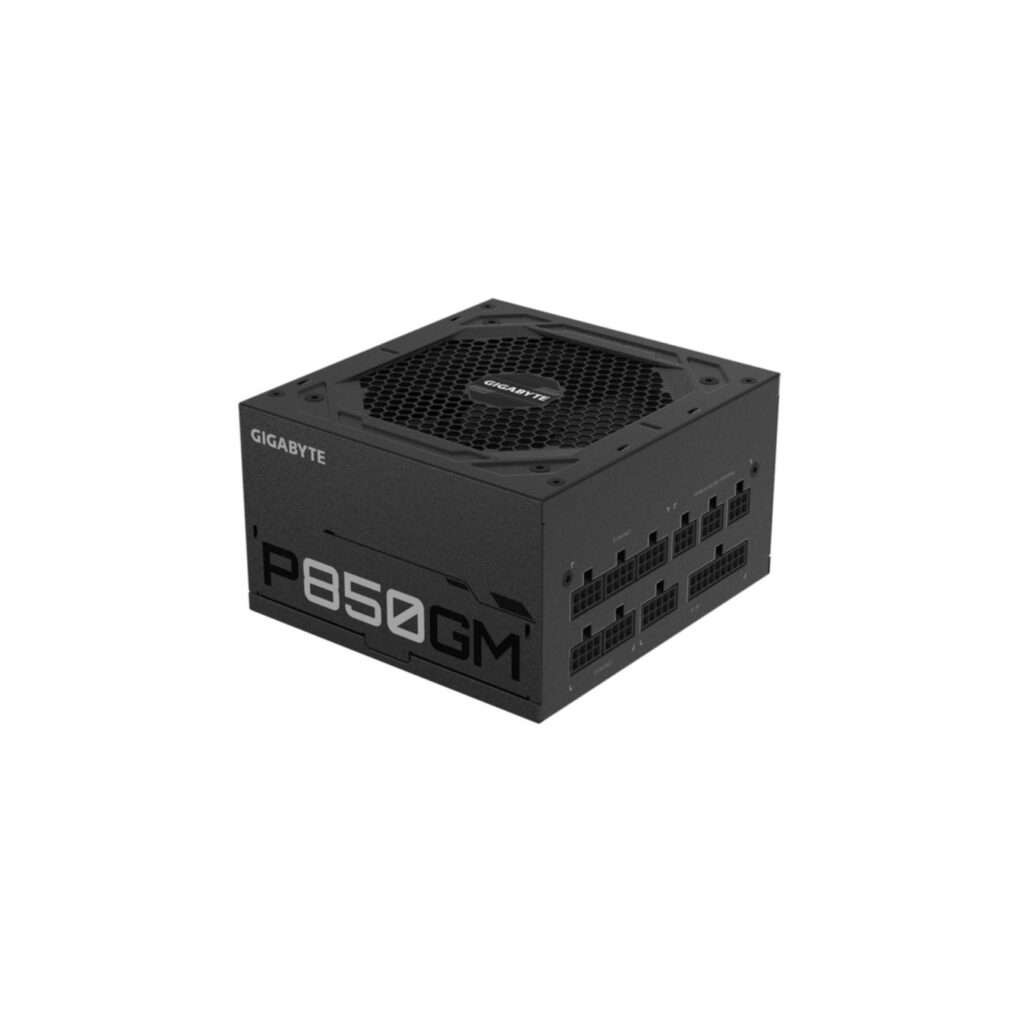

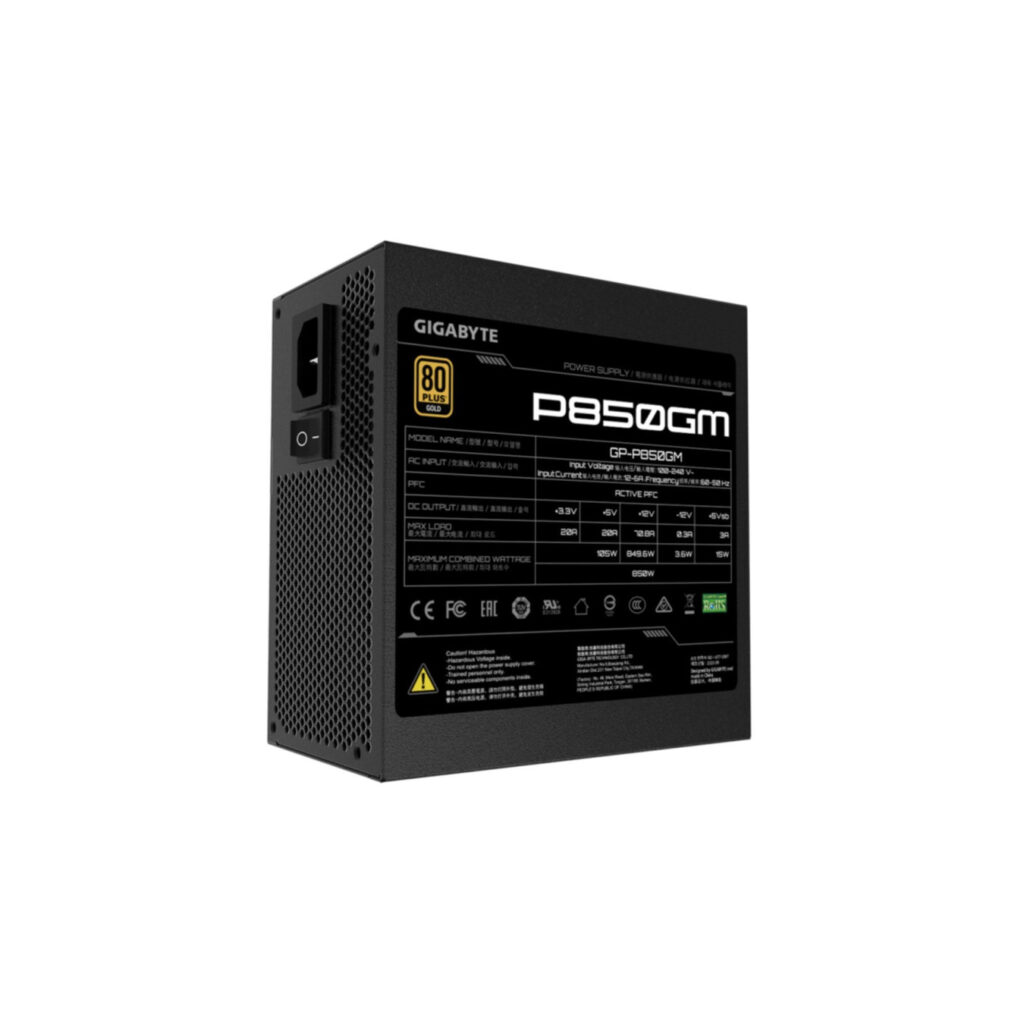

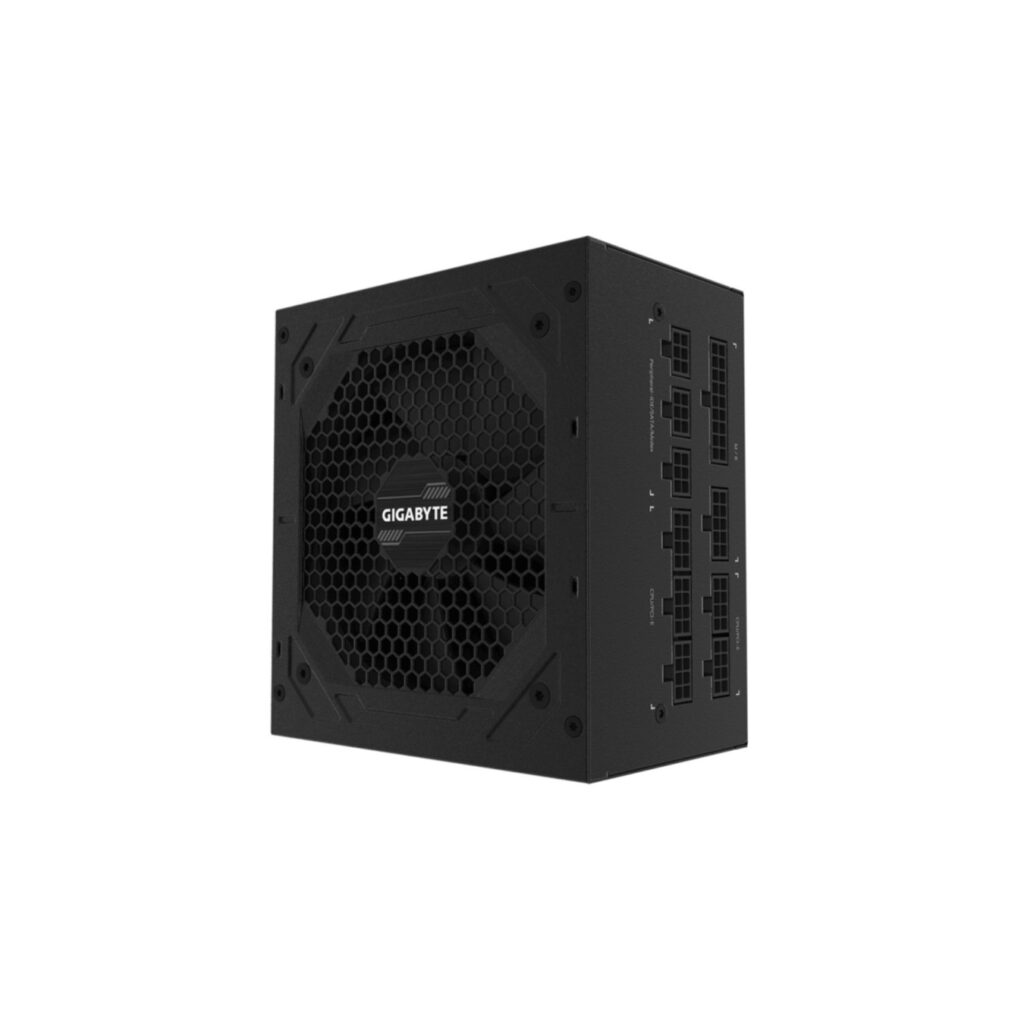

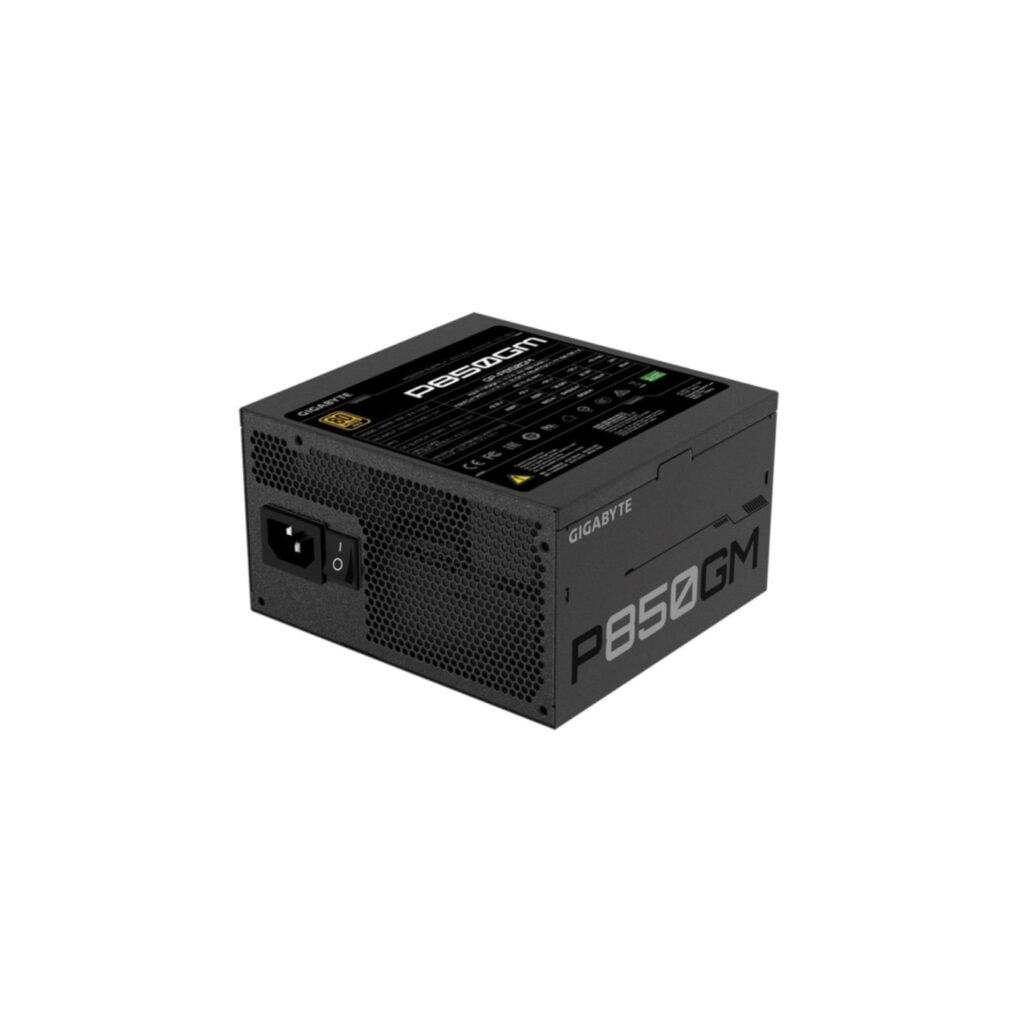

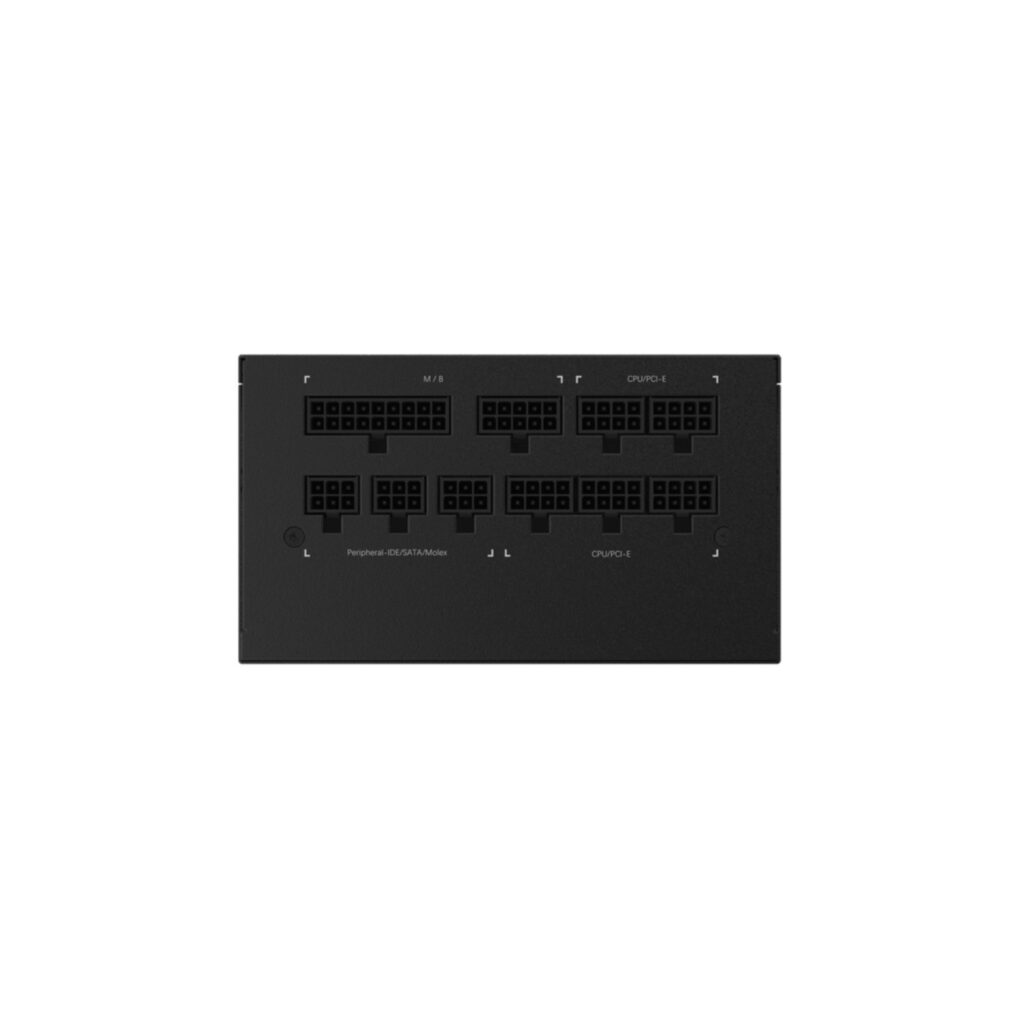

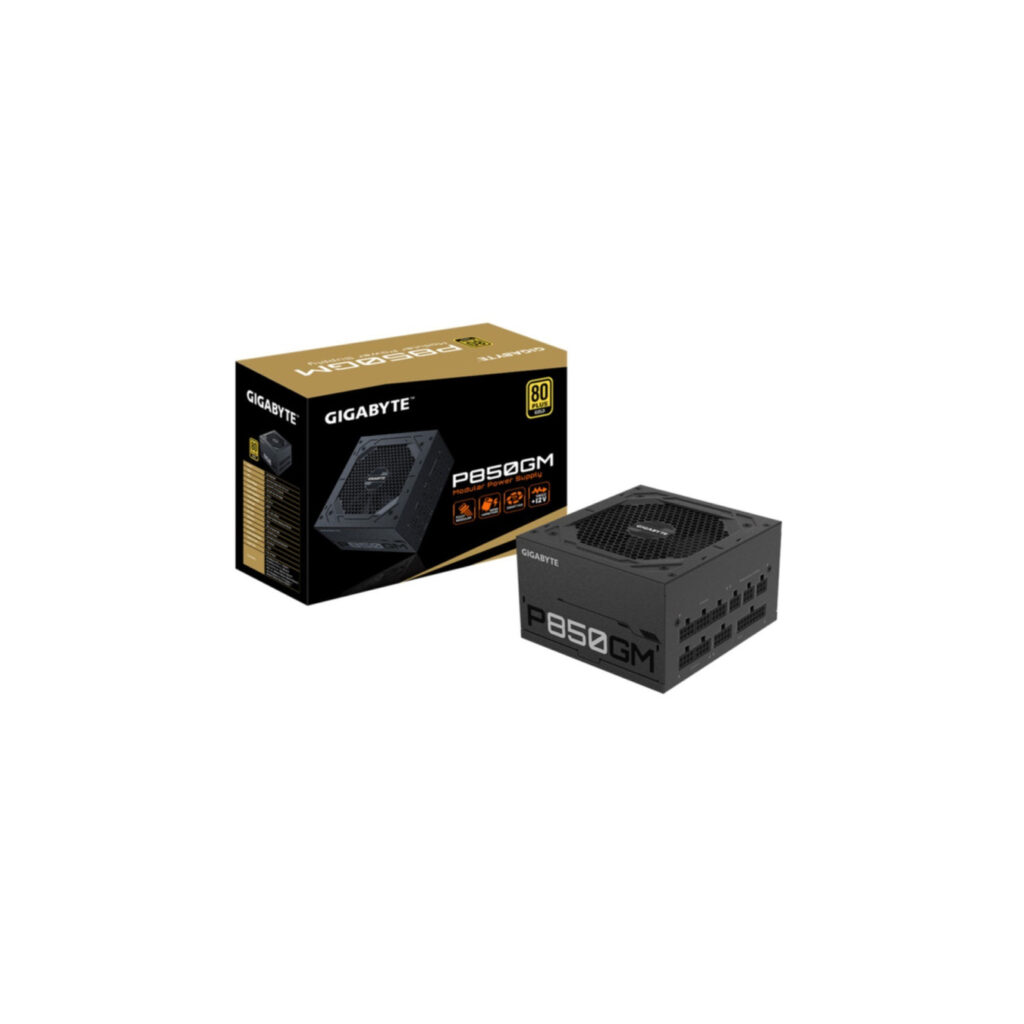

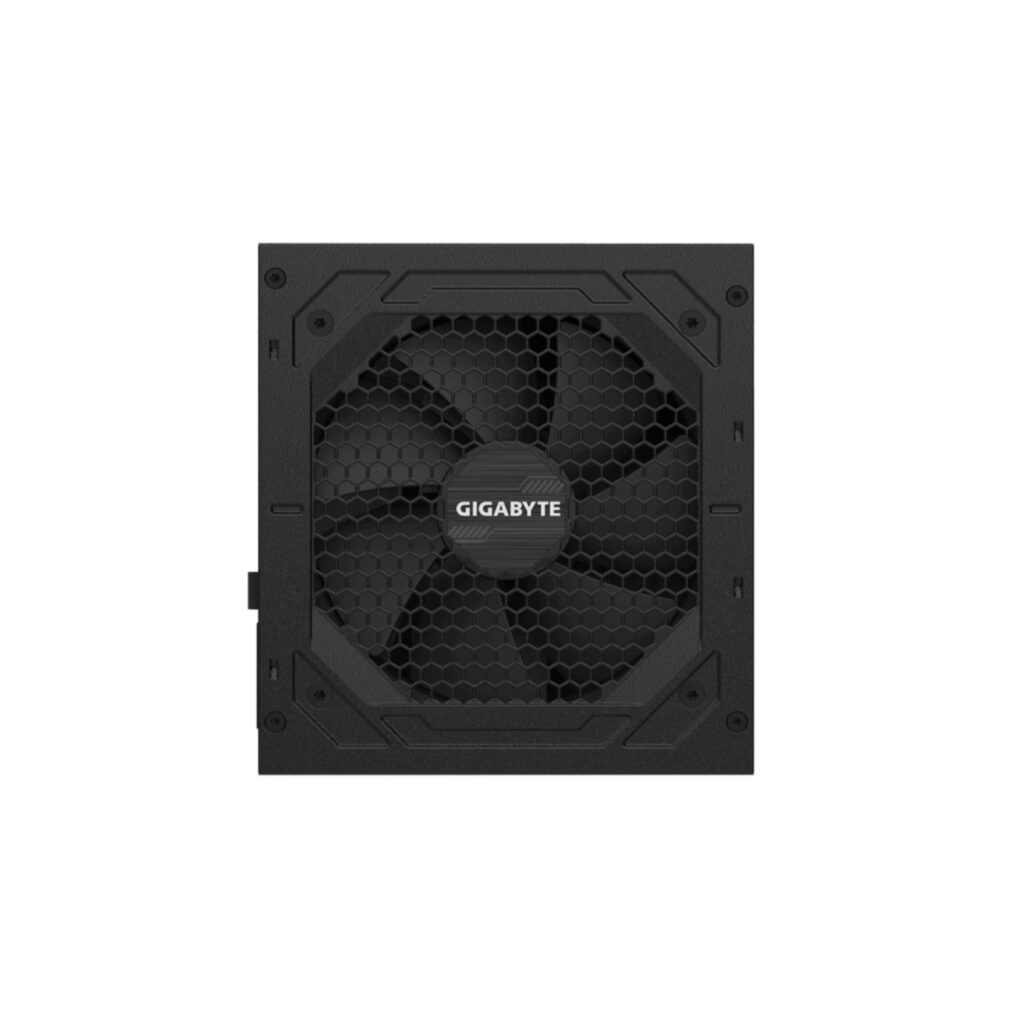

Gigabyte Power Supply - GP-P850GM - 850W 80 PLUS Gold, Fully-Modular ATX PSU, Black
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
Gigabyte GP-P850GM 850W fully-modular ATX PSU, 80 PLUS Gold efficiency, 120mm fan, single +12V rail (70.5A), universal 100–240V input, 4×6+2 PCIe, 8×SATA connectors.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
GIGABYTE P850GM. Total power: 850 W. AC input voltage: 100 – 240 V. AC input frequency: 50 – 60 Hz. Motherboard power connector: 20+4 pin ATX. Motherboard power cable length: 61 cm. SATA power cable length: 600.750.900 mm. Purpose: PC. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS Gold. Product colour: Black. Cooling type: Active. Fan diameter: 12 cm. Width: 150 mm. Depth: 140 mm. Height: 86 mm
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum input current (@110V) | 12 A |
| Maximum input current (@220V) | 6 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 846 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 16 ms |
| Efficiency | 90% |
| Power protection features | Over current. Over power. Over voltage. Overheating. Short circuit. Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 8 |
| SATA power cable length | 600.750.900 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power cable length | 75 cm |
| Feature | On/off switch |
| CPU power cable length | 60 cm |
| Floppy drive power connector | 2 |
| Floppy disk drive cable length | 89 cm |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.31 |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Package type | Box |
| Harmonized System (HS) code | 84733020 |
-
-
