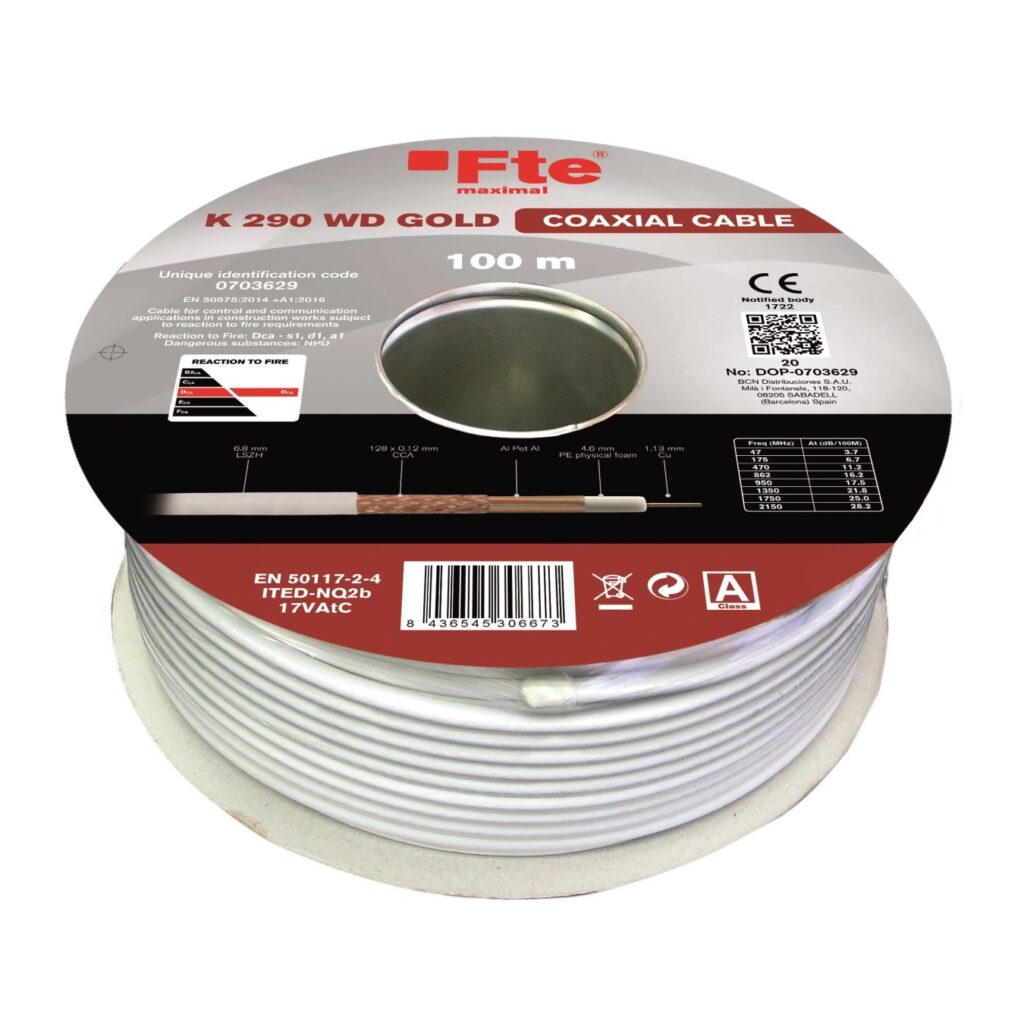

FTE Coaxial Cable - K290WD - Gold RG6 LSZH CU CPR-Dca
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
Replacement for K300W; 100 m RG6 coaxial cable with LSZH jacket, copper conductor, 75 Ω, high shielding (>90 dB) from 30 to 900 MHz.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
** REPLACEMENT FOR K300W
- Impedance (Ω) 75 Ohms
- Screening factor 30-900 MHz: (dB) >90

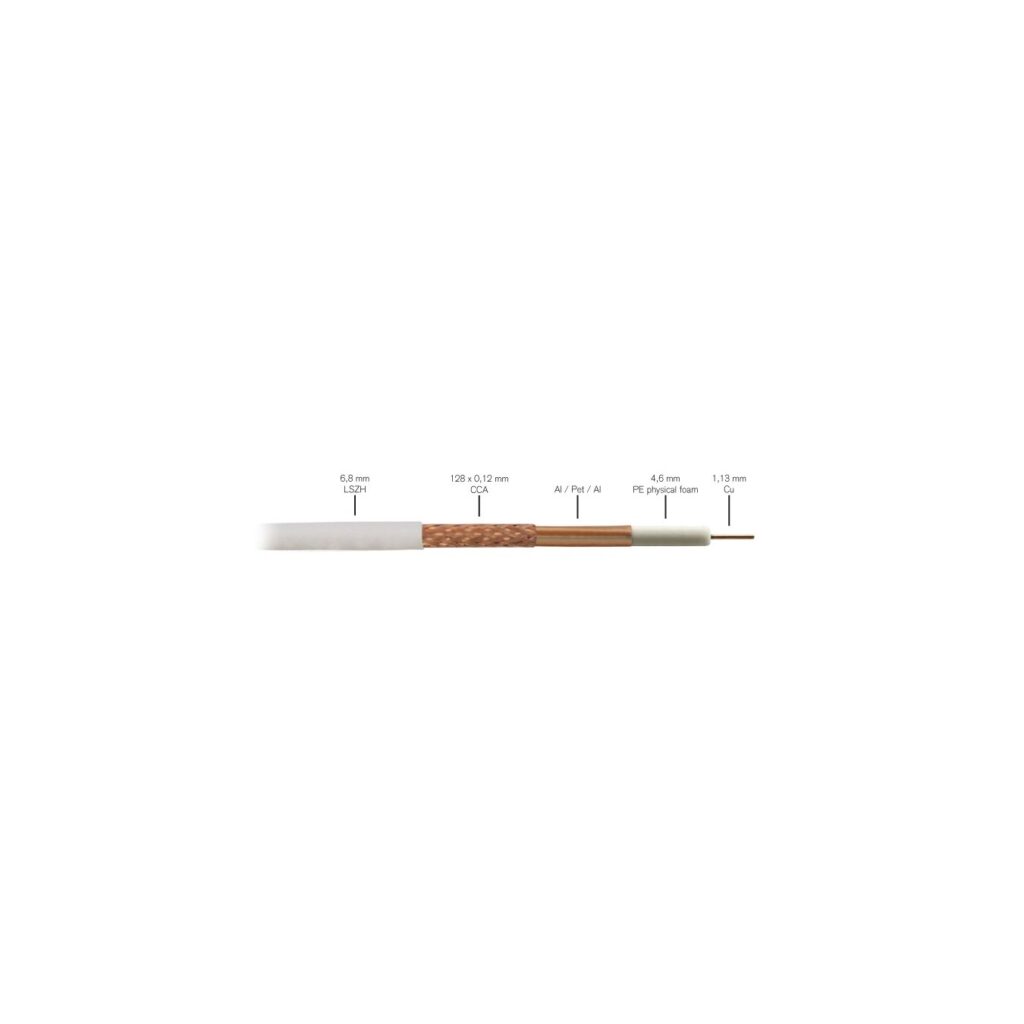

- Inner conductor (mm): 1,13 CU
- Dielectric diameter (mm) 4,6PE mm
- Foil: Al / Pet / Al (external layer copper colored)
- Braiding material: CCA copper colored
- Nº of wires: 128
- Jacket outer diameter: 6,8MM LSZH white
- Reaction to fire: Dca-s1, d1, a1
- Declaration of Performance (DoP): DoP- 0703629
- length: 100m
| Cable Type | RG6 |
| Material | Copper |
| Length | 100m |
| Cable Diameter | 6.8mm |
| Screening Wires | 128 |
