Fractal Define 7 XL - Black - Steel E-ATX PC Case, 549mm GPU, 185mm Cooler Clearance
Large E-ATX full tower PC case in black steel with sound dampening. Supports 549mm GPUs, 185mm CPU coolers, up to 18x 3.5″/2.5″ drives, 12 expansion slots. Includes 3x 140mm fans, modular storage, USB-C front I/O. Exceptional cooling and cable management.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

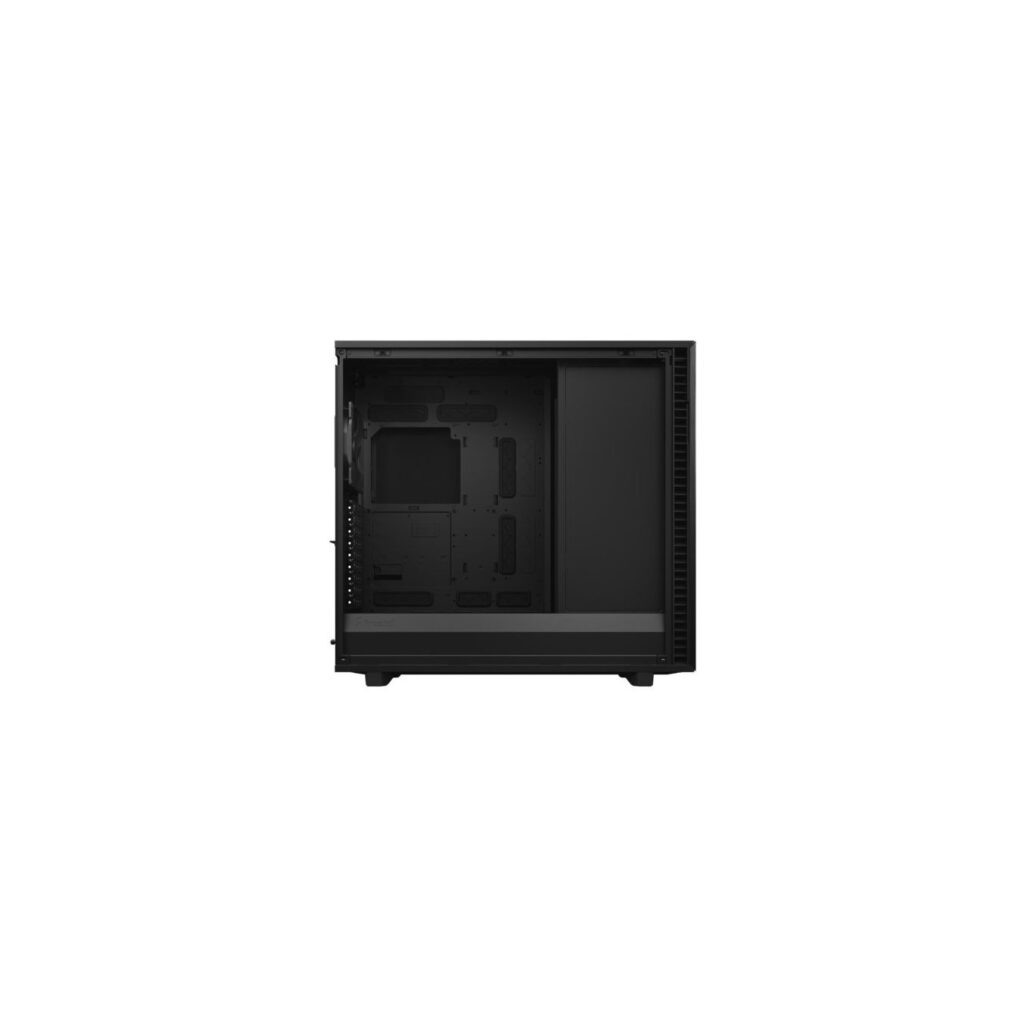

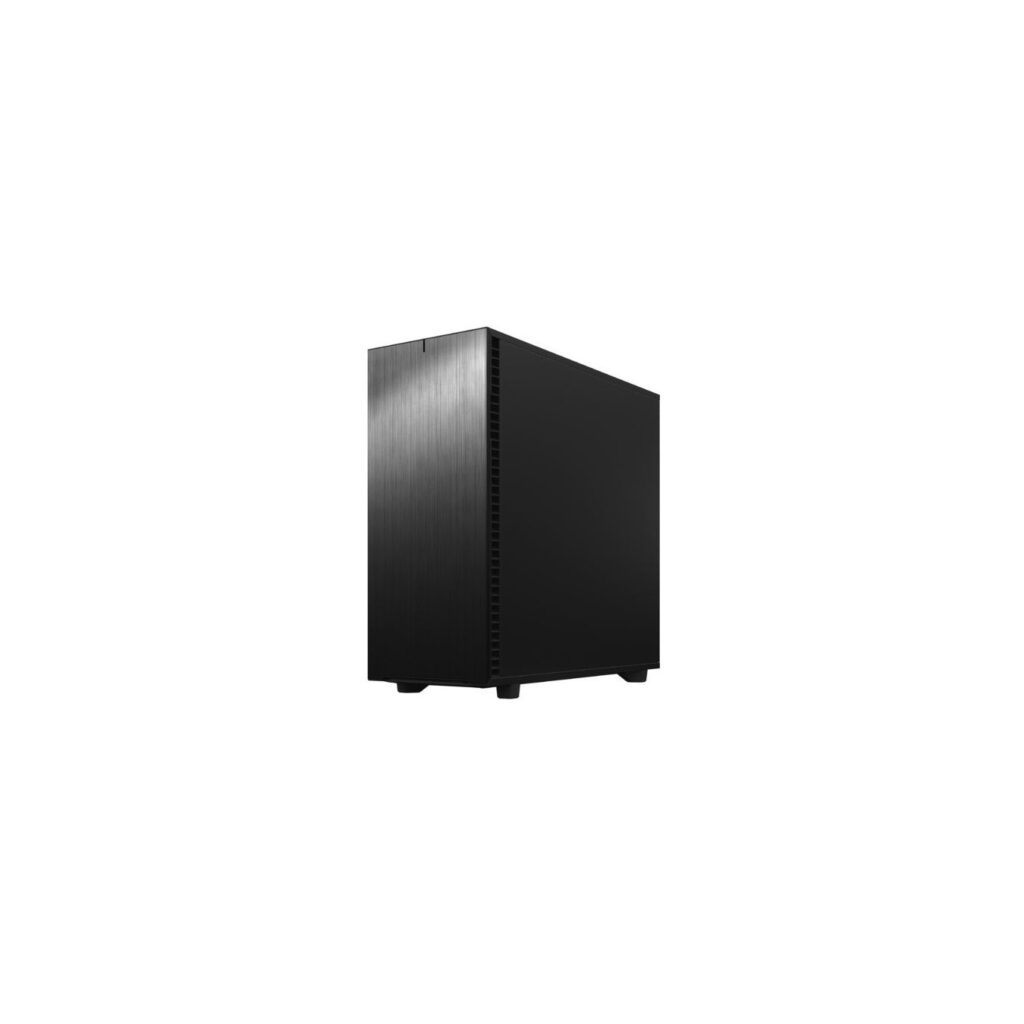

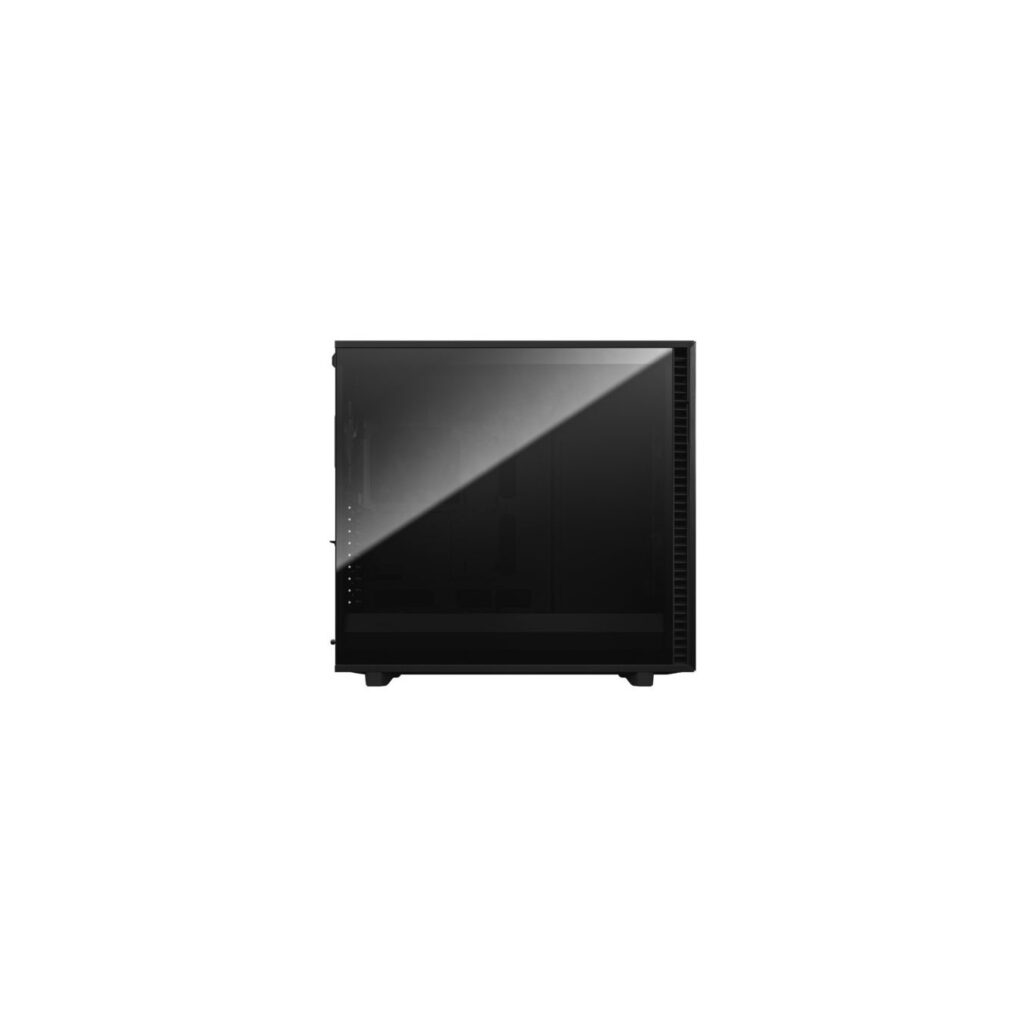

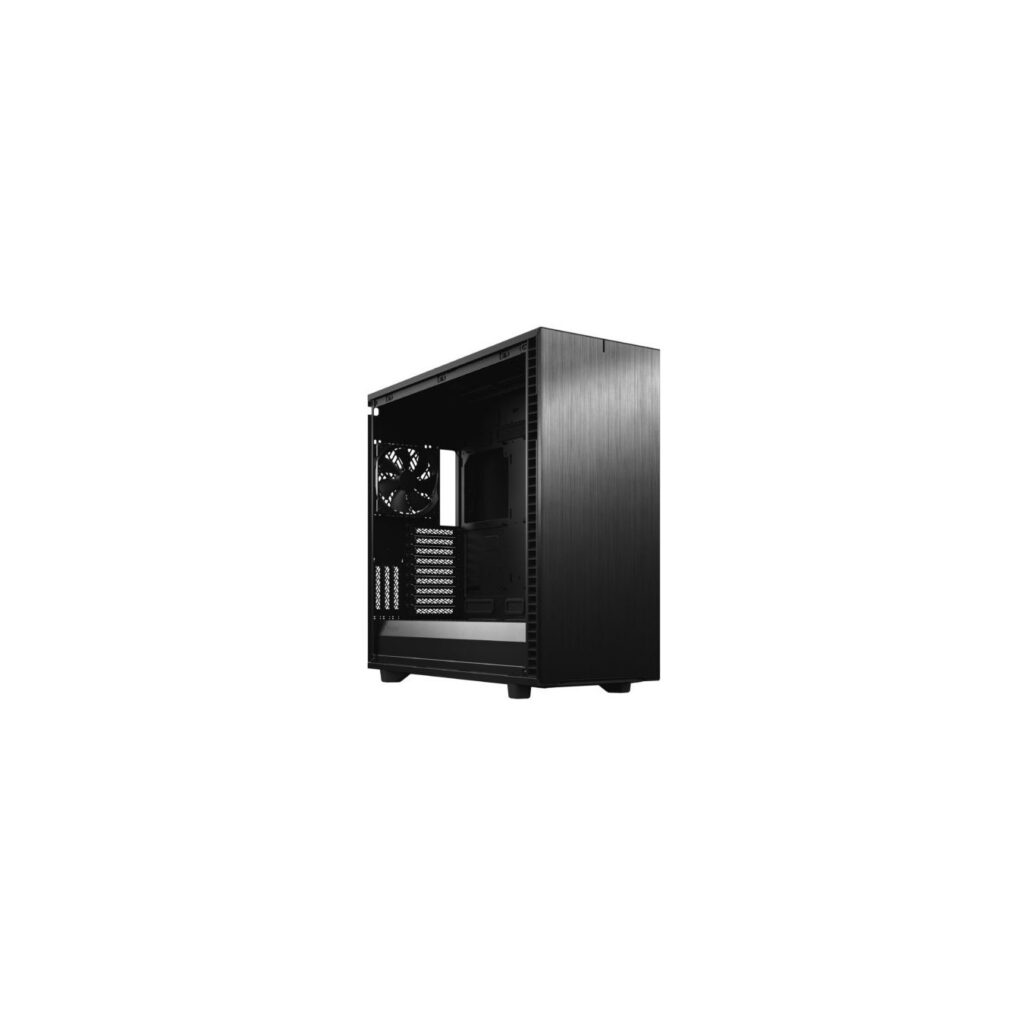

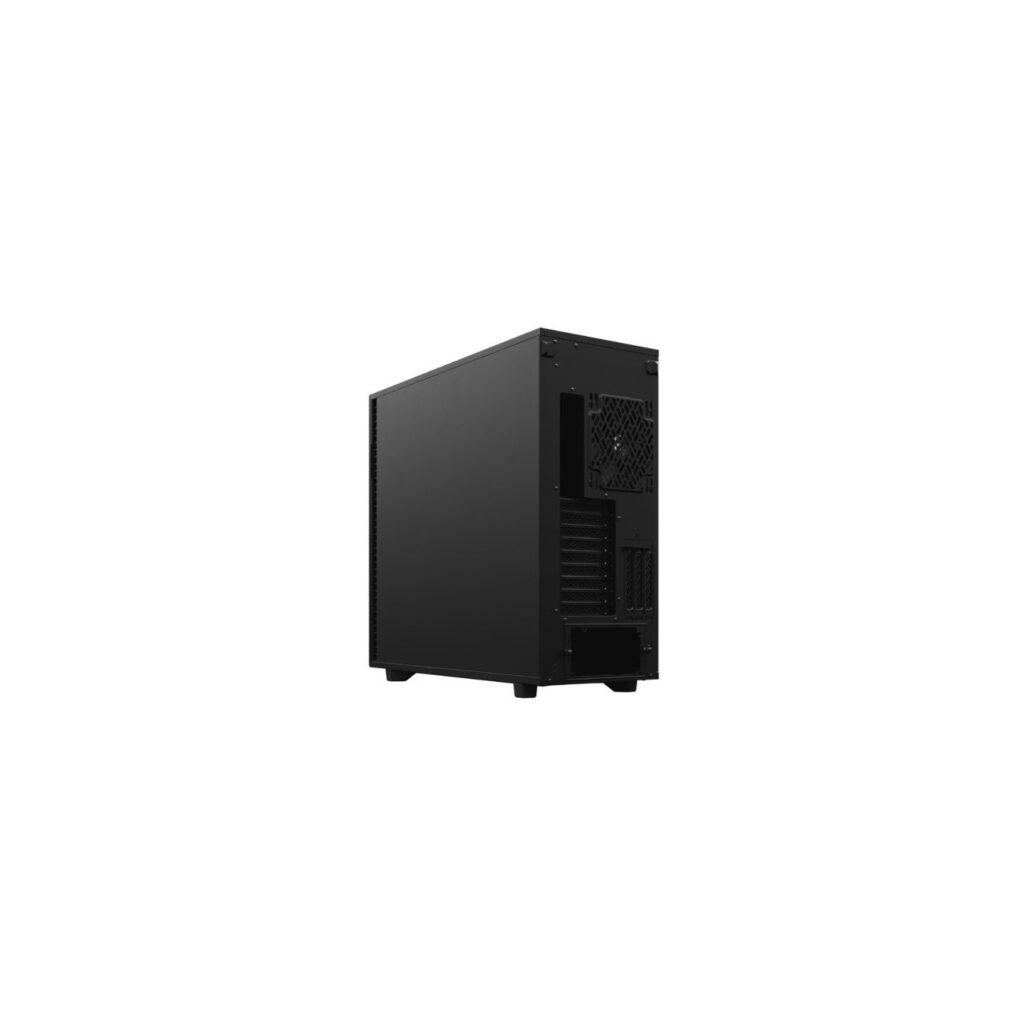

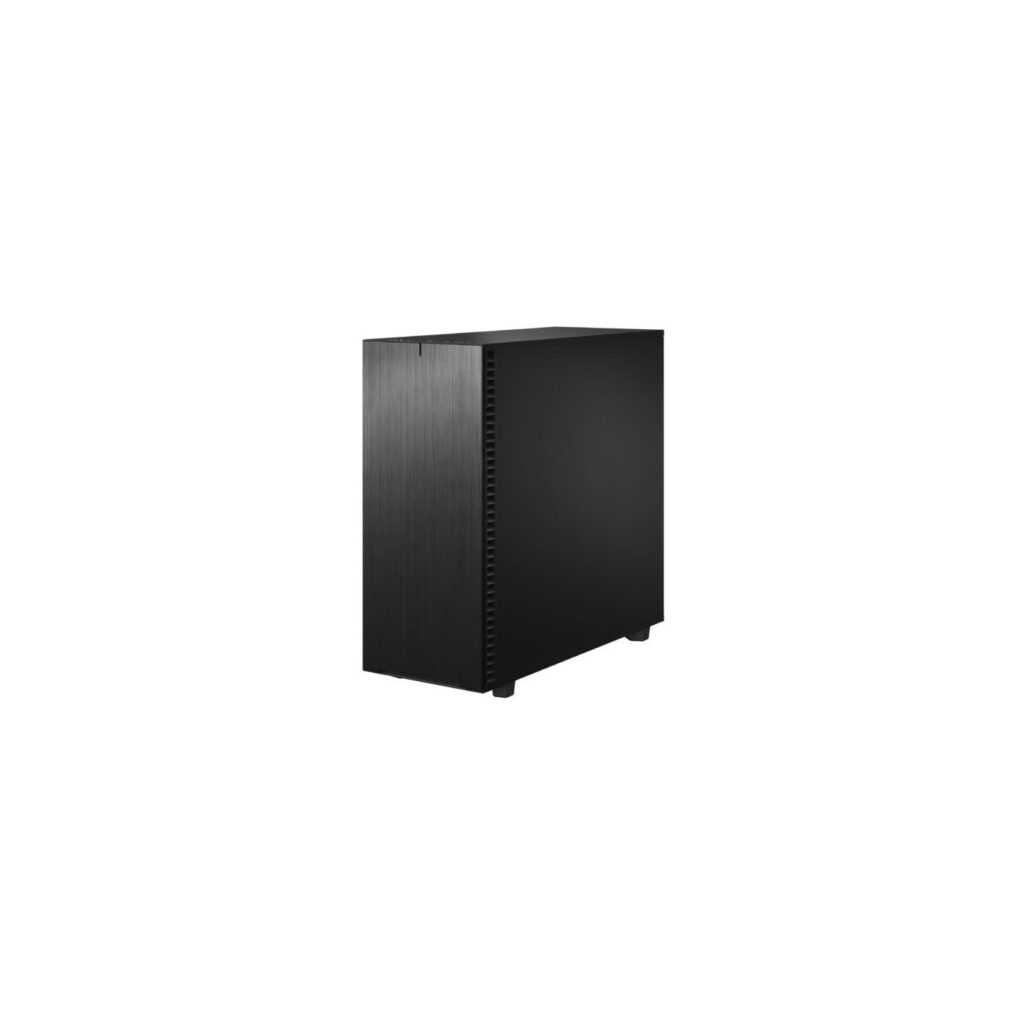

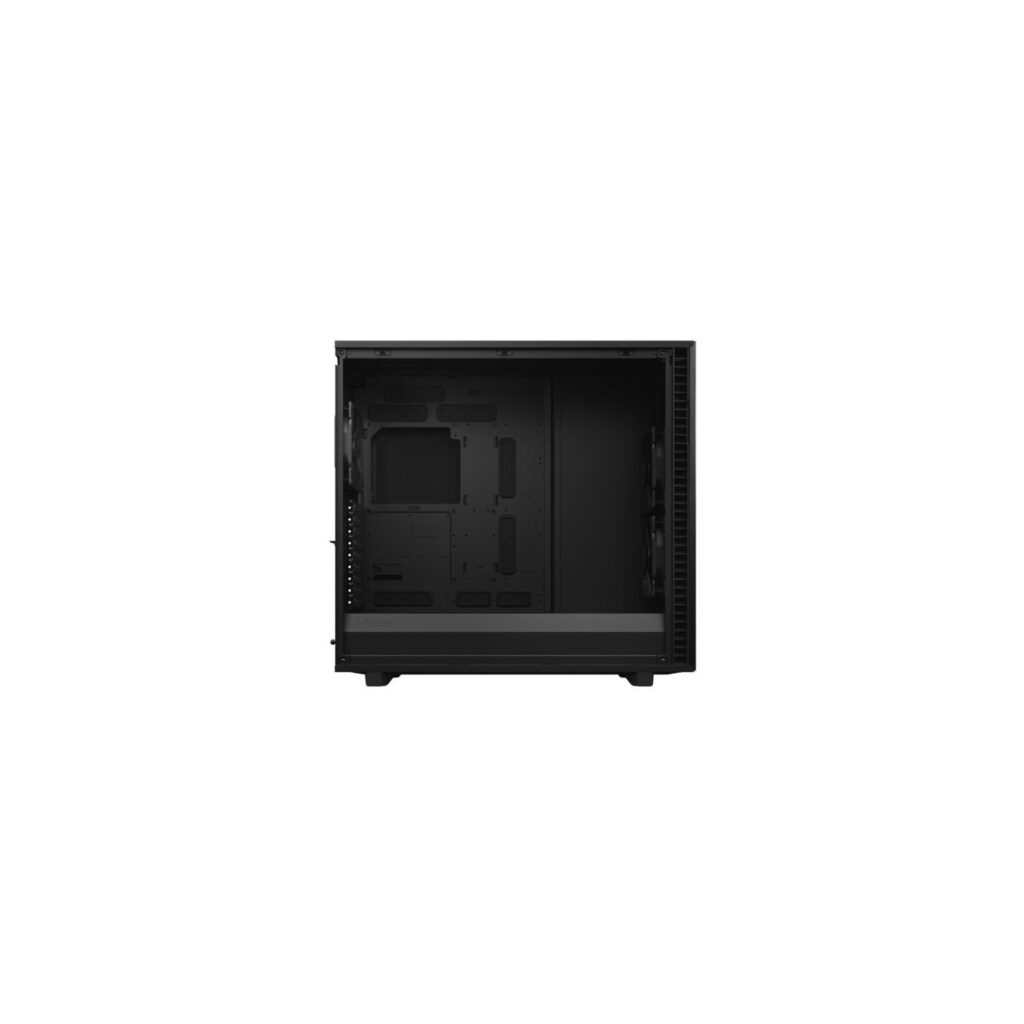

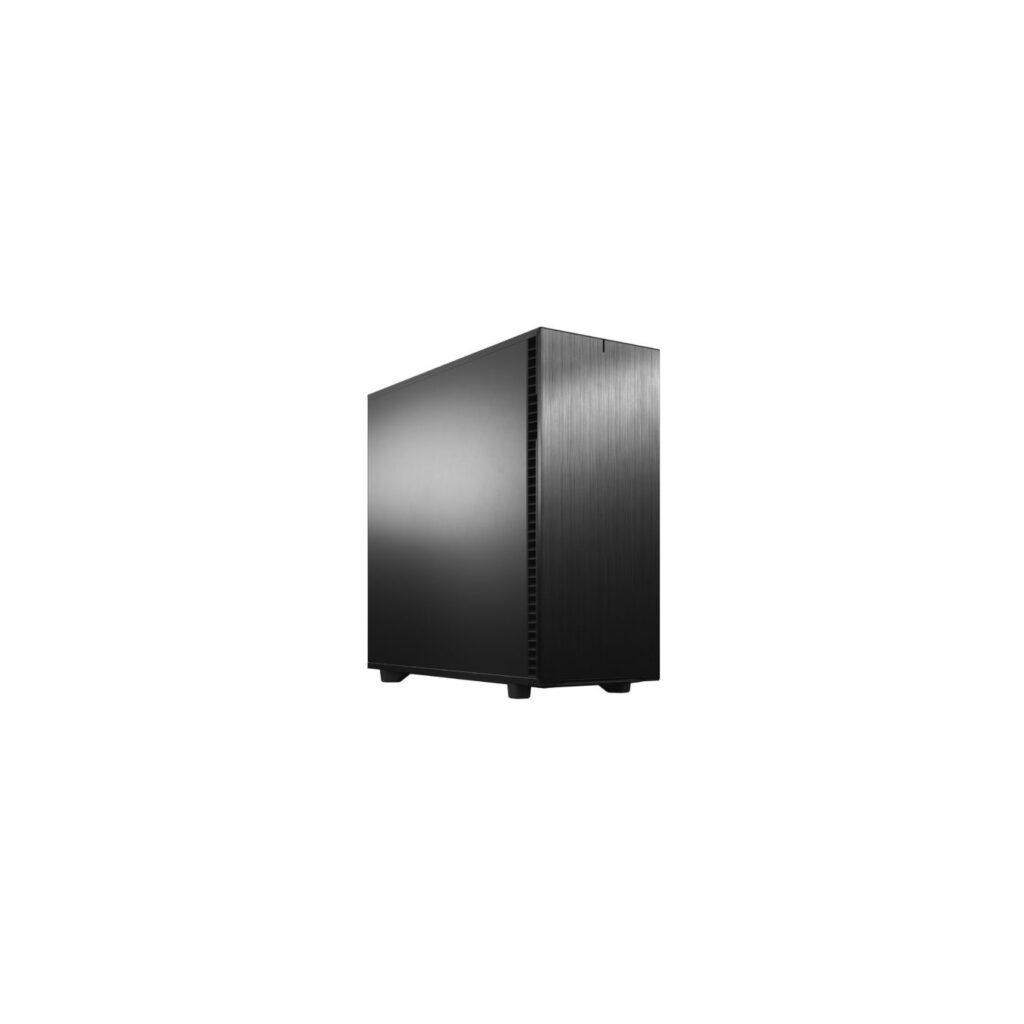

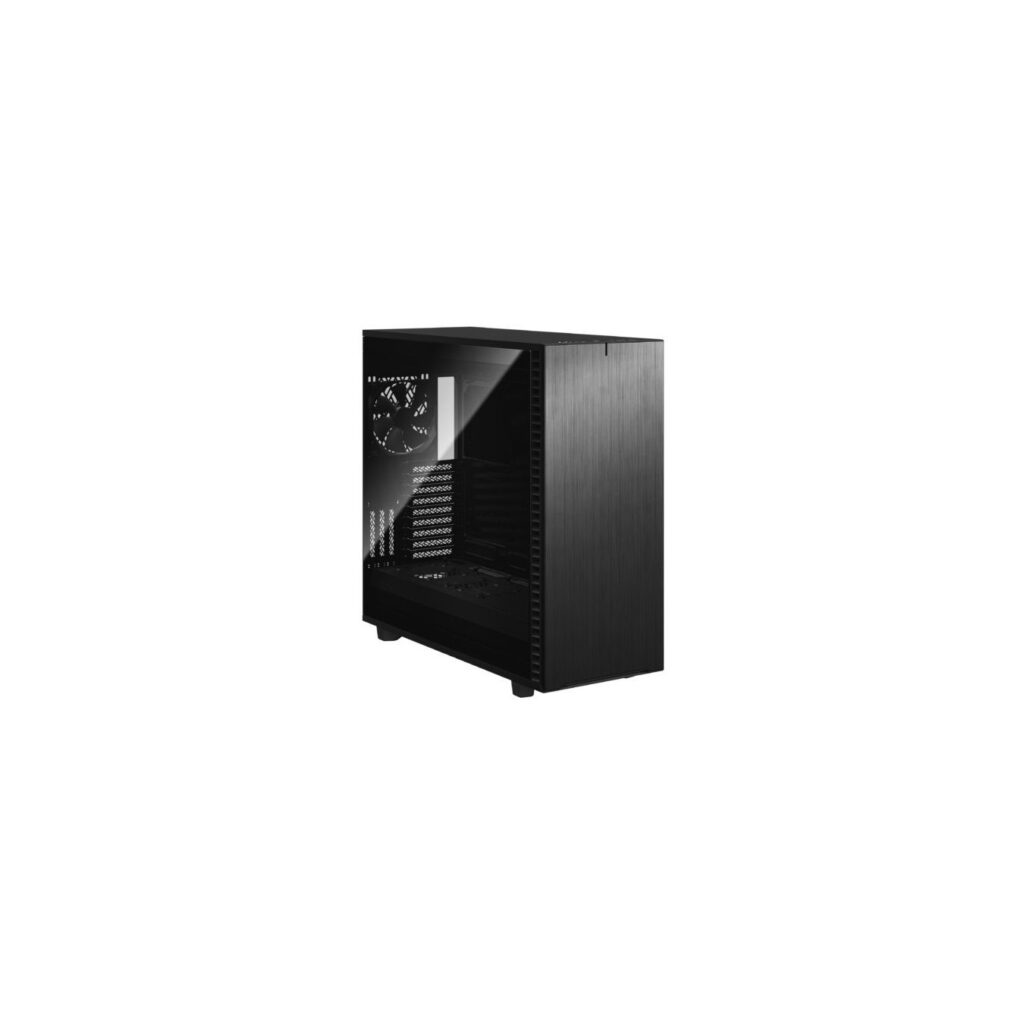

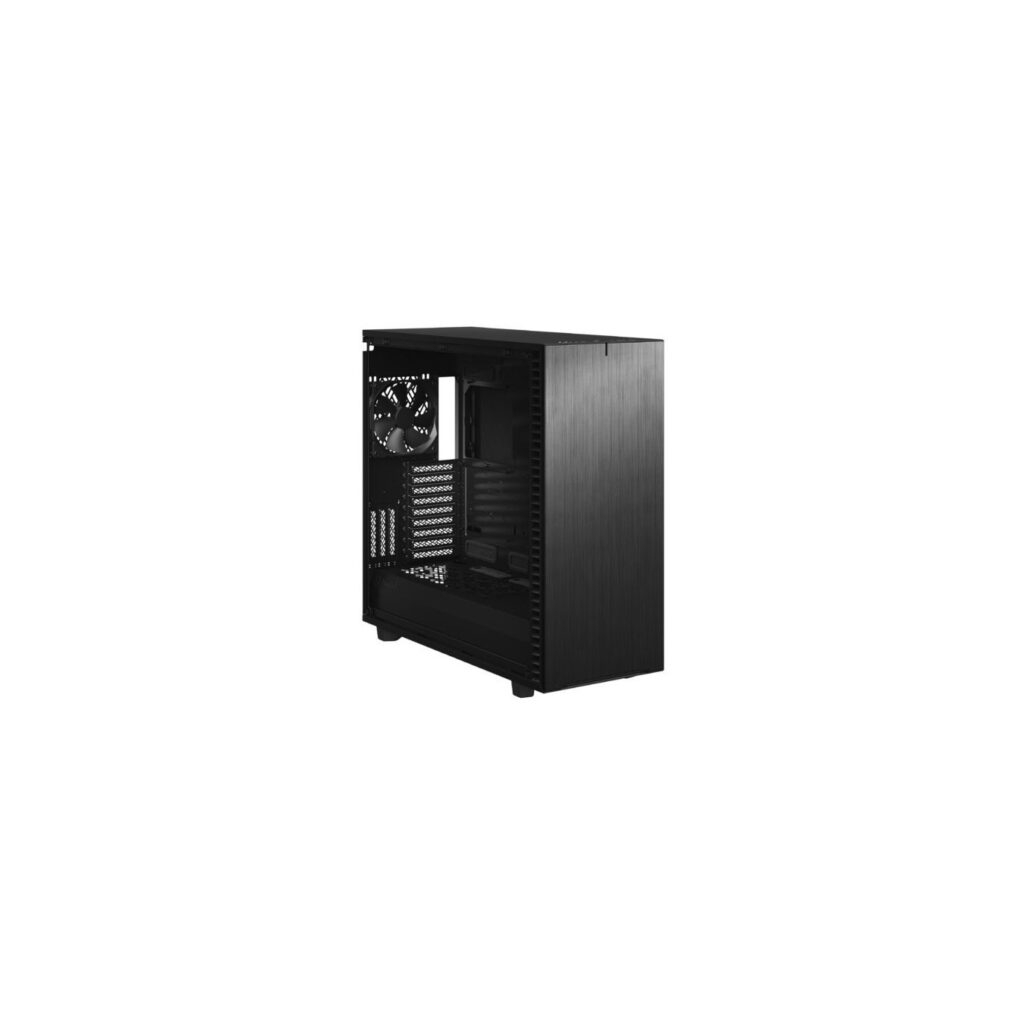

The Fractal Design Define 7 XL is a premium full tower PC case designed for silence, modularity, and high-capacity builds. Featuring a spacious dual-layout interior, it supports large E-ATX and SSI-EEB motherboards, multi-GPU setups, and extensive storage or cooling configurations. The black steel construction with industrial sound dampening ensures quiet operation, while the anodized aluminum front panel with reversible hinges provides easy access.
Key highlights include up to 18 HDD/SSD positions in Storage Layout (6 universal trays + extras included), 12 expansion slots with vertical GPU support option, and outstanding cooling with 11x 120mm or 9x 140mm fan mounts plus three pre-installed Dynamic X2 GP-14 fans. Radiator compatibility reaches 480mm front/top and 140mm rear. Front I/O offers USB 3.2 Gen2x2 Type-C, USB 3.0, USB 2.0, and audio jacks for modern connectivity.
- Storage: 8x 3.5″/2.5″, 2x 5.25″ bays
- Cooling: 185mm CPU cooler max, 549mm GPU length (open layout)
- Dimensions: 604 x 240 x 566 mm
- Includes: 3x 140mm fans, modular brackets
- PSU: Bottom ATX up to 250mm
| Material | Steel |
| Form factor | Midi Tower |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX, SSI CEB, SSI EEB |
| Number of 3.5 | 8 |
| Number of 5.25 | 2 |
| Number of 2.5 | 8 |
| Number of internal 3.5 | 8 |
| Number of expansion slots | 12 |
| Maximum CPU cooler height | 18.5 cm |
| Maximum graphics card length | 54.9 cm |
| Maximum PSU length | 25 cm |
| Power supply location | Bottom |
| Number of power supply units | 1 |
| Supported power supply form factors | ATX |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Number of front fans supported (max) | 4 |
| Front fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 4 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 2 |
| Bottom fans diameters supported | 120,140 mm |
| Front radiator sizes supported | 420,480 mm |
| Rear radiator type | Single radiator |
| Bottom radiator sizes supported | 240,280 mm |
| Top radiator sizes supported | 420,480 mm |
| Supported HDD sizes | 2.5,3.5 |
| Width | 240 mm |
| Depth | 604 mm |
| Height | 566 mm |
| Weight | 16.6 kg |
| Package width | 357 mm |
| Package depth | 646 mm |
| Package height | 708 mm |
| Package weight | 18.8 kg |
| Harmonized System (HS) code | 84733080 |
| Volume | 77.6 L |
| Number of fans included | 3 x 140 mm Dynamic X2 GP-14 |
