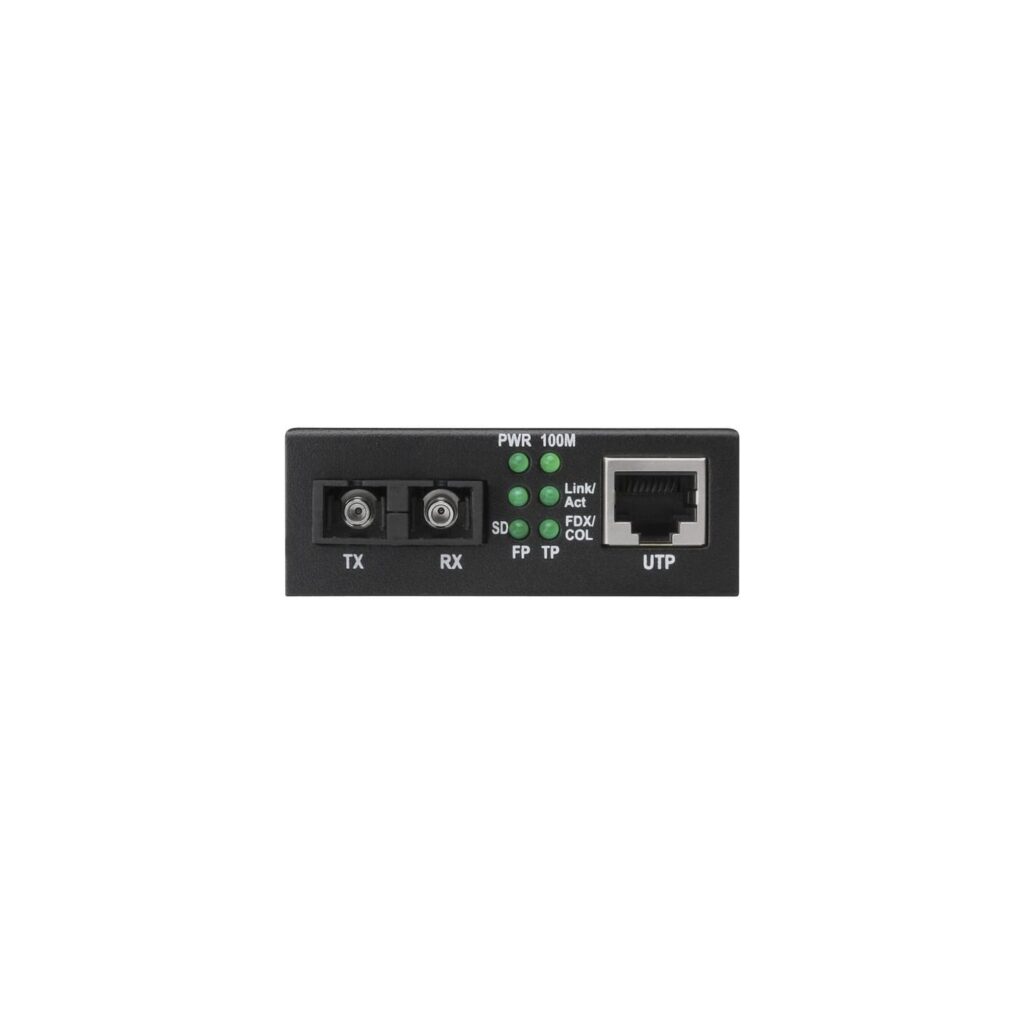

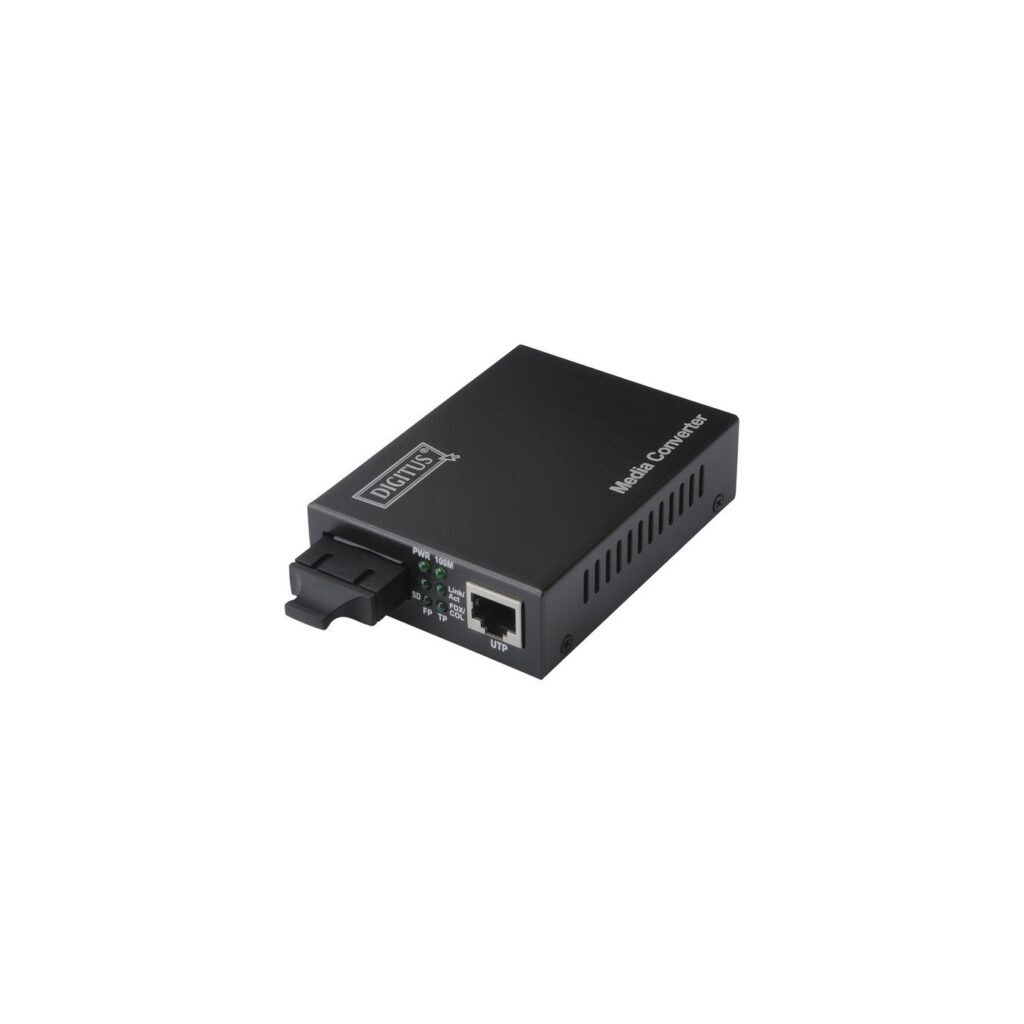

Fast Ethernet media converter - RJ-45 to SC duplex
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
Digitus Fast Ethernet media converter RJ-45 to SC duplex converts 100Base-TX to 100Base-FX; standalone unit with external power; range up to 20 km; 1310 nm; Auto-MDI/MDI-X; auto duplex; diagnostic LEDs.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The Digitus Fast Ethernet media converter RJ-45 to SC duplex converts wire-based 100Base-TX network signals into 100Base-FX fiber optic signals. It offers a maximum range of up to 20 km. The wavelength for both sending and receiving is 1310 nm. As a standalone device with an external power supply, the Fast Ethernet media converter RJ-45 to SC duplex does not need to be installed in a rack. Automatic cable detection, auto-detection of full and half duplex as well as diagnostic LEDs for status and activity monitoring are also available. The Fast Ethernet media converter RJ-45 to SC duplex is suitable for 9/125 µm single-mode fiber optic cables.
| Typ | Converter |
| Color | schwarz |
| EAN | 4016032293101 |
| Manufacturer no. | DN-82021-1 |
| Application example | Media converter |
| Area | network |
| Connection - from | 1x RJ-45 (socket) |
| More information | Standalone converter with external power supply, high quality and maximum reliability, 10/100Base-TX to 100Base-FX, connections: 1x RJ45, 1x SC-Duplex, range up to 20 km, wavelength: 1310 nm, automatic cable detection (Auto-MDI/MDI-X function), auto-detection of full and half duplex, diagnostic LEDs for status and Activity monitoring, Link Fault Pass Through (LFP) function for easy fault detection, suitable for 9/125 µm single-mode fiber optic cable, transmission power: minimum -15 dBm, maximum -8 dBm, reception sensitivity: minimum -38 dBm, 2 MB data buffer, input voltage: 5 volts DC, maximum current consumption: 800 mA, power consumption: 2.5 watts, supported standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet |
| Accessories - available | Instructions, power supply |
| Dimensions | Width: 70mm x Height: 26mm x Depth/Length: 95mm |
