DeepCool PL650D 650W 80 PLUS Bronze certified ATX 3.1 PSU. Non-modular design with 120mm hydro bearing fan, 12V-2×6 GPU connector, 3x PCIe 6+2 pin, 2x EPS. Reliable DC-to-DC topology for modern gaming PCs.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The DeepCool PL650D is a 650W non-modular power supply unit compliant with the latest ATX 3.1 standard, featuring a native 12V-2×6 (12+4 pin) connector for next-gen GPUs up to 450-600W. Certified 80 PLUS Bronze for at least 85% efficiency at typical loads, it uses premium electrolytic capacitors ensuring ≥16ms hold-up time even during power outages.

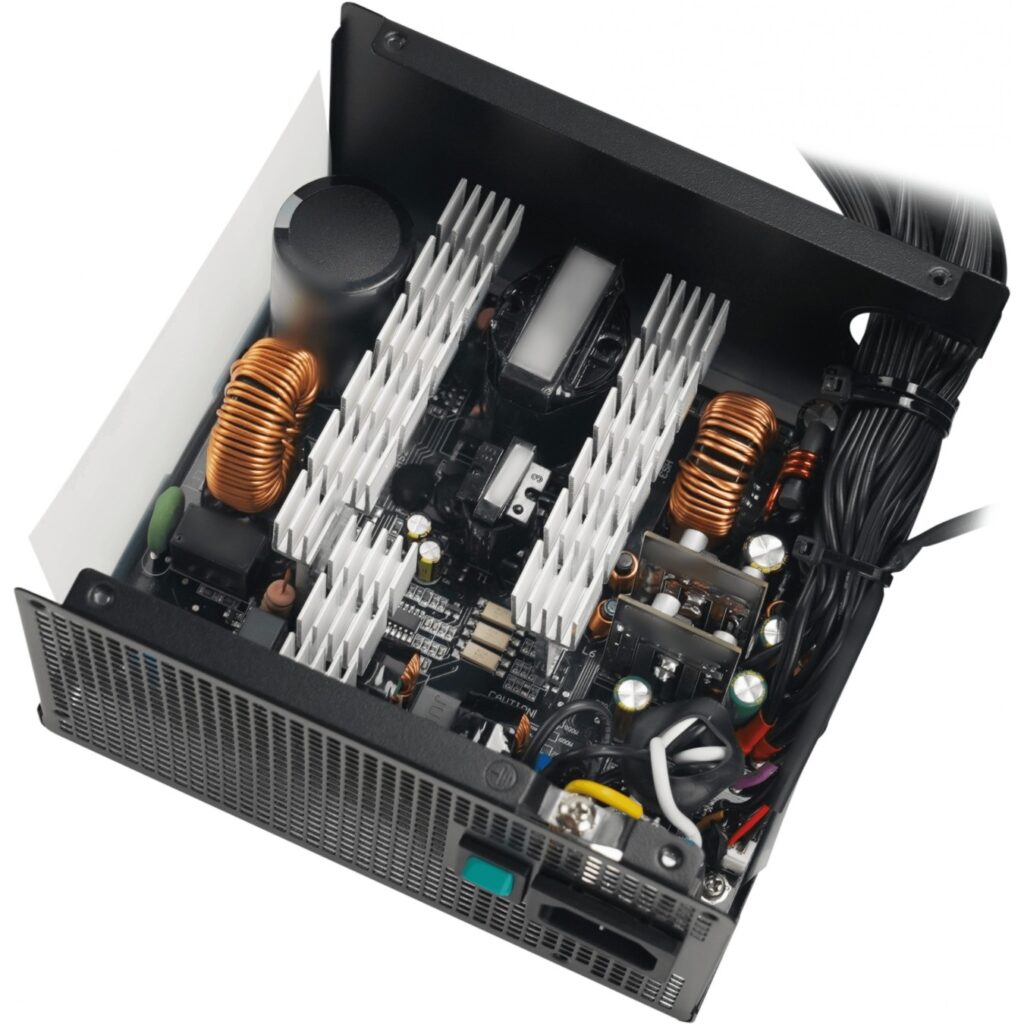

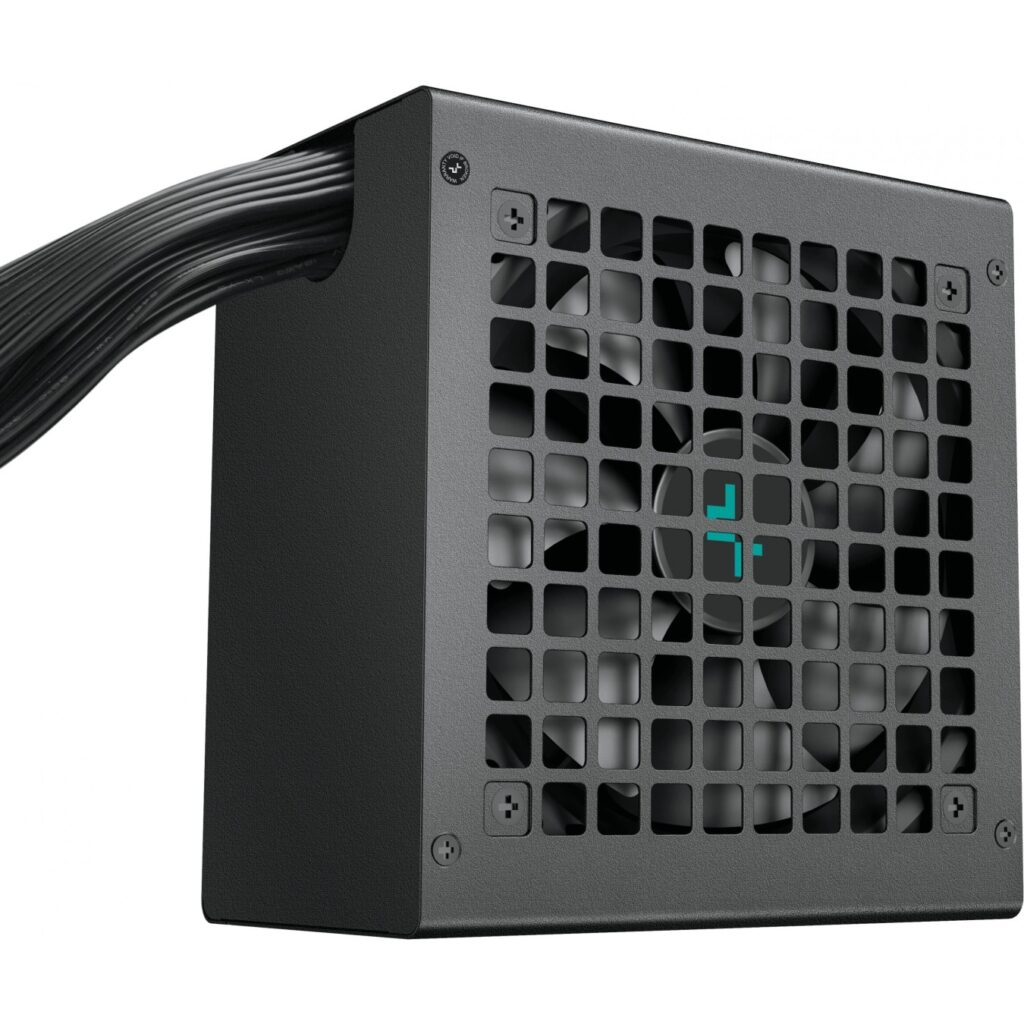

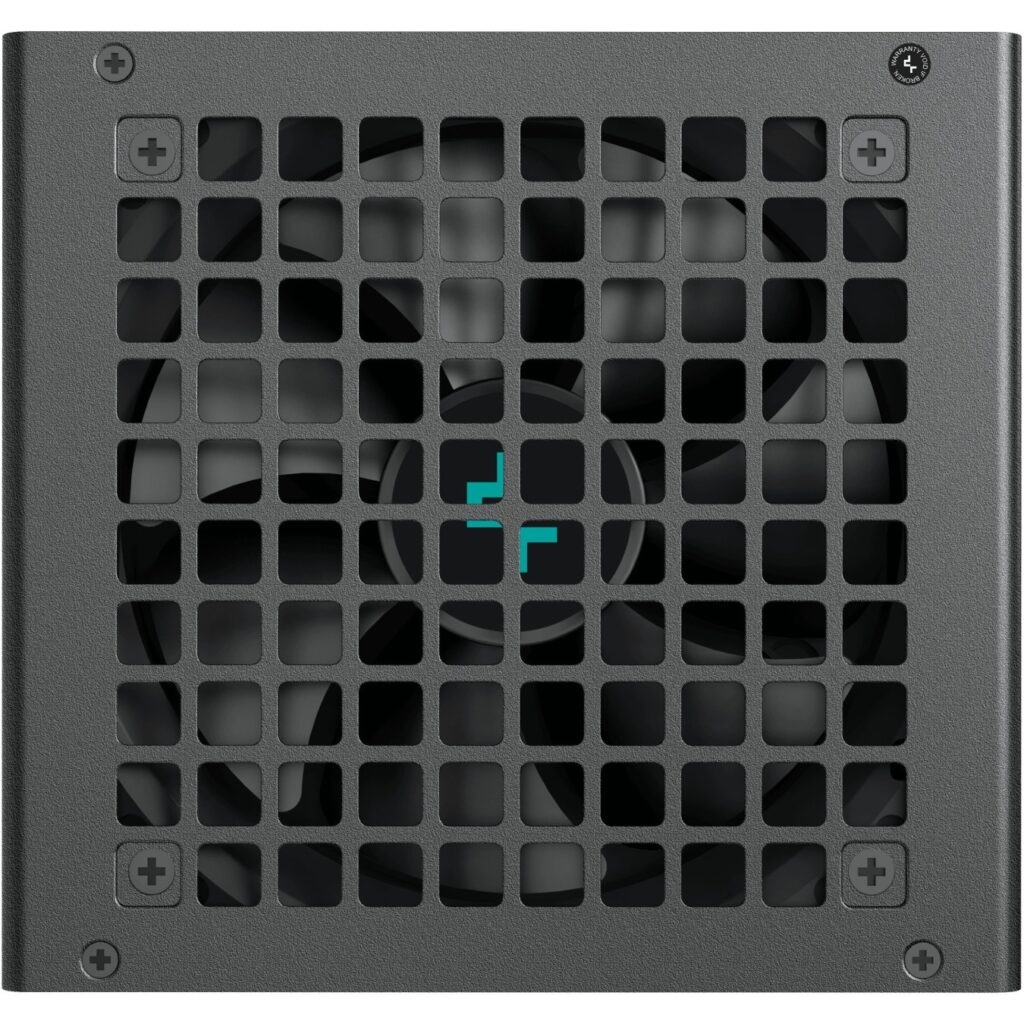

Equipped with Active PFC + DC-to-DC topology and high-quality components, this PSU operates reliably up to 5,000m altitude. The 120mm hydro bearing fan provides quiet cooling, while connectors include 2x EPS (4+4 pin), 3x PCIe 6+2 pin, 6x SATA, and 2x Molex for comprehensive system support. Dimensions: 150×140×86mm.
- ✅ 80 PLUS Bronze efficiency (85%+ at 50% load)
- ✅ ATX 3.1 compliant with 12V-2×6 GPU connector
- ✅ 120mm Hydro Bearing fan for silent operation
- ✅ 5-year warranty & 100,000 hours MTBF
- ✅ Full protection: OCP, OVP, OPP, SCP, OTP
| Type | ATX12V V3.1 |
| Total Power | 650W |
| Efficiency Certification | 80 PLUS Bronze |
| Fan Size | 120 mm Hydro Bearing |
| Topology | Active PFC + DC to DC |
| Modular | Non-Modular |
| Main Power Connector | 1x 20+4 pin |
| EPS CPU Connectors | 2x 4+4 pin |
| PCIe GPU Connectors | 1x 12V-2x6 (12+4 pin) + 3x 6+2 pin |
| SATA Connectors | 6x |
| Molex Connectors | 2x 4-pin |
| Dimensions (WxDxH) | 150 × 140 × 86 mm |
| MTBF | 100,000 Hours |
| Warranty | 5 Years |
| +12V Rail | 648W (54A) |
| Input Voltage | 100-240Vac 9-4.5A 50-60Hz |
