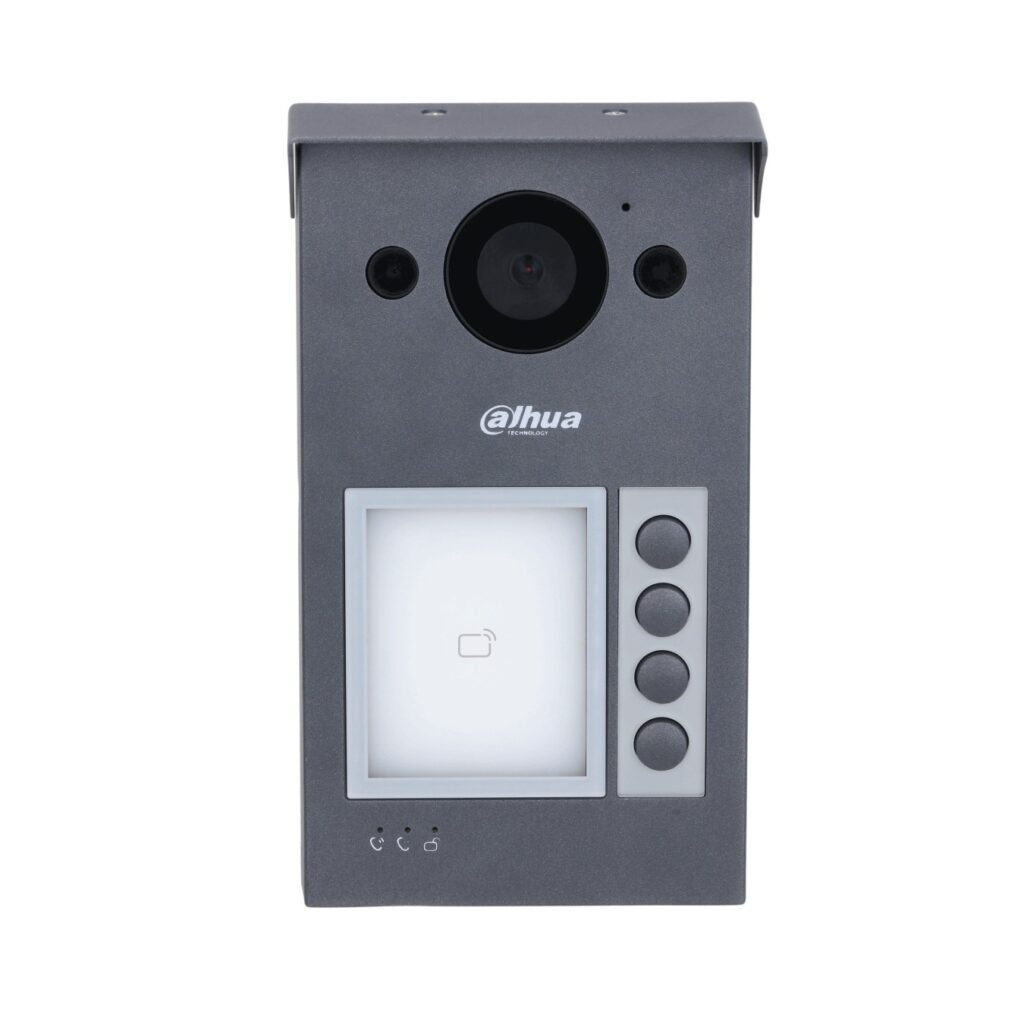

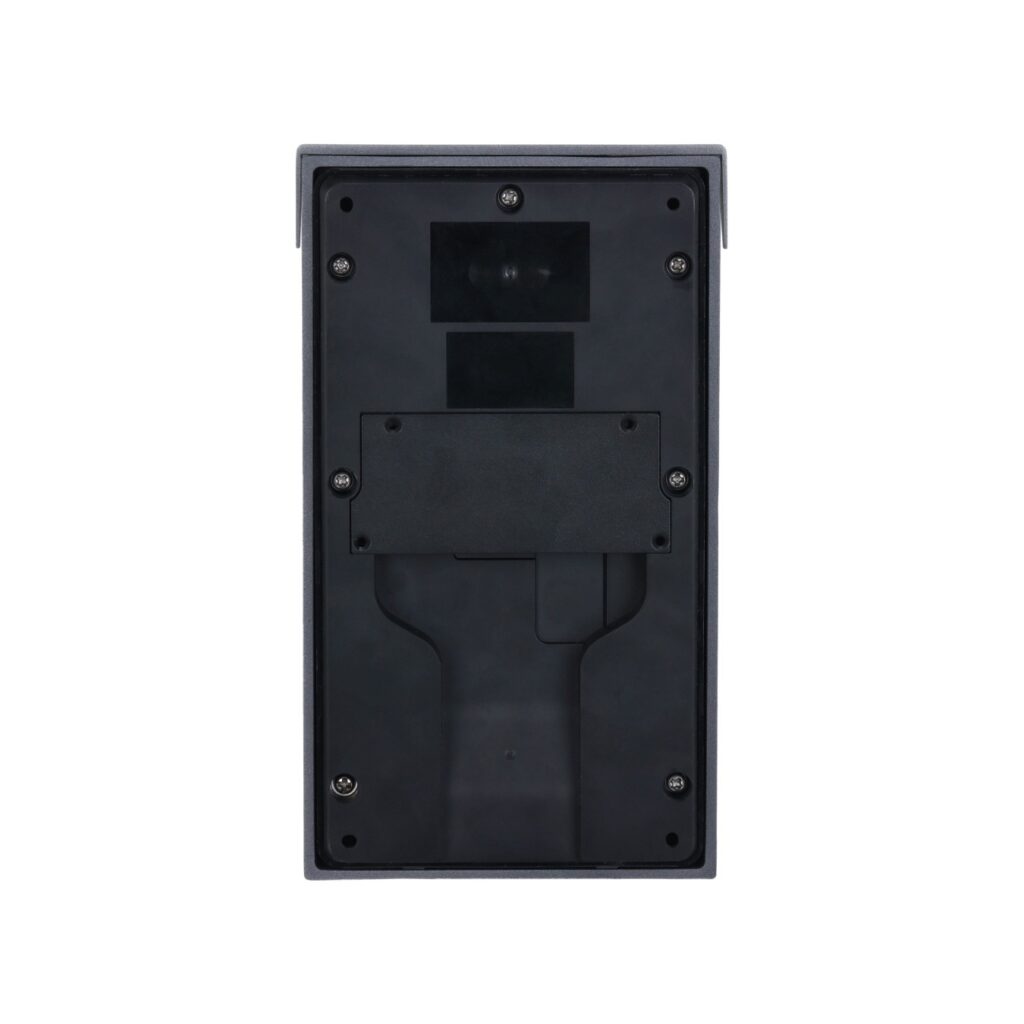

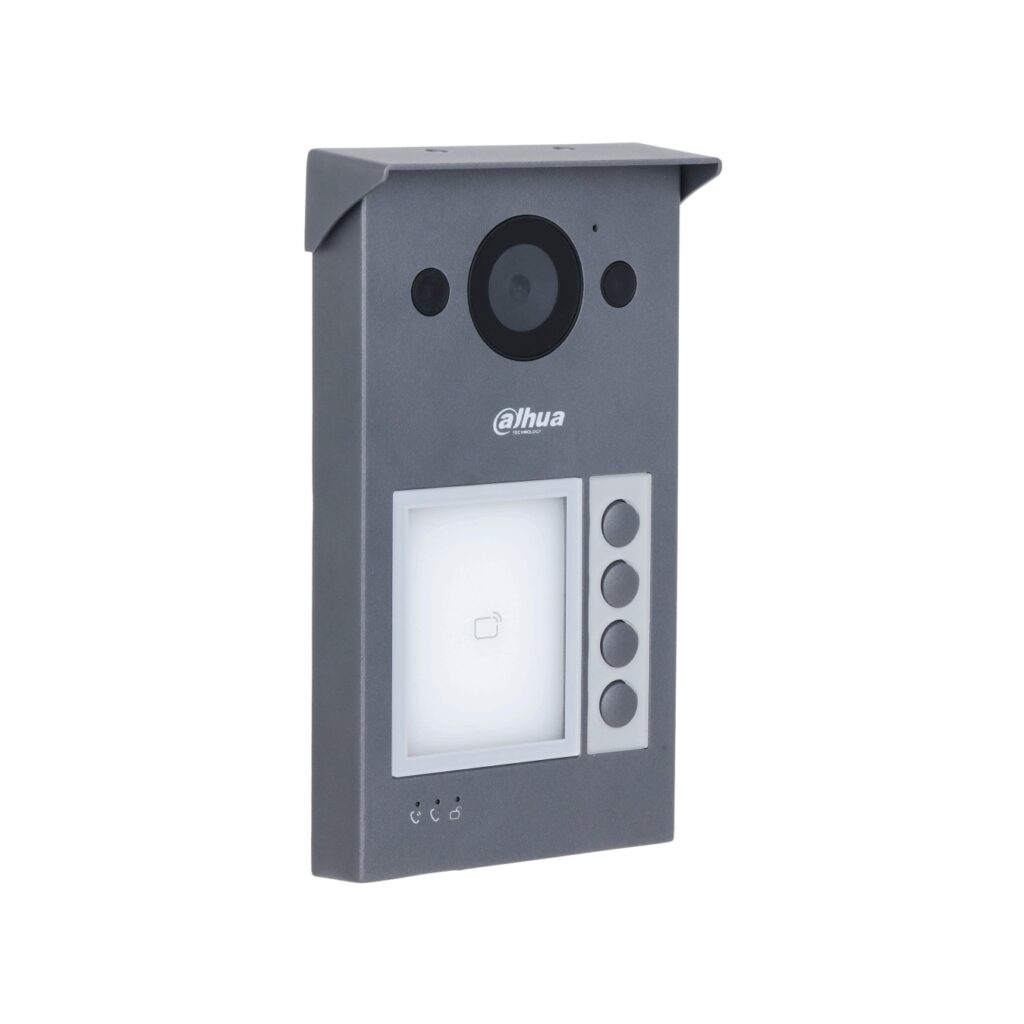

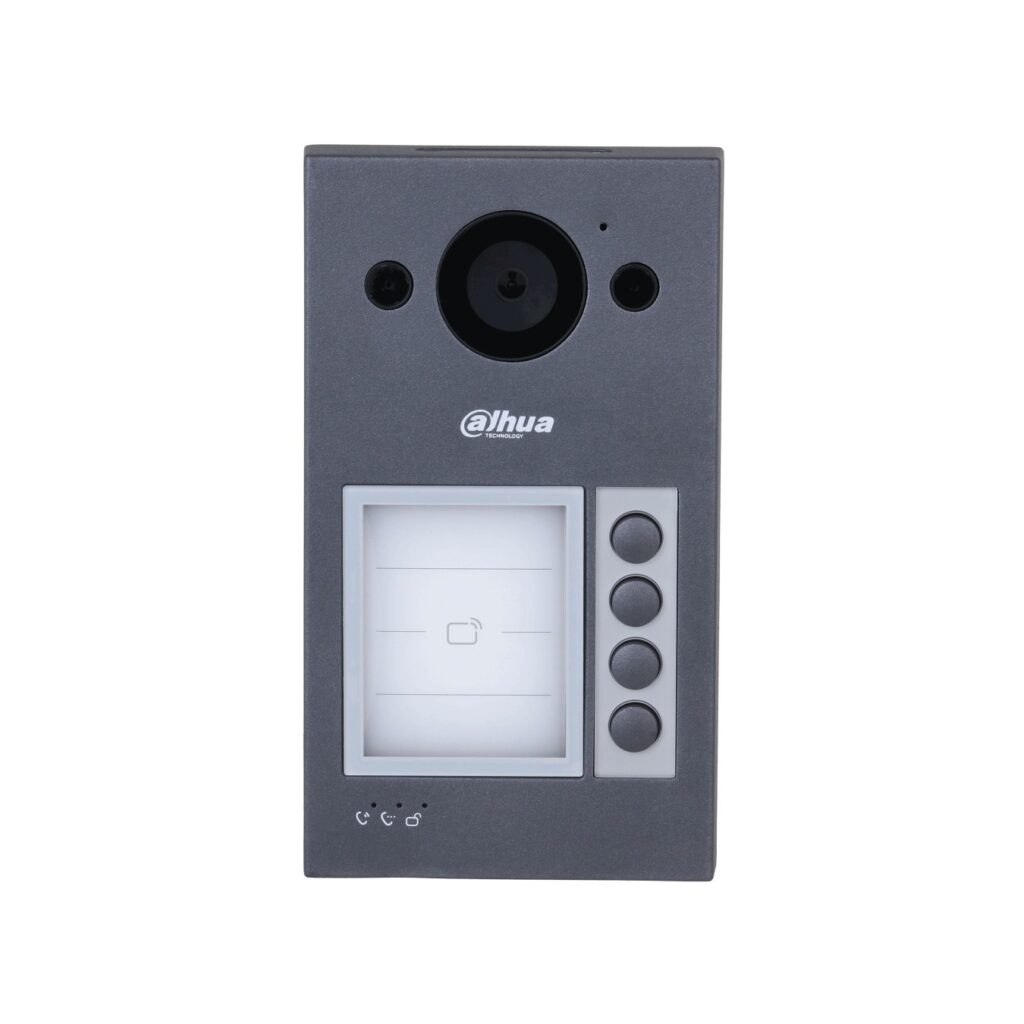

Dahua VD Wi-Fi 2MP Outdoor Station - VTO3311Q-WP - Wi-Fi 2MP Outdoor Station

• Full metal casing design
• Customizable Number of Buttons
• Wi-Fi connection
• 1/2.8″ 2-MP HD CMOS camera
• Offers two–way video call with indoor monitors
• IR illumination and auto WDR
• Supports two locks
• Voice call and unlocking through app
• IK08 and IP65 rated
• H.264 and H.265
• Unlock with IC card
• PoE power supply
• Included rain cover


System

• Main Processor: Embedded Micro Processor
• Button Type : Mechanical
• Interoperability : ONVIF; CGI
• Network Protocol : RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF

Basic

• Camera : 1/2.8″ CMOS 2-MP HD camera
• Field of View : Horizontal: 125°; vertical: 65°; diagonal: 139°
• WDR : 120dB
• Noise Reduction : 3D NR; 2D NR
• Video Compression : H.264; H.265
• Video Resolution : Main stream: 720p, WVGA, D1, and CIF; / Sub stream: 1080p, WVGA, D1, QVGA, and CIF
• Video Frame Rate : PAL:25 fps / NTSC:30 fps
• Video Bit Rate : 768 kbps–8 Mbps
• Light Compensation : Auto IR
• Day/Night : Auto (ICR)/Color/B/W; Color/B/W
• Audio Compression : G.711a; G.711u; PCM
• Audio Input : 1
• Audio Output : Built-in speaker
• Audio Mode : Two-way audio
• Audio Enhancement : Echo suppression and cancellation/digital noise reduction
• Audio Bit Rate : 16KHz, 16Bit

Function

• Communication Mode : Full digital
• Unlock Mode : Card/app/indoor monitor unlock
• Card Type : IC card
• Motion Detection : Video motion detection
• Auto Snapshot : Yes (SD card is inserted in the indoor monitor or door station)
• Leave Videos : Yes (SD card inserted in VTH/VTO is needed)
• Wi-Fi : Yes
• Wireless Standard : IEEE802.11b/802.11g/802.11n
• Wireless Frequency Range : 2.4GHz
• Storage : Micro SD card (max. 256 GB)

Performance

• Card Reading Distance : 3cm–5cm
• Issue Card Locally : Yes
• Casing :Alluminum alloy

Port

• RS-485 : 1
• Alarm Input : 1
• Alarm Output : 1
• Power Output : 1
• Exit Button : 1
• Door Status Detection : 1
• Lock Control : 1
• Network Port : 1 × RJ-45 10/100 Mbps Ethernet port

Alarm

• Tamper : Yes

General

• Color : Grey
• Power Supply : 12 VDC, 1 A; Standard PoE
• Installation : Surface Mount
• Certifications : CE; FCC
• Accessory : Included: Alarm power ribbon cable, rain cover
• Product Dimensions : 188.1 mm × 107.2 mm × 30 mm
• Protection : IP65 IK08
• Operating Temperature : –40 °C to +60 °C
• Operating Humidity : 10%–90% (RH), non-condensing
• Operating Altitude : 0 m–3,000 m
• Power Consumption : ≤ 3 W (standby), ≤ 6 W (working)
• Gross Weight : 0.81 kg
• Net Weight : 0.55 kg
