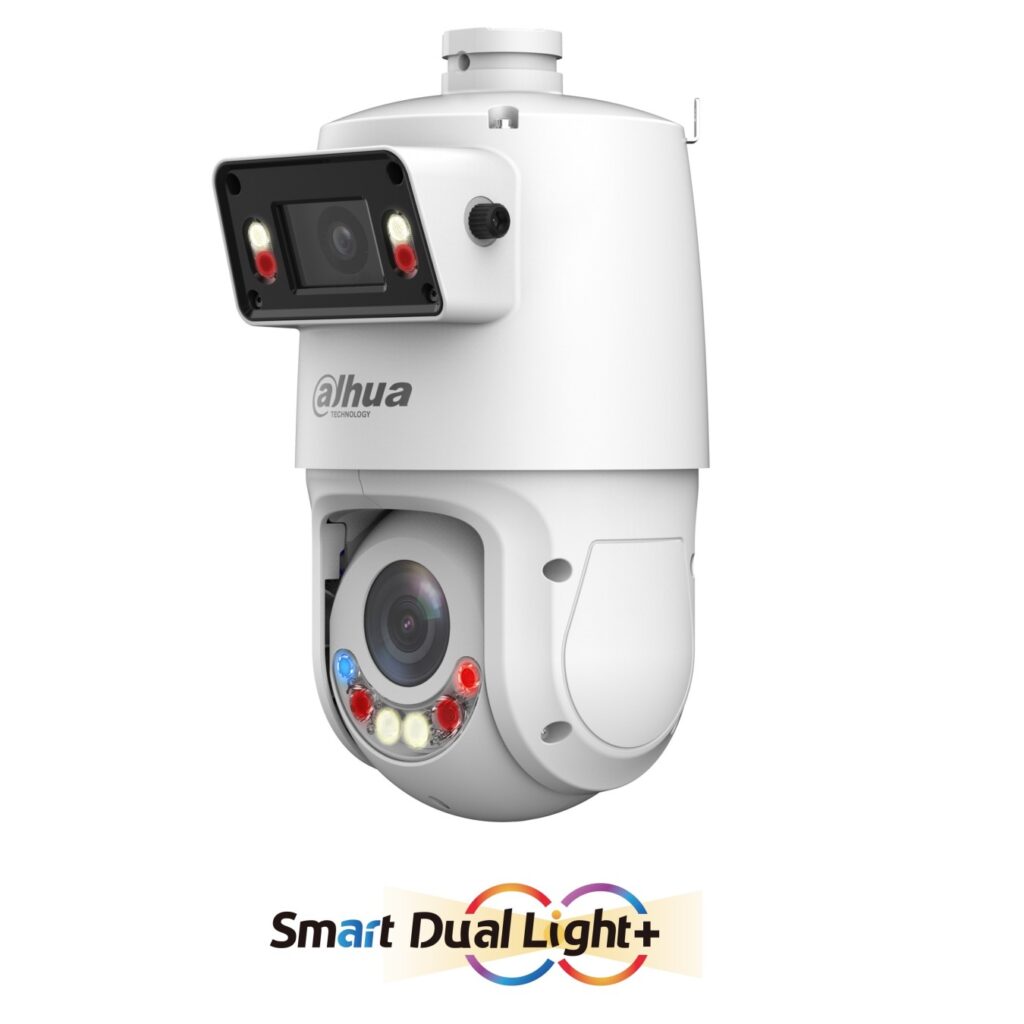

Dahua IP 4.0MP PTZ 5-125mm Panoramic TIOC Wizsense Camera SDT4E425-4F-GB-A-PV1

• Panorama: 1/2.8″ 4Megapixel F1.0 CMOS
• Detail: 1/2.8″4Megapixel STARVIS™ CMOS
• 25x optical zoom
• Max. 25/30fps@4M
• IR distance up to 100 m
• Auto tracking 3.0
• Smart tracking
• Perimeter protection
• Active deterrence
• Smart dual light +

Camera

• Image Sensor : Panorama: 1/2.8″ CMOS / Detail: 1/2.8″ CMOS
• Pixel : Panorama: 4 MP / Detail: 4 MP
• Max. Resolution : Panorama: 2560 (H) × 1440 (V) : Detail: 2560 (H) × 1440 (V)
• ROM : Panorama: 4 GB / Detail: 4 GB
• RAM : Panorama: 1 GB / Detail: 1 GB
• Electronic Shutter Speed : Panorama: 1/3s-1/100000s / Detail: 1s-1/30000s
• Scanning System : Progressive
• Min. Illumination : Panorama: 0.001 [email protected] (Color, 30 IRE); 0.0005 [email protected] (B/W, 30 IRE); 0 lux (illuminator on) / Detail: 0.005 [email protected] (Color, 30 IRE); 0.0005 [email protected] (B/W, 30 IRE); 0 lux (illuminator on)
• Illumination Distance : Panorama: 30 m (98.43 ft) (IR); 30 m (98.43 ft) (white light) / Detail: 100 m (328.08 ft) (IR) 50 m (164.04 ft) (white light)
• Illuminator On/Off Control : Panorama: Auto; Manual; Off / Detail: Zoom Prio; Auto; Manual; Off
• Illuminator Number : Panorama: 2 (IR); 2 (white light) / Detail: 2 (IR); 2 (dual light Fusion)

Lens

• Focal Length : Panorama: 2.8 mm / Detail: 5 mm–125 mm
• Max. Aperture : Panorama: F1.0 / Detail: F1.6–F3.6
• Field of View : Panorama: H: 101°; V: 53°; D: 120° / Detail: H: 51.9°–3.0°; V: 39.7°–2.2°; D: 63.1°–3.7°
• Optical Zoom : Panorama: NA / Detail: 25×
• Focus Control : Auto; semi-auto; manual
• Close Focus Distance : Panorama: 0.2 m / Detail: 0.1 m–0.5 m
• Iris Control : Auto; manual

PTZ

• Pan/Tilt Range : Panorama camera: Tilt: 13° to 23° / Detail camera: Pan: 0° to 360° endless; Tilt: –15° to 90°, auto flip 180°
• Manual Control Speed : Pan: 0.1°/s–200°/s; / Tilt: 0.1°/s–120°/s
• Preset Speed : Pan: 240°/s / Tilt: 200°/s
• Preset : 300
• Tour : 8 (up to 32 presets per tour)
• Pattern : 5
• Scan : 5
• Power-off Memory : Yes
• Idle Motion : Pattern; Preset; Scan; Tour

Intelligence

• IVS (Perimeter Protection) : Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linking the detail camera to track objects
• Auto Tracking : Yes
• SMD : SMD4.0
• Quick Pick : Yes

Active Deterrence

• Light Warning : Red-blue light warning / Flash duration: 5 s–30 s / Flash frequency: high, medium, low
• Sound Warning : Offers 11 sound alarms and supports importing custom sound alarms

Video

• Video Compression : H.265; H.264B; H.264; H.264H; MJPEG(Sub Stream 1); smart H.265+; smart H.264+
• Streaming Capability : 3 streams
• Resolution : Panorama : 4M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 ×288/352 × 240) / Detail : 4M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
• Video Frame Rate : Main stream: 4 MP/3 MP/1080p/1.3 MP/720p@(1–25/30 fps) / Sub stream 1: D1/CIF/VGA@(1–25/30 fps) / Sub stream 2: 1080p/1.3 MP/720p@(1–25/30 fps)
• Bit Rate Control : CBR/VBR
• Video Bit Rate : H264: 96 Kbps–14848 Kbps / H265: 38 Kbps–8960 Kbps
• Day/Night : Auto (ICR)/Color/B/W
• BLC : Yes
• WDR : 120 dB
• HLC : Yes
• White Balance : Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
• Gain Control : Auto; manual
• Noise Reduction : 2D NR; 3D NR
• Motion Detection : Yes
• Region of Interest (RoI) : Yes
• Image Stabilization : EIS
• Defog : Electronic
• Digital Zoom : 16×
• Image Rotation : 180°
• S/N Ratio : ≥ 55 dB

Audio

Audio Compression

• PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723

Network

• Network Port : RJ-45 (10/100 Base-T)
• Network Protocol : FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP
• Interoperability ; ONVIF(Profile S&G&T);CGI;SDK
• Streaming Method : Unicast/Multicast
• User/Host ; 20 (total bandwidth: 64 M)
• Storage : Micro SD card (512 GB); FTP/SFTP; NAS
• Browser : IE 9 and later versions;Chrome 41 and later versions;Firefox 50 and later versions;Safari 10 and later versions
• Management Software : DMSS; DSS Pro
• Mobile Client : iOS; Android

Certification

• CE: EN55032/EN55024/EN50130-4

Port

• Audio Input : 1 channel (LINE IN, bare wire)
• Audio Output : 1 channel (LINE OUT, bare wire)
• Alarm Input : 2 (on-off value input: 0–5 VDC)
• Alarm Output : 1
• Alarm Linkage : Capture; recording; send email; preset; tour; pattern; alarm digital input; audio; warning light
• Alarm Event : Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Power

• Power Supply : 12 VDC, 3 A ± 10%; / PoE+ (802.3at)
• Power Consumption : Basic: 12 W / Max. (Basic power consumption + illuminator+sound and light warning +PTZ operation + Heater ): 25 W (12 VDC)
• Environment
• Operating Temperature : –40 °C to +65 °C
• Operating Humidity : ≤ 95%
• Protection : TVS 6000 V lightning proof;IP66; surge protection; voltage transient protection

Structure

• Product Dimensions : 160.0 mm × 184.4 mm × 304.6 mm (L × W × H)
• Net Weight : 3.41 kg
