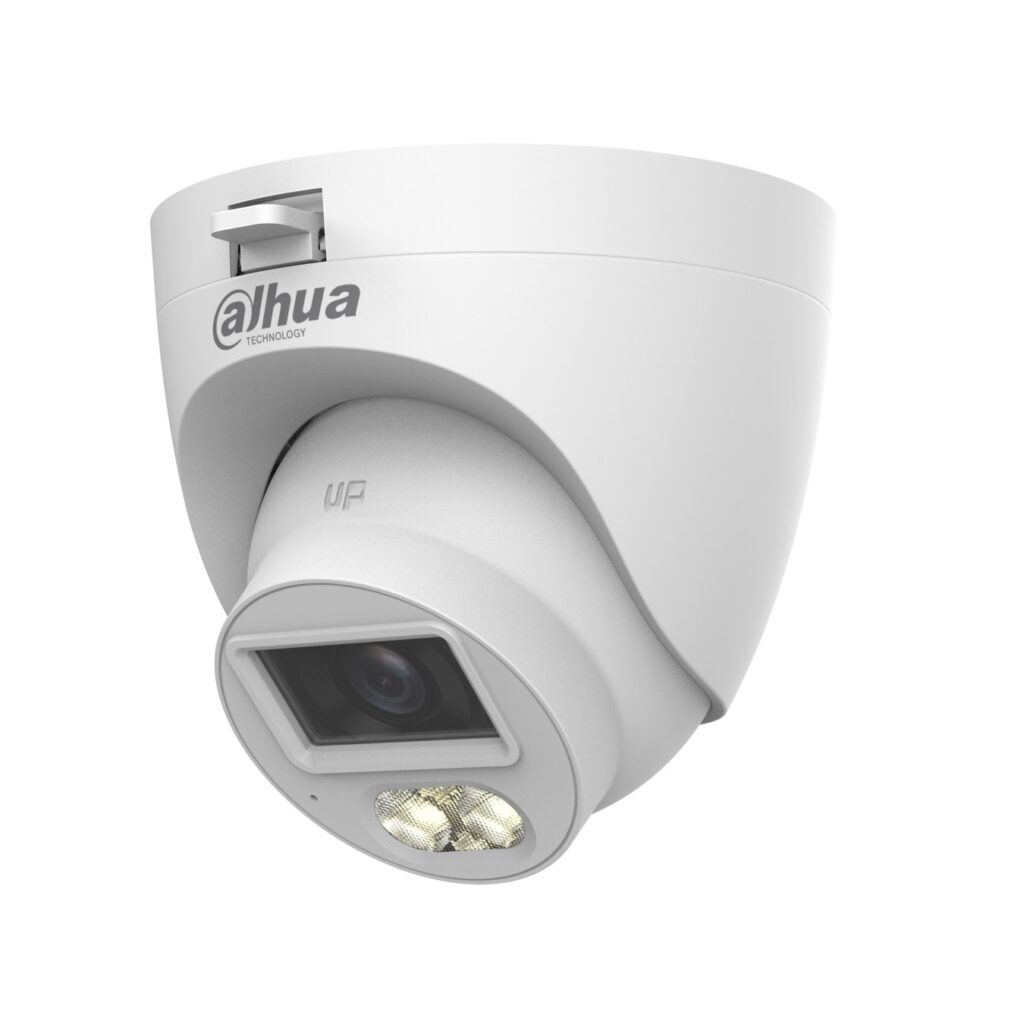

Dahua HDCVI 5.0MP Dome 2.8mm Dual Illuminator - HDW1500CLQ-IL-A-0280B-S3 - Dahua HDCVI 5.0MP Dome 2.8mm Dual Illuminator

• * The parameters and datasheets below can only be applied to1500-IL-S3 series.
• * In order to use the 5MP 16:9 and the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version.
• Max. 25 fps@5MP (16:9 video output)
• Starlight, 3D NR
• Smart Dual Light.
• 30 m illumination distance.
• Built-in Mic.
• Quick-to-install eyeball saves installation time.
• 2.8 mm
• CVI/CVBS/AHD/TVI switchable.
• IP67, 12 VDC.

Camera

• Image Sensor : 5 MP CMOS
• Max. Resolution : 2880 (H) × 1620 (V)
• Scanning System : Progressive
• Electronic Shutter Speed : PAL: 1/25 s–1/100000 s / NTSC: 1/30 s–1/100000 s
• Min. Illumination : 0.01 [email protected] (Color, 30 IRE) / 0.001 [email protected] (B/W, 30 IRE) / 0 lux (Illuminator on)
• S/N Ratio : >65 dB
• Illumination Distance : IR: 30 m / Warm light: 30 m
• Illuminator On/Off Control : Auto
• Illuminator Number : 2 (Multi-core light)

Lens

• Lens Type : Fixed-focal
• Auto Focus : No
• Lens Mount : M12
• Focal Length : 2.8 mm; 3.6 mm
• Max. Aperture : F1.6
• Field of View : 2.8 mm: H: 113.3°; V: 62.1°; D: 134.3° / 3.6 mm: H: 90.1°; V: 47.8°; D: 109.3°
• Iris Control : Fixed
• Close Focus Distance : 2.8 mm: 0.8 m / 3.6 mm: 1.3 m

Video

• Video Frame Rate : CVI: PAL: 5M@25 fps; [email protected] fps; 4M@25 fps; 1080p@25 fps; NTSC: 5M@25 fps; 5M@20 fps; 5M@10 fps; 4M@30 fps; 1080p@30 fps / AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps / TVI: PAL: 5M 16:9@20 fps; NTSC: 5M 16:9@20 fps / CVBS: PAL: 960H; NTSC: 960H
• Resolution : 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480); TVI 5M 16:9 (2960 × 1665)
• Day/Night : Auto(ICR)/Color/B/W
• BLC : BLC; HLC; WDR
• WDR : DWDR
• White Balance : Auto;Area white balance
• Gain Control : Auto
• Noise Reduction : 3D NR
• Illumination Mode : Smart IR&WL; WL Mode; IR Mode
• Mirror : Yes
• Privacy Masking : Off/On (8 areas, rectangle)

• Pick-up Distance : 8 m

Certification

• Certifications : CE-LVD: EN 62368-1; / CE-EMC: EN 55032; EN 55035

Audio

• Built-in Mic : Yes
• Camera Audio : CVI; TVI

Port

• Video Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
• Audio Input : 1 channel built-in mic

Power

• Power Supply : 12 VDC ± 30%
• Power Consumption : Max 4.3W (12 VDC, WLED on)

Environment

• Operating Temperature : –40 °C to +60 °C
• Operating Humidity : <95% (RH), non-condensing
• Storage Temperature : –40 °C to +60 °C
• Storage Humidity : <95% (RH), non-condensing
• Protection : IP67

• Anti-corrosion Level : Basic Protection

Structure

• Casing Material : Plastic
• Product Dimensions : Φ97.4 mm × 92.9 mm
• Net Weight : 0.22 kg
• Gross Weight : 0.29 kg
• Installation : Wall mount; ceiling mount; vertical pole mount
