Dahua Alarm Wireless Automation Relay - ARM7011-W2 -
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.

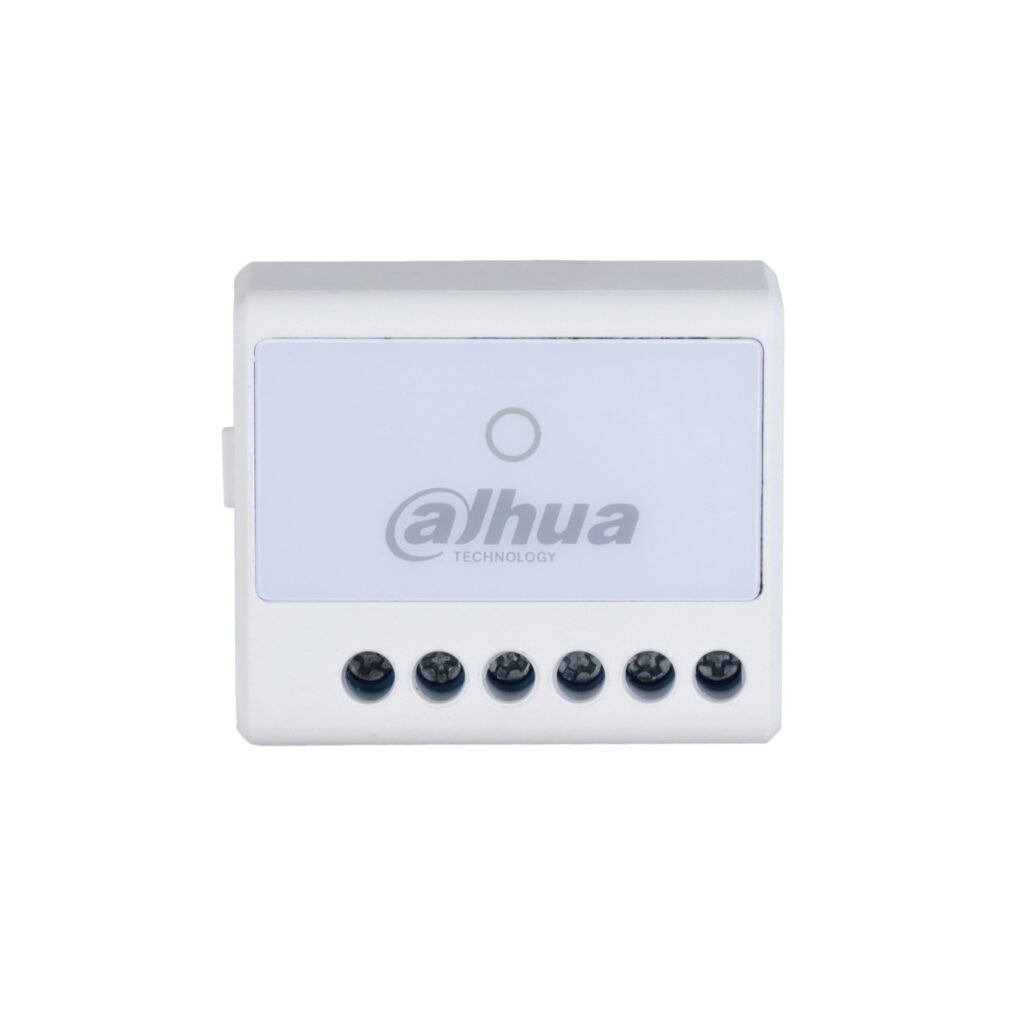

Dahua Alarm Wireless Automation Relay at 868 MHz.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
- Frequency hopping and two-way communication technology ensure that communication is stable
- Supports jamming detection and communication encryption
- Supports cloud update and automatically restores when cloud update fails
- Overheating protection
- Voltage detection
- 1 channel external tamper input
Port
- Alarm Input : 1 for tamper, NO/NC
- Relay Output : 1, NO/NC (0–36 VDC, Max 5A)
Function
- Indicator Light : 1 for multiple statuses (pairing, communication)
- Button : 1
- Remote Update : Cloud update
Technical
- Test Mode : Yes
Wireless
- Carrier Frequency : 868.0 MHz–868.6 MHz
- Communication Mechanism : Two-way
- Communication Distance : 1200 m in open areas
- Encryption Mode : AES128
- Frequency Hopping : Yes
General
- Power Supply : 7–24 VDC
- Operating Temperature : –10 °C to +55 °C (indoor)
- Operating Humidity : 10%–90% (RH)
- Storage Temperature : –10 °C to +55 °C
- Storage Humidity : 10%–90% (RH)
- Product Dimensions : 39 mm × 33 mm × 19 mm
- Packaging Dimensions : 95 mm × 59.5 mm × 30.5 mm
- Net Weight : 45 g
- Gross Weight : 60 g
- Installation : Wall mount
- Casing Material : PC + ABS
- Certifications : CE
