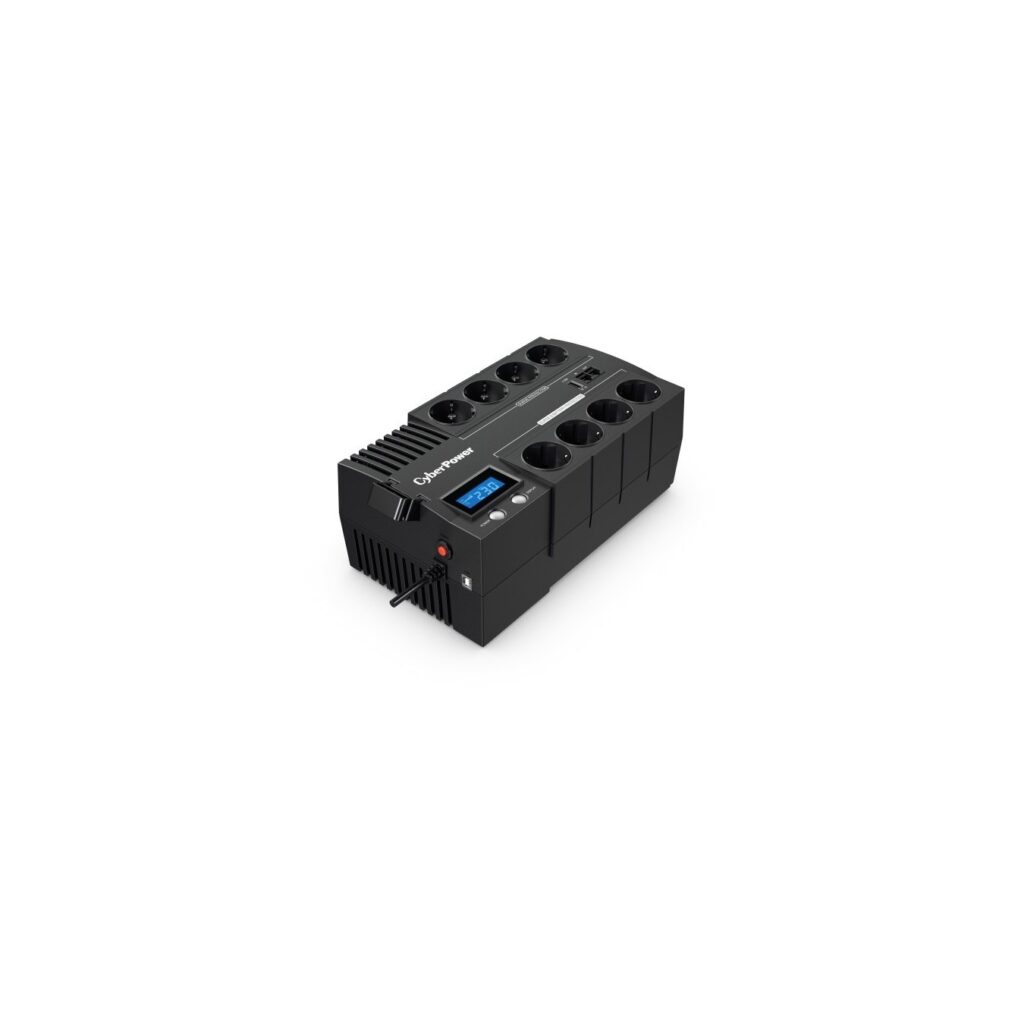

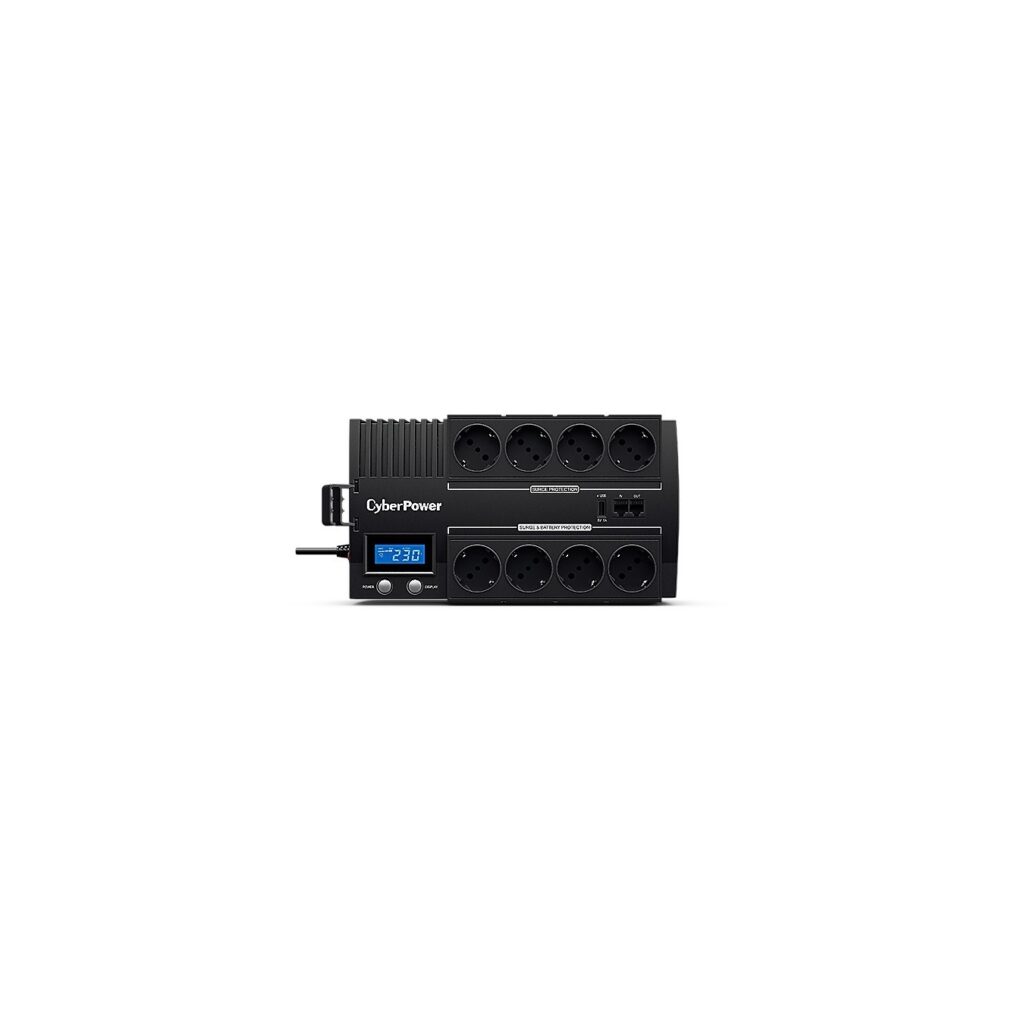

CYBERPOWER - BR1200ELCD - Line-Interactive
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
CyberPower BR1200ELCD, Line-Interactive UPS, 1.2 kVA / 720 W, sine output, 165–290 V input, 50/60 Hz.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
CyberPower BR1200ELCD. UPS topology: Line-Interactive. Output power capacity: 1.2 kVA. Output power: 720 W. AC outlet types: Type F. AC outlets quantity: 8 AC outlet(s). USB port type: USB Type-A. Battery technology: Sealed Lead Acid (VRLA). Battery voltage: 230 V. Typical backup time at full load: 2 min. Form factor: Desktop. Product colour: Black. Housing material: Plastic. Compliance certificates: CE. EAC. RoHS
| UPS topology | Line-Interactive |
| Output power capacity | 1.2 kVA |
| Output power | 720 W |
| Waveform | Sine |
| Input operation voltage (min) | 165 V |
| Input operation voltage (max) | 290 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Feature | Sustainability compliance |
| Surge energy rating | 150 J |
| Response time | 4 ms |
| Heat dissipation | 137 BTU/h |
| Surge protection features | Fax. Modem. Network. Telephone |
| Power protection features | Short circuit |
| Audible alarm modes | Alarm when on battery. Fault. Low battery alarm. Overload alarm |
| AC outlet types | Type F |
| AC outlets quantity | 8 AC outlet(s) |
| USB 2.0 ports quantity | 1 |
| USB port type | USB Type-A |
| Modem (RJ-11) ports | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 230 V |
| Number of batteries supported | 2 |
| Typical backup time at full load | 2 min |
| Typical backup time at half load | 9 min |
| Battery recharge time | 8 h |
| Replacement battery cartridge | RBP0063 |
| Form factor | Desktop |
| Housing material | Plastic |
| Cable length | 1.5 m |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Battery level. Power. Status |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Compliance certificates | CE. EAC. RoHS |
| Width | 166 mm |
| Depth | 288 mm |
| Height | 118 mm |
| Weight | 8.2 kg |
| Package width | 158 mm |
| Package depth | 325 mm |
| Package height | 230 mm |
| Package weight | 8.43 kg |
| Harmonized System (HS) code | 8504408590 |
| Number of phases | 1 |
