Cudy C200P 1.0 Router/AP Controller - Gigabit VPN 4 PoE+ Ports
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
2-in-1 Gigabit VPN Router and AP Controller with 4 PoE+ ports (802.3at/af). Manages up to 200 Cudy APs, supports Cudy Mesh, Captive Portal, QoS. USB 3.0, 256MB RAM.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

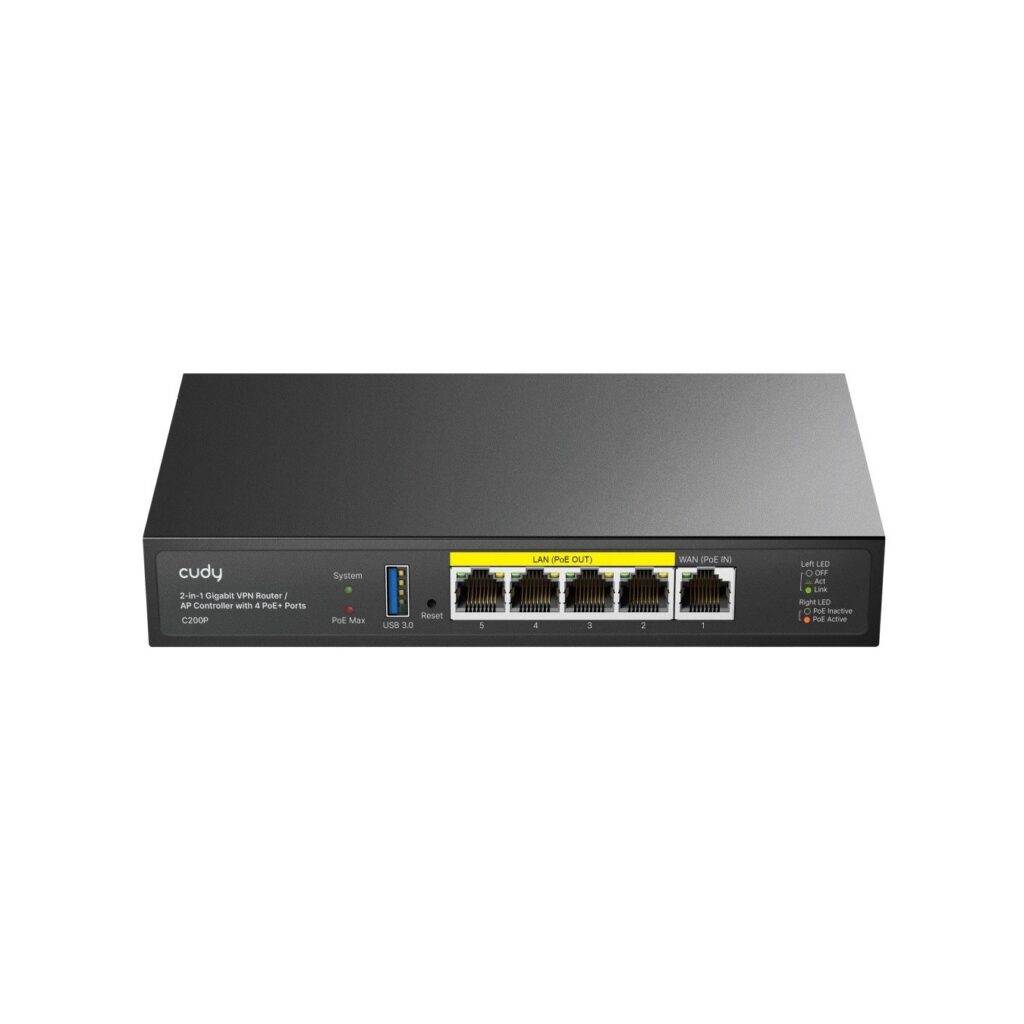

The Cudy C200P 1.0 is a versatile 2-in-1 Gigabit VPN Router and AP Controller designed for SMB and home networks requiring centralized Wi-Fi management. It features four Gigabit PoE+ output ports (802.3at/af Mode A, up to 30W each, 55-60W total) to power Cudy Access Points directly, plus one Gigabit WAN port with PoE input support and a USB 3.0 port for storage sharing.
Operate in Main Router + AP Controller mode (recommended ≤10 APs, ≤100 clients) or pure AP Controller mode (up to 200 APs). Key features include Cudy Mesh for seamless roaming, VPN Server/Client (WireGuard, OpenVPN, IPsec), Captive Portal, QoS rate limiting, IPv4/IPv6, and compact metal housing for desktop/wall mounting.
- 5× Gigabit Ethernet ports (4 PoE+ LAN #2-5, 1 WAN PoE IN)
- Manages 200 APs; Cudy Mesh, Captive Portal, VPN
- 256MB DDR3 RAM, 16MB Flash, 60W adapter (54V 1.11A)
- PoE out disabled when powered via PoE IN
- USB 3.0 Samba sharing, Wake-on-LAN
| Type | Wired |
| Environment | Indoor |
| Ethernet Speed | Gigabit |
| Mounting | Desktop/Wall |
| Ethernet Ports | 5 |
| System Memory | 256MB DDR3 RAM |
| Flash Memory | 16MB NOR |
| USB Port | USB 3.0 |
| PoE In | Yes (WAN Gigabit RJ45) |
| PoE Out | Yes 4x GbE 802.3at/af Mode A (30W max/port, 55-60W total) |
| Power Supply | 60W (54V 1.11A DC) |
| Max APs Managed | 200 (Controller mode) |
| VPN Support | Server & Client (WireGuard, OpenVPN, IPsec) |
| Other Features | Captive Portal, Cudy Mesh, QoS Rate Limiting, IPv6, Firewall |
