Connector DC 5.5 x 2.1 x 12.0mm socket for installation, plug
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
The DC built-in socket 90056 from Delock is suitable for cabling or installation in a housing or device to supply it with power. It has a DC 5.5 x 2.1 x 12.0mm socket and three sol…
For any questions about this item, availability, or delivery times, please contact us at 22 270068

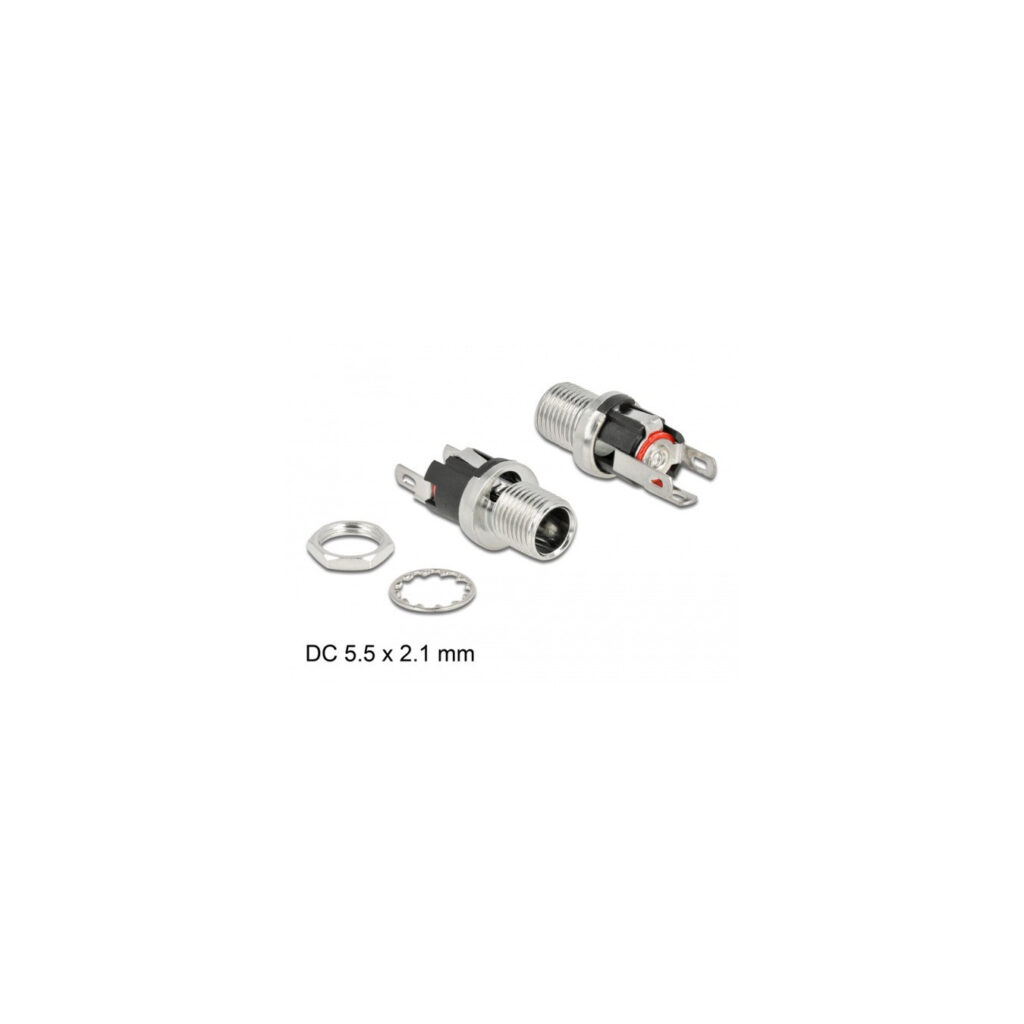

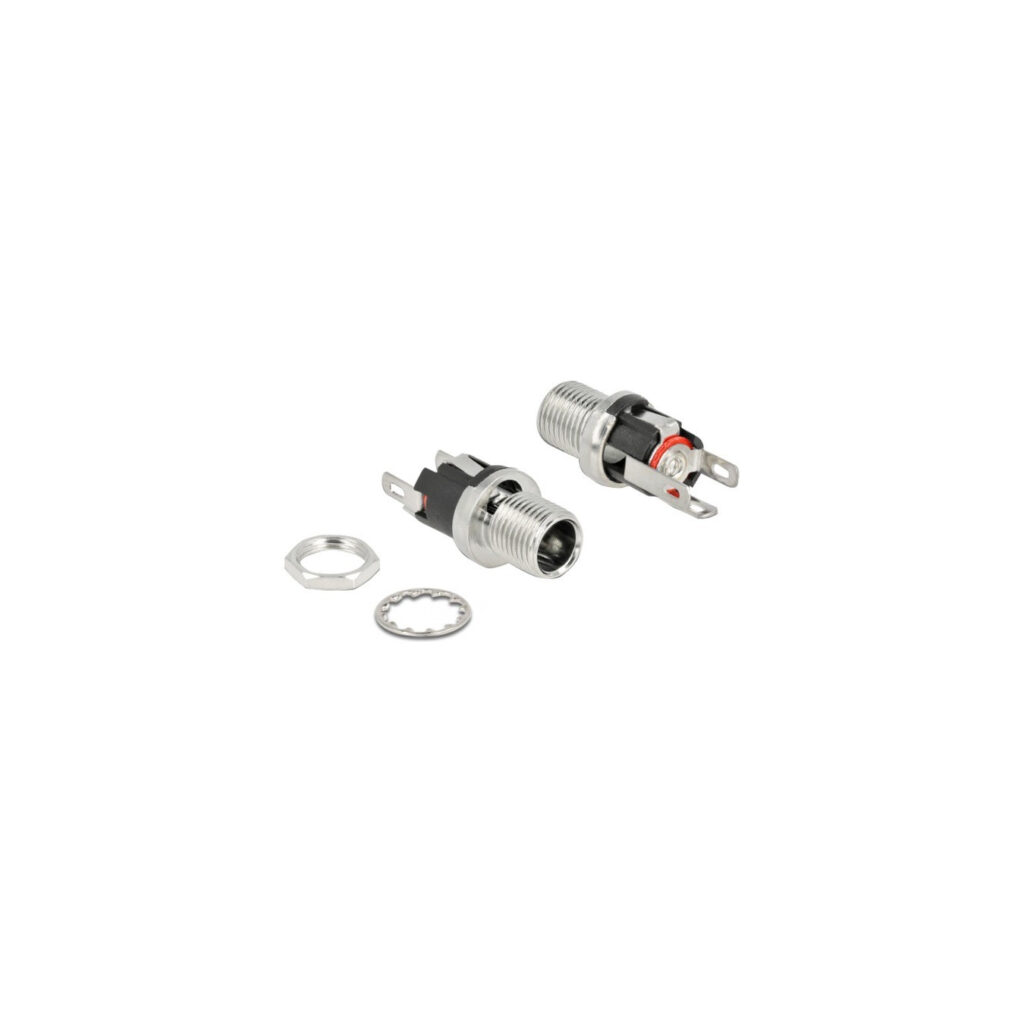

The DC built-in socket 90056 from Delock is suitable for cabling or installation in a housing or device to supply it with power. It has a DC 5.5 x 2.1 x 12.0mm socket and three solder connections on the other side.
| Typ | Plug |
| EAN | 4043619900565 |
| Manufacturer no. | 90056 |
| Manufactured in | Taiwan |
| Application example | Installation e.g. in a housing |
| Area | Power supply |
| Connection - from | 1x power supply (socket) |
| Characteristics | Adapter, extern |
| Feature | Pins nickel-plated copper |
| More information | Outside Ø approx. 5.5mm, inside Ø approx. 2.1mm, operating voltage 16V DC, current max. 3 A, plastic housing PBT, thread type M8*P0.75 |
| Notice | Installation depth approx. 15.8mm |
