Chieftec UNI BS-20B-OP Black Mini Tower mATX/ITX USB-C Gen2
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
Chieftec UNI BS-20B-OP black mini-tower PC case. mATX/Mini-ITX, 270mm GPU, 143mm CPU cooler, 2×3.5″, 1×5.25″ bays, 1x90mm rear fan, USB-C Gen2 + USB 3.2/2.0, compact
For any questions about this item, availability, or delivery times, please contact us at 22 270068

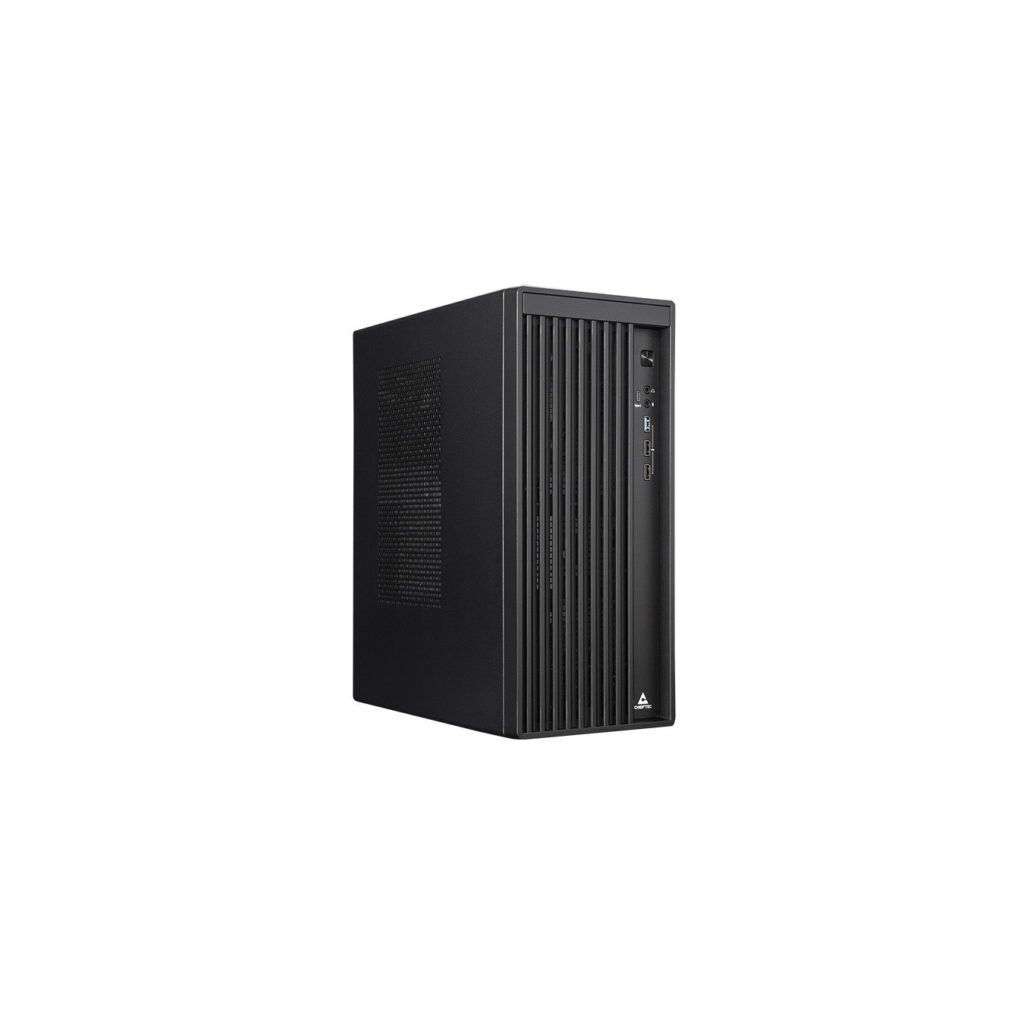

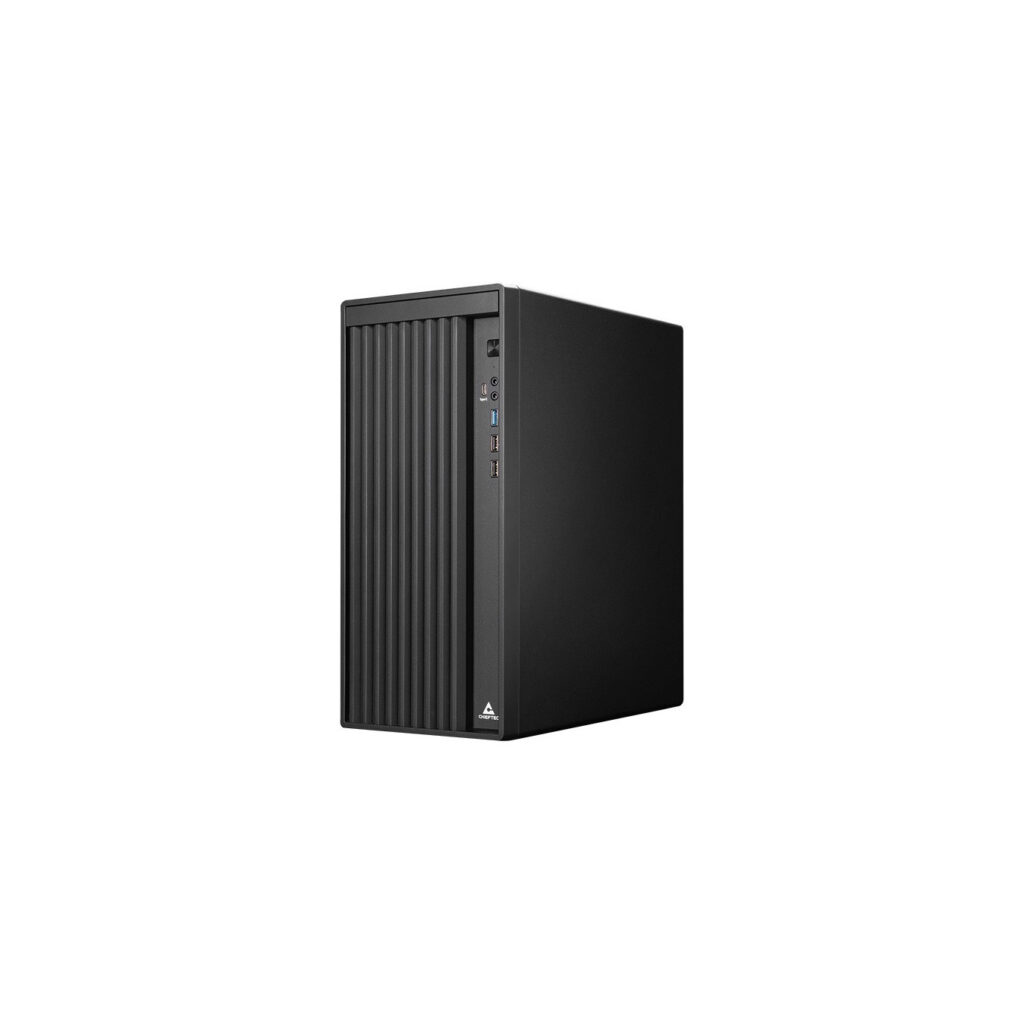

The Chieftec UNI Series BS-20B-OP is a compact mini-tower PC case in black, designed for home and office use with a total volume under 20 liters. It supports microATX and Mini-ITX motherboards, ATX PSUs, GPUs up to 270mm, and CPU coolers up to 143mm. Dimensions: 170x329x408mm, weight 4.49kg.

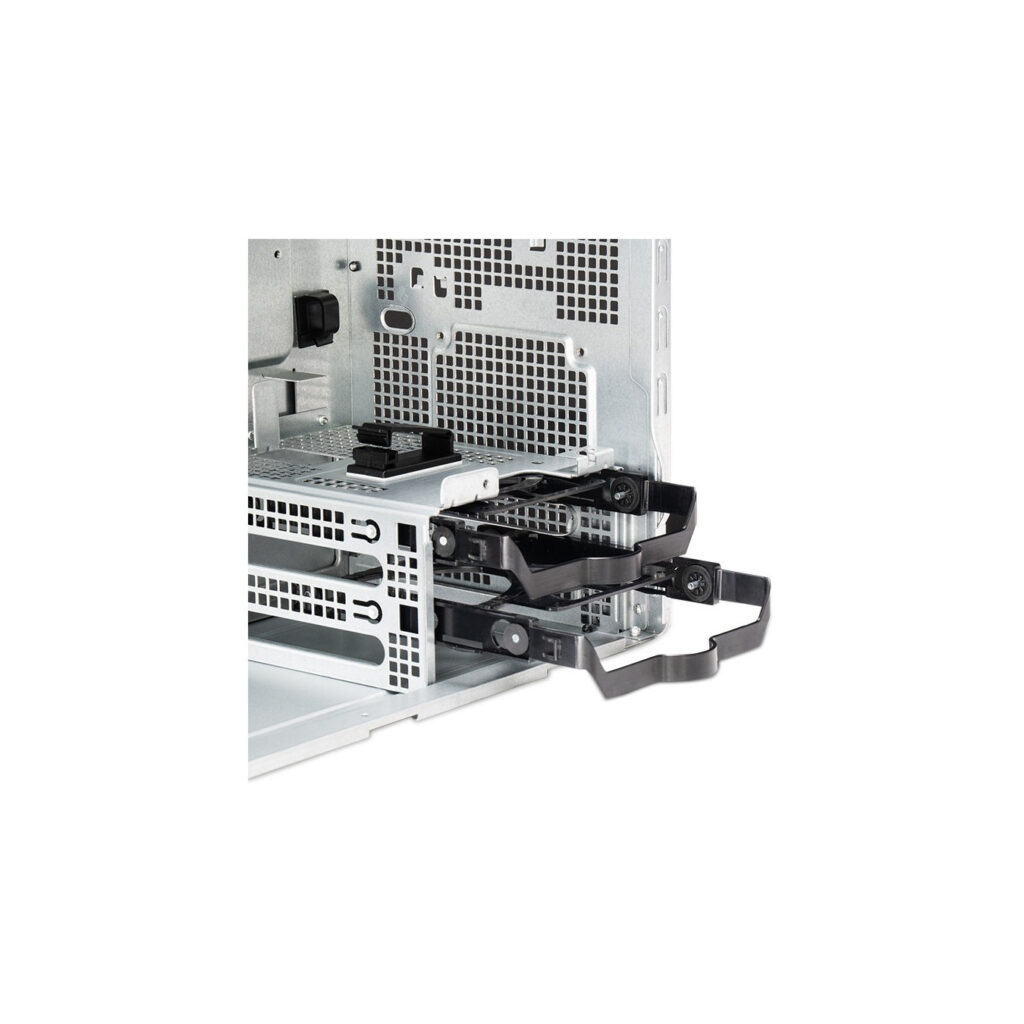

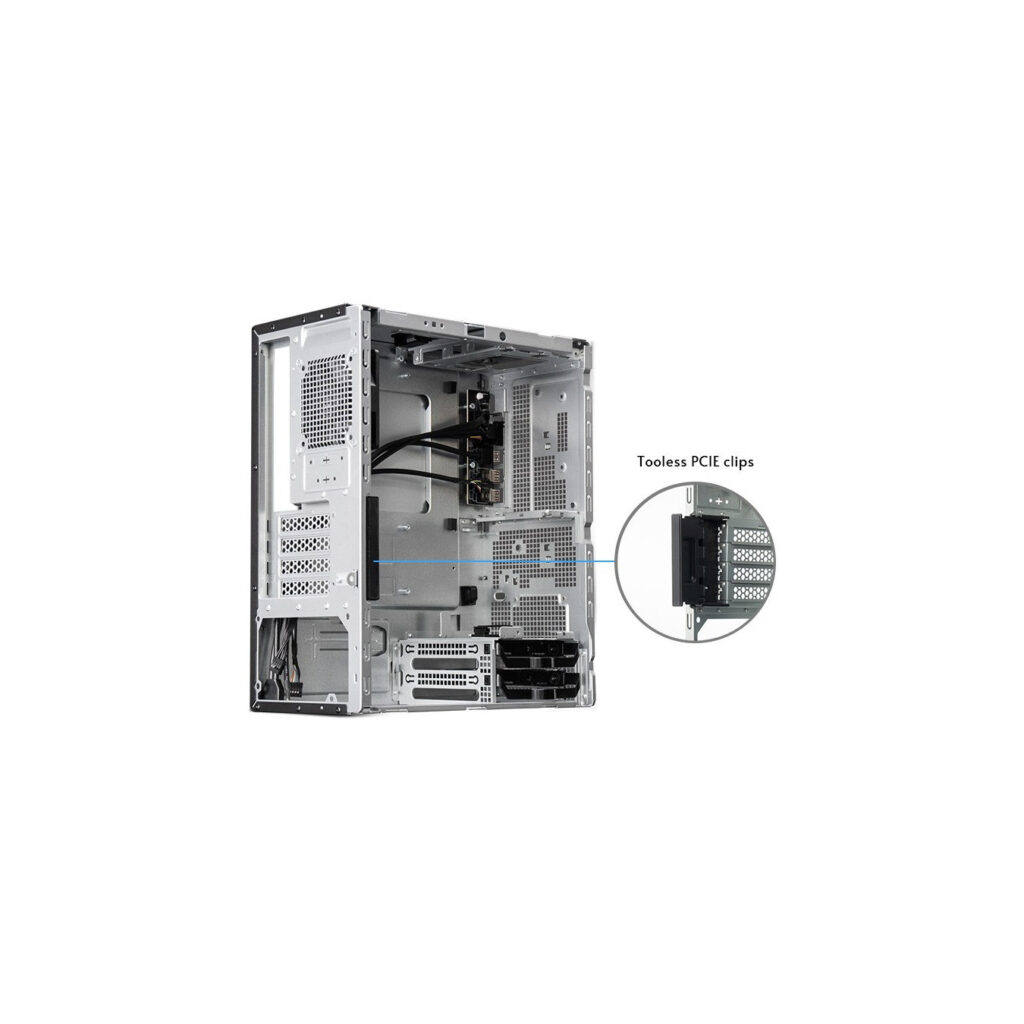

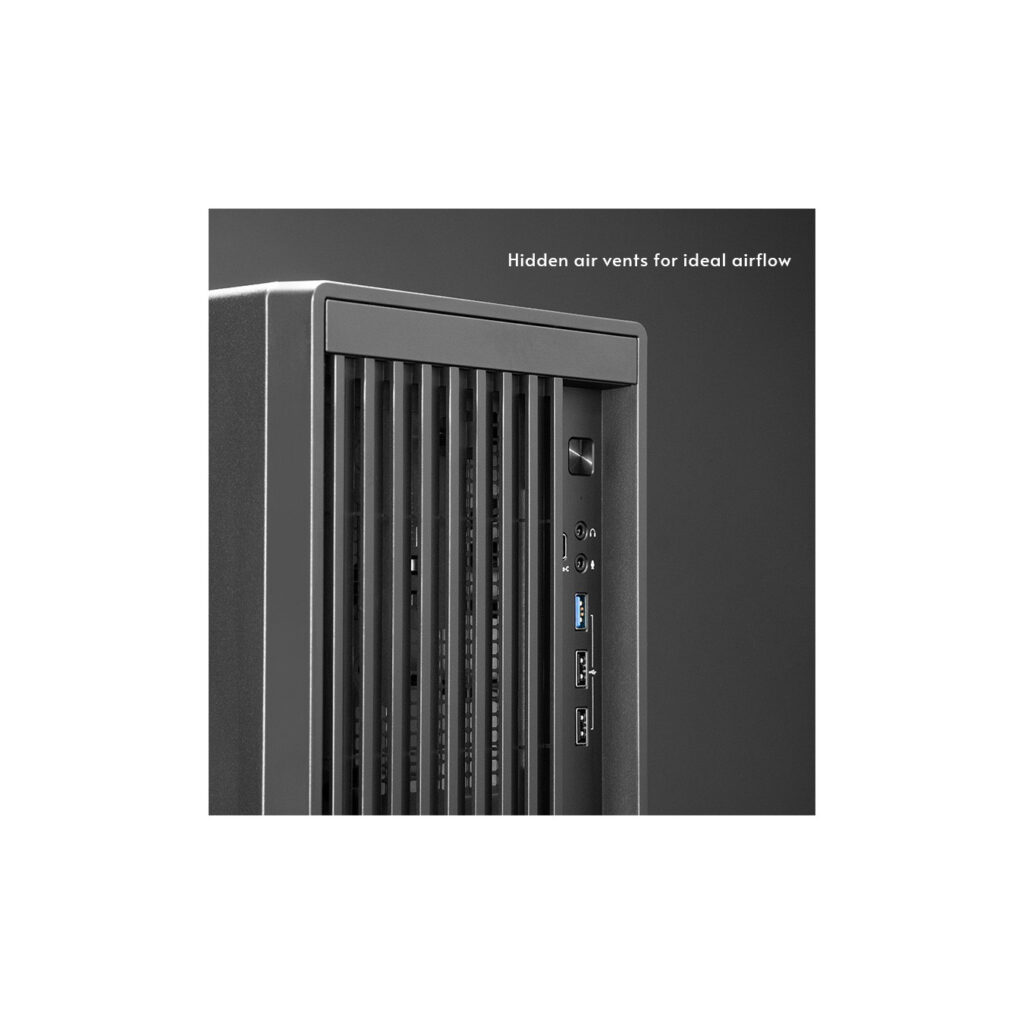

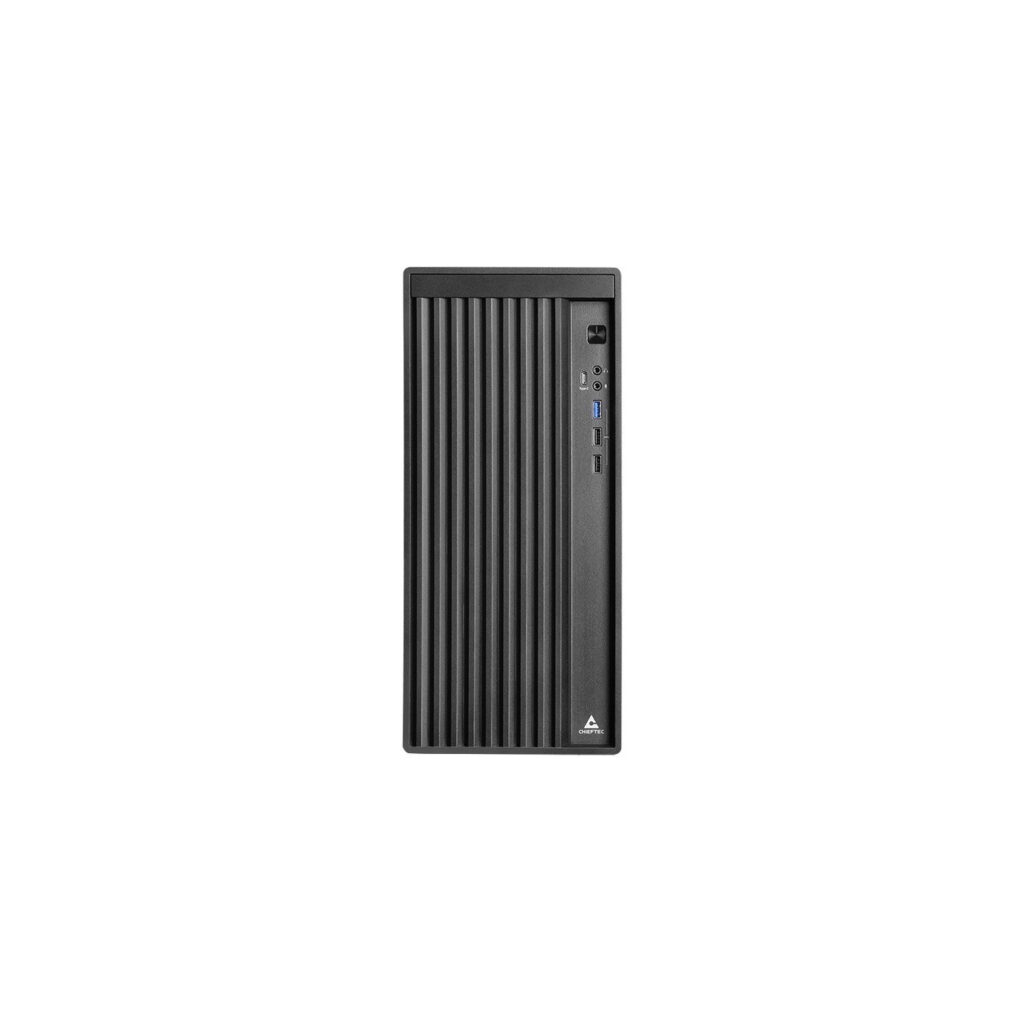

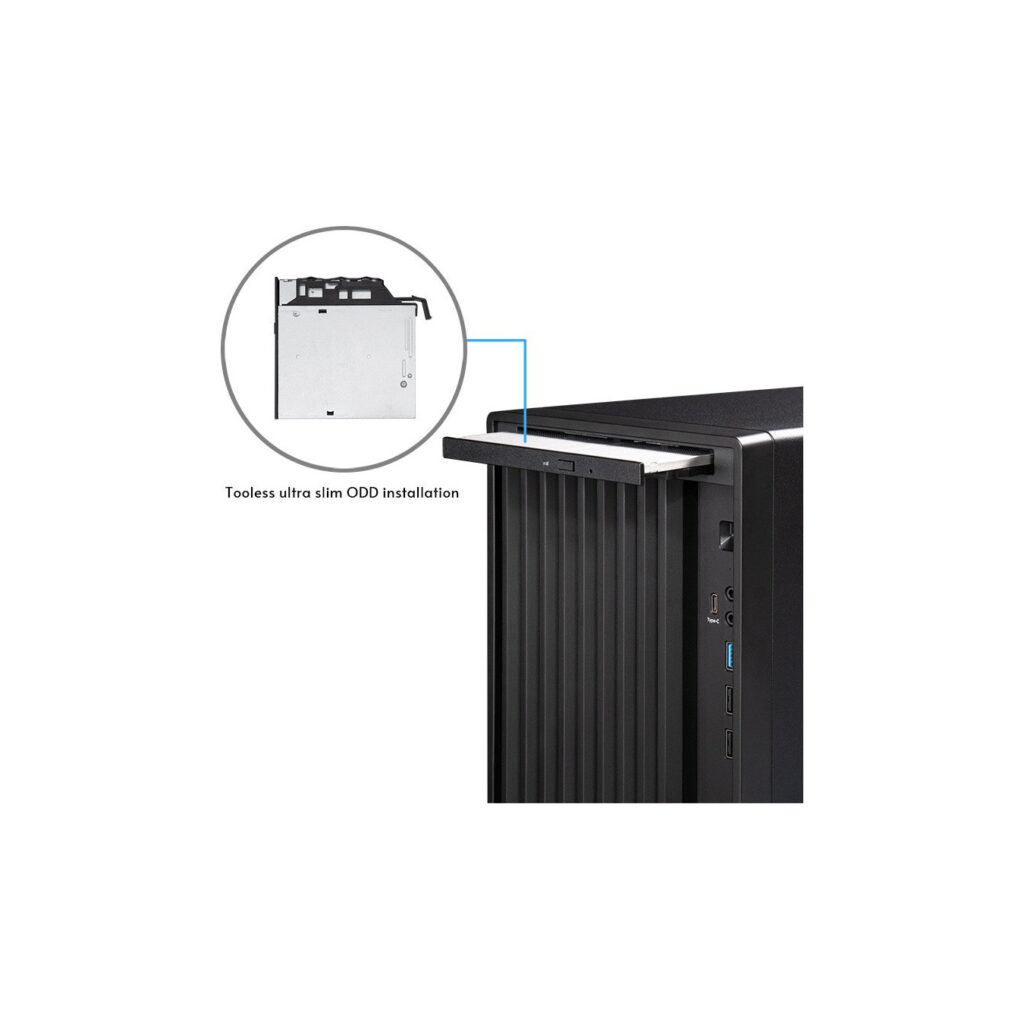

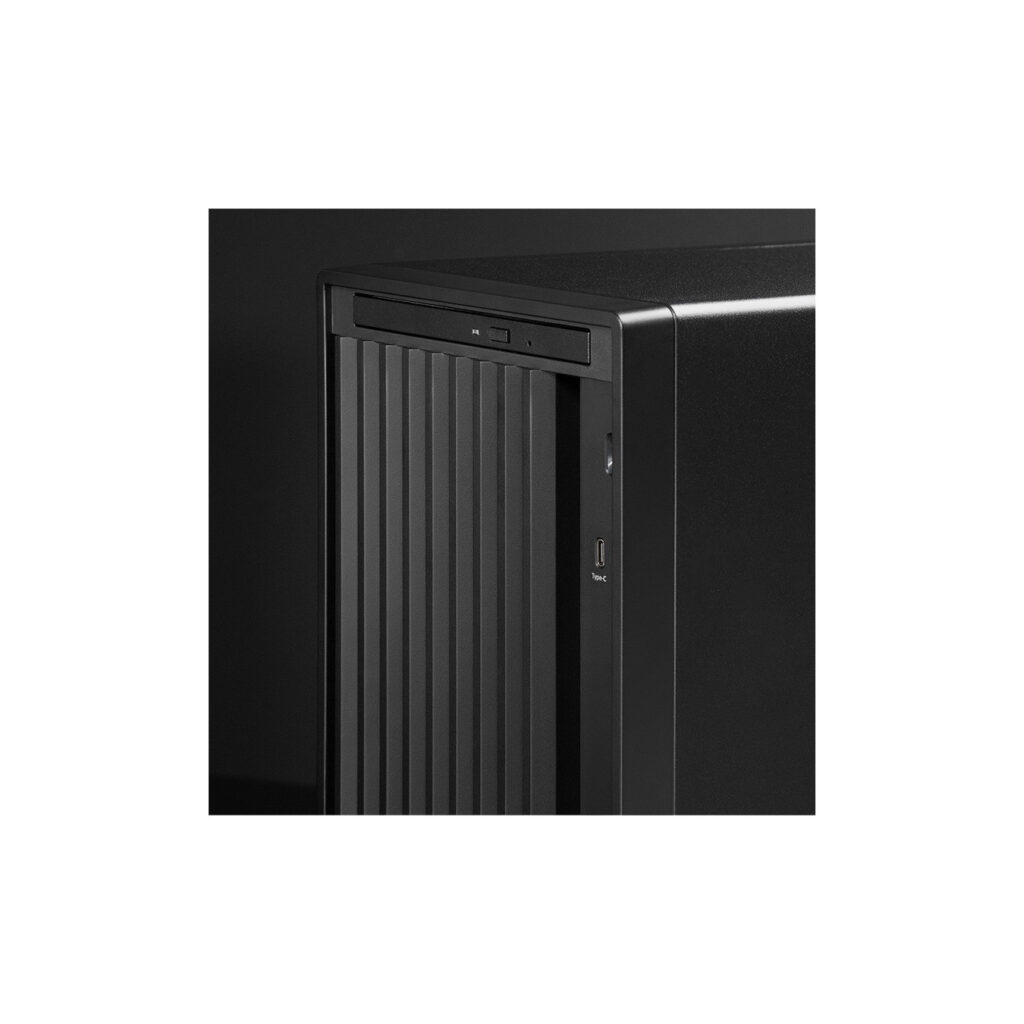

Features a user-friendly pivot mechanism for semi-toolless installation and a sleek front panel with USB 3.2 Gen1 Type-C, USB 3.2 Gen1 Type-A, 2x USB 2.0, audio out, and mic in. Includes 1x 90mm rear fan; supports 1x 80mm slim front fan. Drive bays: 1x 5.25″ ultra-slim ODD, 2x 3.5″ HDD or 2x 2.5″ SSD.
- Motherboard: microATX, Mini-ITX
- Cooling: 1x 90mm rear (incl.), 1x 80mm front max
- I/O: USB-C Gen1, USB-A Gen1, 2x USB 2.0, audio/mic
- Max GPU: 270mm | CPU Cooler: 143mm
- Expansion: 4 slots | Warranty: 2 years
| Form factor | Mini Tower |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | microATX, Mini-ITX |
| Number of 3.5 | 2 |
| Number of internal 3.5 | 2 |
| Number of external 5.25 | 1 |
| Number of expansion slots | 4 |
| Maximum CPU cooler height | 143 mm |
| Maximum graphics card length | 270 mm |
| Supported power supply form factors | ATX |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Number of front fans supported (max) | 1 |
| Front fans diameters supported | 80 mm |
| Rear fans installed | 1x 90 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 90 mm |
| Supported HDD sizes | 2.5 |
| Width | 170 mm |
| Depth | 329 mm |
| Height | 408 mm |
| Weight | 4.49 kg |
| Material thickness | 0.8 mm |
| Package weight | 5.16 kg |
| Warranty period | 2 year(s) |
| Front I/O USB 2.0 ports | 2 |
| Audio output | Yes |
| Mic input | Yes |
| Volume | <20 liters |
