ASUS PRIME A520M-K - AM4 micro-ATX Motherboard - DDR4, 64GB, 1x M.2, HDMI 2.1, Realtek Gigabit LAN
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.

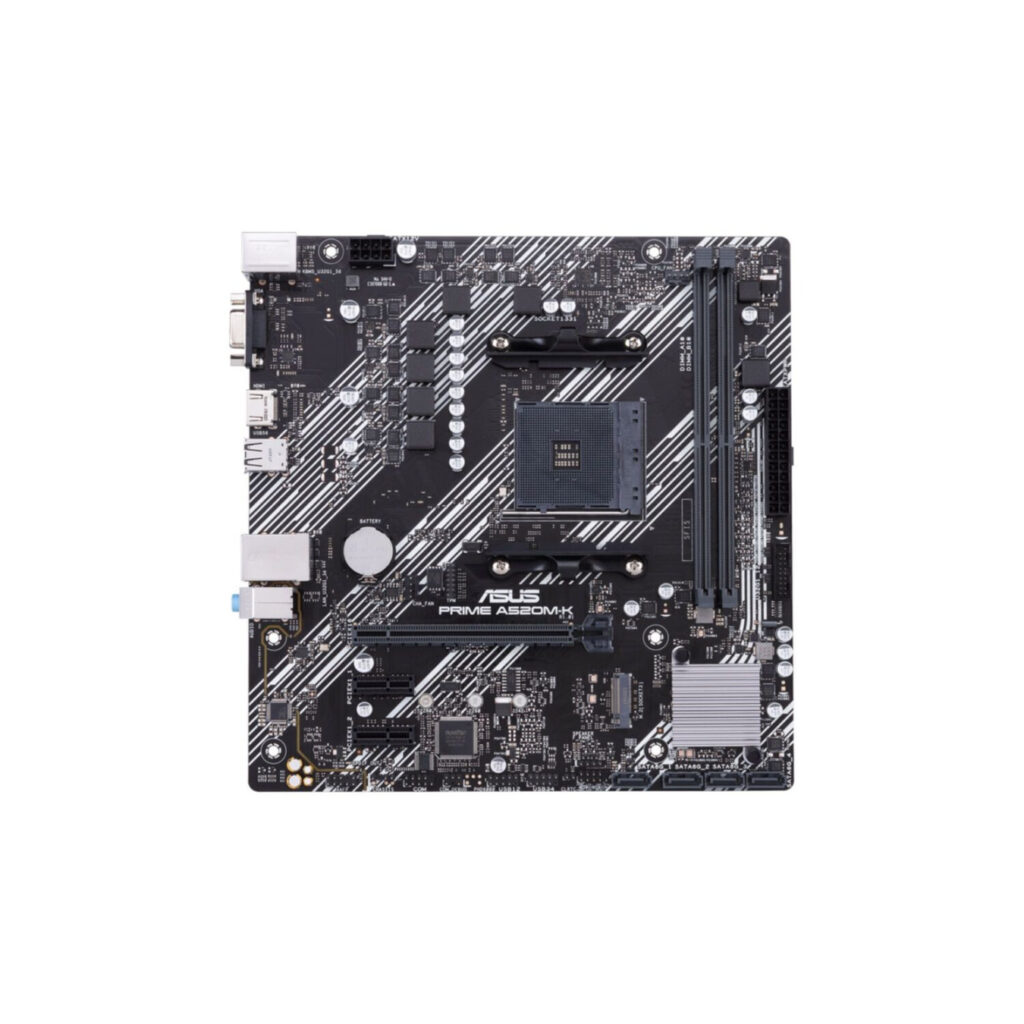

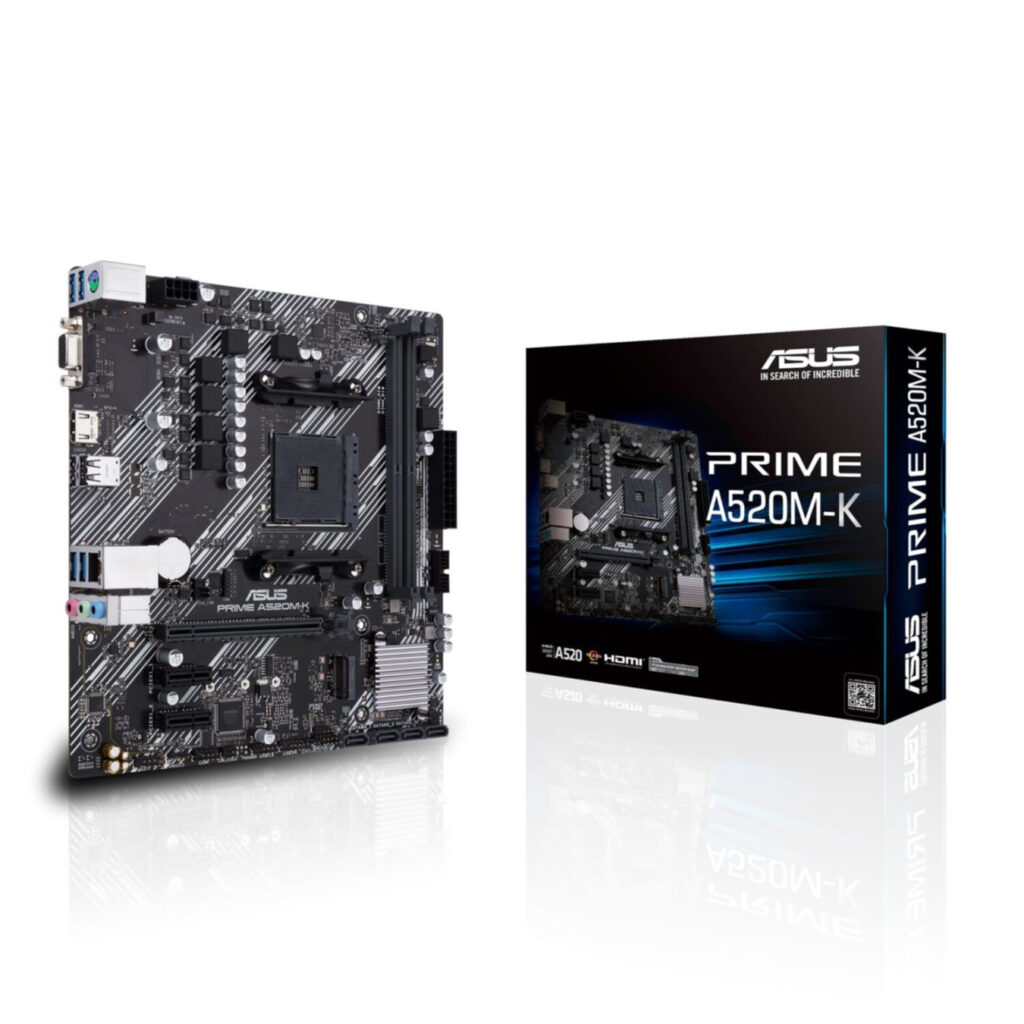

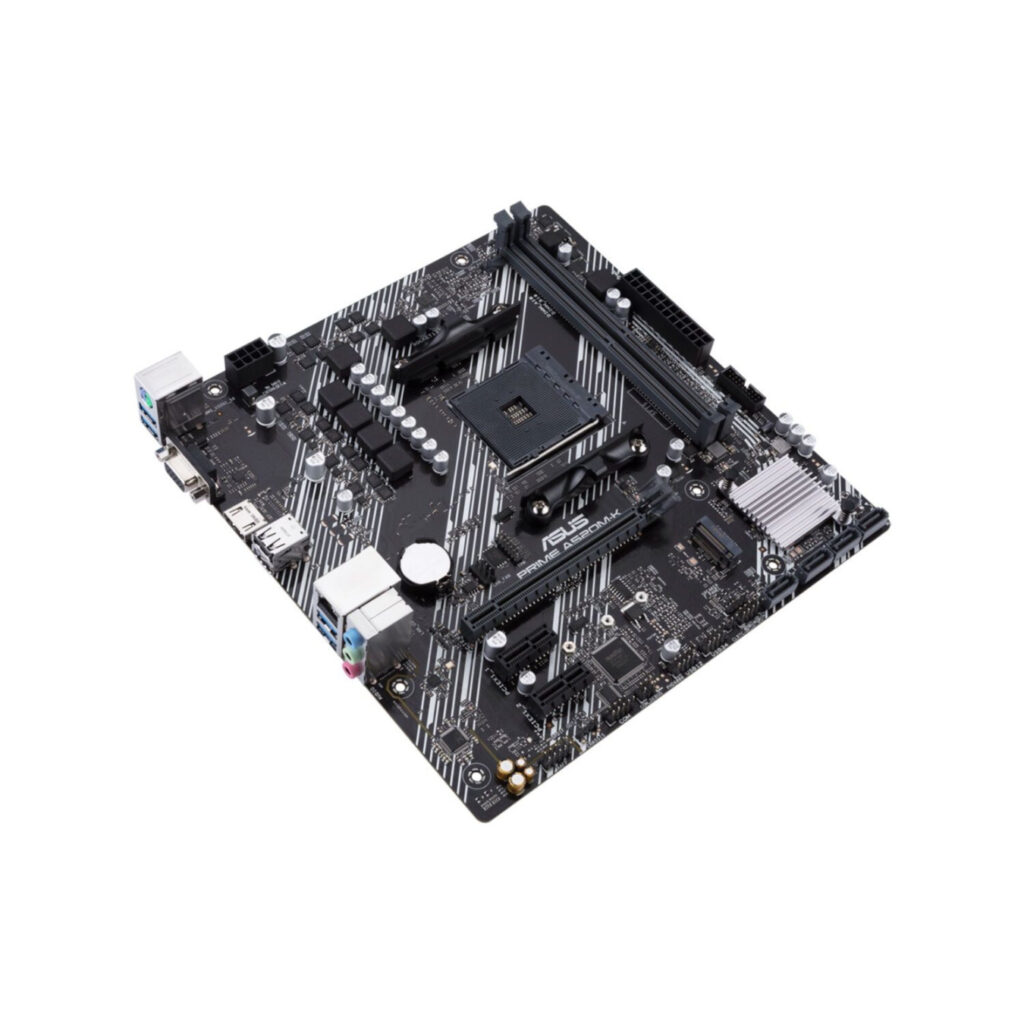

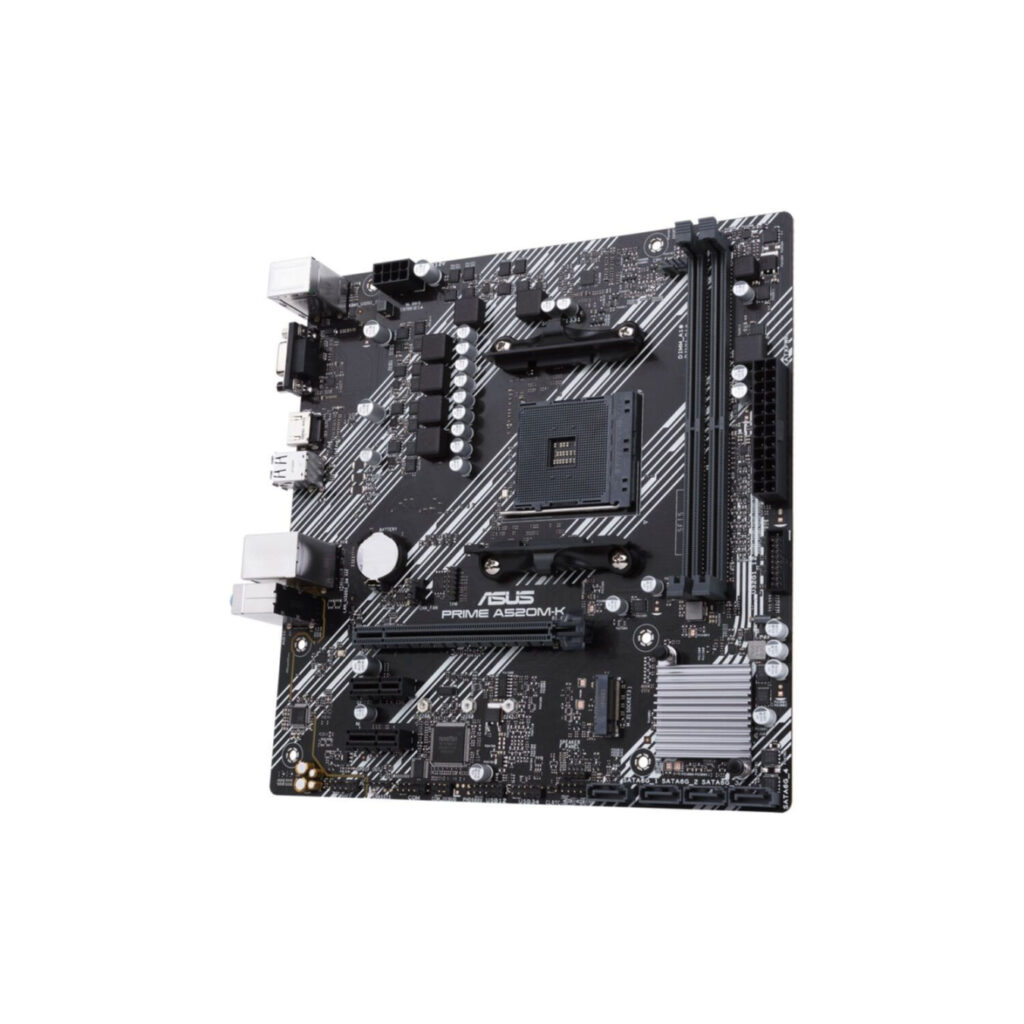

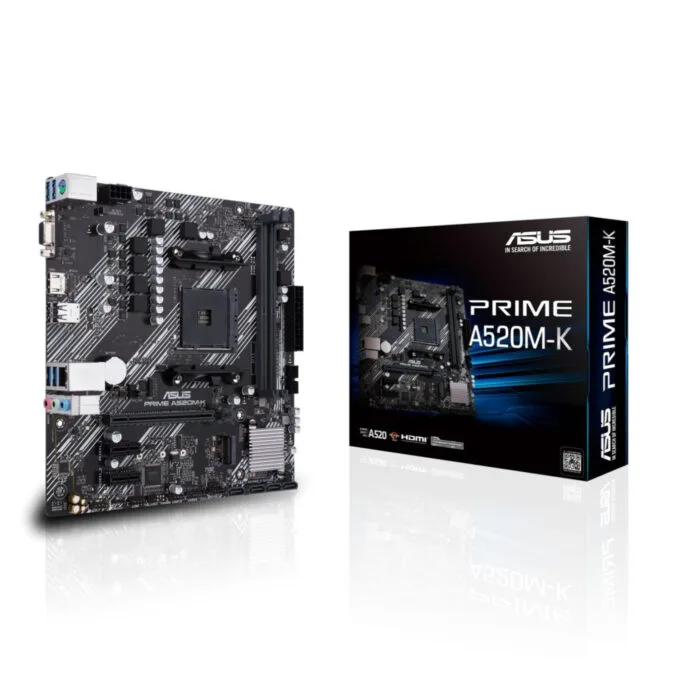

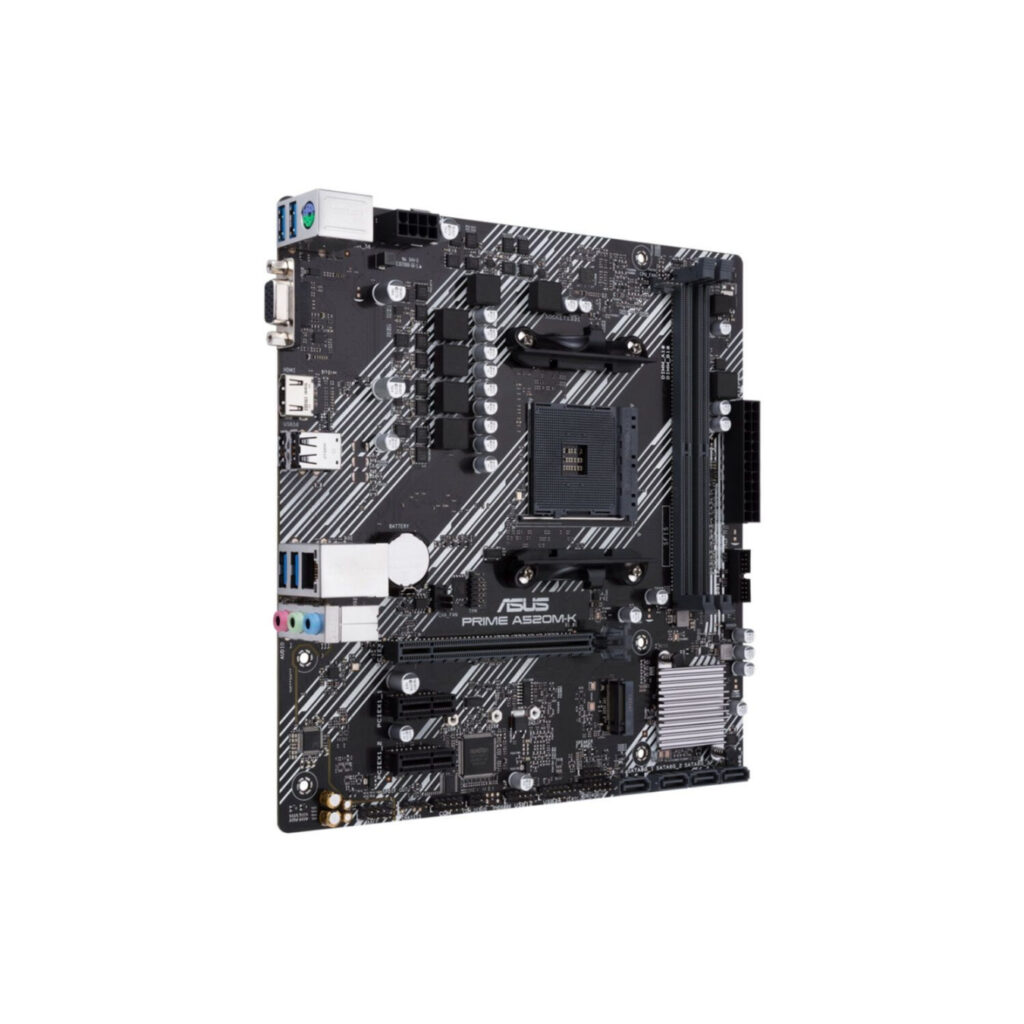

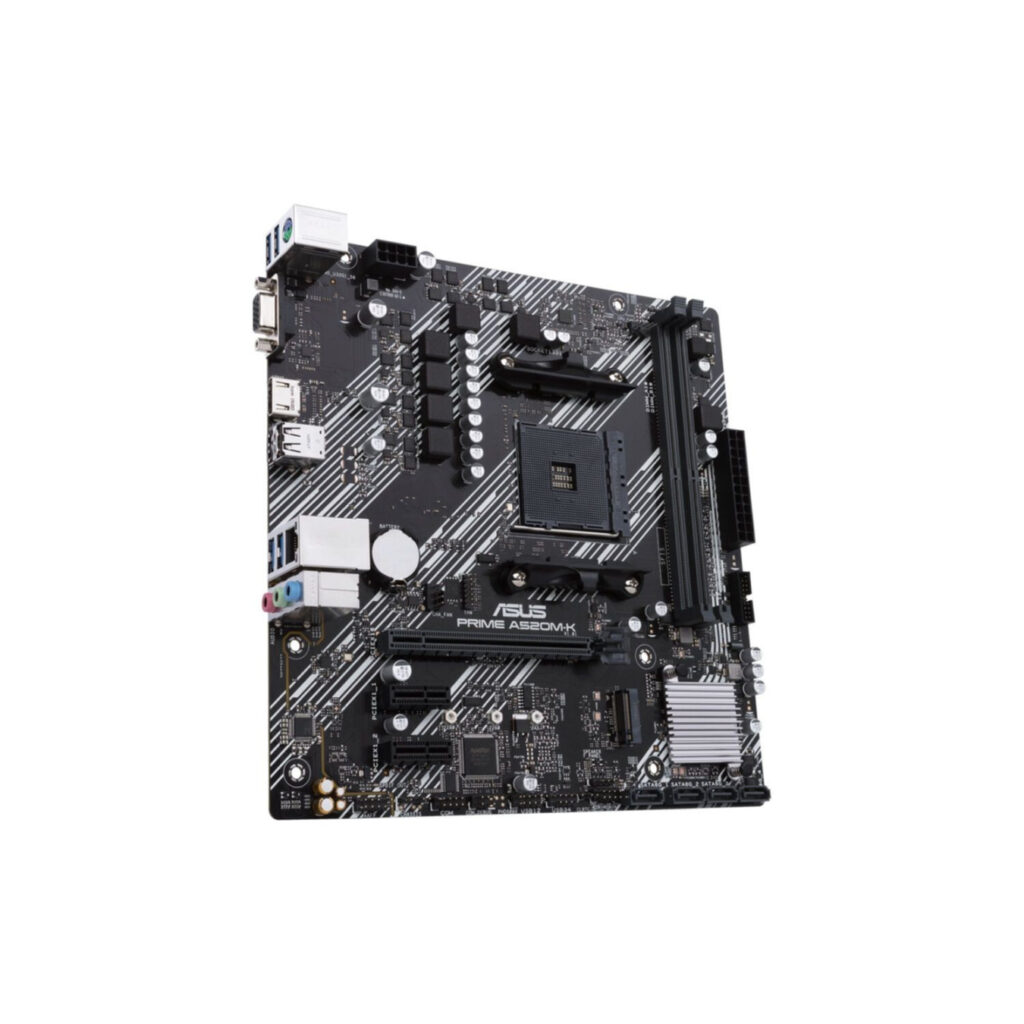

ASUS PRIME A520M-K micro-ATX motherboard (AM4) with AMD A520 chipset. Supports DDR4 up to 64GB (2 DIMM), 1x M.2, 4x SATA III, HDMI 2.1, Realtek audio & Gigabit LAN.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
ASUS PRIME A520M-K. Processor manufacturer: AMD. Processor socket: Socket AM4. Compatible processor series: AMD Ryzen™ 3. AMD Ryzen™ 5. AMD Ryzen™ 7. Supported memory types: DDR4-SDRAM. Maximum internal memory: 64 GB. Memory slots type: DIMM. Supported storage drive interfaces: M.2. SATA III. Supported storage drive types: HDD & SSD. RAID levels: 0. 1. 10. USB connector type: USB Type-A. Ethernet interface type: Gigabit Ethernet. LAN controller: Realtek RTL8111H
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen™ 3. AMD Ryzen™ 5. AMD Ryzen™ 7 |
| Supported processor sockets | Socket AM4 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 2133.2400.2666.2800.2933.3000.3200.3333.3400.3466.3600.3733.3866.4000.4133.4200.4266.4333.4400.4466.4600.4866 MHz |
| Maximum internal memory | 64 GB |
| Feature | Clear CMOS jumper |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2. SATA III |
| Number of storage drives supported | 5 |
| RAID levels | 0. 1. 10 |
| Parallel processing technology support | Not supported |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of EATX power connectors | 2 |
| Number of chassis fan connectors | 1 |
| Number of COM connectors | 1 |

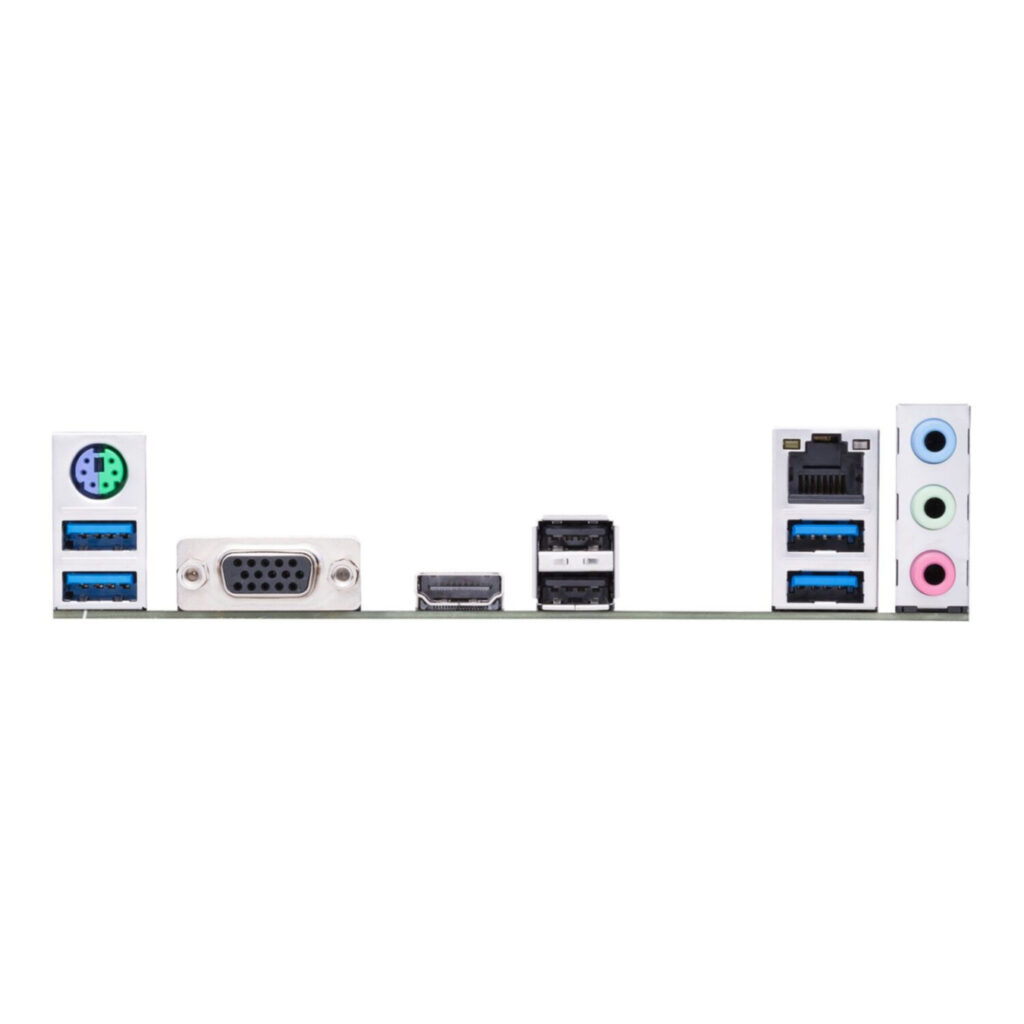

| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 3 |
| USB connector type | USB Type-A |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Motherboard chipset | AMD A520 |
| Audio chip | Realtek ALC887 / Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 10 x64. Windows 11 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Harmonized System (HS) code | 84733020 |
| Width | 226 mm |
| Depth | 221 mm |
| Cables included | SATA |
