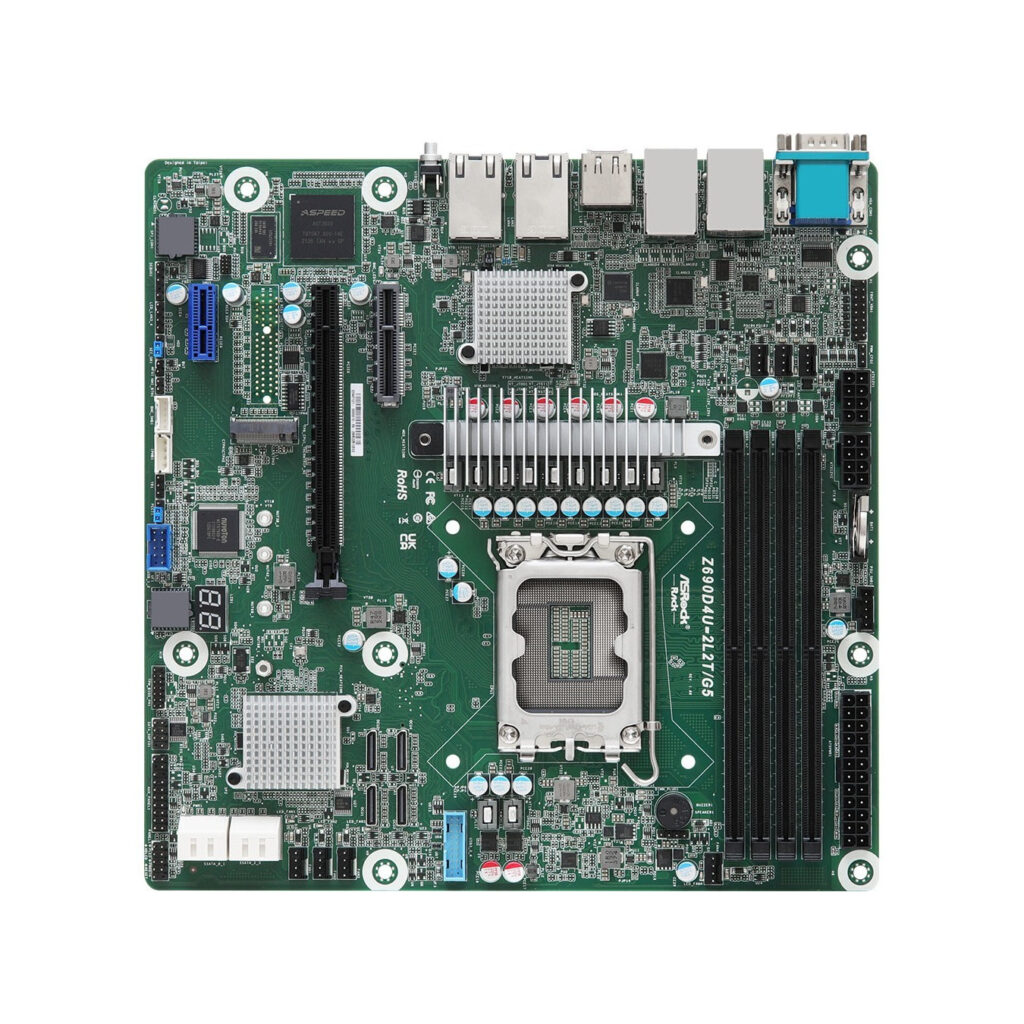

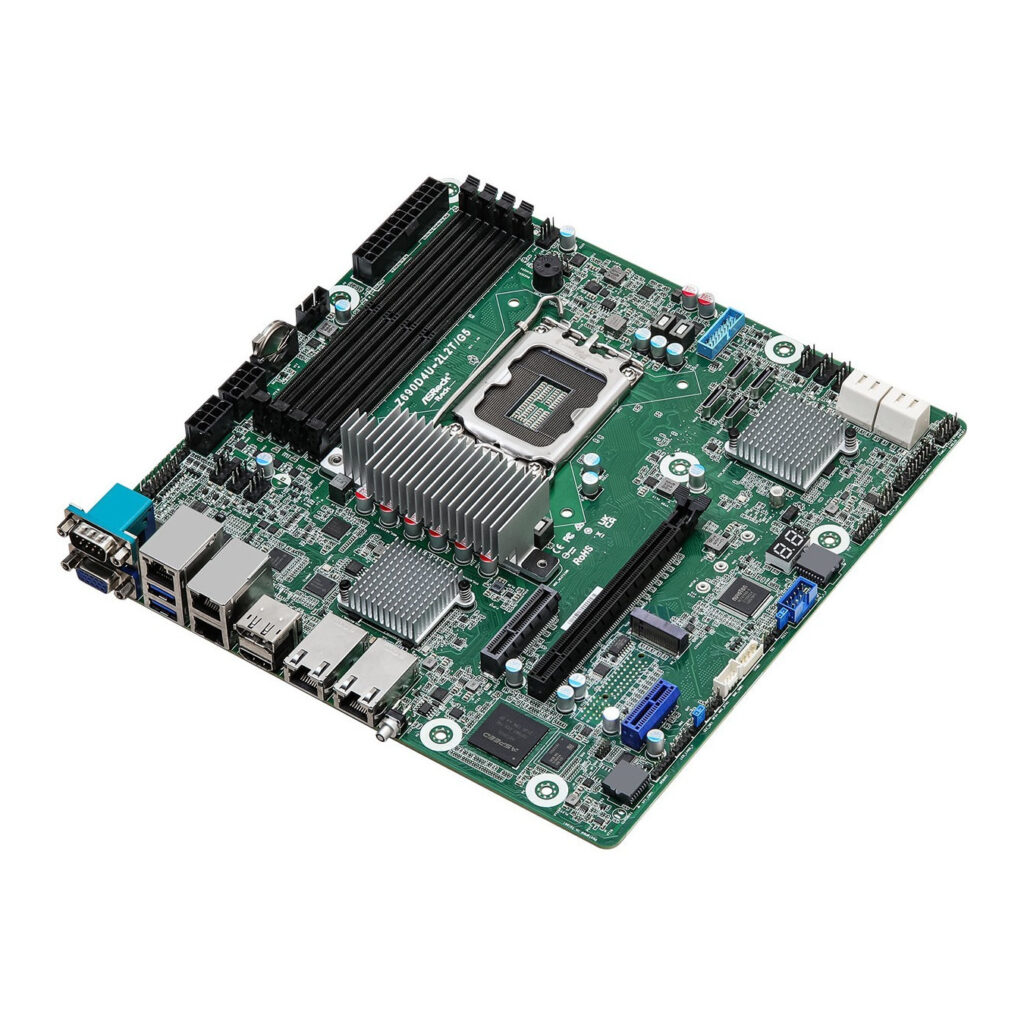

ASRock Z690D4U-2L2T/G5 - Micro-ATX LGA1700 Server Motherboard, Z690, DDR5, 4x DIMM, 8x SATA, Quad Intel LAN
Login
Micro-ATX Z690 server board LGA1700 for Intel Celeron/Pentium. DDR5 (4 DIMM), 1x M.2, 8x SATA, 4x Intel LAN (I210/X710), AST2600 BMC (IPMI-ready).
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Asrock Z690D4U-2L2T/G5. Processor manufacturer: Intel. Processor socket: LGA 1700. Compatible processor series: Intel® Celeron®. Intel® Pentium®. Supported memory types: DDR5-SDRAM. Memory slots type: DIMM. ECC сompatibility: Non-ECC. Supported storage drive interfaces: M.2. SATA III. Supported storage drive types: HDD & SSD. Graphics card family: ASPEED. Graphics card: AST2600. LAN controller: Intel I210. Intel® X710
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®. Intel® Pentium® |
| Maximum number of SMP processors | 1 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| ECC сompatibility | Non-ECC |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2. SATA III |
| Graphics card family | ASPEED |
| Graphics card | AST2600 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 8 |
| Feature | Ethernet LAN |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |

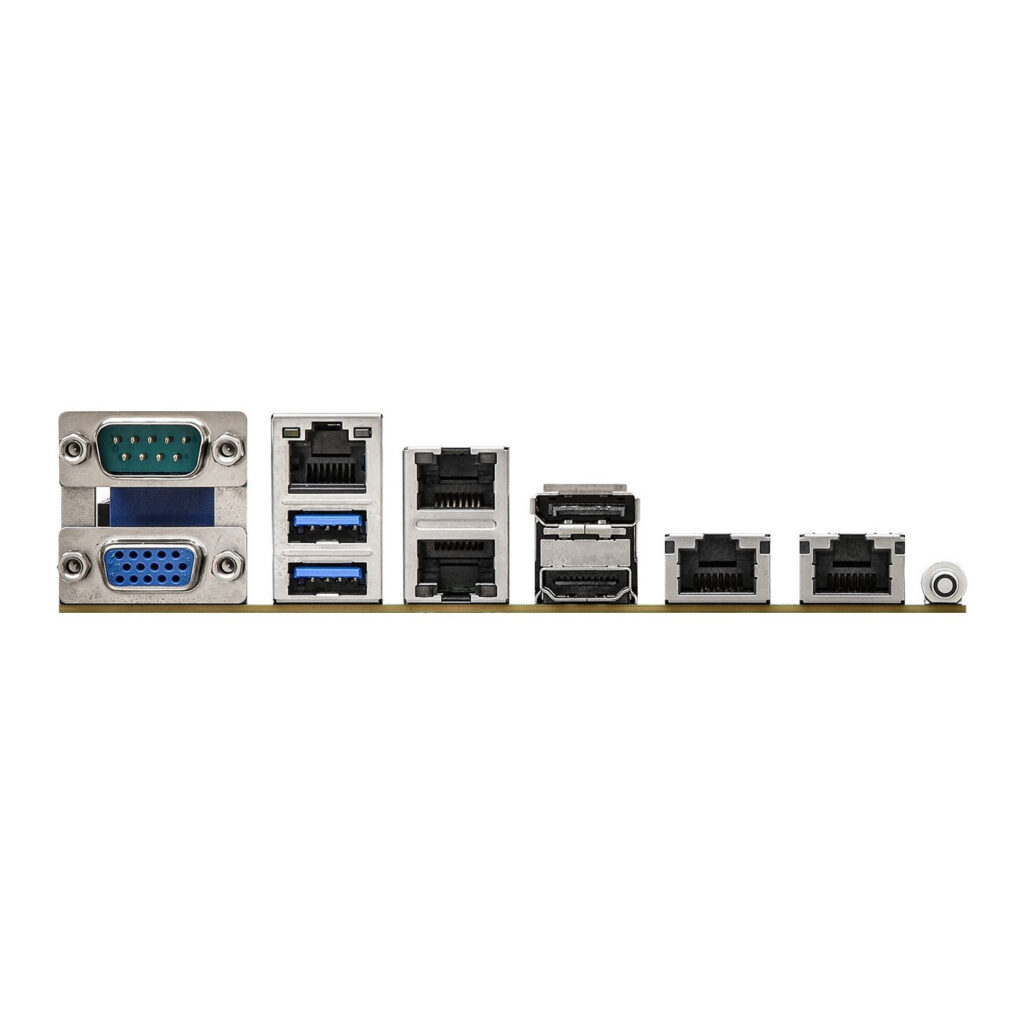

| Ethernet LAN (RJ-45) ports | 4 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Serial ports quantity | 1 |
| LAN controller | Intel I210. Intel® X710 |
| Motherboard chipset | Intel Z690 |
| PC health monitoring | Fan. Temperature |
| Component for | Server |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 x64. Windows 11 x64 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS type | AMI |
| ACPI version | 6.4 |
| System Management BIOS (SMBIOS) version | 2.8 |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Width | 244 mm |
| Depth | 244 mm |
