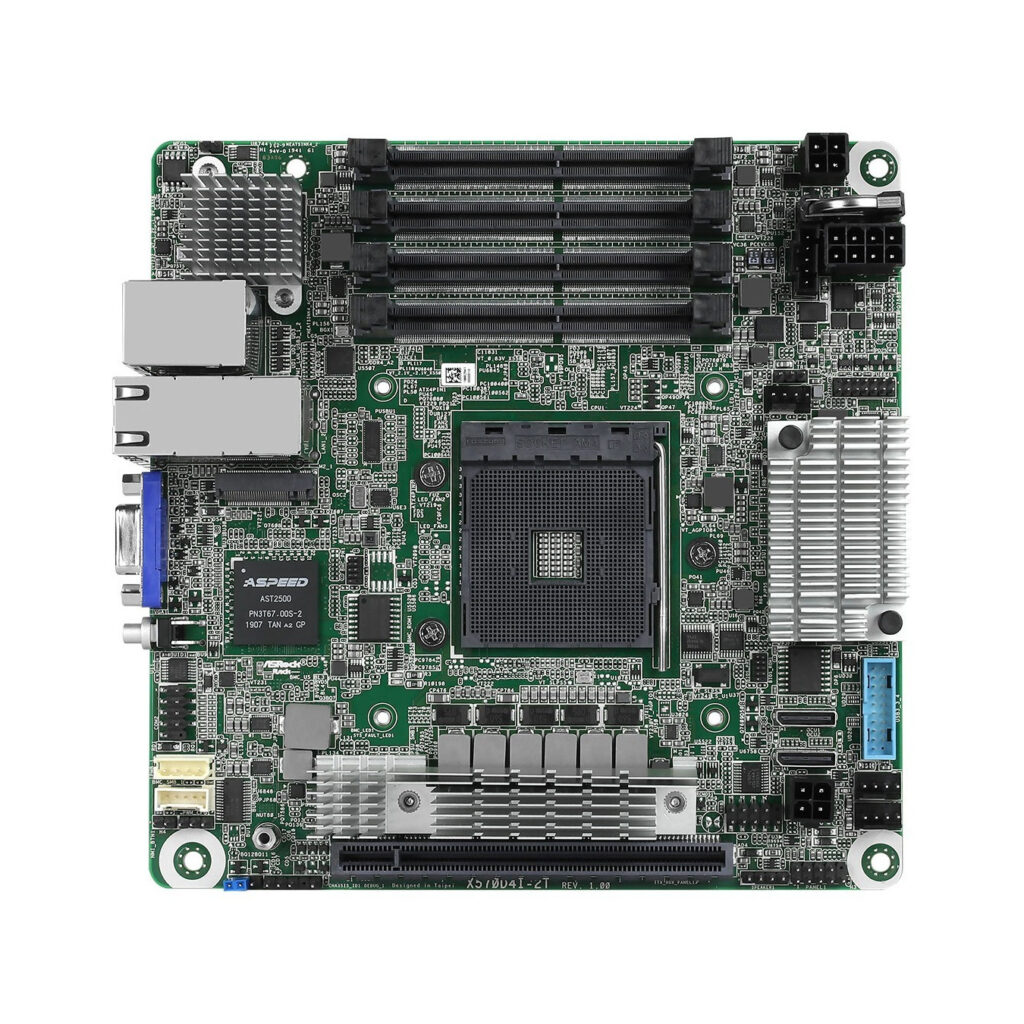

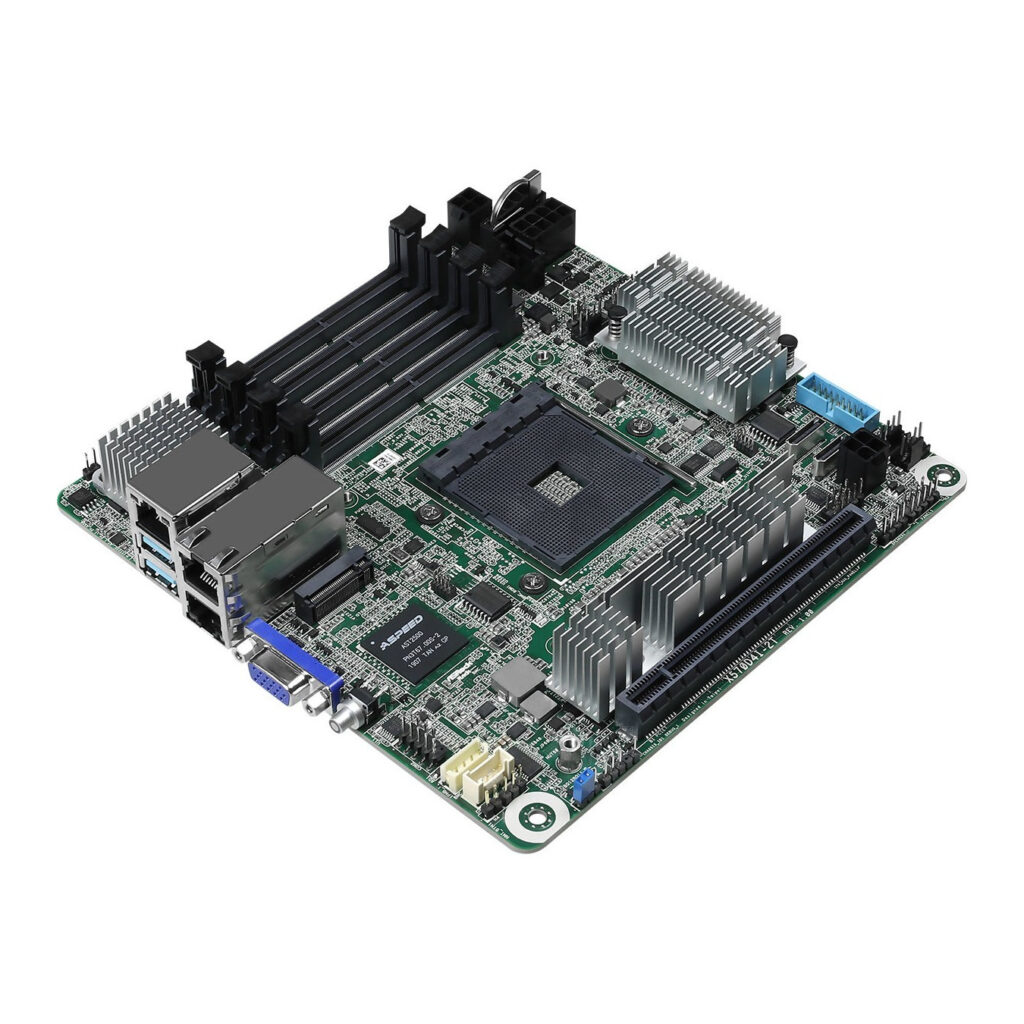

ASRock X570D4I-2T - Mini-ITX AM4 Motherboard, X570 Chipset, 4x SO-DIMM DDR4 (64GB), Dual 10Gb LAN, PCIe 4.0
Login
Mini-ITX X570 AM4 board for AMD Ryzen 3000; 4x SO-DIMM DDR4 (up to 64GB), PCIe 4.0 x16, 1x M.2, 8x SATA III, dual 10Gb LAN, USB 3.2 Gen2 ports.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Asrock X570D4I-2T. Processor manufacturer: AMD. Processor socket: Socket AM4. Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM. Maximum internal memory: 64 GB. Memory slots type: SO-DIMM. Supported storage drive interfaces: Serial ATA III. SATA III. Graphics card family: ASPEED. Graphics card: AST2500. On-board graphics card model: Aspeed AST2500. Ethernet interface type: 10 Gigabit Ethernet. LAN controller: Intel® X550-AT2. Realtek RTL8211E
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Maximum number of SMP processors | 1 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | SO-DIMM |
| Memory channels | Dual-channel |
| Memory voltage | 1.2 V |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2933 MHz |
| Maximum internal memory | 64 GB |
| Supported storage drive interfaces | Serial ATA III. SATA III |
| Parallel processing technology support | Not supported |
| Graphics card family | ASPEED |
| Graphics card | AST2500 |
| On-board graphics card model | Aspeed AST2500 |
| On-board graphics card memory | 16 MB |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 8 |
| Number of chassis fan connectors | 3 |
| Number of COM connectors | 1 |
| Feature | Wake-on-LAN ready |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet interface type | 10 Gigabit Ethernet |
| LAN controller | Intel® X550-AT2. Realtek RTL8211E |
| Motherboard chipset | AMD X570 |
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | AMD |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 32 Mbit |
| ACPI version | 2.0 |
| System Management BIOS (SMBIOS) version | 2.8 |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Harmonized System (HS) code | 84733020 |
| Width | 170.2 mm |
| Depth | 170.2 mm |
| Height | 285 mm |
| Weight | 760 g |
| Number of DIMM slots | 4 |
| Number of processors supported | 1 |
