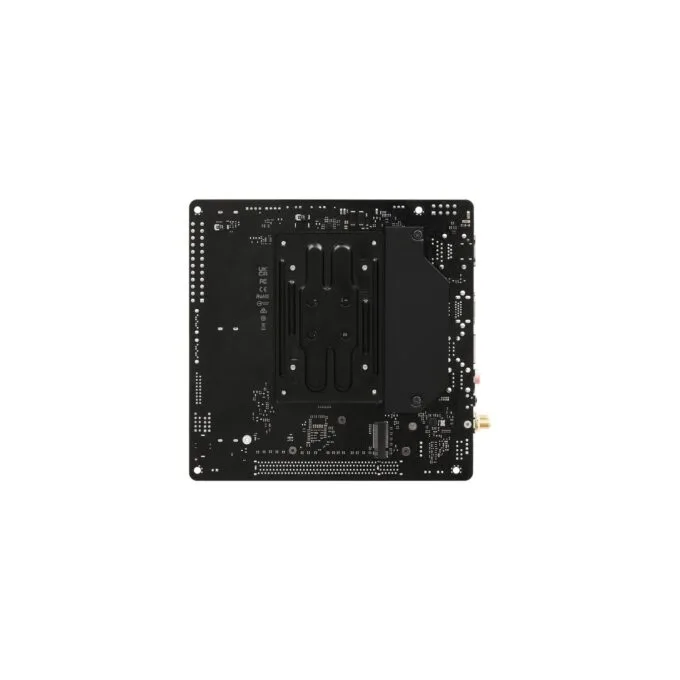

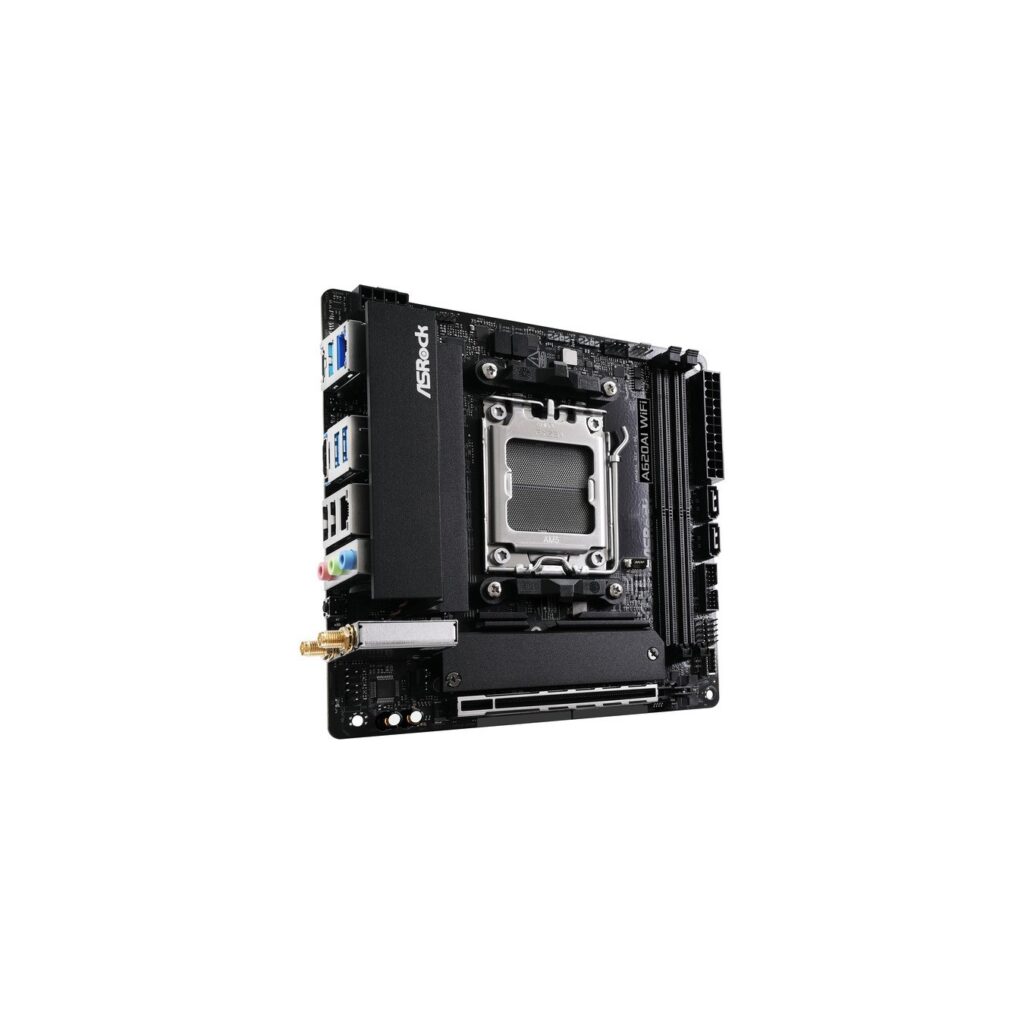

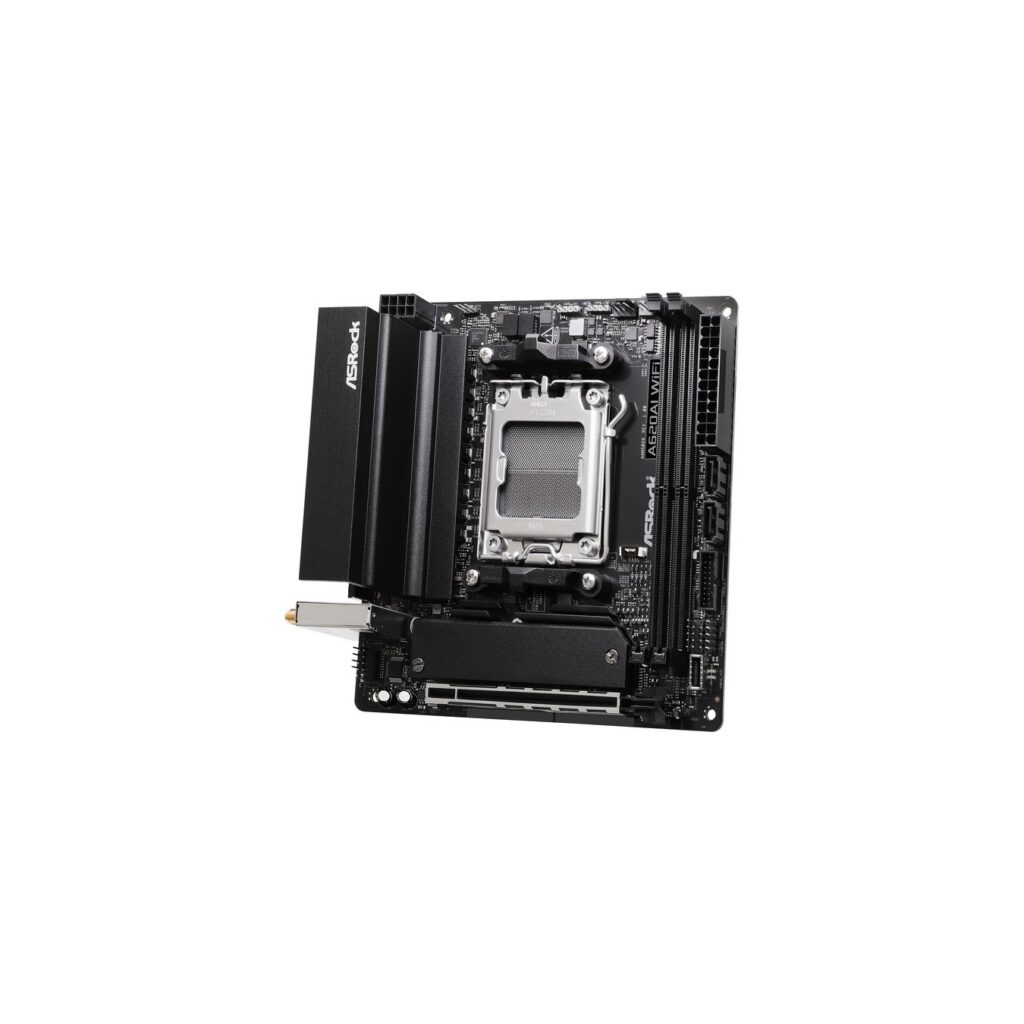

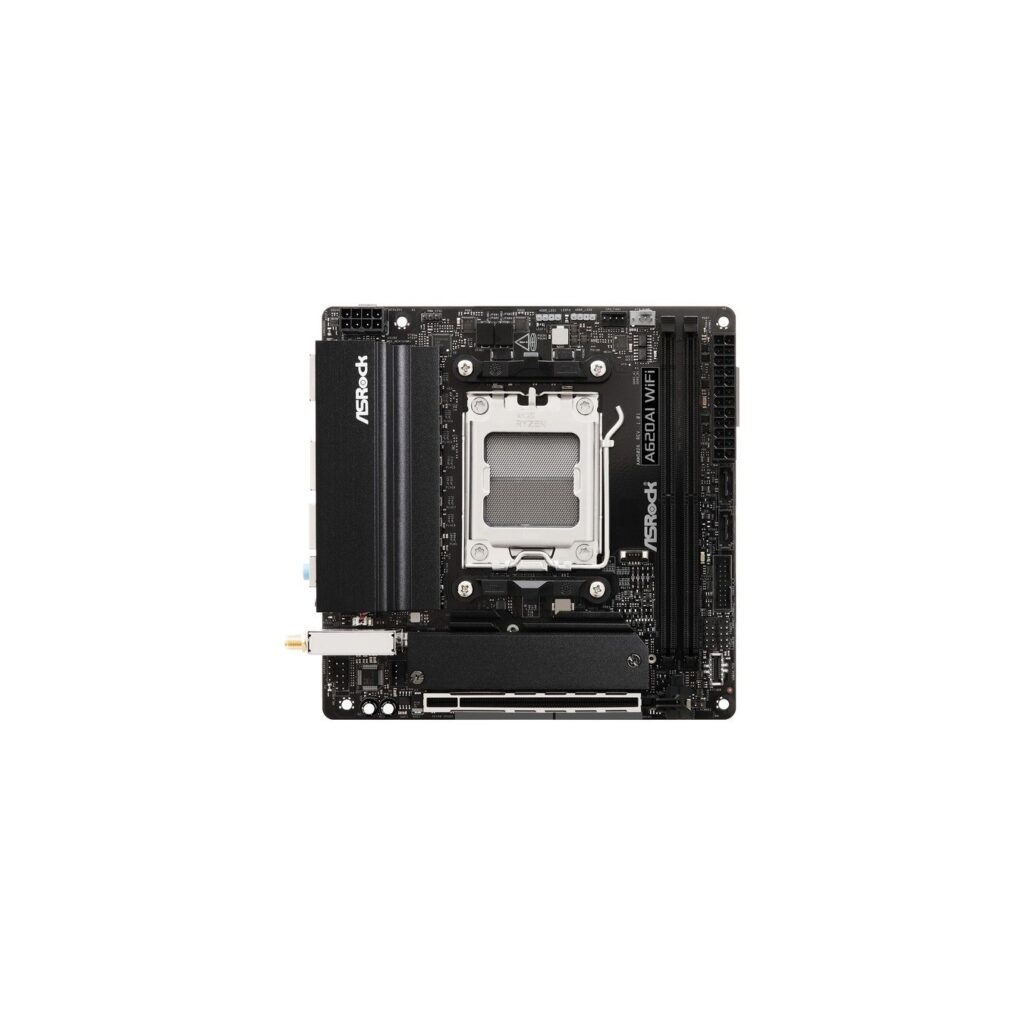

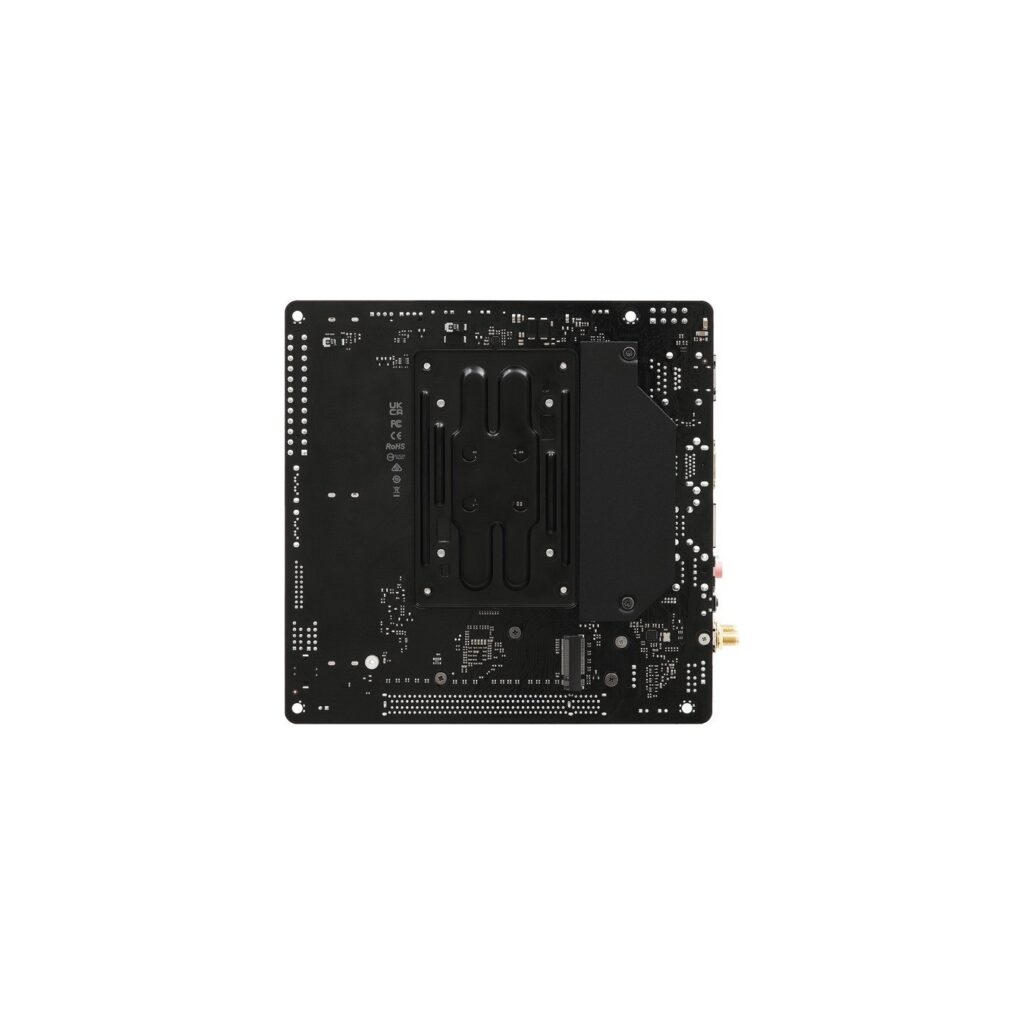

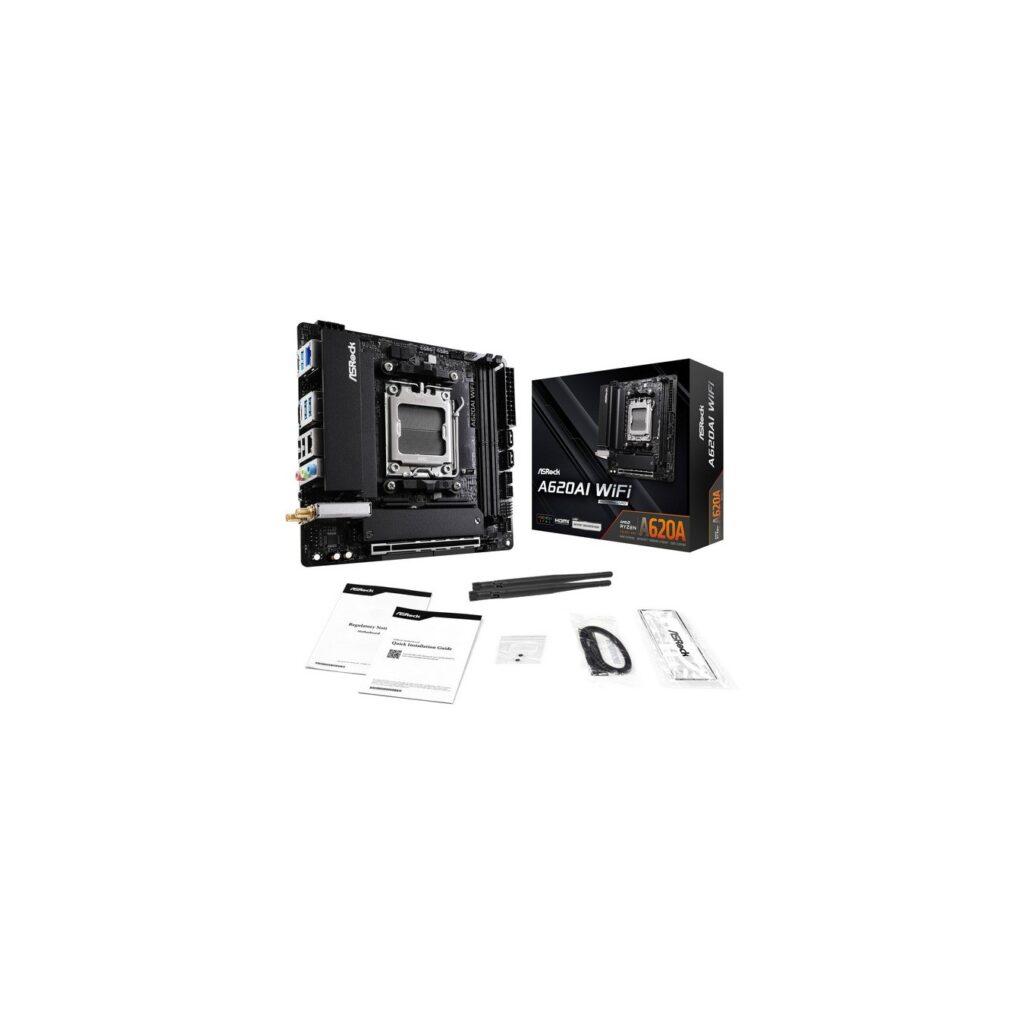

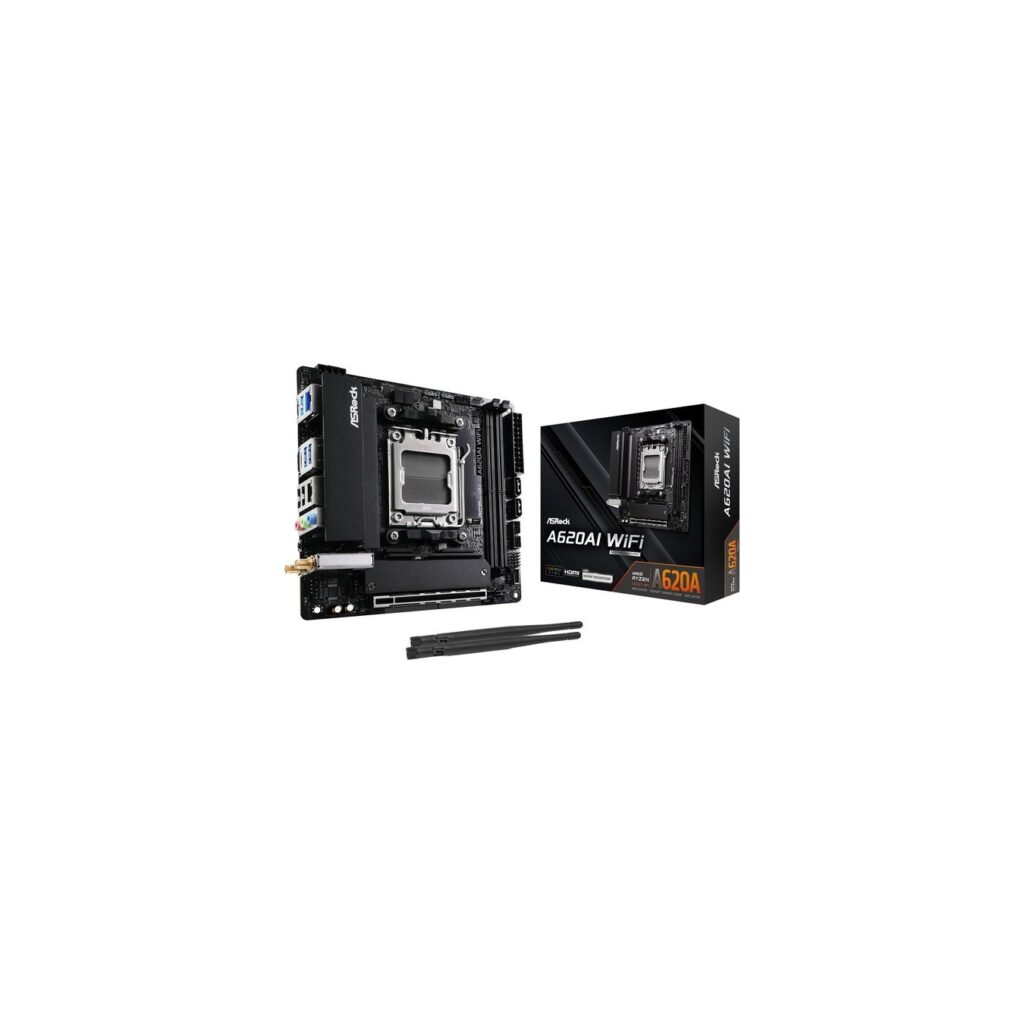

ASRock A620AI WIFI motherboard for AMD AM5 with DDR5 memory, 2 slots, up to 128 GB, Mini-ITX form factor.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

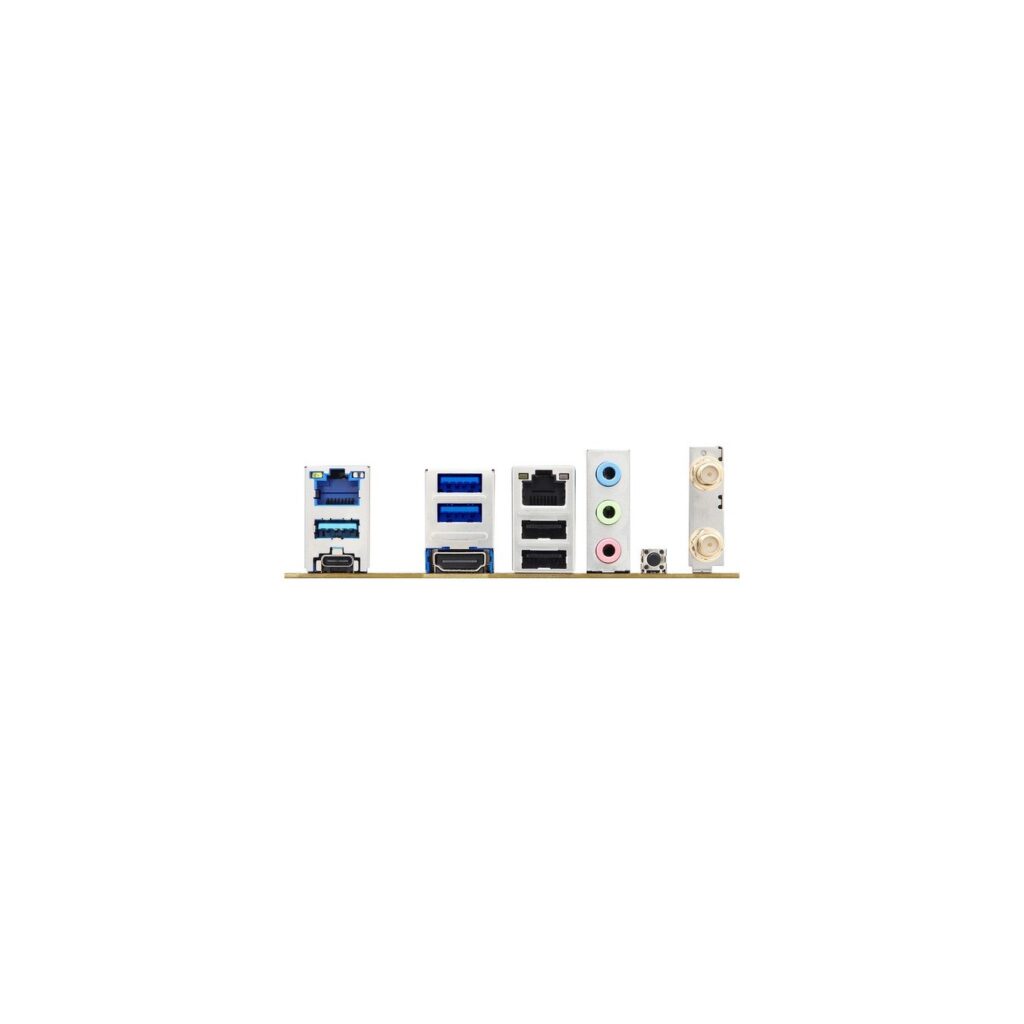

The ASRock A620AI WIFI is based on the AMD A620 chipset and supports AMD processors for socket AM5. It has two DDR5 slots for up to 128 GB of memory. The ASRock A620AI WIFI’s additional features include a PCIe 4.0 x16 slot. The ASRock A620AI WIFI also has 8-channel sound, a 2.5 Gigabit LAN interface, two SATA3 ports, two M.2 ports, Wi-Fi 6E, Bluetooth 5.2 and a range of USB interfaces.
| Typ | Mainboard |
| EAN | 4710483942747 |
| Manufacturer no. | 90-MXBT50-A0UAYZ |
| base | AM5 |
| Max. supported CPUs | 1 |
| Operating system support | Windows 10 ready, Windows 11 ready |
| Processor - Supported Models | Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 7xxxX3D (Raphael), Ryzen 5 8xxxF (Phoenix), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxxX (Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 7 8xxxF (Phoenix), Ryzen 7 9xxxX (Granite Ridge), Ryzen 7 9xxxX3D (Granite Ridge), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael), Ryzen 9 9xxxX (Granite Ridge), Ryzen 9 9xxxX3D (Granite Ridge) |
| Chipset | AMD A620 |
| Slots - PCIe x16 | 1x (of which: 1x PCIe x16) |
| BIOS | 256Mb AMI UEFI |
| Form factor | Mini-ITX |
| use | PC |
| Power supply | ATX12V (24-Pin + 8-Pin) |
| Memory - maximum | 128 GB |
| Ports (external) - USB-C 3.2 Gen 2 (10 Gbit/s) | 1 |
| Connectors (internal) - SATA | 2 |
| Ports (optional) - USB 3.2 Gen 1 (5Gbps) | 2 |
| RGB Standard | RGB LED |
| SATA Controller | AMD A620 |
| directly usable RAID levels | 0, 1, 10 |
| USB-Controller | AMD A620 |
| Onboard Graphics | The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. |
| Sound | Realtek ALC897 |
| LAN | Dragon RTL8125BG |
| Features | In order to support the latest processor cores, a BIOS update may be required. |
| Dimensions | Width: 170mm x Height: 170mm |
