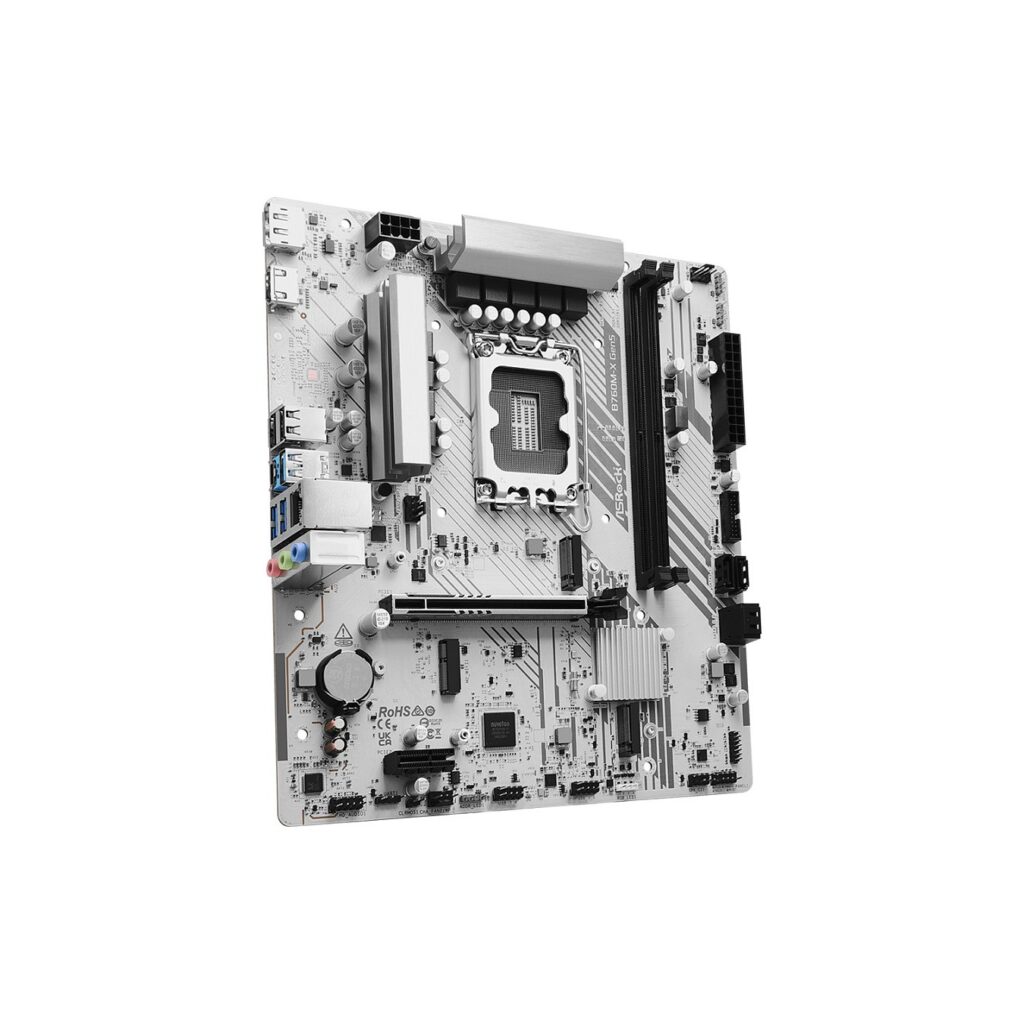

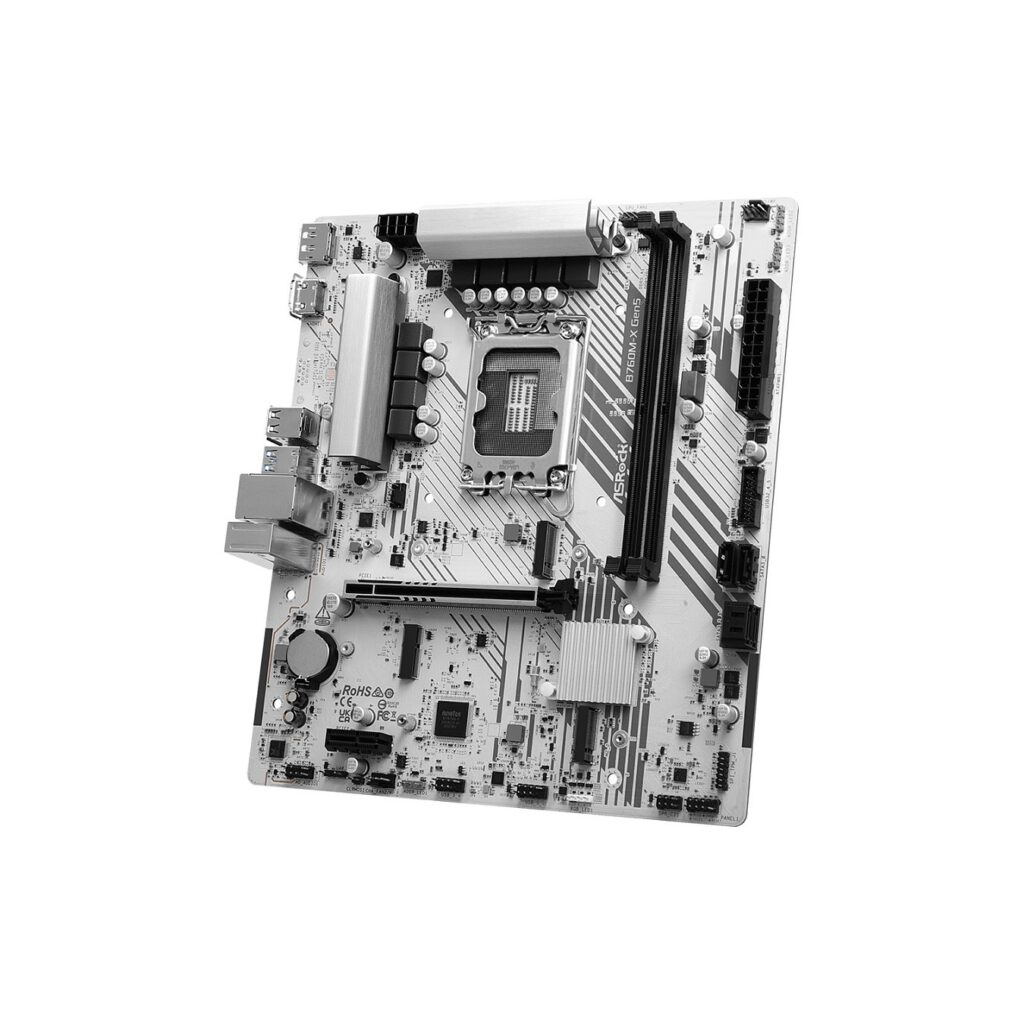

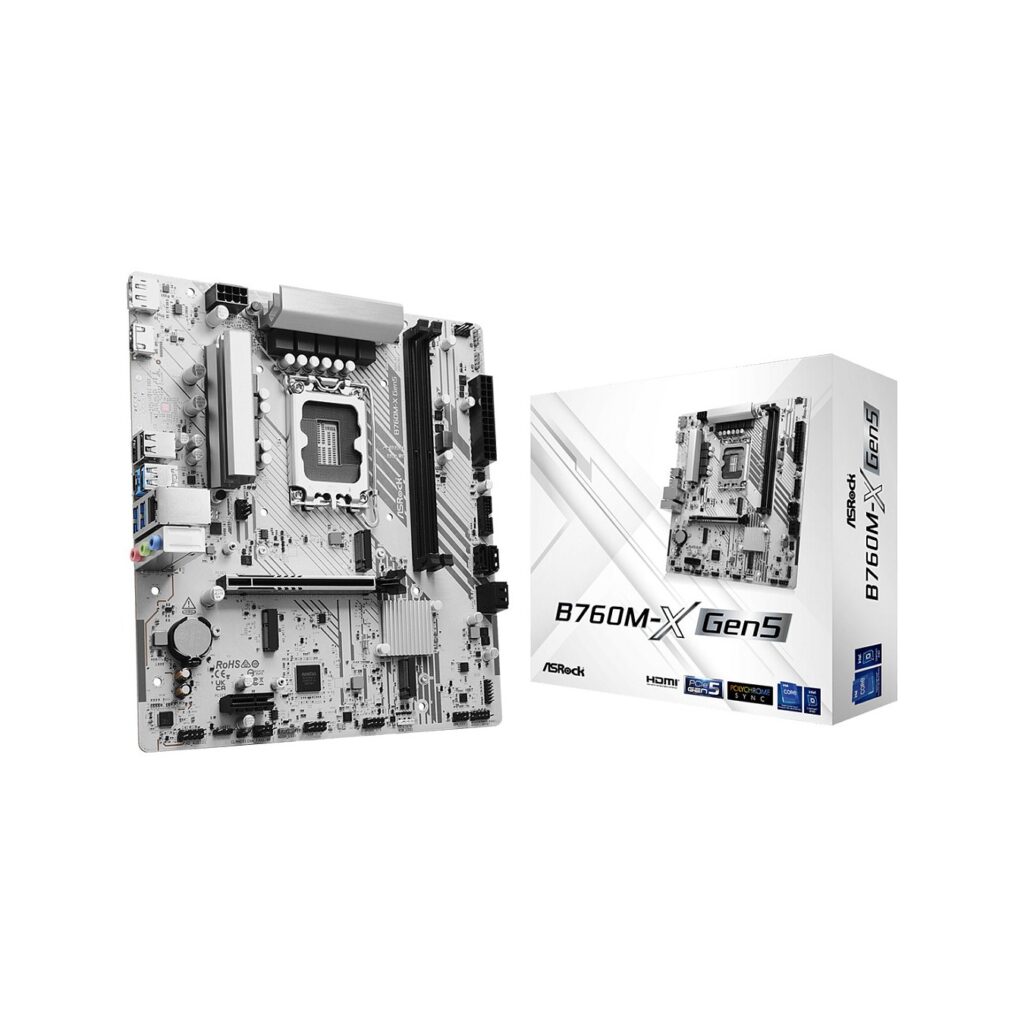

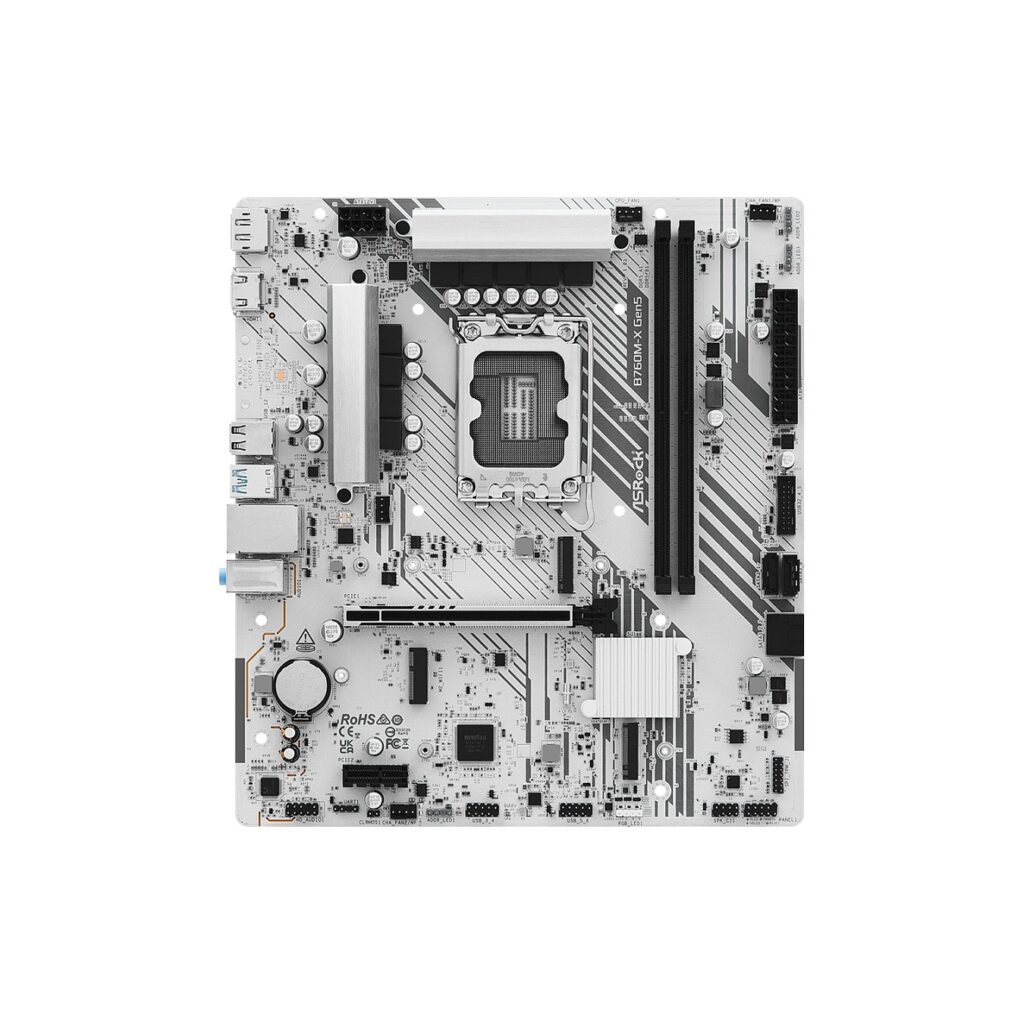

ASROCK B760M-X GEN5 Intel S1700 retail
Asrock B760M-X Gen5, Intel, LGA 1700, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i3 14th Gen,…, DDR5-SDRAM, 128 GB, SO-DIMM
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Asrock B760M-X Gen5. Prozessorhersteller: Intel, Prozessorsockel: LGA 1700, Kompatible Prozessoren: Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i3 14th Gen,…. Unterstützte Arbeitsspeicher: DDR5-SDRAM, RAM-Speicher maximal: 128 GB, Arbeitsspeicher Typ: SO-DIMM. Unterstützte Speicherlaufwerk-Schnittstellen: SATA III, M.2, RAID Level: 0, 1, 5, 10. Ethernet Schnittstellen Typ: 2.5 Gigabit Ethernet, LAN-Controller: Dragon RTL8125BG. Komponente für: PC, Motherboardformfaktor: micro ATX, Motherboard Chipsatz Familie: Intel
| Prozessorhersteller | Intel |
| Prozessorsockel | LGA 1700 |
| Kompatible Prozessoren | Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i3 14th Gen, Intel Core i3 13th Gen, Intel Core i3 12th Gen |
| Unterstützte Arbeitsspeicher | DDR5-SDRAM |
| Anzahl der Speichersteckplätze | 2 |
| Arbeitsspeicher Typ | SO-DIMM |
| Speicherkanäle | Zweikanalig |
| ECC-Kompatibilität | Nicht-ECC |
| Unterstützte Arbeitsspeichergeschwindigkeit | 7200 MHz |
| RAM-Speicher maximal | 128 GB |
| Unbuffered Speicher | Ja |
| Unterstützte Speicherlaufwerk-Schnittstellen | SATA III, M.2 |
| RAID-Unterstützung | Ja |
| RAID Level | 0, 1, 5, 10 |
| Anzahl USB 2.0 Schnittstellen | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 1 |
| SATA III Anschlüsse | 4 |
| Front Panel Audiostecker | Ja |
| ATX Stromstecker (24-pol.) | Ja |
| CPU Ventilatorstecker | Ja |
| EPS Stromstecker (8-pin) | Ja |
| TPM-Anschluss | Ja |
| RGB-LED-Stiftleiste | Ja |
| Anzahl USB 2.0 Anschlüsse | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ C | 1 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Anzahl HDMI-Anschlüsse | 1 |
| Anzahl DisplayPort Anschlüsse | 1 |
| DisplayPorts-Version | 1.4 |
| Ethernet/LAN | Ja |
| Ethernet Schnittstellen Typ | 2.5 Gigabit Ethernet |
| LAN-Controller | Dragon RTL8125BG |
| WLAN | Nein |
| Motherboard Chipsatz | Intel B760 |
| Audio-Chip | Realtek ALC897 |
| Audio Kanäle | 7.1 Kanäle |
| Komponente für | PC |
| Motherboardformfaktor | micro ATX |
| Motherboard Chipsatz Familie | Intel |
| Unterstützt Windows-Betriebssysteme | Windows 10 x64, Windows 11 x64 |
| PCI-Express x1 (Gen 3.x)-Anschlüsse | 1 |
| PCI Express x16-Steckplätze (Gen 5.x) | 1 |
| Anzahl der M.2 (M)-Steckplätze | 1 |
| BIOS-Typ | UEFI AMI |
| Breite | 244 mm |
| Tiefe | 221 mm |
| Mitgelieferte Kabel | SATA |
