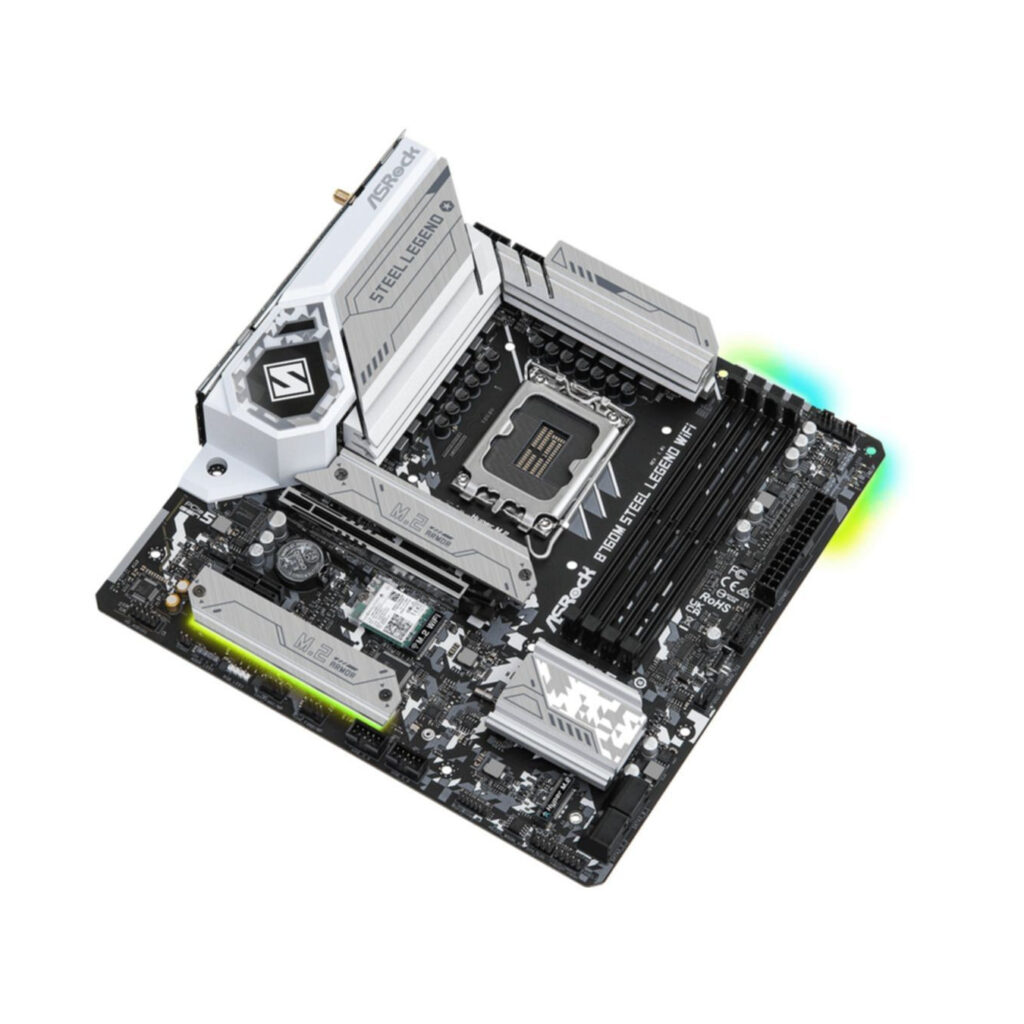

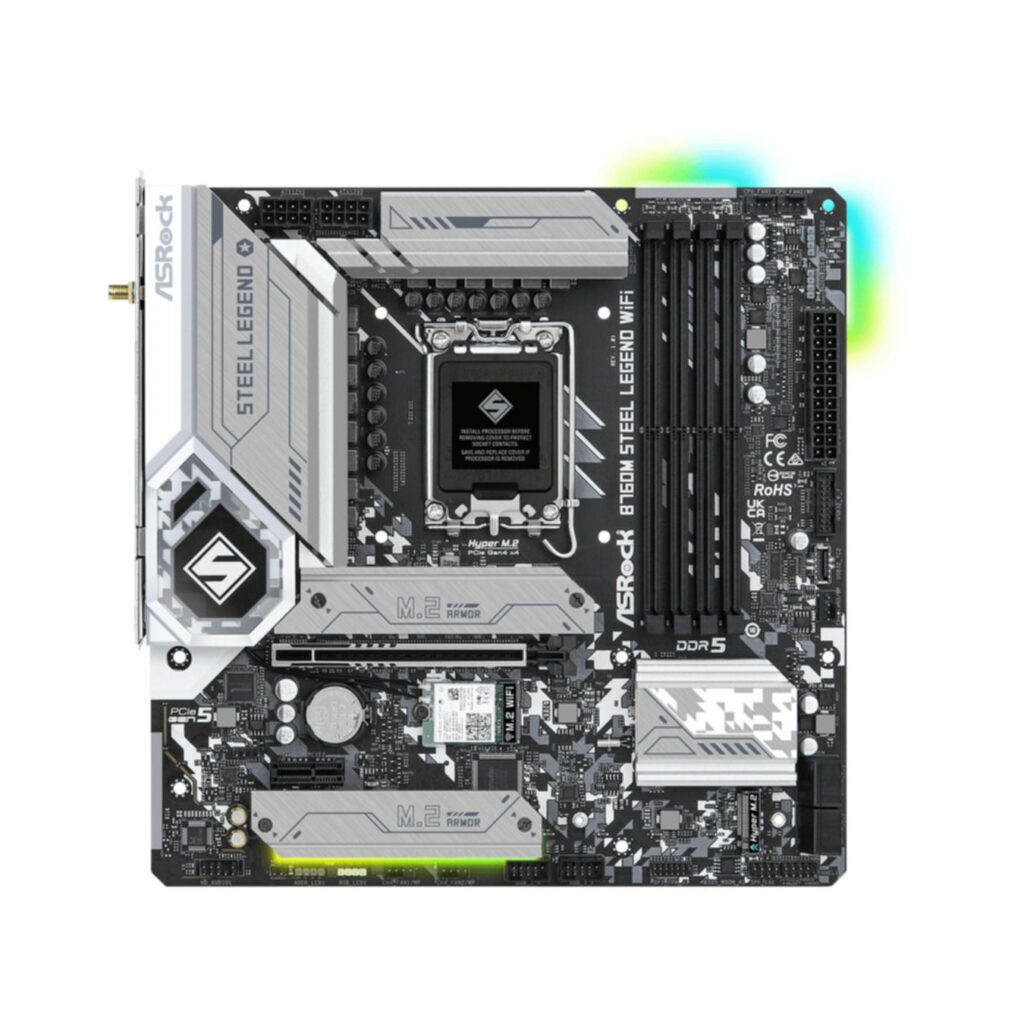

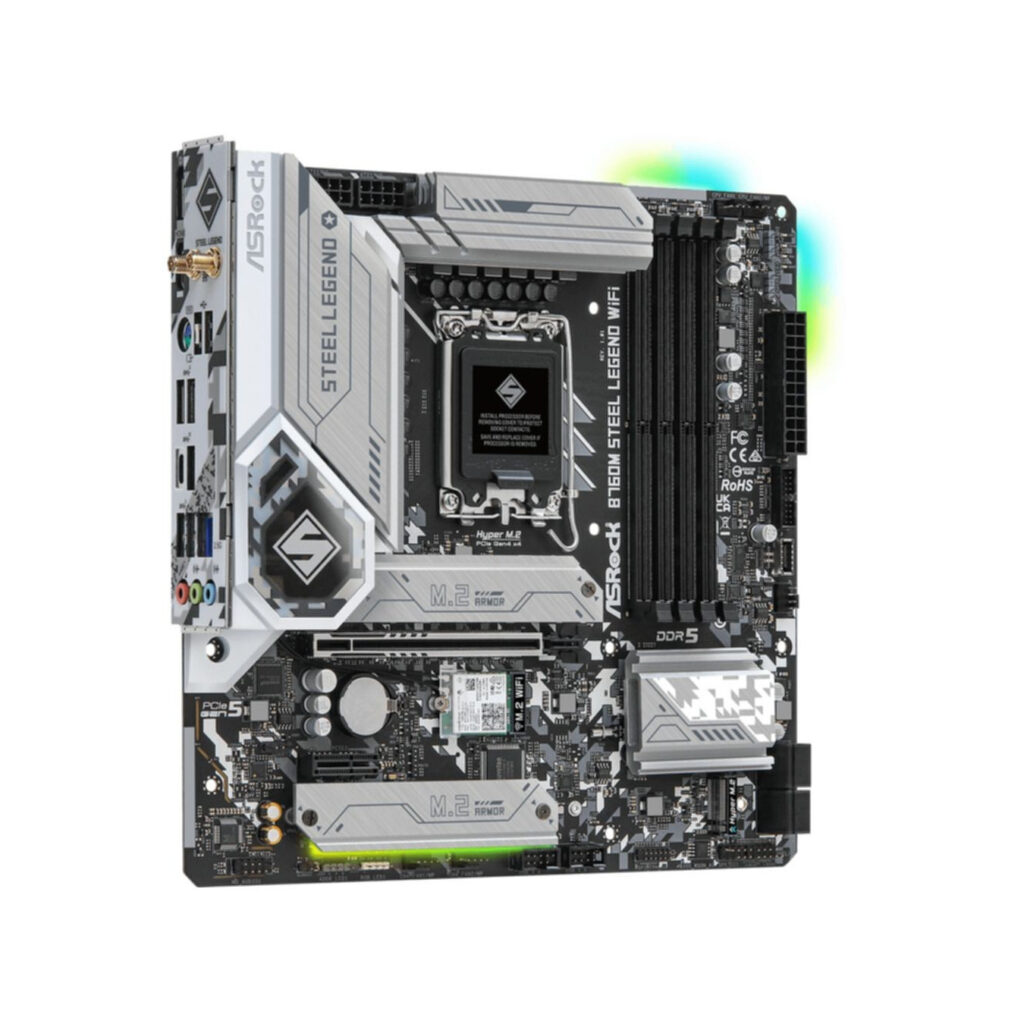

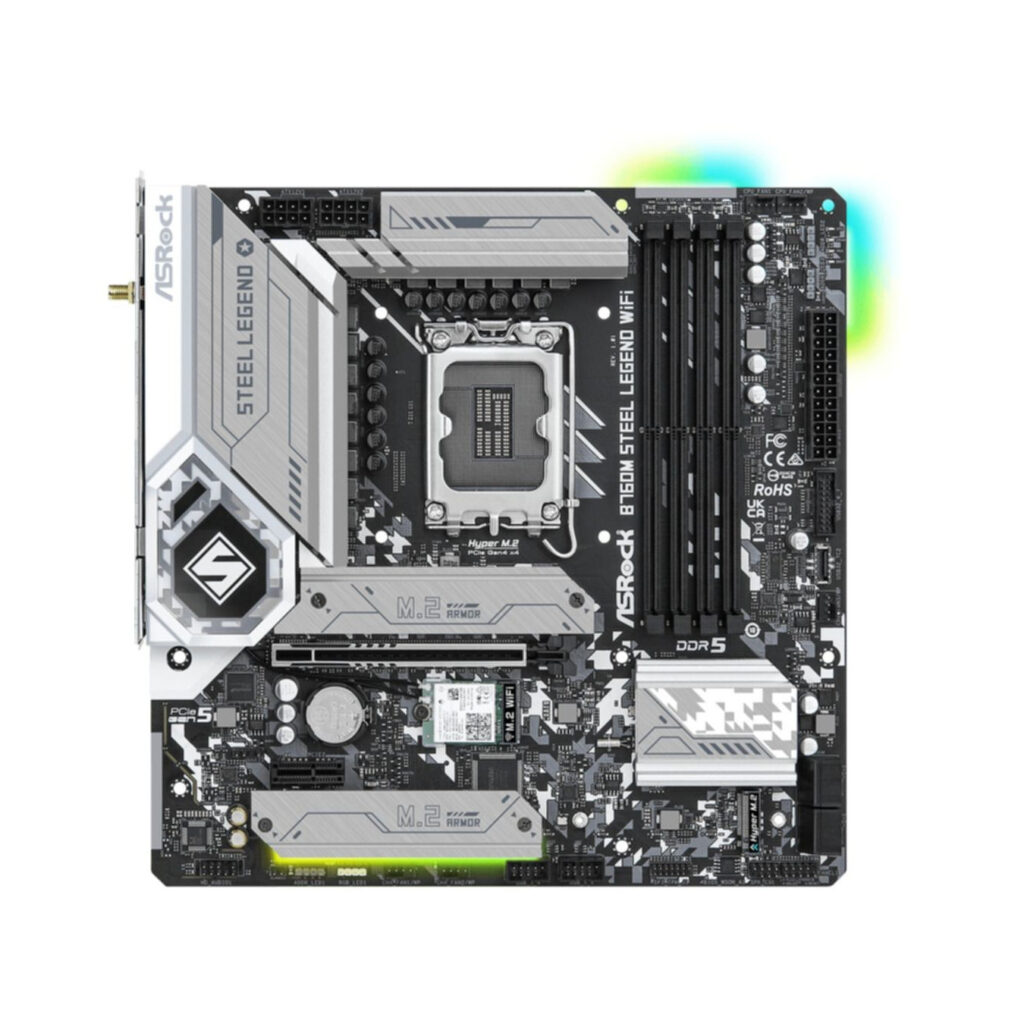

ASRock B760M Steel Legend WiFi - B760M - LGA1700, microATX, DDR5, Wi‑Fi 6E, 2.5Gb LAN, Bluetooth 5.3, 128GB support
Intel B760 microATX motherboard for LGA1700 CPUs. DDR5 support up to 128GB (4 DIMM), 1x M.2 + 4x SATA III, Wi‑Fi 6E, 2.5Gb Ethernet, USB-C, HDMI & DisplayPort.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Asrock B760M Steel Legend WiFi. Processor manufacturer: Intel. Processor socket: LGA 1700. Compatible processor series: Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9. Supported memory types: DDR5-SDRAM. Maximum internal memory: 128 GB. Memory slots type: DIMM. Supported storage drive interfaces: M.2. SATA III. Supported storage drive types: HDD & SSD. Ethernet interface type: 2.5 Gigabit Ethernet. LAN controller: Dragon RTL8125BG. Top Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC. Motherboard form factor: micro ATX. Motherboard chipset family: Intel
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9 |
| Maximum number of SMP processors | 1 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 128 GB |
| Feature | Bluetooth |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2. SATA III |

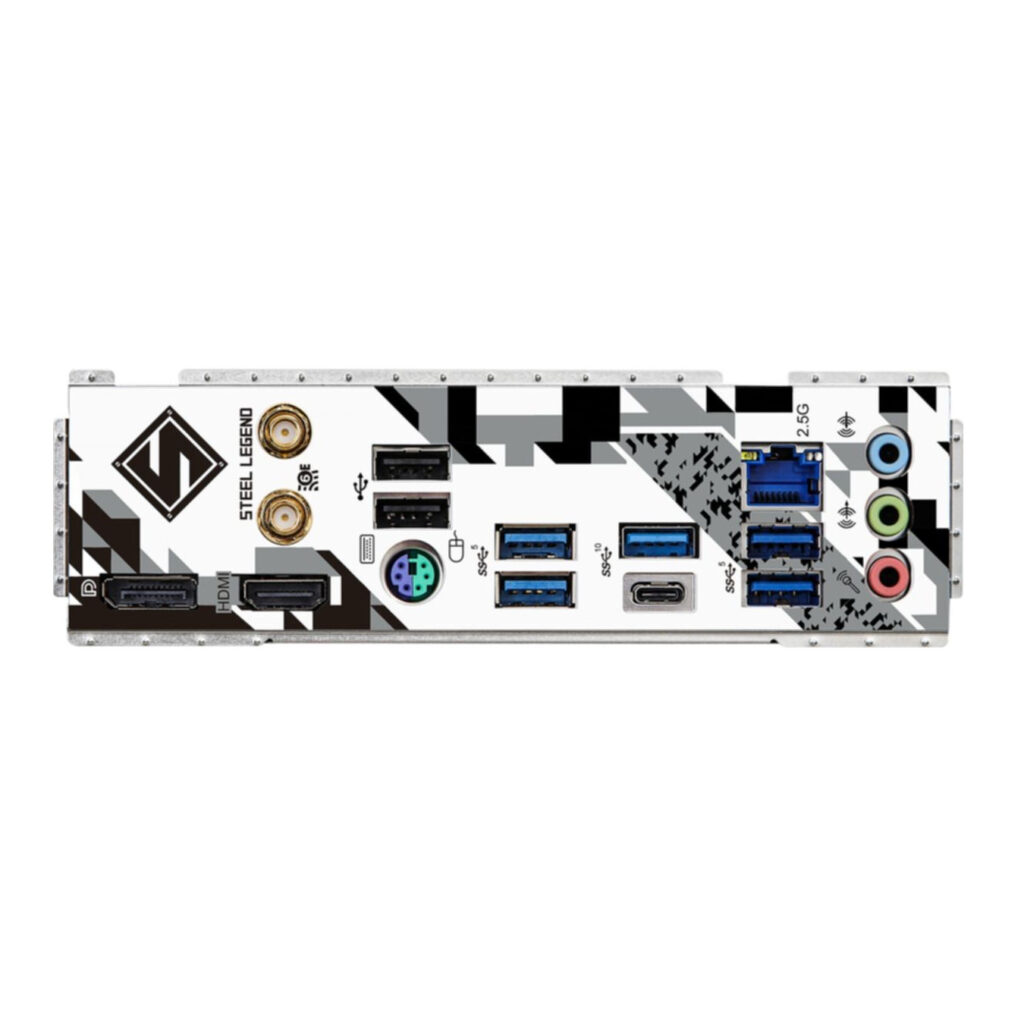

| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Dragon RTL8125BG |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac). Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.3 |
| Motherboard chipset | Intel B760 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 x64. Windows 11 x64 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x4 (Gen 1.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Width | 244 mm |
| Depth | 244 mm |
| Cables included | SATA |
