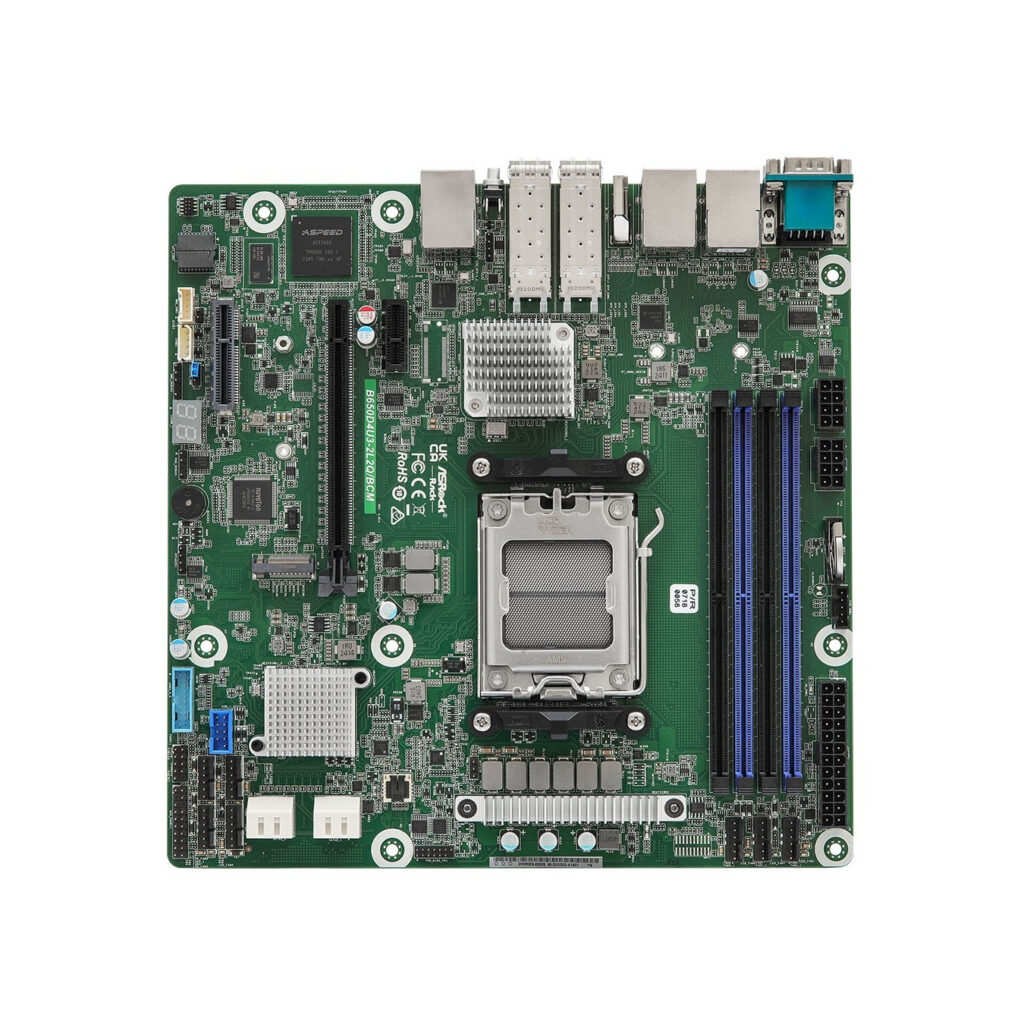

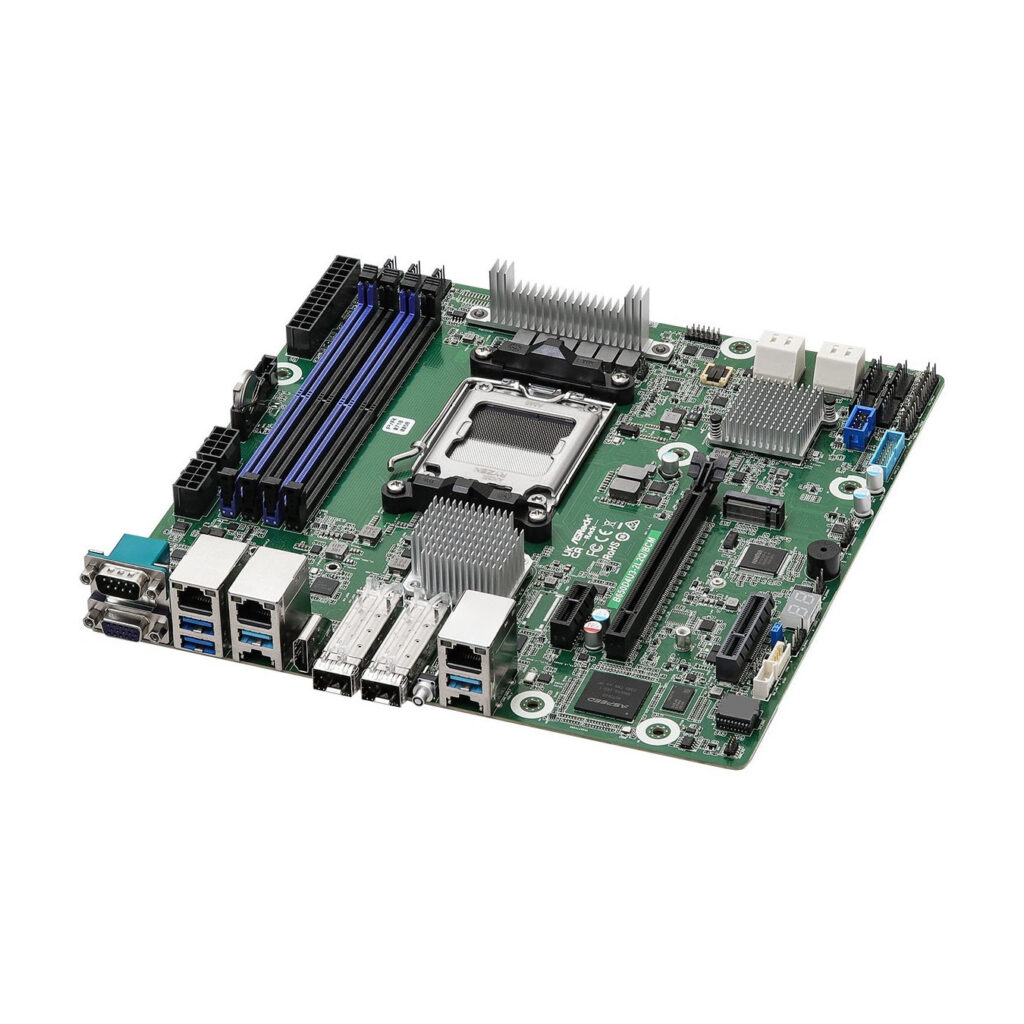

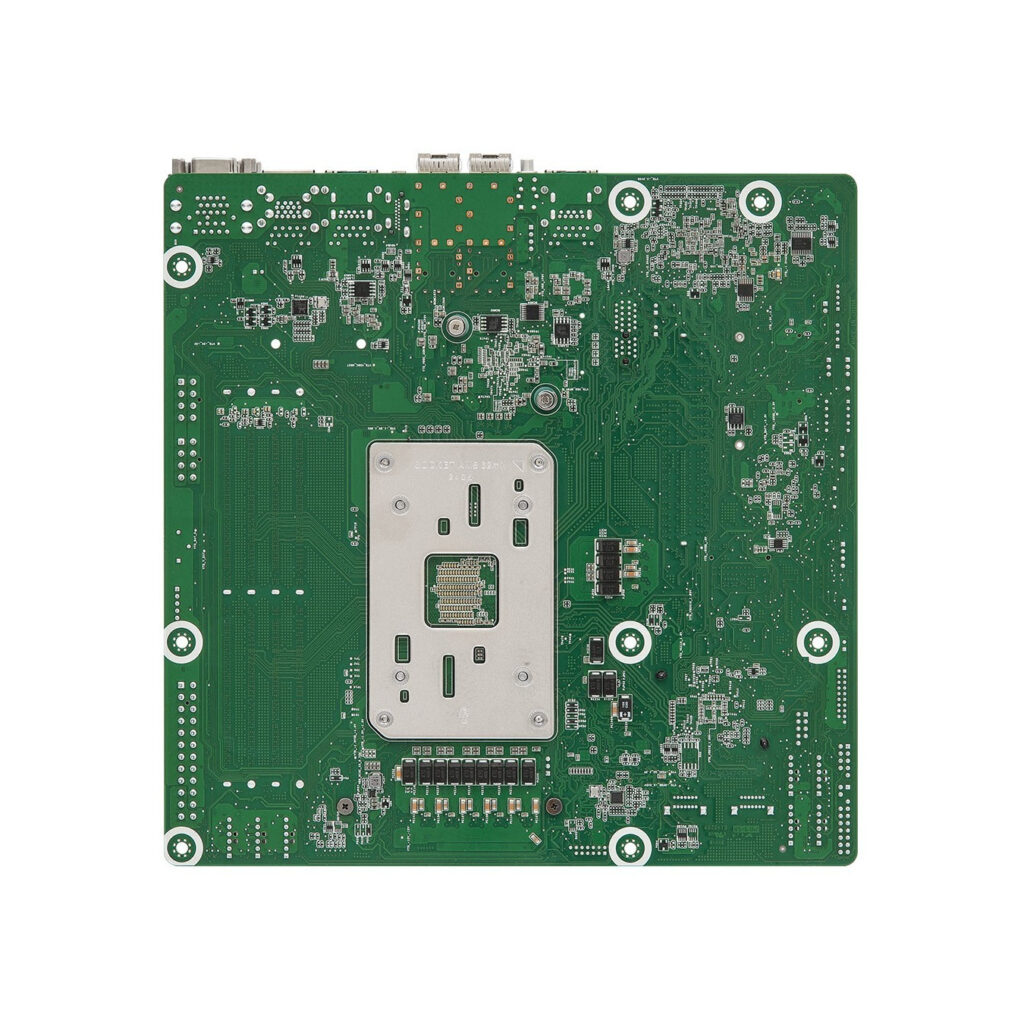

ASRock B650D4U3-2L2Q - B650 Micro-ATX Motherboard - AM5, DDR5, 4x DIMM, 48GB max, Dual LAN, M.2 & SATA III
ASRock B650D4U3-2L2Q micro-ATX server motherboard for AM5 (Ryzen 7000/8000/9000, EPYC 4004). DDR5, 4 DIMM slots (48GB), M.2, 4x SATA III, dual LAN, UEFI BIOS.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Asrock B650D4U3-2L2Q/BCM. Processor manufacturer: AMD. Processor socket: Socket AM5. Compatible processor series: AMD EPYC 4004. AMD Ryzen 7000 Series. AMD Ryzen 8000 Series. AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM. Maximum internal memory: 48 GB. Memory slots type: DIMM. Supported storage drive interfaces: M.2. SATA III. On-board graphics card model: Aspeed AST2600. Component for: Server. Motherboard form factor: micro ATX. Motherboard chipset family: AMD
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD EPYC 4004. AMD Ryzen 7000 Series. AMD Ryzen 8000 Series. AMD Ryzen 9000 Series |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory voltage | 1.1 V |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 3600.5600 MHz |
| Supported memory clock speed (max) | 5600 MHz |
| Maximum internal memory | 48 GB |
| Supported storage drive interfaces | M.2. SATA III |
| On-board graphics card model | Aspeed AST2600 |
| USB 2.0 connectors | 1 |
| Number of SATA III connectors | 4 |
| Feature | Clear CMOS jumper |
| Number of COM connectors | 1 |
| Serial port headers | 1 |

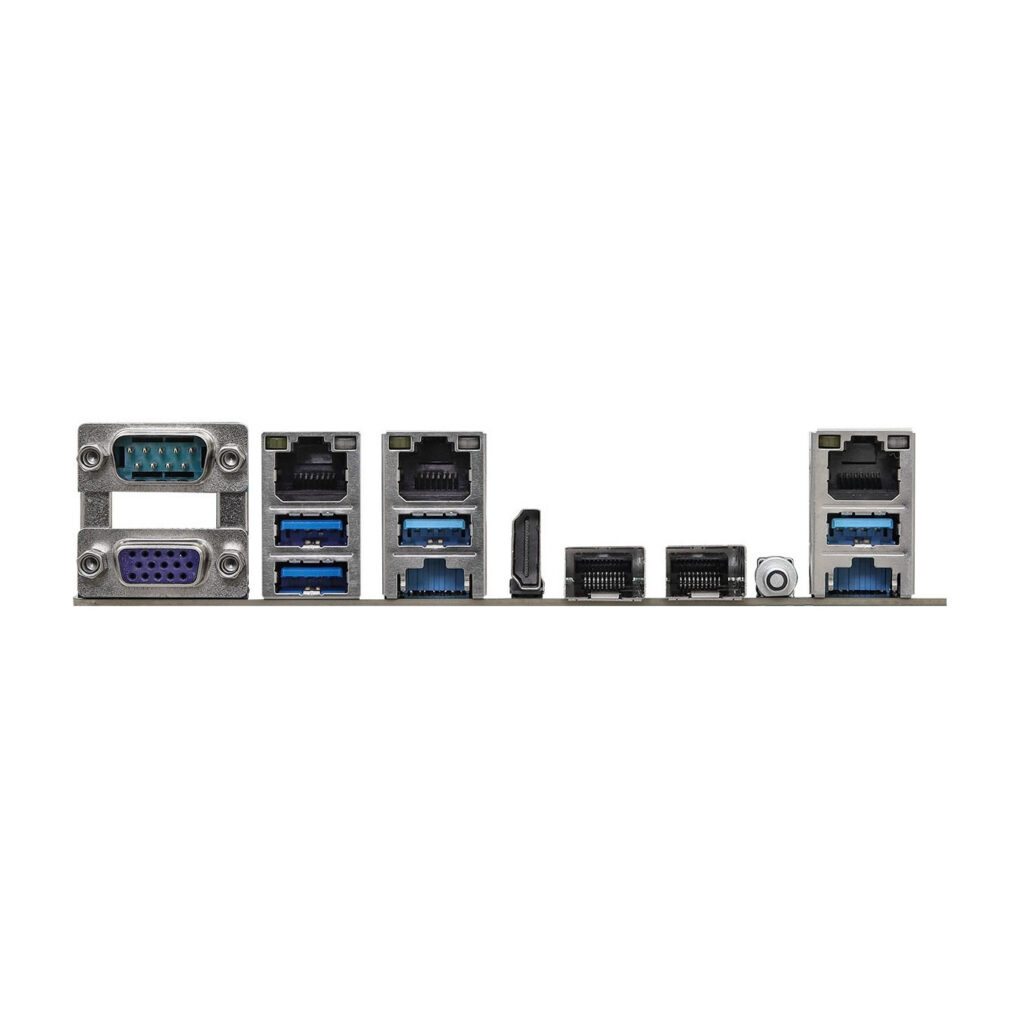

| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Motherboard chipset | AMD B650 Express |
| PC health monitoring | CPU. Fan. Voltage |
| Component for | Server |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| PCI Express x4 (Gen 4.x) slots | 1 |
| BIOS type | UEFI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.4 |
| System Management BIOS (SMBIOS) version | 3.5 |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 20 - 90% |
| Width | 244 mm |
| Depth | 244 mm |
