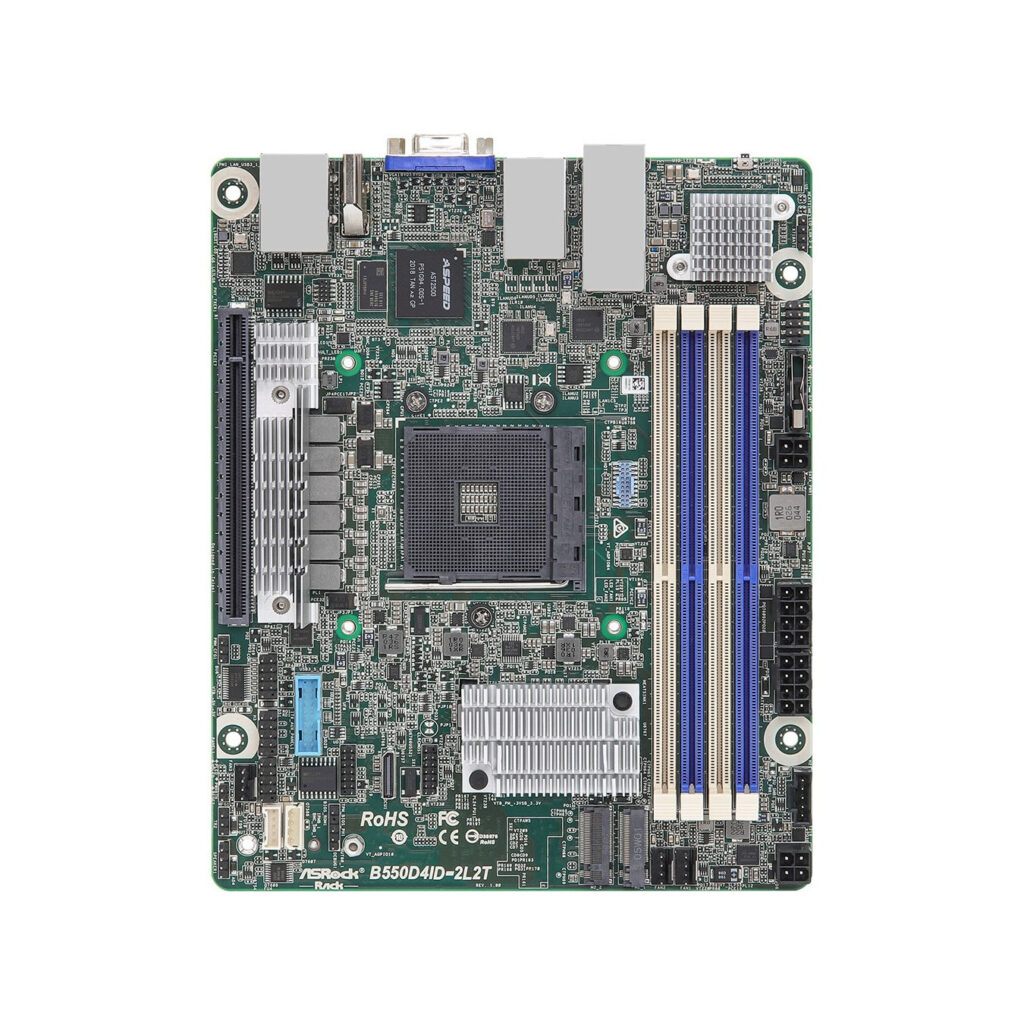

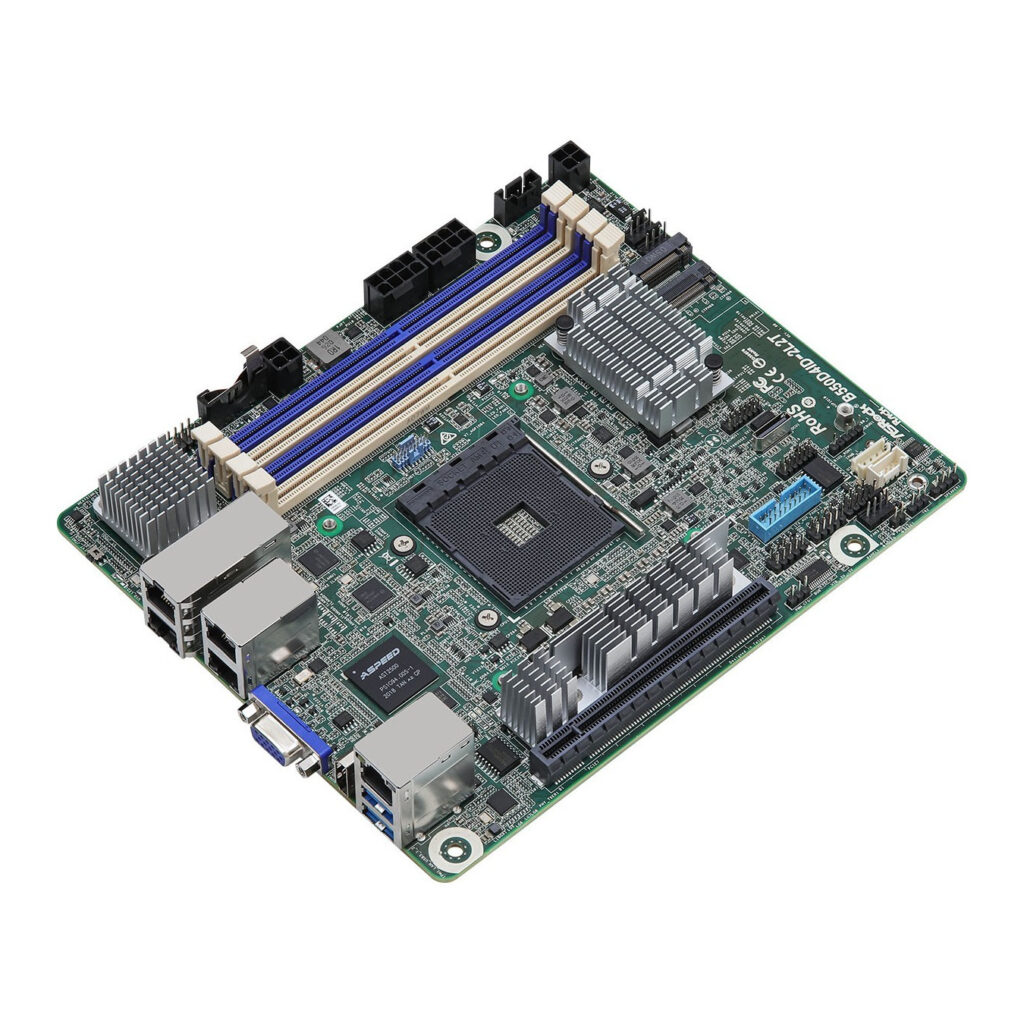

ASRock B550D4ID-2L2T - Mini-ITX AM4 Motherboard, B550 Chipset, 4x DDR4 up to 128GB, PCIe 4.0, Quad LAN, Passive Cooling - Green
ASRock B550D4ID-2L2T mini-ITX AM4 motherboard (B550). Supports Ryzen 3/5, 4x DDR4 DIMM up to 128GB (3200MHz), PCIe 4.0 x16, 1x M.2, 4x SATA III, 4x LAN.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Asrock B550D4ID-2L2T. Processor manufacturer: AMD. Processor socket: Socket AM4. Compatible processor series: AMD Ryzen™ 3. AMD Ryzen™ 5. Supported memory types: DDR4-SDRAM. Maximum internal memory: 128 GB. Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 3.0. PCI Express 4.0. SATA. RAID levels: 0. 1. 10. Graphics card family: ASPEED. Graphics card: AST2500. Ethernet interface type: 10 Gigabit Ethernet. Gigabit Ethernet. LAN controller: Intel I210. Intel X710-AT2
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen™ 3. AMD Ryzen™ 5 |
| Supported processor sockets | Socket AM4 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory voltage | 1.2 V |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speed (max) | 3200 MHz |
| Maximum internal memory | 128 GB |
| Supported storage drive interfaces | PCI Express 3.0. PCI Express 4.0. SATA |
| Feature | Ethernet LAN |
| RAID levels | 0. 1. 10 |
| Graphics card family | ASPEED |
| Graphics card | AST2500 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |

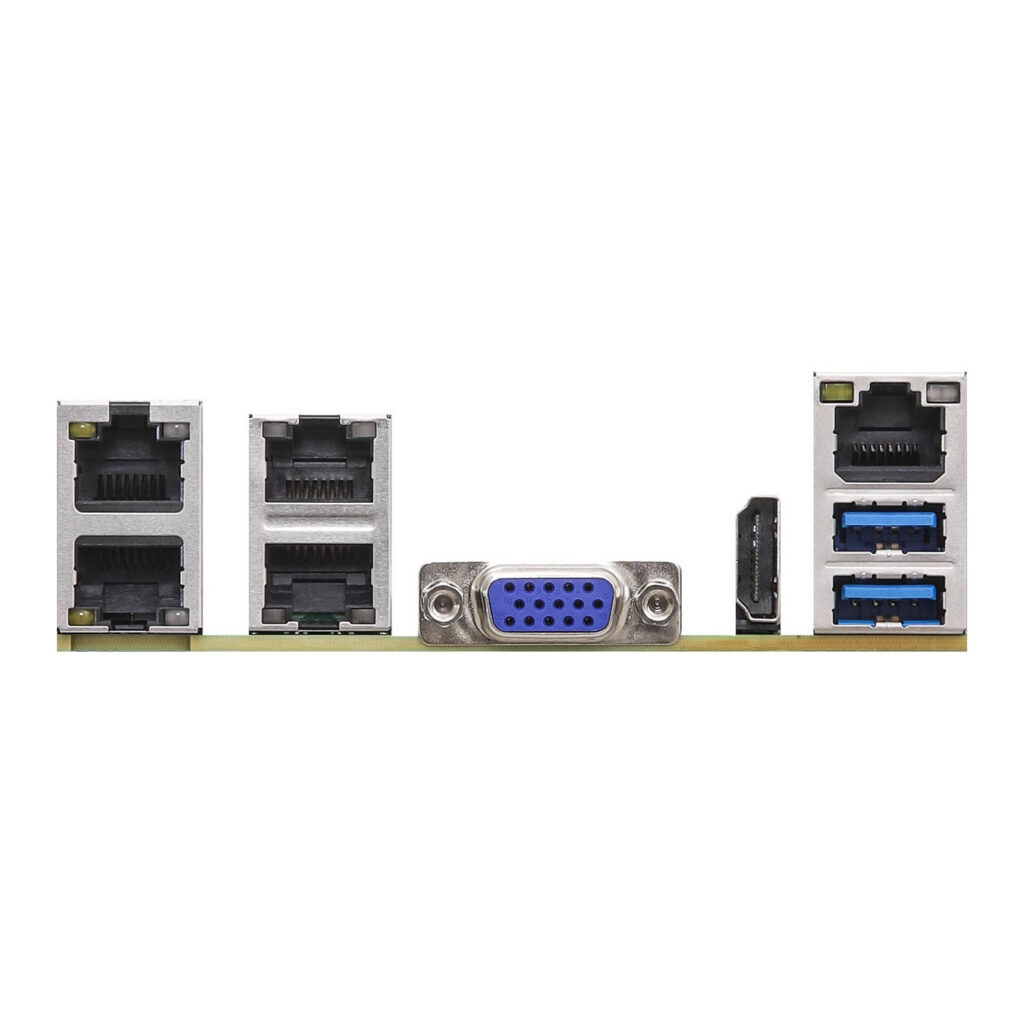

| Ethernet LAN (RJ-45) ports | 4 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet interface type | 10 Gigabit Ethernet. Gigabit Ethernet |
| LAN controller | Intel I210. Intel X710-AT2 |
| Motherboard chipset | AMD B550 |
| Product colour | Green |
| PC health monitoring | Fan. Temperature. Voltage |
| Component for | Server |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | AMD |
| Cooling type | Passive |
| Power source type | ATX. DC |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express OCuLink connectors (NVMe support) | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.1 |
| Operating temperature (T-T) | 10 - 35 °C |
| Width | 170.2 mm |
| Depth | 208028 mm |
