The Argus power supply SDN24-240 from Inter-Tech is a cost-effective DIN rail power supply in a compact design with 24V= output voltage and 240 watt output power. The power supply …
For any questions about this item, availability, or delivery times, please contact us at 22 270068

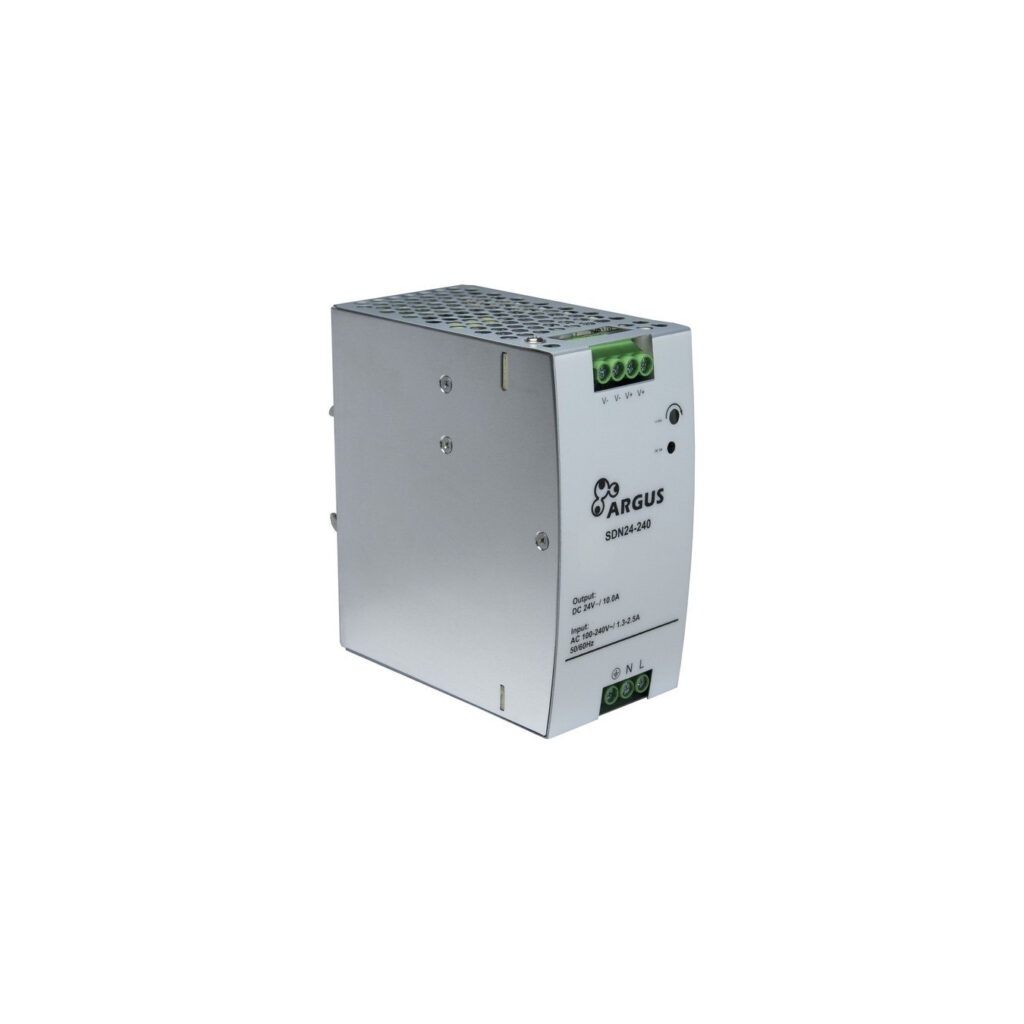

The Argus power supply SDN24-240 from Inter-Tech is a cost-effective DIN rail power supply in a compact design with 24V= output voltage and 240 watt output power. The power supply is intended exclusively for mounting on top-hat rails in distribution boxes inside buildings and converts a 230 V~ input voltage into a 24 V= output voltage. It is permanently connected to a 230 V AC voltage. In order to compensate for the resistance loss with different cable lengths and to obtain 24 V at the consumer, the output voltage can be readjusted on the potentiometer. An indicator light indicates the operation of the power supply.
| Typ | Power supply |
| EAN | 4260455647939 |
| Manufacturer no. | 88882213 |
| Manufactured in | China |
| Suitable for | Mounting on top-hat rails in distribution boxes |
| Service | Potentiometer |
| Advertisement | Indicator light |
| Power supply - input voltage | 100 - 240 V |
| Suitable devices | UPS |
| power source | Power outlet |
| Security | Overload, over-voltage, short-circuit and over-temperature protection |
| Feature | Start time 3s @ 115V 50Hz / 1s @ 230V 50Hz, rise time 40ms, support time 30ms |
| More information | Starting current 30A @ 115V~ / 45A @ 230V~, current consumption 2.5A @ 115V~ / 1.3A @ 230V~, standby consumption < 5W |
| Accessories - available | Instructions |
| Dimensions | Width: 64mm x Height: 125mm x Depth/Length: 114mm |
| Weight | 1 kg |
