AJAX Transmitter - Wireless Integration
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.

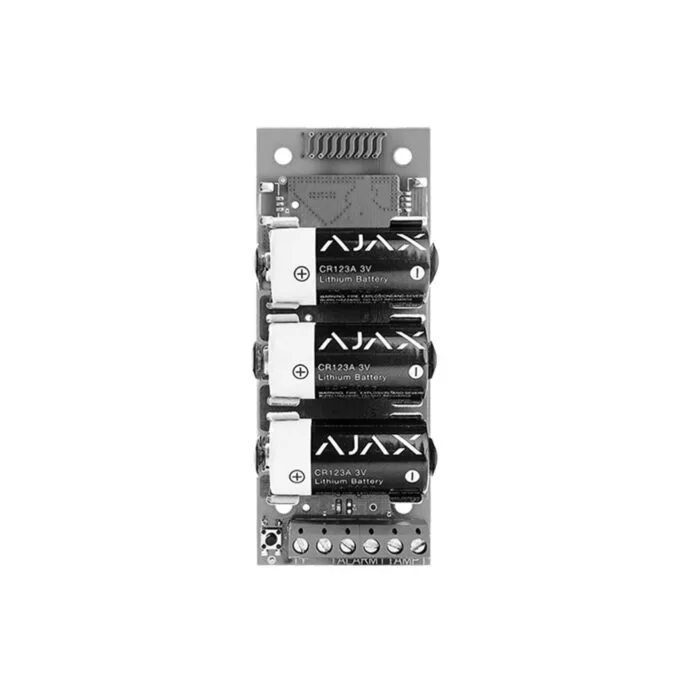

Wireless module to connect wired detectors (outdoor motion detectors, IR barriers, liquid level detectors, gas detectors, thermal relays, and other third-party devices) to the Ajax security system.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
- Wireless module for connection of outdoor motion detectors, IR barriers, liquid level detectors, and gas detectors, thermal relays and any third-party devices with wired output to the Ajax security system

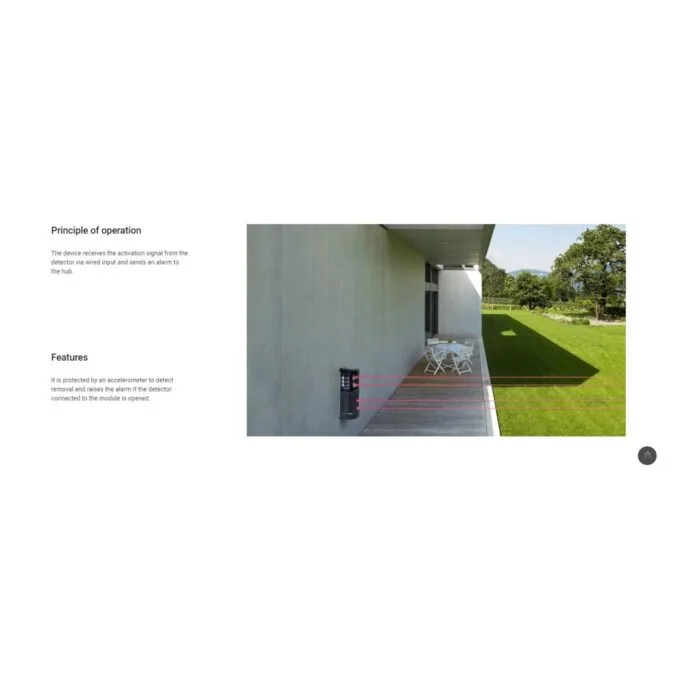

- The device receives the activation signal from the detector via wired input and sends an alarm to the hub
- It is protected by an accelerometer to detect removal and raises the alarm if the detector connected to the module is opened
- Connecting a detector : Alarm and Tamper (NO/NC) terminals
- Mode for processing alarm signals from the detector : Pulse or Bistable
- Power : 3 x CR123A, 3V batteries
- Capability to power the connected detector : Yes, 3.3V
- Protection from dismounting : Accelerometer
- Frequency band : 868.0–868.6 MHz or 868.7 – 869.2 MHz, depends on sales region
- Compatibility : Operates only with Hub, Hub Plus, Hub 2 and ReX
- Maximum RF output power : Up to 20 mW
- Modulation : GFSK
- Communication range : Up to 1,600 m (any obstacles absent)
- Ping interval for the connection with the receiver : 12–300 sec
- Operating temperature : From -25°? to +50°?
- Operating humidity : 1 Up to 75%
- Dimensions : 100 x 39 x 22 mm
- Weight : 74 g
