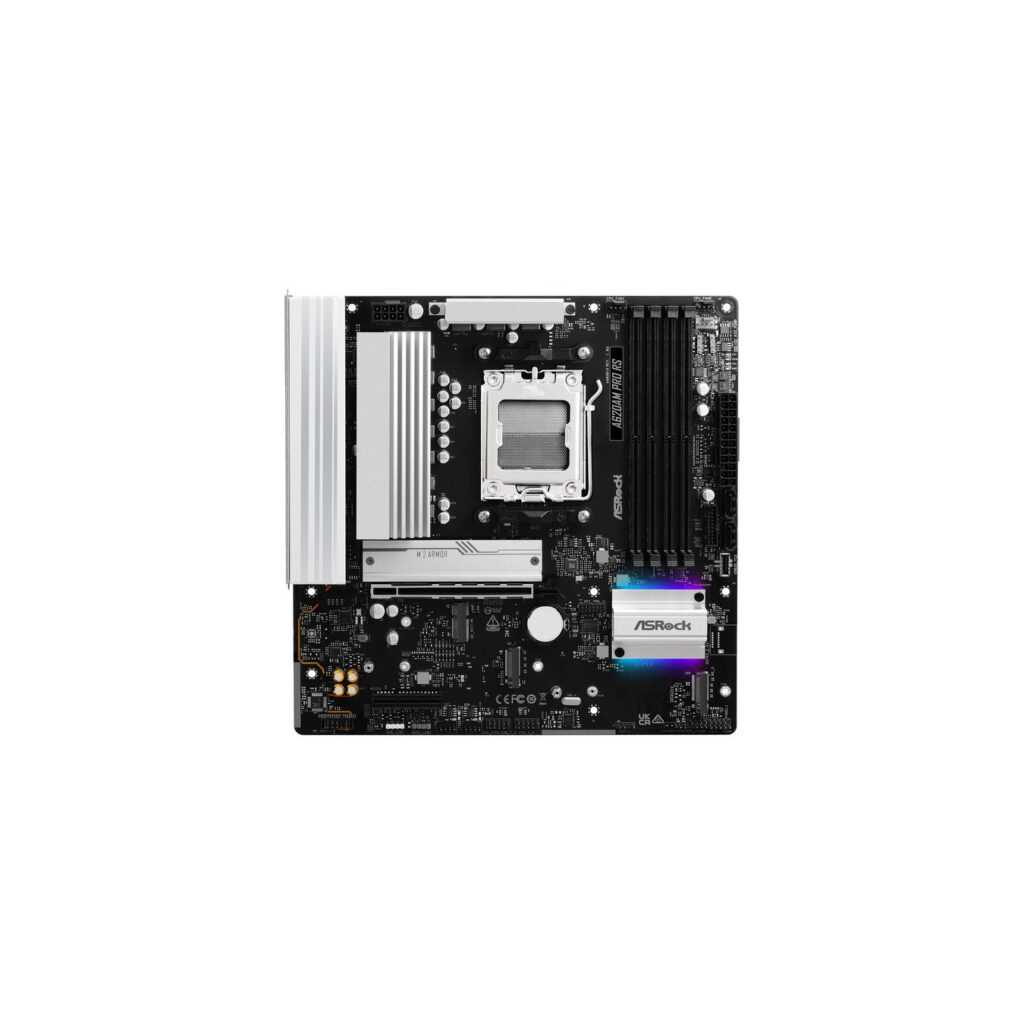

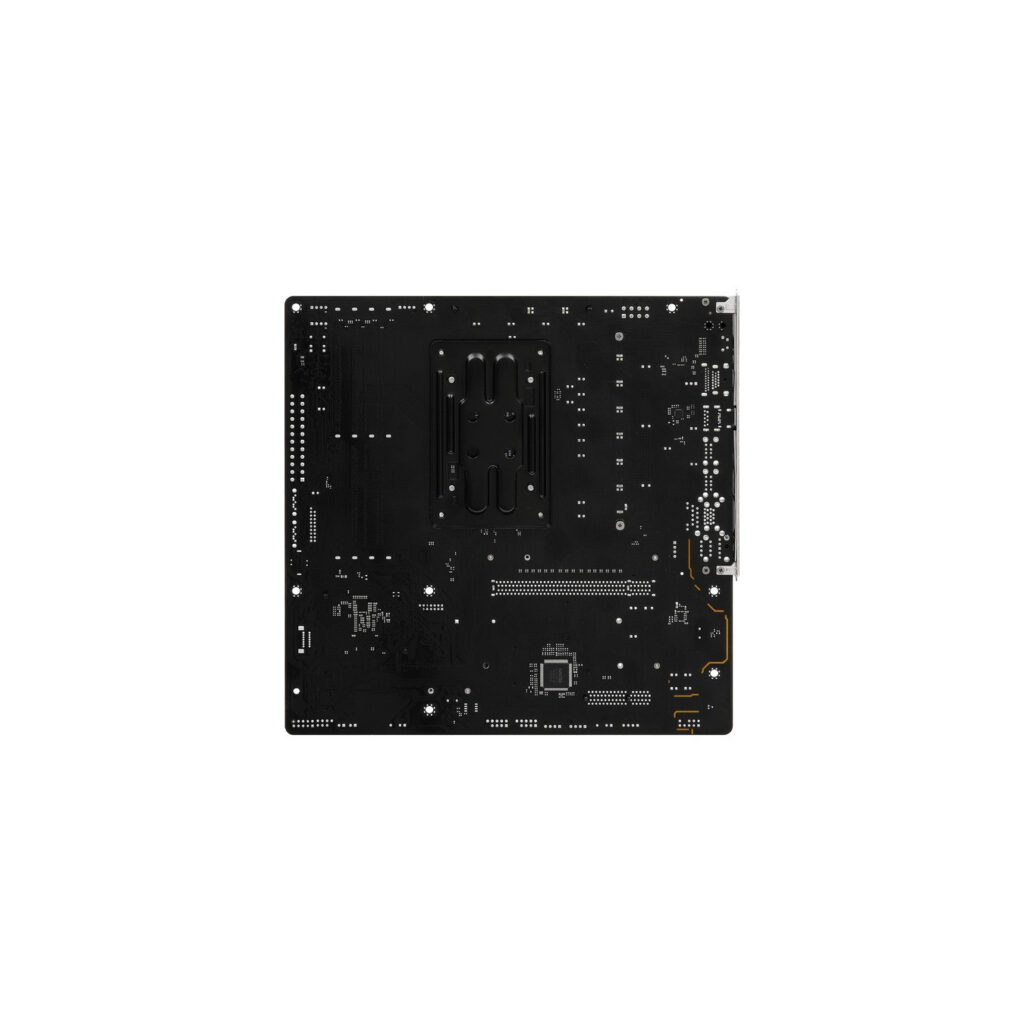

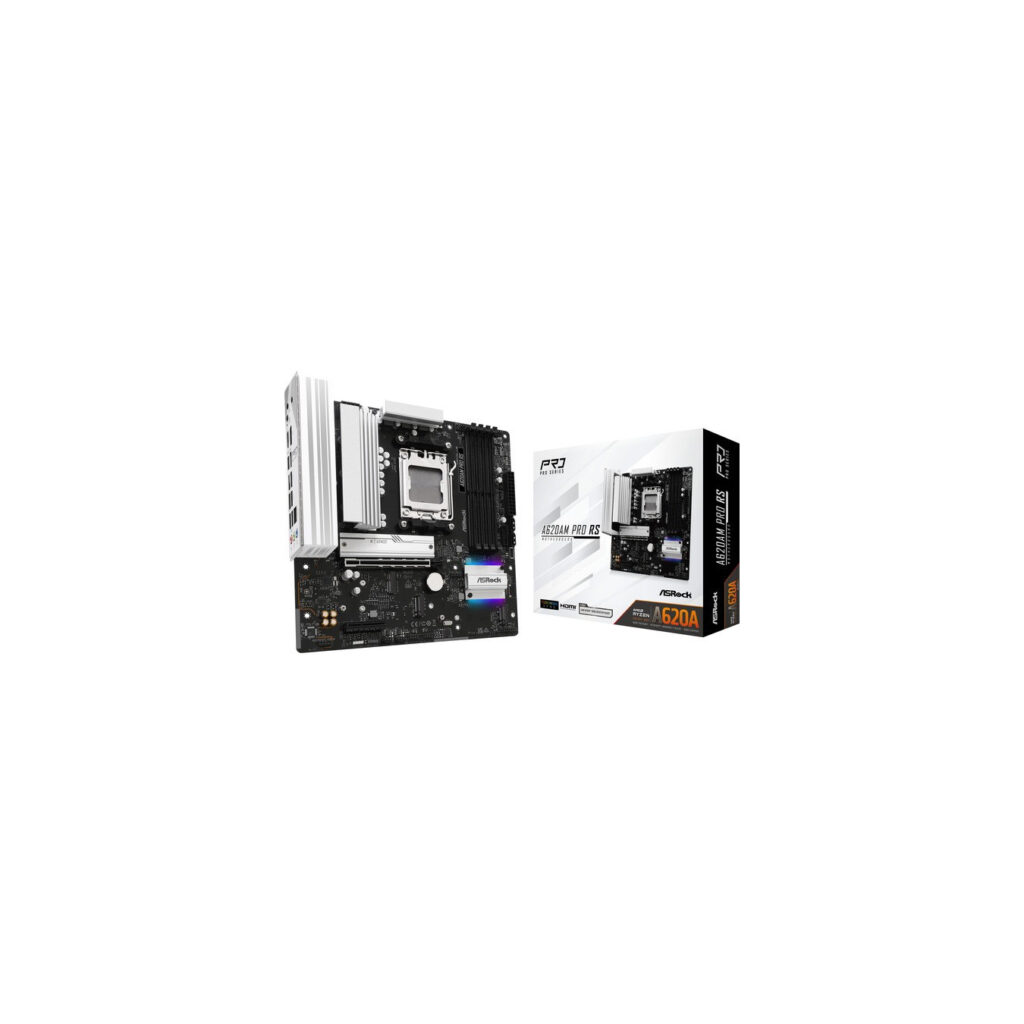

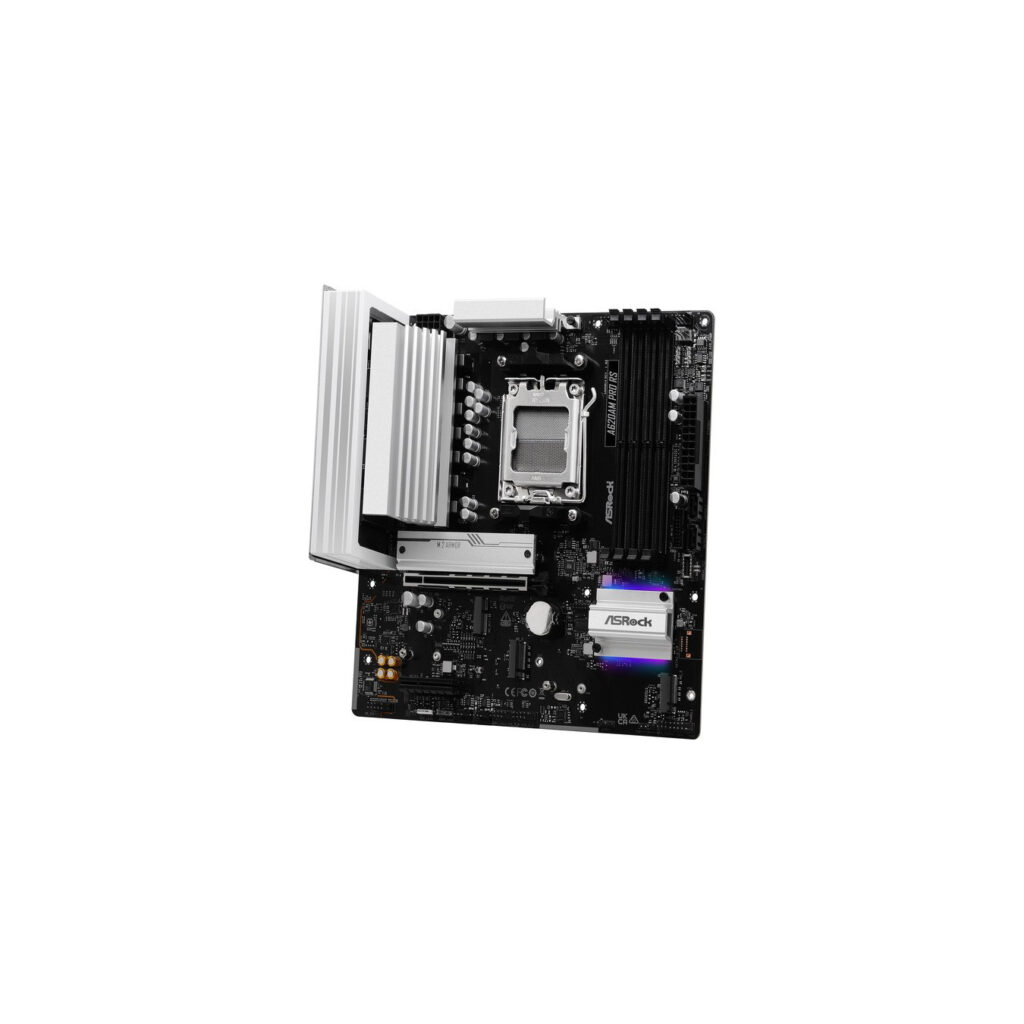

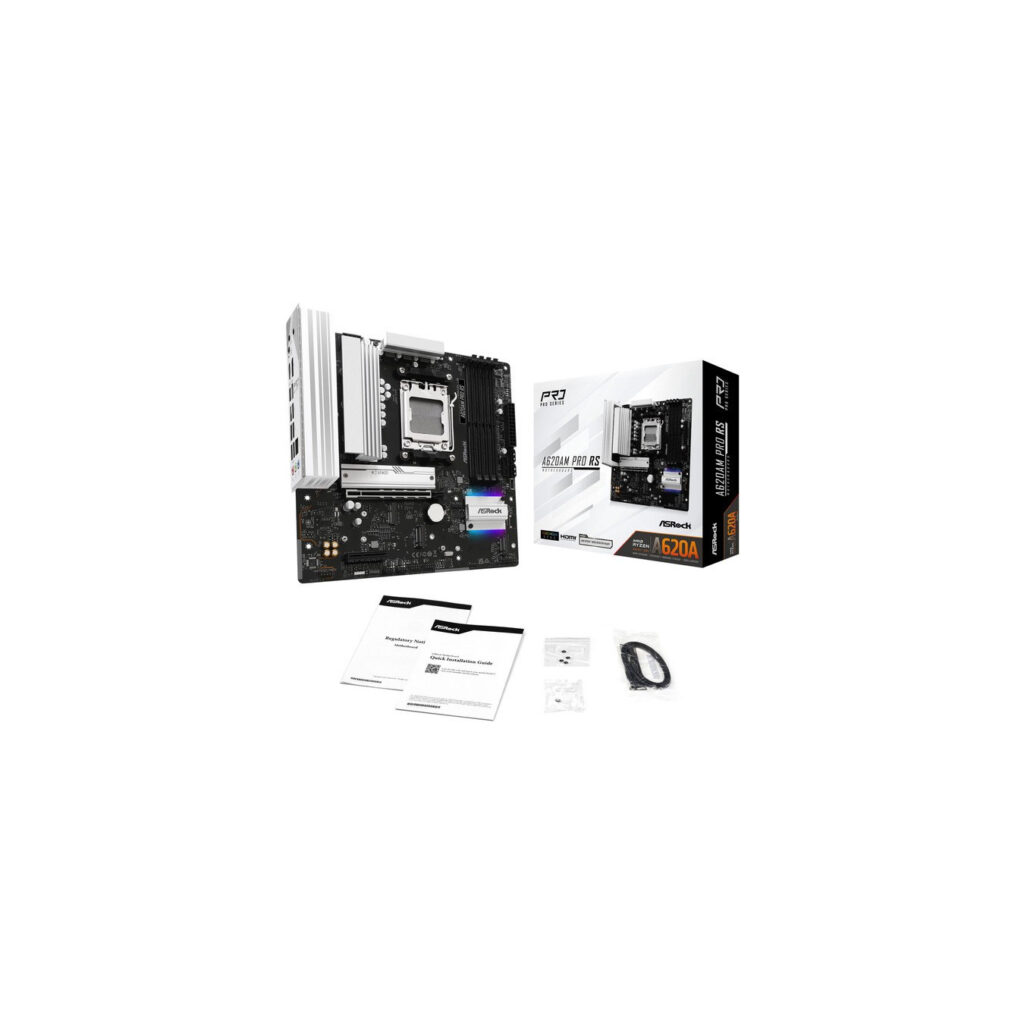

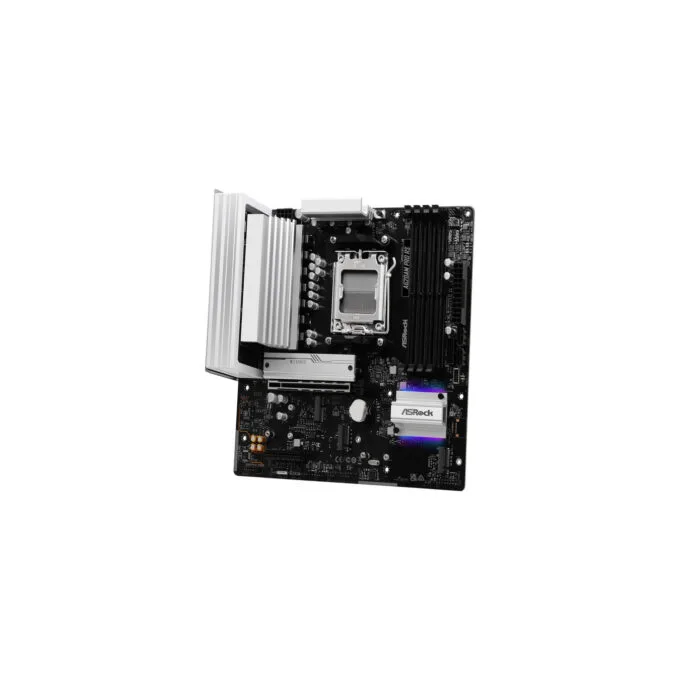

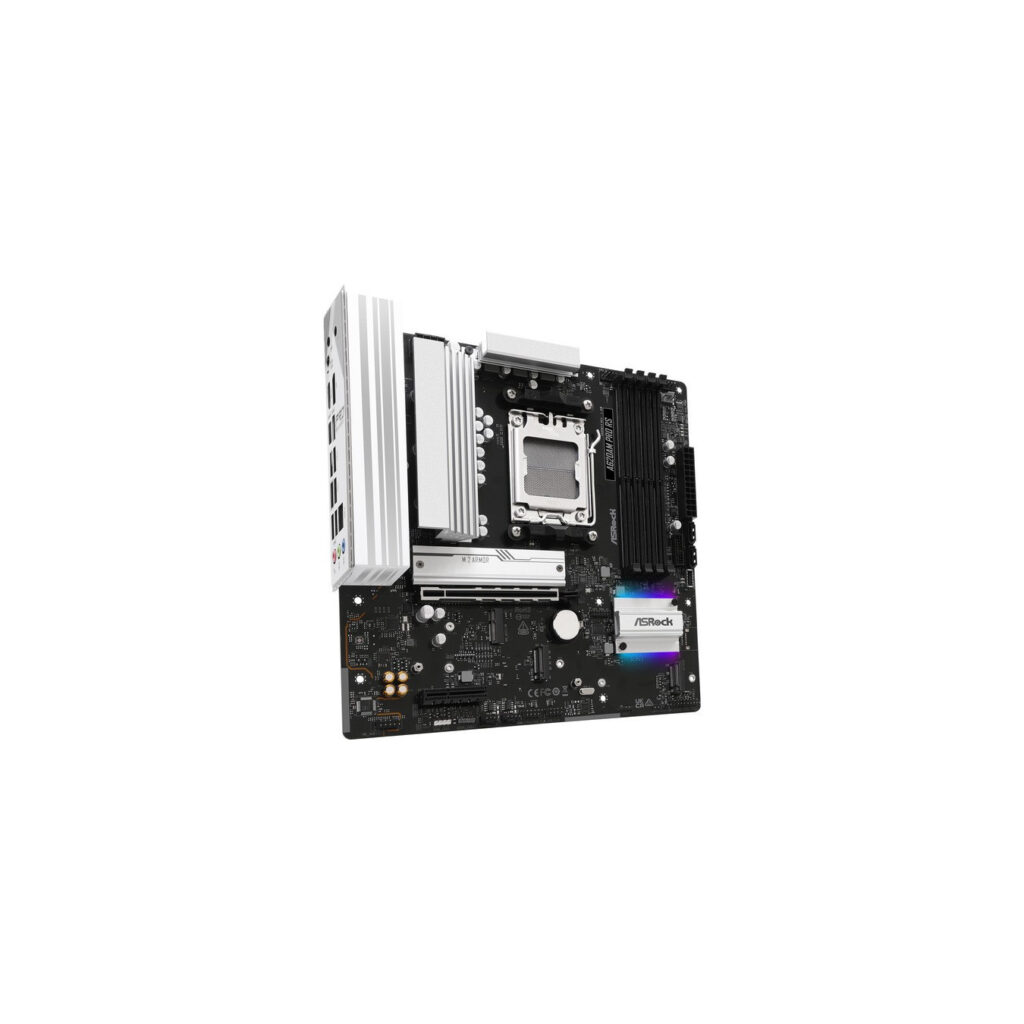

The ASRock A620AM PRO RS is based on the AMD A620 chipset and supports AMD processors for socket AM5. It has four DDR5 slots for up to 256 GB of memory. The ASRock A620AM PRO RS al…
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The ASRock A620AM PRO RS is based on the AMD A620 chipset and supports AMD processors for socket AM5. It has four DDR5 slots for up to 256 GB of memory. The ASRock A620AM PRO RS also features a PCIe 4.0 x16 slot. The ASRock A620AM PRO RS also has 8-channel sound, a 2.5 Gigabit LAN interface, two SATA3 ports, three M.2 ports and a number of USB interfaces.
| Typ | Mainboard |
| EAN | 4711581490949 |
| Manufacturer no. | 90-MXBSV-A0UAYZ |
| base | AM5 |
| Max. supported CPUs | 1 |
| Operating system support | Windows 10 ready, Windows 11 ready |
| Processor - Supported Models | Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 7xxxX3D (Raphael), Ryzen 5 8xxxF (Phoenix), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxxX (Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 7 8xxxF (Phoenix), Ryzen 7 9xxxX (Granite Ridge), Ryzen 7 9xxxX3D (Granite Ridge), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael), Ryzen 9 9xxxX (Granite Ridge), Ryzen 9 9xxxX3D (Granite Ridge) |
| Chipset | AMD A620 |
| Slots - PCIe x16 | 2x (davon: 1x PCIe x16, 1x PCIe x2) |
| BIOS | 256Mb AMI UEFI |
| Form factor | µATX |
| use | PC |
| Power supply | ATX12V (24-Pin + 8-Pin) |
| Memory - maximum | 256 GB |
| Ports (external) - USB-C 3.2 Gen 1 (5 Gbit/s) | 1 |
| Connectors (internal) - SATA | 2 |
| Ports (optional) - USB 3.2 Gen 1 (5Gbps) | 2 |
| RGB Standard | RGB LED |
| SATA Controller | AMD A620 |
| directly usable RAID levels | 0, 1, 10 |
| USB-Controller | AMD A620 |
| Onboard Graphics | The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. |
| Sound | Realtek ALC897 |
| LAN | Realtek RTL8125BG |
| Features | In order to support the latest processor cores, a BIOS update may be required. |
