66900 MINI PCIE CARD 2x USB3.2 GEN.1 INLINE
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

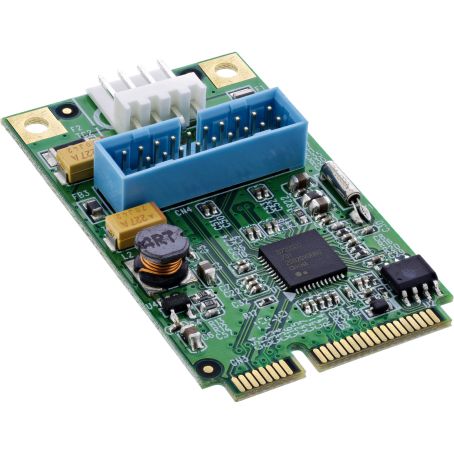

66900 MINI PCIE CARD 2x USB3.2 GEN.1 INLINE
Fast USB expansion for embedded and micro PCs via Mini-PCIe
Provide two USB ports internally: 19-pin motherboard connector for two USB 3.2 Gen 1 ports.
High data rate up to 5 Gb/s: SuperSpeed transmissions for fast peripherals.
Compact installation in tight housings: Mini-PCI-Express x1 in a full-mini (F1) form factor.
Stable power supply for power-hungry devices:
4-pin floppy power connector and up to 5 V/900 mA per port.
Fast commissioning: Plug and play and backwards compatible with USB 2.0.

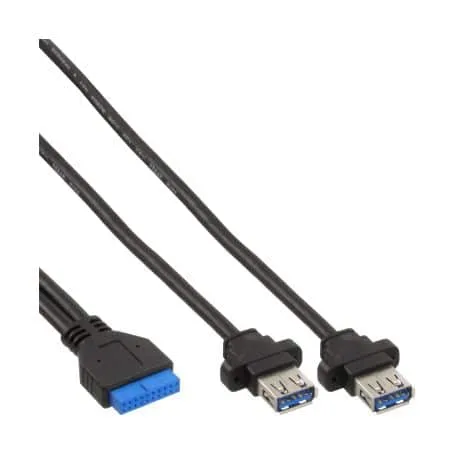

Connection: 1x internal USB 3.2 Gen 1 motherboard connector, 19-pin (for 2 ports)
Interface: Mini-PCI-Express x1, Gen 2
Data rate: up to 5 Gb/s
Compatibility: Backward compatible with USB 2.0, compatible with PCI-Express 1.0
External connections: No
Internal connections: 19-pin motherboard socket (for 2x USB-A)
Chipset: Renesas 0720202
Low profile: No
Raid: No
Interface: USB 3.2 Gen.1
Slot: Mini-PCIe
Type: Interface card
USB specification: USB 3.2 Gen.1
