No neutral required; single-live-wire Zigbee 3.0 smart switch with external rocker switch support; DIN rail mount optional; 6A, 1380W.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

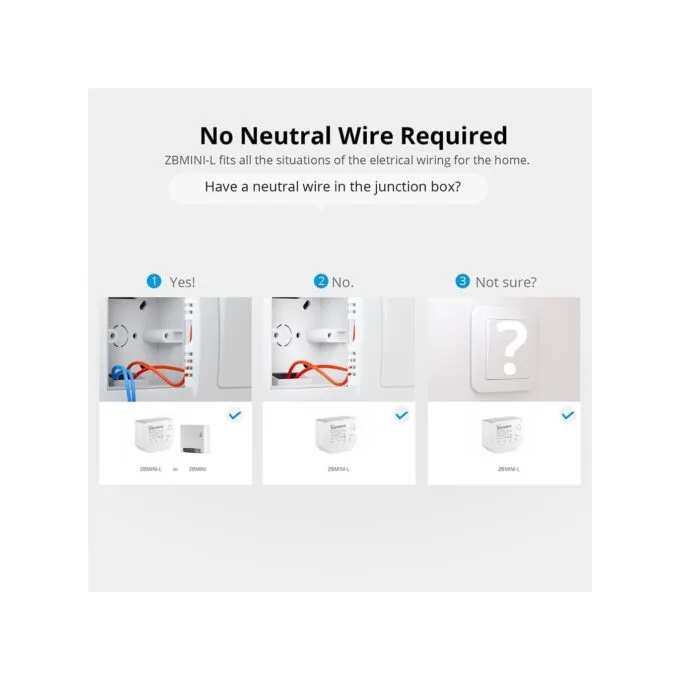

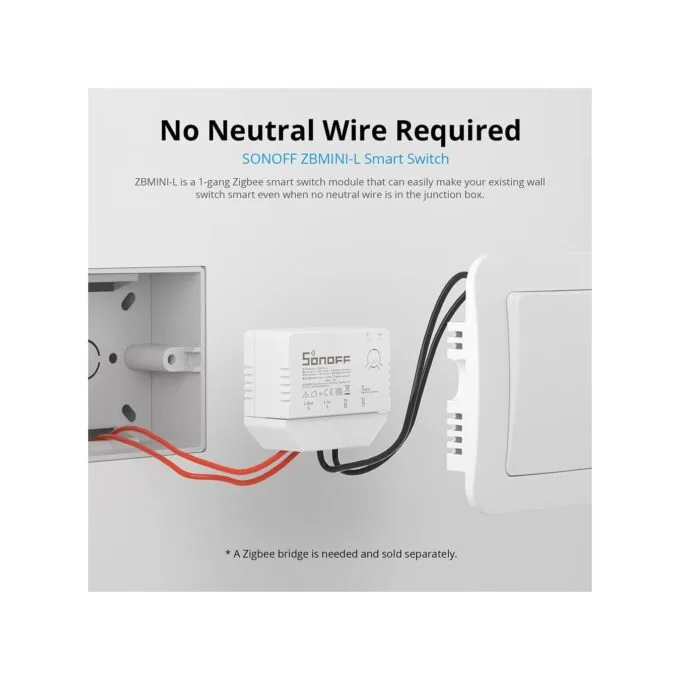

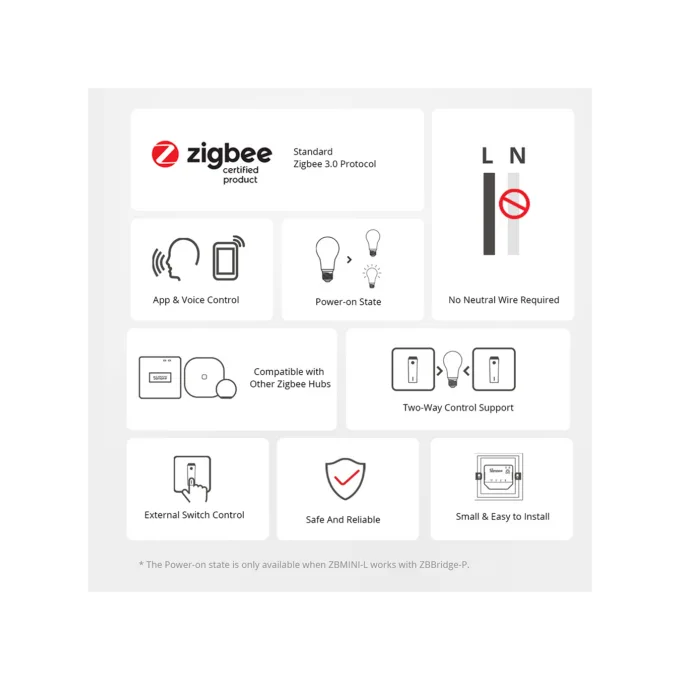

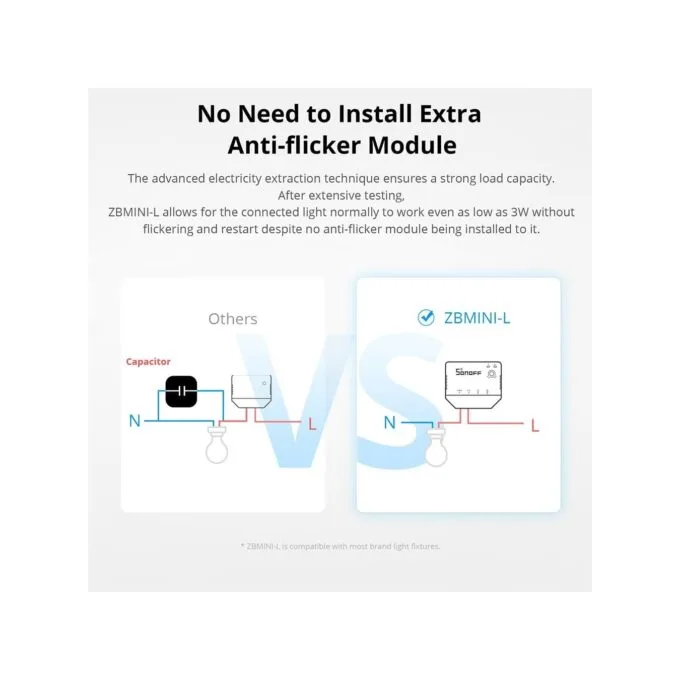

- No Neutral Wire Required : Single live wire Zigbee 3.0 protocol smart switch, fits all the situations of the electrical wiring for the home

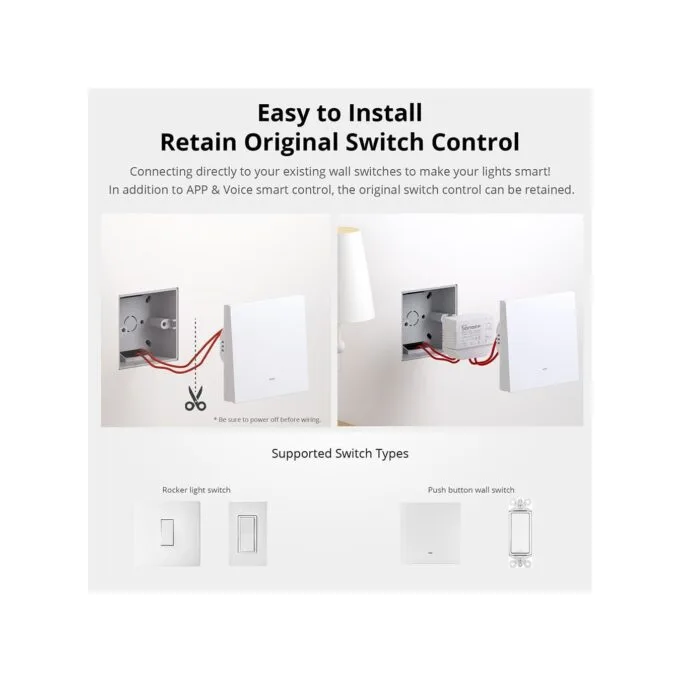

- External Switch Connected : Supported rocker light switch and push-button wall switch
- Compatible with other Zigbee Hubs : Supports being added to any Zigbee hub developed according to the standard protocol, including Amazon Alexa Echo Speaker (Built-in Zigbee Hub), Samsung SmartThings Hub, SONOFF Zigbee Bridge Pro, ZBBridge, SONOFF Zigbee Dongle Plus
- Two-way Control : By installing ZBMINI-L in one of your existing two- or multi-way control junction boxes to make the connected light smart

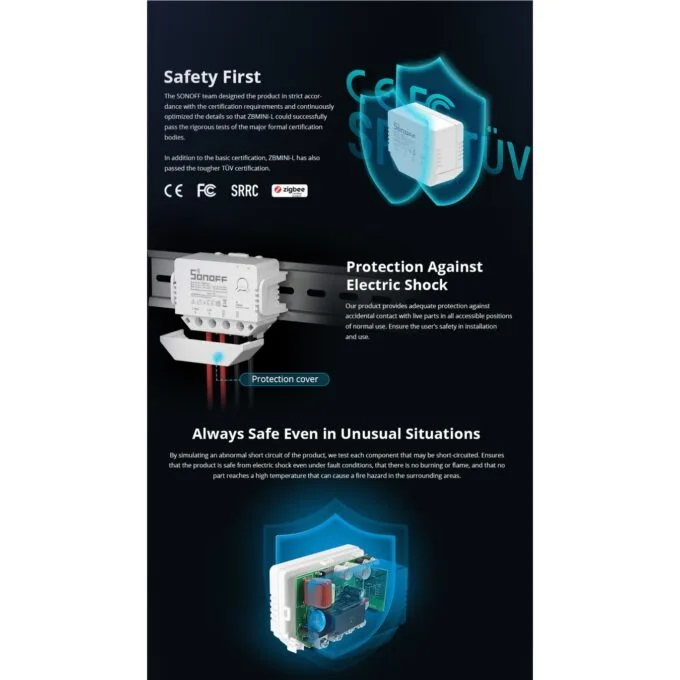

- Safety and Reliability : In addition to the CE, FCC certification, ZBMINI-L has also passed the TÜV certification
- Input : 100-240V/AC/50/60Hz-6A-Max
- Output : 100-240V/AC/50/60Hz-6A-Max
- Max load : Resistive load :1380W Max @230V, 720W Max @120V / LED:300W Max @230V, 150W Max @120V
- Communication distance : Up to 50m (Empty environment)
- Wireless connection : Zigbee 3.0
- Working temperature : -10~40℃
- Casing material : PC V0

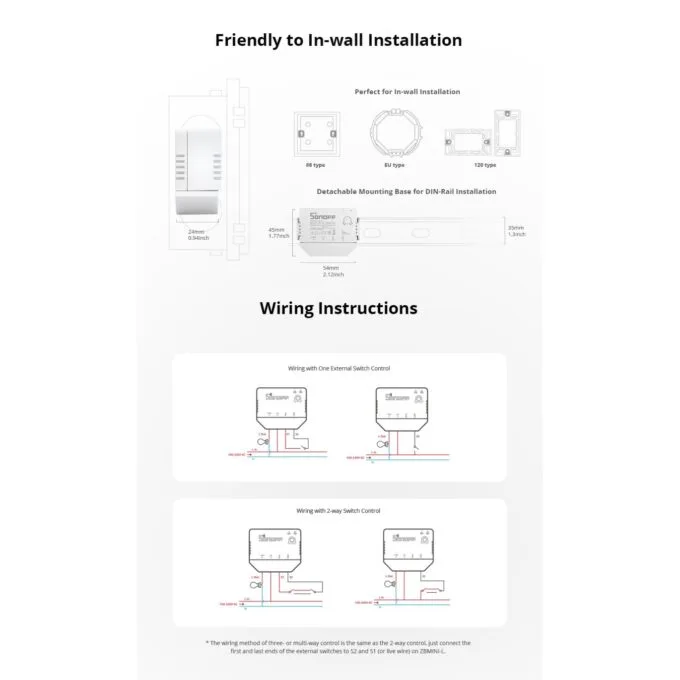

- Product Size : 54x45x24mm
- Certification : TUV/CE/FCC/UKCA/RoHS
| Current | 6A |
| Type | Smart Switch |
| Din Rail Mount | Optional (With DIN Rail Tray) |
| Output | 1 X Line Out/1 X Dry Contact |
| Mode | Interlock/self-locking/inching |
| Wattage | 1380W |
