Smart Home Dimmer
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.

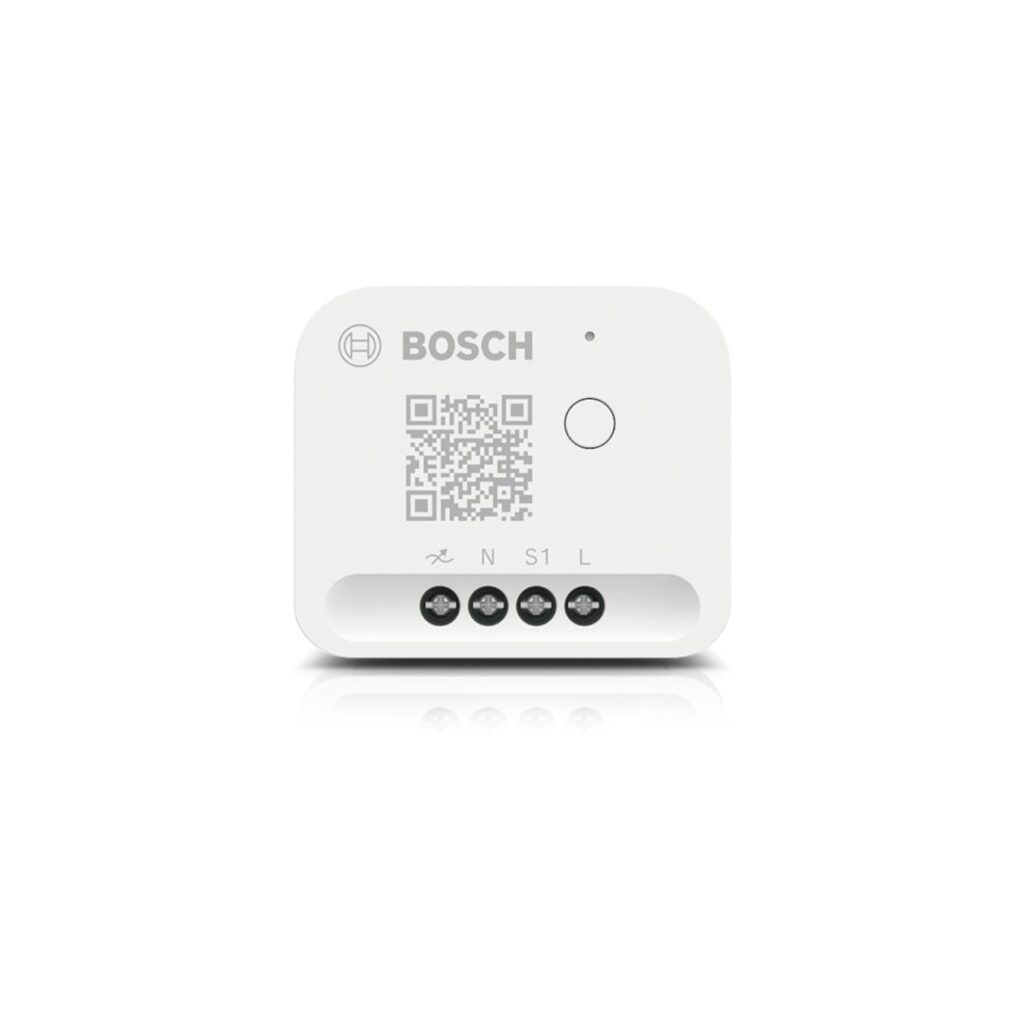

Connects a conventional switch to Bosch Smart Home for smart dimming control.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
With the help of the Bosch Smart Home Dimmer, a conventional button from any switch series manufacturer can be connected and thus made smart. It enables the intelligent control of non-smart, dimmable lamps. Using scenarios or automation, the lighting can be automatically adjusted to your needs – for example, to slowly dim the light when you wake up or to create a cozy atmosphere at sunset.
| Typ | Dimmer |
| EAN | 4062321595999 |
| Manufacturer no. | 8750002080 |
| SmartHome - compatible | Alexa, Zigbee |
| Device properties - device type | Home automation |
| Suitable for | Incandescent lamps, LED, HV halogen lamps, LV halogen lamps |
| Range - Max. Receive (free field) | 70 m |
| Protection - protection class | IP20 |
| Temperature range - operation | -25 - 50 °C |
| Connection type | Funk |
| Radio frequency | from 2,400 MHz to 2,483.5 MHz |
| More information | Protection class II, cable type and cross-section, rigid and flexible cable, 0.75 – 2.5 mm² |
| Notice | Can only be used in combination with the Bosch Smart Home Controller or Controller II |
| Accessories - required | Bosch Smart Home Controller oder Controller II |
| Dimensions | Width: 40.5mm x Height: 47mm x Depth/Length: 22mm |
