Powered Fan Hub-Set NV-SPH1
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
By combining the NV-FH2 8-channel PWM fan hub with the NV-PS1 230/115V 24W power supply, the NV-SPH1 Powered Hub Set is the ideal solution for powering up to eight 12V fans from th…
For any questions about this item, availability, or delivery times, please contact us at 22 270068

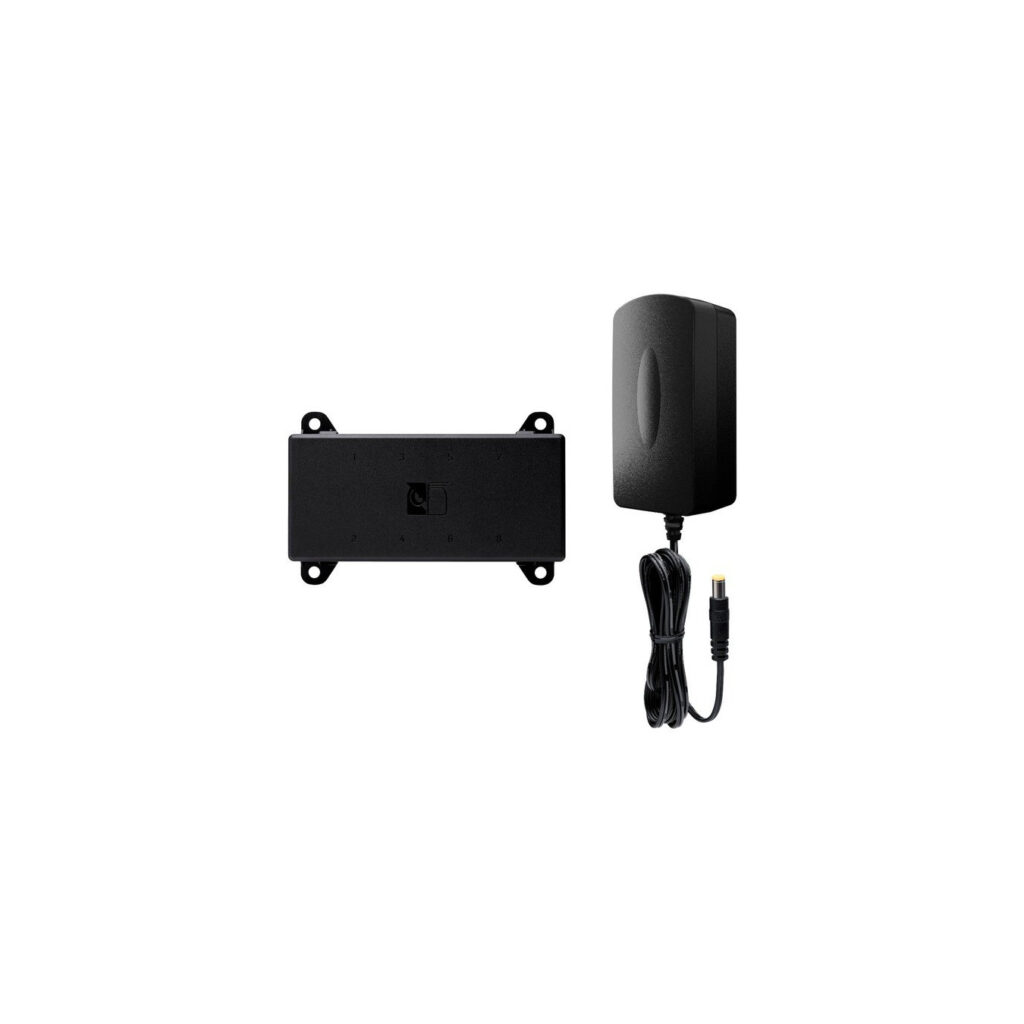

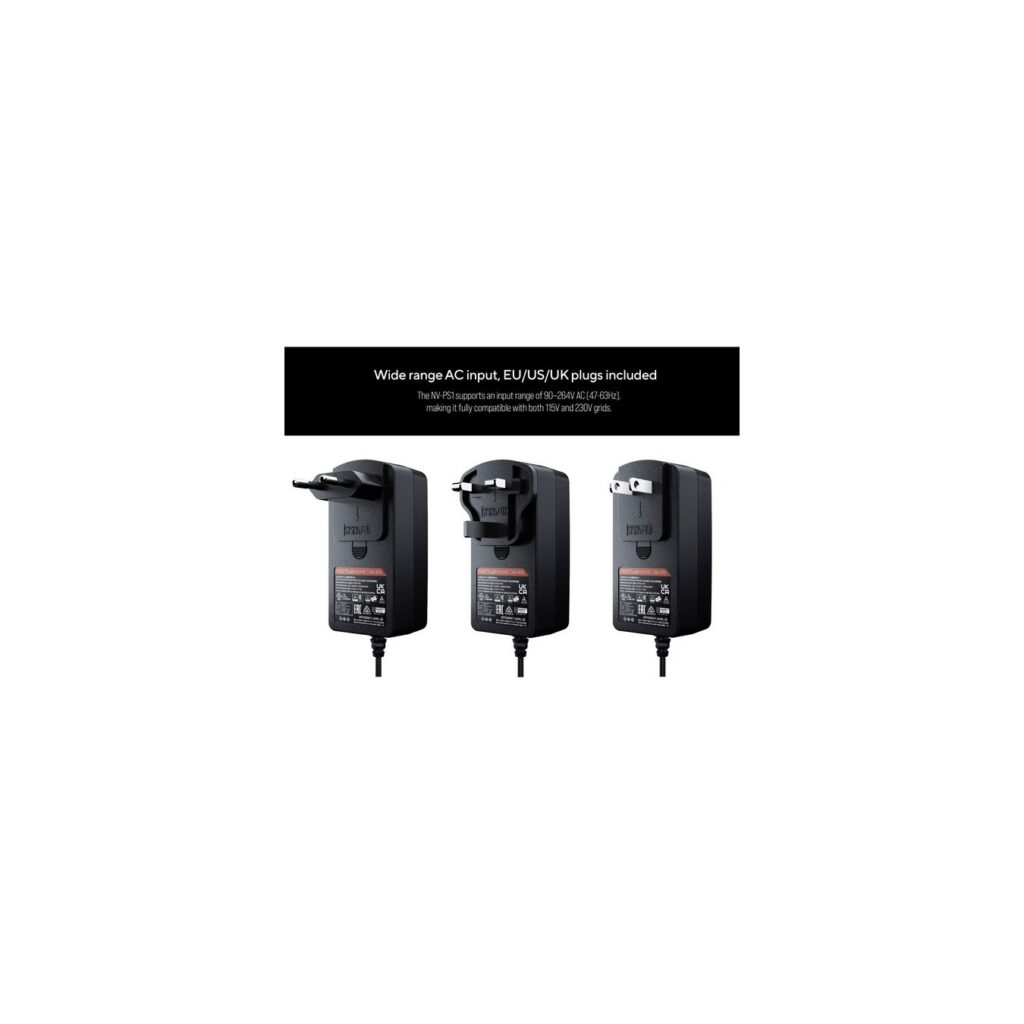

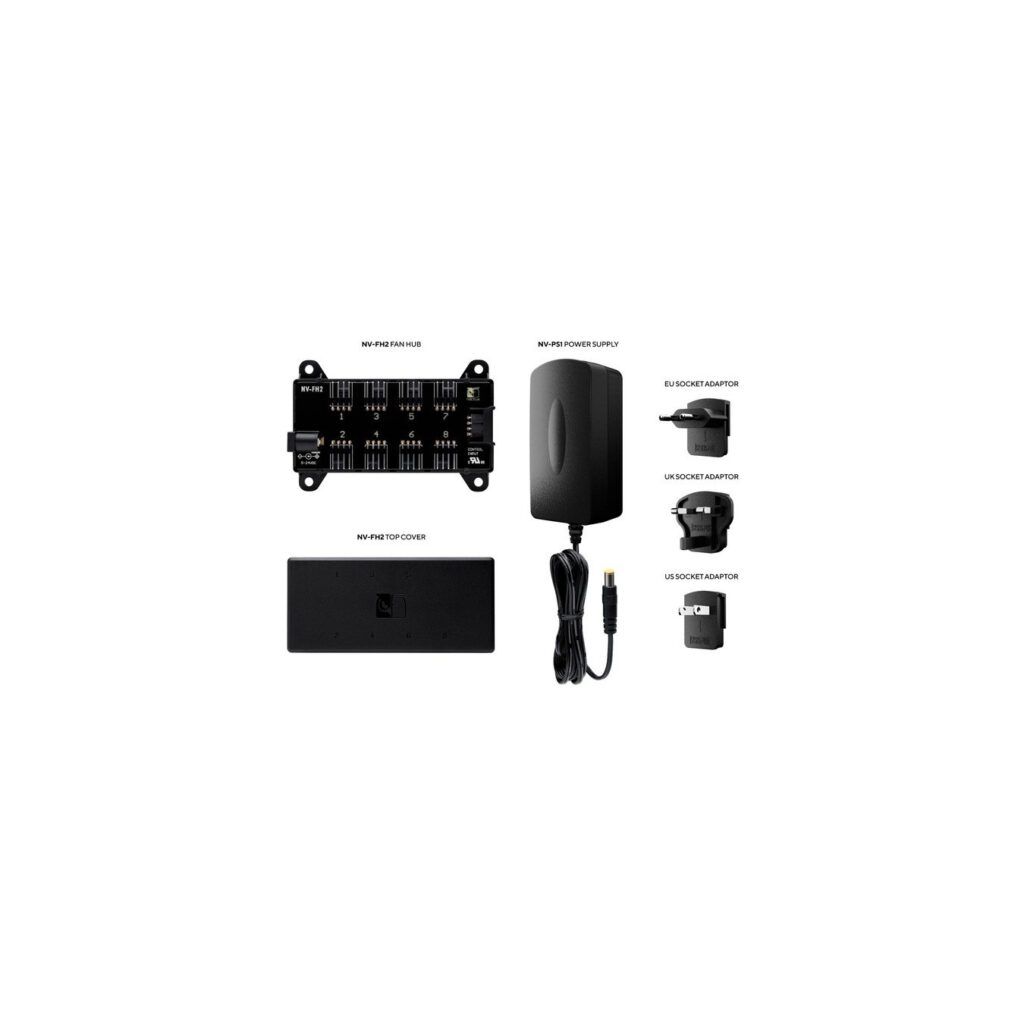

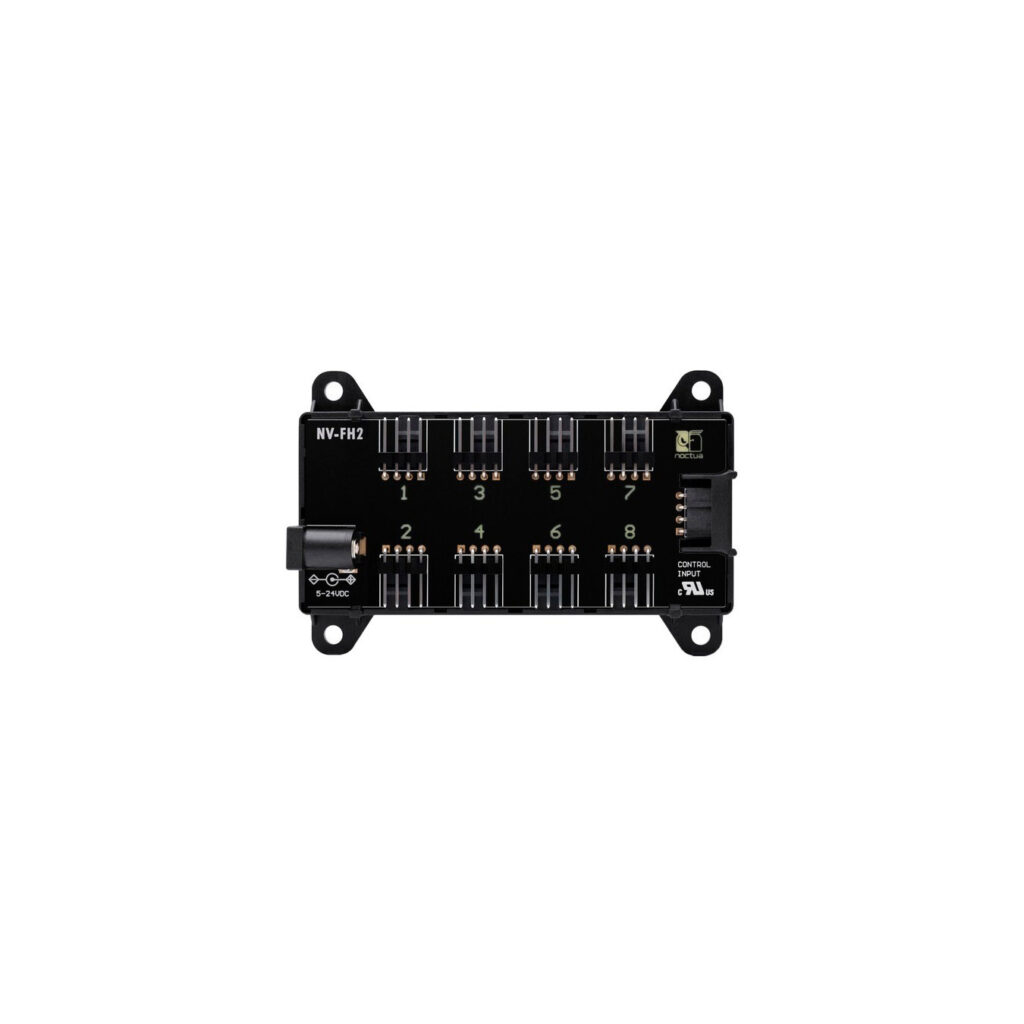

By combining the NV-FH2 8-channel PWM fan hub with the NV-PS1 230/115V 24W power supply, the NV-SPH1 Powered Hub Set is the ideal solution for powering up to eight 12V fans from the mains for home, office or multi-purpose ventilation applications. The NV-PS1 24W wide range input (115/230V) power supply has socket adapters for the EU, UK and USA. For continuous speed control of PWM fans, the optional NA-FC1 controller can be connected to the 4-pin input of the NV-FH2, and if more than eight fans are required, additional NV-FH2 hubs can be connected in series. Both the NV-FH2 and NV-PS1 have CE, UKCA and UL certifications and are fully compliant with all applicable safety standards. The NV-SPH1 is a complete premium set for powering multiple 12V fans via sockets and can be easily expanded with the optional NA-FC1 controller and additional NV-FH2 cards.
| Typ | Hub |
| Color | schwarz |
| EAN | 9010018900170 |
| Manufacturer no. | NV-SPH1 |
| Manufactured in | Taiwan |
| Power supply - input voltage | 90-264 V |
| power source | Power outlet |
| Feature | Protection against overvoltage, overcurrent, short circuit |
| More information | Cable length 1.5 meters, output port 5.5mm outer diameter / 2.1mm inner diameter socket with NA-AC10 4-pin PWM adapter cable |
