PNY Quadro RTX 4000 Ada - 20GB GDDR6 - PCIe 4.0 x16, 4x DisplayPort, SFF, 70W
B2B prices require verification
This is our wholesale store. Log in and verify your business account to see B2B prices, or go to the retail store to view consumer prices.
PNY NVIDIA Quadro RTX 4000 Ada SFF: 20GB GDDR6 (160-bit, 360 GB/s), PCIe 4.0 x16, 4x DisplayPort 1.4a, max 7680×4320@60Hz, 70W TDP, single-fan 2-slot, AD104 GPU w/6144 CUDA cores for pro workflows.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

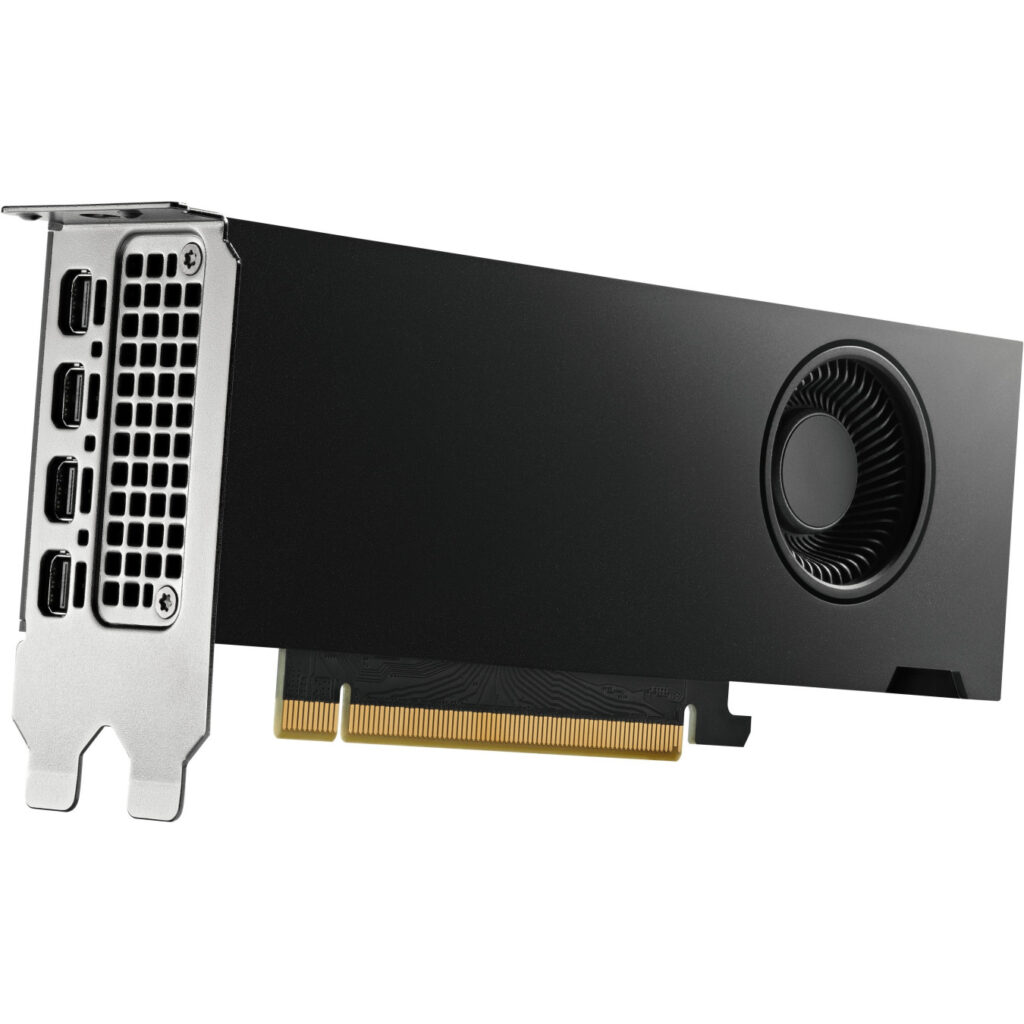

The PNY Quadro RTX 4000 Ada is a small form factor (SFF) professional graphics card powered by NVIDIA’s Ada Lovelace architecture on the AD104 GPU. It features 20GB GDDR6 memory with a 160-bit bus delivering up to 360 GB/s bandwidth, ideal for demanding CAD, visualization, and AI workloads in compact systems.

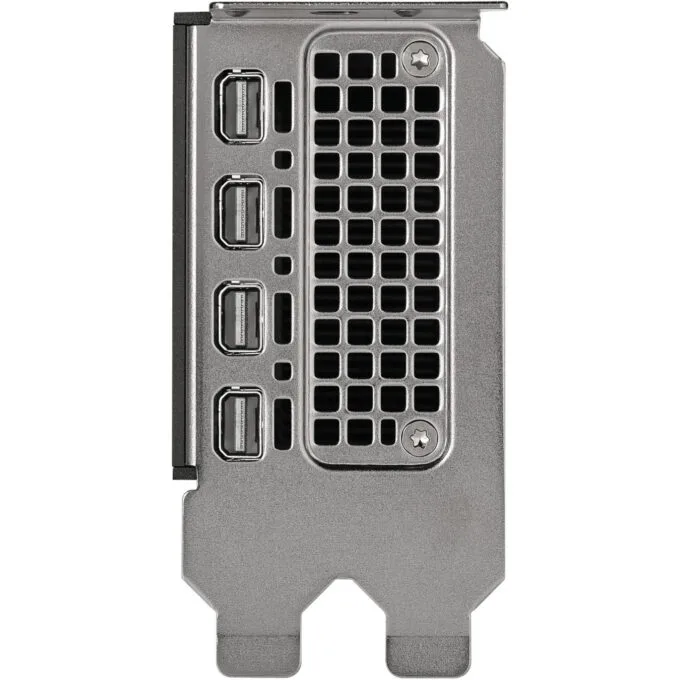

With a low 70W TDP, it draws power directly from the PCIe slot—no external connectors required. The single-fan active cooling solution keeps it efficient in 2-slot configurations (167.6 x 68.5 mm). Supports 4x DisplayPort 1.4a outputs for up to four 8K displays (7680×4320@60Hz), DirectX 12 Ultimate, and OpenGL 4.6.
- 6144 CUDA cores, 48 RT cores, 192 Tensor cores for ray tracing and AI acceleration
- PCIe 4.0 x16 interface for high-speed data transfer
- HDCP 2.2, ECC memory support disabled
- CE/RoHS compliant, single-slot ready for SFF workstations
- Excellent for SolidWorks, V-Ray, Unreal Engine, and Blender
| Graphics processor family | NVIDIA |
| Architecture | Ada Lovelace |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 20 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 160 bit |
| Interface type | PCI Express x16 4.0 |
| DisplayPorts quantity | 4 |
| DisplayPort version | 1.4a |
| OpenGL version | 4.6 |
| HDCP version | 2.2 |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Number of slots | 2 |
| Power consumption (typical) | 70 W |
| Length | 167.6 mm |
| Height | 68.5 mm |
| Power connector | None (PCIe slot-powered) |
| Form factor | SFF / 2-slot |
| Compliance certificates | CE, RoHS |
